# Subdivision spline curves

There is one more point of view on generation of B-spline curves.
The subdivision rules for a degree *M + 1* uniform B-spline curve
(the Lane-Riesenfeld algorithm) are well known [1] and related to the binomial coefficients.
- Start with a piecewise linear curve (the blue one below).
- Insert new vertices at the midpoints (the splitting step)

*P*_{2i}^{0} = P_{i },
P_{2i+1}^{0} = (P_{i} + P_{i+1 })/2.
- Average each vertex with the "next" neighbor
*M* times (the averaging step)

*P*_{i}^{k} = (P_{i}^{k-1}
+ P_{i+1}^{k-1})/2, k = 1,...,M, (*)

where coefficients *(1/2, 1/2)* are called averaging mask.
- Repeat splitting and averaging
*N* times

## Closed spline curves

Here the Lane-Riesenfeld algorithm is applied to a closed spline curve
(i.e. *P*_{N+1} = P_{1 }).
You can change control points of the curve and set new *N, M* values.

The second B-spline is generated by the basis functions.
## Modified subdivision algorithm

It is usefull to combine two averaging steps and rewrite (*) in symmetric form

*P*_{i}^{k} = (P_{i-1}^{k-1}
+ 2 P_{i}^{k-1} + P_{i+1}^{k-1})/4,

with averaging mask *(1/4, 1/2, 1/4)*.
After one averaging (*M = 1*) we get the cubic B-spline.
Now to get a curve with clamped endpoins we use this averaging mask for all points
excluding endpoints. To get a curve with crease at a point we can just exclude
the point from averagings.
## The limit point position and the tangent vector

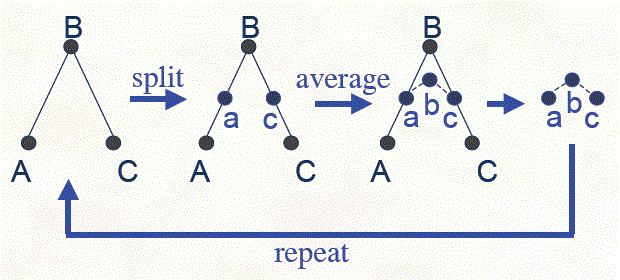

Consider the cubic B-spline subdivision operation for the *ABC* triangle
(*N = 1, M = 1* above). After one iteration we get similar *abc* triangle
and can use the same operation ad infinitum to get the limit position of the *B* point.

One can write this operation in the matrix form, compute its eigenvalues and eigenvectors
and find the limit point position and the tangent vector without infinite subdivisions.
E.g. the evaluation mask for the cubic B-spline is *(1, 4, 1)/6*.
So we can add two more final steps to the subdivision rules
(we will use them for spline surfaces later)
- Use the evaluation mask and push the resulting points to the limit positions.
- Compute the tangents using the tangent mask.

[1] Jos Stam On
Subdivision Schemes Generalizing Uniform B-spline Surfaces of Arbitrary Degree
Computer Aided Geometric Design. March 2001, 18. pp. 383-396.
