Battleships (BB)

Index

As of 1 December 1944

Name No. Class Page
Alabama BB 60 BB 58 Class 71
Arkansas BB 33 BB 33 19
California BB 44 BB 44 51
Colorado BB 45 BB 45 Class 55
Idaho BB 42 BB 42 43
Illinois BB 65 BB 61 Class 79
Indiana BB 58 BB 58 Class 71
Iowa BB 61 BB 61 Class 79
Kentucky BB 66 BB 61 Class 79
Maryland BB 46 BB 45 Class 55
Massachusetts BB 59 BB 59 75
Mississippi BB 41 BB 41 39
Missouri BB 63 BB 61 Class 79
Nevada BB 36 BB 36 27
New Jersey BB 62 BB 61 Class 79
New Mexico BB 40 BB 40 35
New York BB 34 BB 34 Class 23
North Carolina BB 55 BB 55 Class 63
Pennsylvania BB 38 BB 38 31
South Dakota BB 57 BB 57 67
Tennessee BB 43 BB 43 47
Texas BB 35 BB 34 Class 23
Washington BB 56 BB 55 Class 63
West Virginia BB 48 BB 48 59
Wisconsin BB 64 BB 61 Class 79

--17--

[B L A N K]

--18--

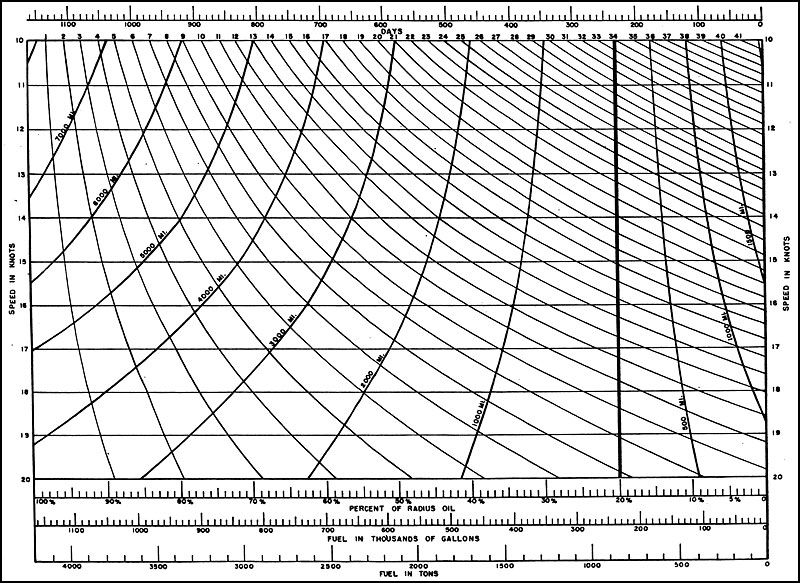

DATA PERIOD 1942-1944 BB 33
Endurance and Radius Chart for War Steady Steaming

Mean Displacement: 31,900 Tons
Fuel in Thousand of Gallons
SHIPS IN CLASS
BB 33

--19--

DATA PERIOD 1942-1944 BB 33
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
Based on Radius Oil
SHIPS IN CLASS
BB 33

Prop.
Speed
Fuel Rate Endurance Speed Radius Speed Radius Fuel Rate Work Column
Mean Normal Range Daily
Mean displacement 31,900 tons† Mean displacement 27,900 tons Mean displacement 31,900 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
160 1,190 1,094-1,291 680±21 978±7 40.8 10.4±0.1 10,520±230 10.3±0.1 10,070±220 115.5
170 1,295 1,191-1,405 740±23 898±7 37.4 11.1±.1 10,400±230 10.9±.1
11.0
9,790±220
9,760
118.8
119.2

180 1,410 1,297-1,529 806±25 825±6 34.4 11.8±.1 10,160±230 11.6±.1 9,570±220 121.6
190 1,536 1,413-1,666 878±27 757±6 31.5 12.5±.1 9,880±230 12.0
12.3±.1
9,420
9,310±220
123.5
124.9

200 1,672 1,538-1,813 955±29 696±6 29.0 13.1±.1 9,510±230 12.9±.1
12.0
8,980±220
8,940
129.6
130.2

210 1,820 1,674-1,974 1,040±32 639±6 26.6 13.8±.2 9,120±230 13.8±.2
14.0
8,690±220
8,460
133.8
137.7

220 1,982 1,823-2,150 1,133±35 587±5 24 5 14.4±.2 8,740±230 14.2±.2 8,340±220 139.6
230 2,158 1,985-2,341 1,233±38 539±5 22.5 15.0±.2 8,370±230 14.8±.2
15.0
7,980±220
7.820
145.8
148.9

240 2,350 2,161-2,549 1,343±41 495±5 20.6 15.5±.2 7,940±230 15.3±.2 7,570±220 153.6
250 2,559 2,354-2,775 1,462±45 455±5 19.0 16.1±.3 7,500±230 15.8±.3
16.0
7,190±220
7,040
162.0
165.6

260 2,786 2,562-3,022 1,592±49 418±5 17.4 16.6±.3 7,100±220 16.3±.3 6,810±210 170.9
270 3,033 2,789-3,290 1,733±53 384±4 12 0 17.2±.3 6,760±190 16.8±.3
17.0
6,450±190
6,310
180.5
184.7

280 3,303 3,038-3,582 1,887±58 352±4 14.7 17.7±.3 6,390±190 17.3±.3 6,090±180 190.9
290 3,596 3,307-3,900 2,055±63 324±4 13.5 18.3±.3 6,080±180 17.9±.3
18.0
5,800±170
5,730
200.9
202.3

300 3,916 3,602-4,247 2,238±69 297±4 12.4 18.9±.3 5,760±170 18.4±.3 5,460±170 212.8
310 4,263 3,921-4,624 2,436±75 273±4 11.4 19.5±.3 5,460±170 19.0±.3 5,190±160 224.4
320 4,642 4,269-5,035 2,653±81 251±4 10.5 20.1±.3 5,170±160 19.6±.3
20.0
4,920±160
4,740
236.8
245.7

330 5,054 4,648-5,482 2,888±89 230±4 9.6 20.7±.3 4,890±160 ‡20.2±.3 4,650±160 250.2
*See table V.   † Mean displacement during data period.   § Estimated speed at designed shaft horsepower (36,000 s.h.p.).

--20--

DATA PERIOD 1942-1944 BB 33

SHIPS IN CLASS
BB 33

Table II.--War Logistics Data: Underway Averages

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
226.3 14.6 1,329±261 20.8±1.2
*Based on radius oil; see table V.

Table III.--War Logistics Data: Not Underway

Fuel rate Endurance*
Gal./hr. Bbl./day Days
279 159 173.8
*Based on radius oil; see table V.

Table IV.--Propeller Specifications

[NOTE: All underway data are based on the propellers specified below. In case of a propeller change see discussion of table IV in Introduction.]
Number of propellers Number of blades Diameter Pitch
2 inboard   3 9'7" 8'25/16
2 outboard 3 9'7" 8'25/16

Table V.--Fuel Capacities

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,163,400 27,700 4,200
Diesel oil capacity (95%)             0           0         0
Total: radius oil* 1,163,400 27,700 4,200
Additional fuel oil required to fill all tanks to 95% (emergency)   339,325   8,079 1,225
Total: maximum capacity (95%)† 1,502,725 35,779 5,425
§ Based on considerations of cruising radius and power of survival as affected by reserve buoyancy.
* In tables I, II, and III, endurance and radius are based on radius oil.
† In table IA endurance and radius are based on maximum capacity (95%).

Conversion factors:

Table IA.--War Logistics Data for Steady Steaming

Based on Maximum Capacity (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to udnerwater damage. Thisx table is made available to the commander asx a supplement to table I Ifor use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 31,900 tons
Knots Engine miles Days Bbl./day
11 12,610 47.8 749
12 12,170 42.2 847
13 11,550 37.1 967
14 10,930 32.6 1,102
15 10,100 28.0 1,277
16 9,090 23.8 1,514
17 8,150 20.0 1,795
18 7,400 17.2 2,92
19 6,700 14.7 2,436
20 6,120 12.8 2,810
* See table V.

--21--

[B L A N K]

--22--

DATA PERIOD 1942-1944 BB 34 CLASS
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 32,200 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 34, 35

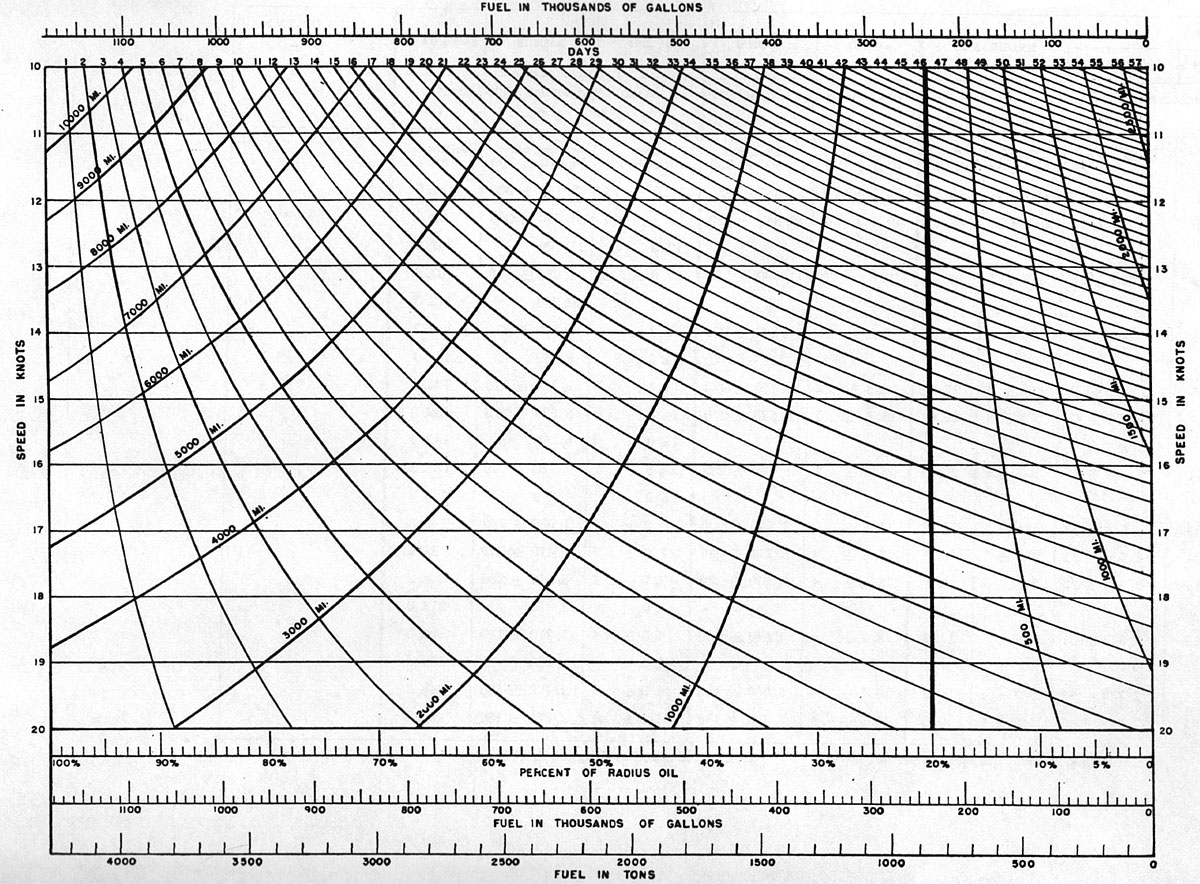

Chart: BB 34 ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--23--

DATA PERIOD 1942-1944 BB 34 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 34, 35
PROP-SPEED FUEL BATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 32,200 tons† Mean displacement 28,200 tons Mean displacement 32,200 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./Hr. Gal./Hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
60 884 806-967 505±17 1,340±9 55.8 10.3±0.1 14,600±320 10.2±0.1 13,670±300 86.7
65 1,018 928-1,114 582±20 1,163±8 48.5 11.1±.1 13,660±320 11.0±.1 12,790±300 92.5
70 1,171 1,067-1,281 669±23 1,011±8 42.1 12.0±.2 12,840±320 11.8±.2
12.0
11,930±300
11,720
99.2
101.2

75 1,348 1,228-1,475 770±26 879±7 36.6 12.8±.2 11,900±280 12.6±.2
13.0
11,080±270
10,550
107.0
112.5

80 1,552 1,414-1,698 887±30 763±7 31.8 13.5±.2 10,890±270 13.3±.2
14.0
10,150±270
9,450
116.7
125.4

85 1,787 1,628-1,955 1,021±35 663±6 27.6 14.3±.2 9,750±270 14.1±.2 9,350±270 126.7
90 2,057 1,874-2,250 1,175±40 576±6 24.0 15.0±.3 8,880±270 14.8±.3
15.0
8,520±270
8,300
139.0
142.9

95 2,368 2,158-2,591 1,353±46 500±5 20.8 15.8±.3 8,140±260 15.5±.3
16.0
7,750±230
7,240
152.8
163.9

100 2,726 2,484-2,982 1,558±53 434±5 18.1 16.5±.3 7,380±230 16.2±.3 7,030±230 168.3
105 3,139 2,860-3,434 1,794±61 377±5 15.7 17.3±.3 6,712±230 17.0±.3 6,410±230 184.6
110 3,615 3,294-3,955 2,066±70 328±6 13.7 18.1±.4 6,100±230 17.7±.4
18.0
5,810±230
5,610
204.2
212.0

115 4,162 3,792-4,553 2,378±81 285±4 11.9 18.9±.4 5,540±200 18.5±.4
19.0
5,270±190
4,960
225.0
239.6

120 4,793 4,367-5,244 2,739±93 247±4 10.3 19.7±.4 5,000±190 19.3±.4 4,770±180 248.3
121 4,931 4,493-5,395 2,818±96 240±4 10.0 19.8±.4 4,890±180 ‡19.4±.4 4,660±180 254.2

* See table V. † Mean displacement during data period. ‡ Estimated speed at designed shaft horsepower (28,100 s.h.p.).

--24--

DATA PERIOD 1942-1944
BB 34 CLASS
SHIPS IN CLASS:
BB 34, 35

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
82.3 13.7 1,158 ± 318 24.4 ± 1.9

* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
174 99 283.6
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below. In the case of ships whose propellers do not conform to these specifications see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 3 18'73/4" 19'111/2"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil 1,163,400 27,700 4,200
Diesel oil capacity (95%)§ 21,038 5,009 67
Total: radius oil*. 1,184, 438 32,709 4,267
Additional fuel oil required to fill all tanks to 95% (emergency) 332,400 7,914 1,200
Total: maximum capacity (95%)† 1,516,838 40,623 5,467

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 33,200 tons
Knots Engine miles Days Bbl./day
11 16,380 62.1 582
12 15,010 52.1 694
13 13,510 43.4 837
14 12,100 36.0 1,004
15 10,630 29.6 1,226
16 9,270 24.2 1,499
17 8,210 20.1 1,794
18 7,180 16.6 2,183
19 6,350 14.0 2,604

* See table V.

Table VI.--STEADY STEAMING MEAN FUEL RATE RATIOS*

Ship Average displacement Fuel rate ratio--Ship: Class
60 R.P.M. 75 R.P.M. 90 R.P.M. 105 R.P.M. 130 R.P.M.
  Tons Percent Percent Percent Percent Percent
U.S.S. New York BB 34 32,500 94.2 96.3 98.5 100.6 102.8
U.S.S. Texas BB 35 31,900 105.8 103.7 101.5 99.4 97.2

* Table VI is used to adjust the class data in tables I and IA to individual ships. The ratios were obtained by dividing the steady steaming mean fuel rates of the indicated ships by the corresponding mean fuel rates given in column (2) of table I.

--25--

[B L A N K]

--26--

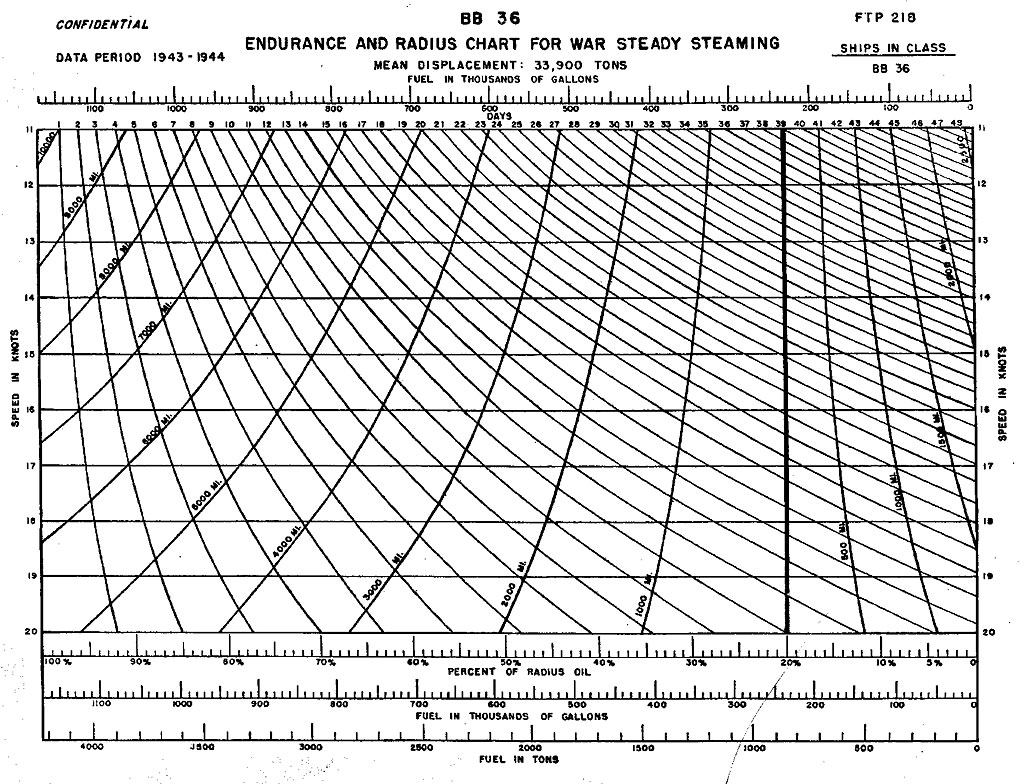

DATA PERIOD 1943-1944 BB 36
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 33,900 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 36

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--27--

DATA PERIOD 1943-1944 BB 36
Table I.--War Logistics Data for Steady Steaming
Based on Radius Oil*
SHIPS IN CLASS:
BB 36
PROP. SPEED FUEL BATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 33,900 tons† Mean displacement 29,900 tons Mean displacement 33,900 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
140 1,016 928-1,109 581 ± 19 1,152±8 48.0 11.2±0.1 13,340±300 11.1±0.1 12,790±300 91.5
150 1,133 1,035-1,237 647±21 1,033±7 43.0 12.0±.1 12,820±300 11.9±.1 12,290±300 95.2
                12.0 12,220 95.7
160 1,263 1,154-1,379 722±24 927±7 38.6 12.8±.2 12,250±300 12.7±.2 11,770±300 99.4
                13.0 11,560 101.2
170 1,408 1,286-1,537 805±27 831±7 34.6 13.6±.2 11,680±300 13.5±.2 11,220±300 104.3
                14 0 10,760 108.8
180 1,571 1,435-1,715 898±30 745±6 31.0 14 4±.2 10,960±300 14 2±.2 10,580±300 110.6
190 1,751 1,599-1,912 1,001±33 668±6 27.8 15.2±.3 10,380±300 15.0±.3 10,020±300 116.7
200 1,953 1,784-2,132 1,116±37 599±6 25.0 15.9±.3 9,730±290 15.7±.3 9,400±280 124 4
                16.0 9,200 127.2
210 2,178 1,989-2,378 1,245±41 537±6 22.4 16.7±.3 9,170±270 16.5±.3 8,860±270 132.0
                17.0 8,450 138.6
220 2,428 2,218-2,651 1,387±46 482±5 20.1 17.5±.3 8,630±240 17.2±.3 8,290±240 141.2
230 2,707 2,472-2,955 1,547±51 432±5 18.0 18 3±.3 8,090±230 18 0±.3 7,780±230 150.4
240 3,019 2,757-3,296 1,725±57 388±5 16.2 19.1±.3 7,660±220 18.7±.3 7,260±220 161.4
                19.0 7,140 164.2
246 3,223 2,944-3,519 1,842±61 363±5 15.1 19.6±.3 7,350±220 ‡19.3±.3 7,010±210 167.0
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (30,000 s.h.p.).

--28--

DATA PERIOD 1943-1944 BB 36
Table I.--War Logistics Data for Steady Steaming
Based on Radius Oil*
SHIPS IN CLASS:
BB 36

Table II-- WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rata Endurance*
R.P.M. Knots Bbl./day Day
175.7 13.9 911±160 30.6±1.3
*Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
214 122 227.9
*Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

(NOTE: All underway data are based on the propellers specified below.
In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 3 13' 0" 10' 9 5/8"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,163,400 27,700 4,200
Diesel oil capacity (95%) 6,908 164 22
Total: radius oil* 1,170,308 27,864 4,222
Additional fuel oil required to fill all tanks to 95% (emergency). 120,772 2,876 436
Total: maximum capacity (95%)† 1,291,080 30,740 4,658

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 33,000 tons
Knots Engine miles Days Bbl./day
12 13,480 46.8 656
13 12,750 40.9 753
14 11,870 35.3 871
15 11,050 30.7 1,001
16 10,150 26.5 1,164
17 9,320 22.9 1,346
18 8,580 19.9 1,547
19 7,880 17.2 1,784

* See table V.

--29--

[B L A N K]

--30--

DATA PERIOD 1941-1942 BB 38
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 33,900 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 38

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--31--

DATA PERIOD 1941-1942 BB 38
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
Based on Radius Oil*
SHIPS IN CLASS:
BB 38
PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 40,300 tons† Mean displacement 36,300 tons Mean displacement 40,300 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
110 1,079 988-1,175 617±20 1,125±8 46.9 11.3±0.2 13,050±330 11.2±0.2 12,600±320 96.3
115 1,154 1,057-1,257 659±21 1,052±7 43.8 11.8±.2 12,760±310 11.7±.2 12,310±300 98.6
                12.0 12,120 100.1
120 1,234 1,130-1,344 705±23 984±7 41.0 12.3±.2 12,440±300 12.2±.2 12,000±300 101.1
125 1,319 1,208-1,436 754±24 920±7 38.3 12.9±.2 12,190±300 12.7±.2 11,680±300 103.9
                13.0 11,490 105.6
130 1,410 1,291-1,535 806±26 861±7 35.9 13.4±.2 11,850±300 13.2±.2 11,370±300 106.8
135 1,507 1,380-1,641 861±28 805±6 33.5 13.9±.2 11,500±300 13.7±.2 11,030±300 110.0
                14.0 10,830 112.1
140 1,611 1,475-1,754 921±30 753±6 31.4 14.4±.2 11,150±300 14.2±.2 10,690±300 113.5
145 1,723 1,578-1,876 985±32 705±6 29.4 14.9±.2 10,790±300 14.7±.2 10,360±300 117.2
                16.0 10,160 119.8
150 1,842 1,687-2,006 1,053±34 659±6 27.5 15.4±.3 10,430±300 15.2±.3 10,020±300 121.2
155 1,969 1,803-2,144 1,125±36 616±6 25.7 15.9±.3 10,060±290 15.7±.3 9,670±290 125.4
                16.0 9,380 129.4
160 2,105 1,928-2,292 1,203±39 577±6 24.0 16.3±.3 9,650±280 16.1±.3 9,290±280 130.7
165 2,251 2,062-2,451 1,286±41 539±5 22.5 16.7±.3 9,250±280 16.5±.3 8,890±260 136.4
170 2,406 2,204-2,620 1,375±44 505±5 21.0 17.1±.3 8,860±280 16.9±.3 8,530±260 142.4
                17.0 8,470 143.5
175 2,572 2,356-2,801 1,470±47 472±5 19.7 17.6±.3 8,540±280 17.4±.3 8,210±260 147.8
180 2,750 2,519-2,994 1,571±51 441±5 18.4 18.1±.4 8,200±280 17.8±.3 7,850±260 154.5
                18.0 7,730 157.0
185 2,940 2,693-3,201 1,680±54 413±5 17.2 18.6±.4 7,890±270 18.3±.4 7,560±260 160.7
190 3,143 2,879-3,422 1,796±58 386±5 16.1 19.1±.4 7,580±260 18.8±.4 7,260±260 167.2
                19.0 7,100 171.1
195 3,360 3,077-3,659 1,920±62 361±4 15.0 19.5±.3 7,230±220 19.2±.3 6,930±190 175.0
200 3,593 3,291-3,912 2,053±66 338±4 14.1 19.9±.3 6,910±190 19.6±.3 6,620±190 183.3
205 3,841 3,518-4,182 2,195±71 316±4 13.2 20.2±.3 6,460±180 20.0±.3 6,320±180 192.0
210 4,106 3,761-4,471 2,346±76 296±4 12.3 20.5±.3 6,150±180 20.3±.3 6,010±180 202.3
215 4,390 4,021-4,780 2,509±81 277±4 11.5 20.7±.3 5,800±170 ‡20.5±.3 5,680±170 214 1
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (33,370 s.h.p.).

--32--

DATA PERIOD 1941-1942 BB 38 SHIPS IN CLASS:
BB 38

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
152.7 15.5 1,125±115 25.7±0.7
*Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
156 89 324 2
*Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12'9" 11'3"
2 outboard 3 12'9" 11'3"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,189,992 28,333 4,296
Diesel oil capacity (95%) 23,864 568 76
Total: radius oil*. 1,213,856 28,901 4,372
Additional fuel oil required to fill all tanks to 95% (emergency) 414,946 9,880 1,498
Total: maximum capacity (95%)† 1,628,802 38,781 5,870

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increase radius at the expense of resistance to underwater damage. This table is made available to the commander an a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 40,300 tons
Knots Engine miles Days Bbl./day
12 16,260 56.5 687
13 15,420 49.5 785
14 14,530 43.2 897
15 13,630 38.0 1,026
16 12,590 32.7 1,184
17 11,370 27.8 1,394
18 10,370 24.0 1,615
19 9,530 20.9 1,858
20 8,480 17.7 2,195

*See table V.

--33--

[B L A N K]

--34--

DATA PERIOD 1943-1944 BB 40
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 33,900 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 40

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--35--

DATA PERIOD 1943-1944 BB 40
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS:
BB 40
PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 39,800 tons† Mean displacement 35,800 tons Mean displacement 39,800 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
130 1,115 992-1,247 637±27 1,025±9 42.7 12.1±0.1 12,690±310 12.0±0.1 12,300±300 92.9
135 1,183 1,053-1,323 676±29 966±9 40.2 12.5±.1 12,360±310 12.4±.1 11,980±300 95.4
140 1,256 1,118-1,405 718±31 910±9 37.9 13.0±.2 12,260±310 12.9±.2 11,740±300 97.4
                13.0 11,690 97.8
145 1,332 1,185-1,490 761±32 858±9 35.8 18.5±.2 12,000±310 13.4±.2 11,500±300 99.4
150 1,414 1,258-1,581 808±34 808±8 33.7 18.9±.2 11,650±300 13.8±.2 11,150±280 102.5
                14.0 10,980 104.0
155 1,500 1,335-1,677 857±36 762±8 31.8 14.4±.2 11,360±280 14.2±.2 10,820±270 105.6
160 1,592 1,417-1,780 910±39 718±8 29.9 14.8±.2 11,010±270 14.6±.2 10,480±270 109.0
                15.0 10,260 111.3
165 1,690 1,504-1,890 966±41 676±8 28.2 15.3±.2 10,730±270 15.1±.2 10,210±260 111.9
170 1,793 1,596-2,005 1,025±44 637±8 26.5 18.7±.2 10,380±260 15.5±.2 9,870±260 115.7
175 1,902 1,693-2,127 1,087±46 601±7 25.0 16.1±.2 10,010±250 15.9±.2 9,560±240 119.6
                18 0 9,480 120.7
180 2,019 1,797-2,258 1,154±49 566±7 23.6 16.5±.2 9,690±250 18 3±.2 9,230±240 123.9
185 2,142 1,906-2,395 1,224±52 534±7 22.2 16.9±.2 9,350±250 16.7±.2 8,920±240 128.3
                17.0 8,600 133.0
190 2,300 2,047-2,572 1,314±56 497±7 20.7 17.3±.2 8,960±250 17.1±.2 8,500±240 134.5
195 2,463 2,192-2,754 1,407±60 464±6 19.3 17.7±.2 8,550±250 17.5±.2 8,120±240 140.7
200 2,637 2,347-2,949 1,507±64 433±6 18.0 18.2±.3 8,230±250 17.9±.3 7,750±240 147.3
                18.0 7,660 149.0
205 2,823 2,512-3,157 1,613±69 405±6 18.9 18.6±.3 7,740±240 18.3±.3 7,410±240 154.3
210 3,022 2,689-3,380 1,727±73 378±6 15.8 19.0±.3 7,390±240 18.7±.3 7,070±230 161.6
                19.0 6,900 165.7
215 3,236 2,880-3,619 1,849±79 353±6 14.7 19.5±.3 7,080±230 19.2±.3 6,780±230 168.5
220 3,464 3,083-3,874 1,979±84 330±6 13.8 19.9±.3 6,750±230 19.6±.3 6,470±220 176.7
225 3,709 3,301-4,148 2,119±90 308±5 12.8 20.2±.3 6,300±200 19.9±.3 6,130±200 186.4
                20.0 6,060 188.7
230 3,971 3,534-4,441 2,269±96 288±5 12.0 20.6±.3 6,020±200 20.3±.3 5,850±190 195.6
235 4,251 3,783-4,754 2,429±103 269±5 11.2 20.9±.3 5,680±190 20.6±.3 5,540±190 206.4
240 4,552 4,051-5,091 2,601±111 251±5 10.5 21.2±.3 5,410±190 20.9±.3 5,250±190 217.8
                21.0 5,180 220.8
244 4,807 4,278-5,376 2,747±117 238±5 9.9 21.5±.3 5,120±190 21.2±.3 5,050±180 226.7
247 5,008 4,457-5,600 2,862±122 228±5 9.5 21.6±.3 4,920±180 ‡21.3±.3 4,860±180 235.1
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (43,900 s.h.p.).

--36--

DATA PERIOD 1943-1944 BB 40 SHIPS IN CLASS:
BB 40

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
163.7 15.0 998±157 27.3±1.1

*Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
199 114 239.2

*Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

NOTE: All underway data are based on the propellers specified below. In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12'4" 10'41/2"
2 outboard 3 12'4" 10'41/2"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity § 1,129,883 26,902 4,079
Diesel oil capacity (95%) 12,874 307 41
Total: radius oil*. 1,142,757 27,209 4,120
Additional fuel oil required to fill all tanks to 95% (emergency) 391,401 9,319 1,413
Total: maximum capacity (95%)† 1,534,158 36,528 5,533

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 39300 tons
Knots Engine miles Days Bbl./day
12 16,510 57.3 637
13 15,690 50.3 727
14 14,740 44.0 832
10 13,770 38.3 955
16 12,730 33.0 1,104
17 11,550 28.3 1,292
18 10,280 23.8 1,534
19 9,260 20.3 1,800
20 8,140 16.9 2,156
21 6,950 18 8 2,650
*See table V.

--37--

[B L A N K]

--38--

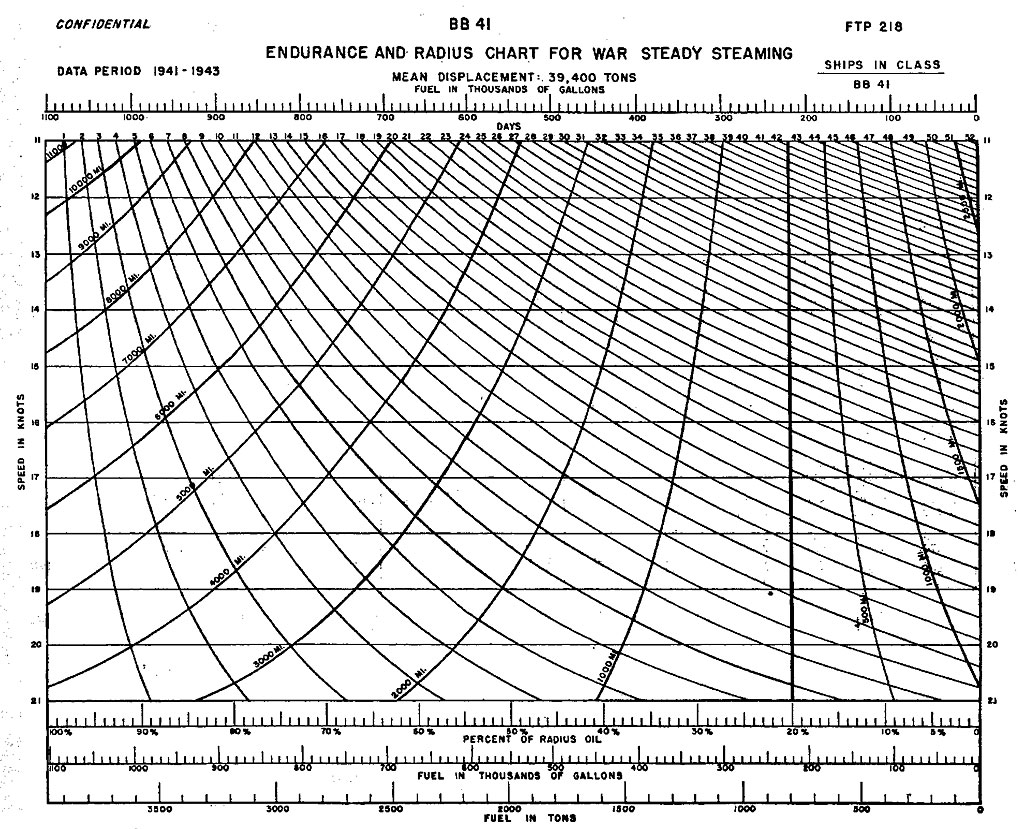

DATA PERIOD 1941-1943 BB 41
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 41

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--39--

DATA PERIOD 1941-1943 BB 41 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 41
PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 39,400 tons† Mean displacement 35,400 tons Mean displacement 39,400 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
130 942 859-1,030 538±18 1,170±8 48.8 11.6±0.1 13,950±330 11.5±0.1 13,460±320 81.9
13S 1,009 920-1,104 577±20 1,092±8 48.5 12.0±.2 13,460±330 11.9±.2 12,990±320 84.8
  1,081 985-1,182           12.0 12,880 85.6
140     618±21 1,019±8 42.5 12.4±.2 13,000±320 12 3±.2 12,530±310 87.9
145 1,158 1,056-1,267 662±22 952±7 39.7 12.9±.2 12,630±300 12.7±.2 12,090±290 91.2
  1,240 1,130-1,356 709±24         13.0 11,760 93.8
150       889±7 37.0 18.3±.2 12,160±300 13.1±.2 11,650±280 94.7
155 1,328 1,210-1,452 759±26 830±7 34.6 18.7±.2 11,690±300 13.5±.2 11,200±280 98.4
160 1,422 1,296-1,555 813±28 775±7 32.3 14.2±.2 11,300±300 14.0±.2 10,850±280 101.6
165 1,524 1,389-1,667 871±30 723±6 30.1 14.6±.2 10,860±300 14.4±.2 10,410±280 105.8
170 1,632 1,488-1,785 933±32 675±6 28.1 15.0±.3 10,410±300 14.8±.2 9,990±280 110.3
  1,748 1,593-1,912           15.0 9,780 112.8
175     999±34 630±6 28.2 18 4±.3 9,980±290 18 2±.2 9,580±280 115.0
180 1,872 1,706-2,047 1,070±36 589±6 24.5 16.8±.3 9,560±280 15.6±.3 9,190±280 120.0
185 2,006 1,828-2,194 1,146±39 549±6 22.9 16.3±.3 9,210±280 16.0±.3 8,780±270 125.4
190 2,148 1,958-2,349 1,227±42 513±6 21.4 16.7±.3 8,800±280 16.4±.3 8,410±260 131.0
195 2,301 2,097-2,517 1,315±45 479±5 20.0 17.1±.3 8,410±280 16.8±.3 8,050±240 137.0
                17.0 7,920 139.2
200 2,464 2,246-2,695 1,408±48 447±5 18.6 17.6±.4 8,100±280 17.3±.3 7,730±240 142.4
205 2,640 2,406-2,887 1,509±51 417±5 17.4 18.0±.4 7,720±270 17.7±.3 7,380±240 149.2
                18.0 7,140 154.4
210 2,828 2,578-3,093 1,616±55 390±5 18.2 18.4±.4 7,380±260 18.1±.3 7,060±240 158.2
215 3,028 2,760-3,312 1,730±59 364±5 18.2 18.9±.4 7,070±250 18.6±.3 6,770±240 162.8
220 3,244 2,957-3,548 1,854±63 340±5 14.2 19.3±.4 6,740±240 19.0±.4 6,460±240 170.7
225 3,475 3,167-3,801 1,986±67 317±4 18.2 19.7±.4 6,340±210 19.4±.4 6,150±210 179.1
230 3,722 3,393-4,071 2,127±72 296±4 12.3 20.0±.4 6,000±210 19.7±.4 5,830±200 188.9
                20.0 5,620 196.0
235 3,986 3,633-4,360 2,278±77 276±4 11.5 20.4±.4 5,710±200 20.1±.4 5,550±200 198.3
240 4,270 3,892-4,670 2,440±83 258±4 10.8 20.7±.3 5,420±170 20.4±.3 5,260±170 209.3
245 4,573 4,168-5,002 2,613±89 241±4 10.0 21.0±.3 5,120±160 20.7±.3 4 990±160 220.9
250 4,899 4,465-5,358 2,799±95 225±4 9.4 21.3±.3 4,860±160 21.0±.3 4,720±160 233.3
251 4,966 4,527-5,431 2,838±96 222±4 9.2 21.3±.3 4,790±160 ‡21.0±.3 4,660±160 236.5
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (42,000 s.h.p.).

--40--

DATA PERIOD 1941-1943
BB 41 CLASS
SHIPS IN CLASS:
BB 41

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl/day Days
171.7 14.9 1,053±237 24.9±1.6
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
146 83 314.5
*Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below. In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12'3" 10'0"
2 outboard 3 12'3" 10'0"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,089,995 25,952 3,935
Diesel oil capacity (95%) 11,932 284 38
Total: radius oil*. 1,110,927 26,236 3,973
Additional fuel oil required to fill all tanks to 95% (emergency) 399,157 9,504 1,441
Total: maximum capacity (95%)† 1,501,084 35,740 5,414

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 31,400 tons
Knots Engine miles Days Bbl./day
12 17,550 61.0 587
13 16,020 51.4 697
14 14,780 44.0 813
15 13,320 37.1 966
16 11,960 31.2 1,146
17 10,790 26.4 1,352
18 9,730 22.5 1,589
19 8,800 19.3 1.854
20 7,660 15.9 2,240
21 6,430 12.8 2,799
* See table V.

--41--

[B L A N K]

--42--

DATA PERIOD 1941-1943 BB 42
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 42

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--43--

DATA PERIOD 1941-1943 BB 42 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 42
PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 39,800 tons† Mean displacement 35,800 tons Mean displacement 30,800 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
130 1,013 938-1,091 579±16 1,106±7 46.1 12.1±0.1 13,750±290 12.0±0.1 13,270±280 84.4
135 1,084 1,004-1,168 619±17 1,033±6 43.0 12.5±.1 13,280±290 12.4±.1 12,810±280 87.4
140 1,161 1,075-1,251 663±10 965±6 40.2 13.0±.2 13,060±290 12.9±.2 12,450±280 90.0
                13.0 12,370 90.6
145 1,243 1,151-1,339 710±20 901±6 37.5 13.5±.2 12,680±270 13.4±.2 12,070±270 92.8
150 1,331 1,233 -1,434 761±21 841±6 35.0 13.9±.2 12,190±260 13.8±.2 11,610±260 96.4
                14.0 11,380 98.4
155 1,425 1,329-1,535 814±23 786±6 32.8 14.4±.2 11,790±260 14.2±.2 11,160±250 100.4
160 1,525 1,412-1,643 871±25 734±5 30.6 14.8±.2 11,320±250 14.6±.2 10,720±230 104.5
                15.0 10,430 107.4
165 1,633 1,512-1,759 933±26 686±0 28.6 15.3±.2 10,920±230 15.1±.2 10,360±220 108.1
170 1,748 1,619-1,883 999±28 641±5 26.7 15.7±.2 10,470±220 15.5±.2 9,940±210 112 8
175 1,872 1,734-2,017 1,070±30 598±5 24.9 16.1±.2 10,030±210 15.9±.2 9,510±210 117.7
                16.0 9,410 119.0
180 2,004 1,856-2,159 1,145±32 559±5 23.3 16.5±.2 9,600±210 16.3±.2 9,110±210 122.9
185 2,146 1,988-2,312 1,226±35 522±5 21.8 16.9±.2 9,190±210 16.7±.2 8,720±210 128.5
                17.0 8,440 132.8
190 2,297 2,127-2,475 1,313±37 488±5 20.3 17.3±.2 8,790±210 17.1±.2 8,340±210 134.3
195 2,460 2,278-2,650 1,406±40 455±4 19.0 17.7±.2 8,390±210 17.5±.2 7,060±210 140.6
200 2,633 2,439-2,837 1,505±42 425±4 17.7 18.2±.3 8,060±210 17.9±.3 7,610±210 147.1
                18.0 7,520 148.8
205 2,819 2,611-3,037 1,611±45 397±4 16.5 18.6±.3 7,590±200 18.3±.3 7,270±200 154.0
210 3,018 2,795-3,252 1,725±40 371±4 15.5 19.0±.3 7,240±200 18.7±.3 6,940±190 161.4
                19.0 6,770 165.5
215 3,231 2,992-3,481 1,846±52 347±4 14.5 19.5±.3 6,940±190 19.2±.3 6,660±190 168.3
220 3,460 3,205-3,728 1,977±00 324±4 13.0 19.9±.3 6,630±190 19.6±.3 6,350±180 176.5
225 3,704 3,431-3,991 2,117±60 302±4 12.6 20.2±.3 6,180±180 19.9±.3 6,010±180 186.1
                20.0 5,940 188.4
230 3,966 3,673 -4,273 2,266±64 282±4 11.8 20.6±.3 5,890±170 20.3±.3 5,720±170 195.4
235 4,246 3,933-4,575 2,426±68 264±3 11.0 20.9±.3 5,580±170 20.6±.3 5,440±150 206.1
240 4,545 4,209-4,897 2,597±73 246±3 10.2 21.2±.3 5,300±140 20.9±.3 5,140±140 217.5
                21.0 5,070 220.5
244 4,800 4,446-5,172 2,743±77 233±3 9.7 21.5±.3 5,010±140 ‡21.2±.3 4,940±140 226.4
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (42,000 s.h.p.).

--44--

DATA PERIOD 1941-1943
BB 42 CLASS
SHIPS IN CLASS:
BB 42

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
171.9 15.7 1,089±173 24 5±1.1
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
154 88 303.0
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below. In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12'4" 10'4"
2 outboard 3 12'4" 10'4"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity § 1,108,000 26,381 4,000
Diesel oil capacity (95%) 11,932 284 38
Total: radius oil*. 1,119,932 26,665 4,038
Additional fuel oil required to fill all tanks to 95% (emergency) 365,363 8,699 1,319
Total: mart mum capacity (95%)† 1,485,295 35,364 5,357

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 39,800 tons
Knots Engine miles Days Bbl./day
12 17,600 61.1 579
13 16,410 52.7 672
14 15,090 45.0 788
15 13,830 38.5 921
16 12,480 32.5 1,089
17 11,190 27.5 1,089
18 9.970 23.1 1,532
19 8,980 19.8 1,798
20 7.880 16.4 2,154
21 6,720 13.3 j2,646
* See table V.

--45--

[B L A N K]

--46--

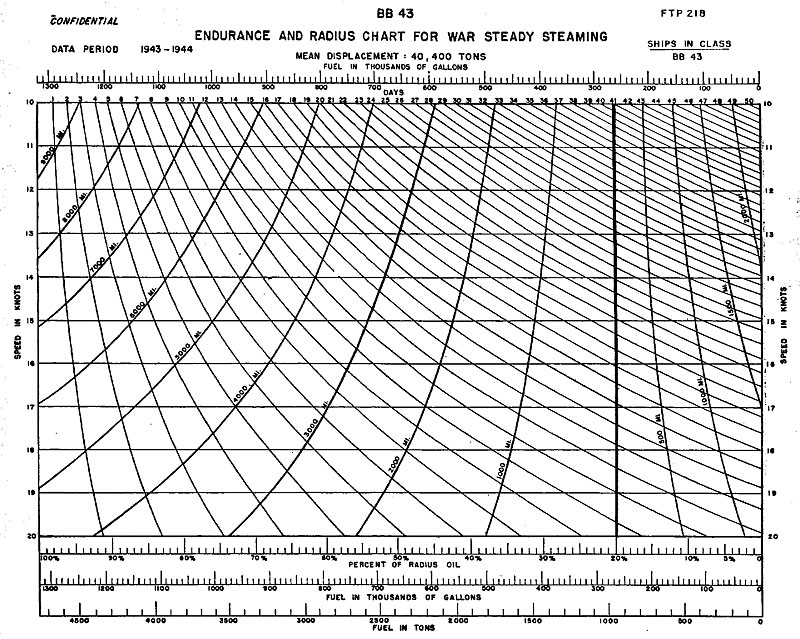

DATA PERIOD 1943-1944 BB 43
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 43

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--47--

DATA PERIOD 1943-1944 BB 43 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 43
PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 40,400 tons† Mean displacement 35,400 tons Mean displacement 40,400 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
90 1,172 1,039-1,316 670±29 1,126±10 46.9 10.7±0.1 12,650±330 10.6±0.1 11,940±330 110.6
                11.0 11,750 112.4
95 1,269 1,125-1,424 725±32 1,040±10 40.3 11.3±.2 12,140±330 11.2±.2 11,650±330 113.3
100 1,375 1,219-1,543 786±36 960±9 40.0 11.9±.2 11,800±330 11.7±.2 11,230±330 117.5
                12.0 11,070 119.3
105 1,489 1,320-1,671 851±37 887±9 37.0 12.5±.2 11,440±330 12.3±.2 10,910±330 121.1
110 1,613 1,430-1,811 922±41 818±9 34.1 13.1±.2 11,070±330 12.9±.2 10,550±330 125.0
                13.0 10,470 126.1
115 1,747 1,548-1,961 908±44 756±8 31.5 13.6±.2 10,610±330 13.4±.2 10,130±330 130.4
120 1,893 1,678-2,125 1,082±48 697±8 29.0 14.2±.3 10,070±330 13.9±.3 9,690±330 136.2
                14.0 9,630 137.1
125 2,050 1,817-2,301 1,171±52 644±8 28 8 14.8±.3 9,680±320 14.5±.3 9,340±320 141.4
130 2,221 1,968-2,403 1,260±56 594±7 24.8 15.3±.3 9,240±320 15.0±.3 8.910±310 148 1
135 2,406 2,132-2,701 1,375±60 549±7 22.9 15.9±.3 8,860±320 15.6±.3 8,560±310 154.2
                16.0 8,240 160.4
140 2,606 2,310-2,925 1,489±65 507±7 21.1 16.5±.3 8,500±320 16.1±.3 8,160±310 161.9
145 2,823 2,502-3,169 1,613±71 468±7 19.5 17.0±.4 8,080±320 16.6±.4 7,770±310 170.1
                17.0 7,540 175.2
150 3,058 2,710-3,433 1,747±77 432±6 18.0 17.6±.4 7,730±310 17.2±.4 7,430±280 177.8
155 3,313 2,936-3,719 1,893±83 398±6 16.6 18.1±.4 7,440±280 17.7±.4 7,040±270 187.2
                18.0 6,840 193.2
160 3,589 3,181-4,029 2,051±90 368±6 15.3 18.7±.4 7,110±270 18.2±.4 6,700±260 197.2
165 3,888 3,446-4,364 2,222±08 340±6 14.2 19.2±.4 6,740±260 18.8±.4 6,390±260 206.8
                19.0 6,260 211.3
168 4,079 3,615-4,579 2,331±102 324±6 13.5 19.5±.4 6,510±260 ‡19.1±.4 6,190±250 213.6
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (30,000 s.h.p.).

--48--

DATA PERIOD 1943-1944
BB 43 CLASS
SHIPS IN CLASS:
BB 43

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
125.5 14.6 1,249±210 25.2±1.2
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
248 142 221.8
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below. In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12'101/2" 14'3"
2 outboard 3 13'6" 14'3"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Fuel load" fuel oil capacity § 1,301,900 30,908 4,700
Diesel oil capacity (95%) 18,212 434 58
Total: radius oil*. 1,320,112 31,432 4,758
Additional fuel oil required to fill all tanks to 95% (emergency) 37,306 890 135
Total: maximum capacity (95%)† 1,367,507 32,322 4,893

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING

BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage. This table is made available to the commander as a supplement to table I for use when Increased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 40,100 tons
Knots Engine miles Days Bbl./day
11 12,080 45.8 707
12 11,380 39.6 818
13 10,770 34.6 937
14 9,900 29.4 1,097
15 9,160 25.5 1,269
16 8 470 22.1 1,466
17 7,750 19.0 1,702
18 7,030 16.2 1,988
19 6,440 14.1 2,295
* See table V.

--49--

[B L A N K]

--50--

DATA PERIOD 1944-1945 BB
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 40,400 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 44

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--51--

DATA PERIOD 1944-1945 BB 44 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 44
PROPELLER SPEED FUEL RATE ENDURANCE SPEED       FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY RADIUS SPEED RADIUS
Mean displacement 40,400 tons Mean displacement 35,400 tons Mean displacement 40,400 tons
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
90 1,241 1,136-1,352 709±23 1,064±7 44.3 10.7±0.1 11,910±300 10.6±0.1 11,280±290 117.1
                11.0 11,120 118.8
95 1,339 1,225-1,459 765±25 986±7 41.1 11.3 ±.2 11,480±300 11.2 ±.2 11,040±290 119.6
100 1,444 1,321-1,574 825±27 914±7 38.1 11.9 ±.2 11,210±300 11.7 ±.2 10,690±290 123.4
              12.0 10,560 125.0
105 1,558 1,426-1,698 890±29 847±7 35.3 12.5 ±.2 10,910±300 12.3 ±.2 10,420±290 126.7
110 1,681 1,538-1,832 961±31 785±6 32.7 13.1 ±.2 10,600±300 12.9 ±.2 10,130±290 130.3
                13.0 10,060 131.3
115 1,814 1,660-1,977 1,037±34 728±6 30.3 13.6 ±.2 10,200±300 13.4 ±.2 9,760±290 135.4
120 1,957 1,791-2,133 1,118±36 675±6 28.1 14.2±.3 9,730±300 13.9±.3 9,380±290 140.8
          14.0 9,330 141.6
125 2,111 1,932-2,300 1,206±39 625±6 26.0 14.8±.3 9,400±290 14.5±.3 9,060±280 145.6
130 2,278 2,084-2,482 1,302±42 580±6 24 2 15.3±.3 9,010±280 15.0±.3 8,700±270 151.9
135 2,457 2,248-2,678 1,404±46 537±5 22.4 15.9±.3 8,680±280 15.6±.3 8,380±270 157.5
              16.0 8,090 163.3
140 2,651 2,426-2,889 1,515±49 498±5 20.8 16.5±.3 8,350±280 16.1±.3 8,020±270 164.7
145 2,860 2,617-3,117 1,634±53 462±5 19.2 17.0±.4 7,970±280 16.6±.4 7,670±270 172.3
                17.0 7,460 177.0
150 3,085 2,823-3,362 1,763±57 428±5 17.8 17.6±.4 7,640±270 17.2±.4 7,360±260 179.4
155 3,328 3,045-3,627 1,902±62 397±5 16.5 18.1±.4 7,400±260 17.7±.4 7,030±250 188.0
                18.0 6,830 193.6
160 3,591 3,286-3,913 2,052±67 368±5 15.3 18.7±.4 7,090±250 18.2±.4 6,700±250 197.3
165 3,874 3,545-4,222 2,214±72 341±4 14.2 19.2±.4 6,740±220 18.8±.4 6,410±220 206.1
              19.0 6,290 201.2
168 4,054 3,710-4,418 2,317±75 326±4 13.6 19.5±.4 6,550±220 ‡19.1±.4 6,230±210 212.3
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (30,000 s.h.p.).

--52--

DATA PERIOD 1944-1945
BB 44 CLASS
SHIPS IN CLASS:
BB 44

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
107.5 12.6 1,116±341 28.2±2.2
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
287 164 191.7
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications
see discussion of table IV in Introduction.

In case of a propeller change see discussion of table IV in Introduction.

Number of propellers Number of blades Diameter Pitch
2 Inboard 3 12'101/2" 14'3"
2 Outboard 3 13'6" 14'3"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity § 1,301,900 30,998 4,700
Diesel oil capacity (95%) 18,212 434 58
Total: radius oil* 1,320,112 31,432 4,758
Additional fuel oil required to fill all tanks to 95% (emergency) 37,395 890 135
Total: maximum capacity (95%)† 1,357,507 32,322 4,893

Table IA--WAR LOGISTICS DATA FOR STEADY STEAMING BASED ON MAXIMUM CAPACITY (95%)*

NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.

Speed Radius Endurance Fuel rate
Mean displacement 40,400 tons
Knots Engine miles Days Bbl./day
11 11,440 43.4 746
12 10,860 37.7 858
13 10,340 33.1 976
14 9,590 28.6 1,133
15 8,950 24.9 1,302
18 8,320 21.7 1,493
17 7,670 18.8 1,720
18 7,020 16.2 1,992
19 6,470 14.2 2,283
* See table V.

--53--

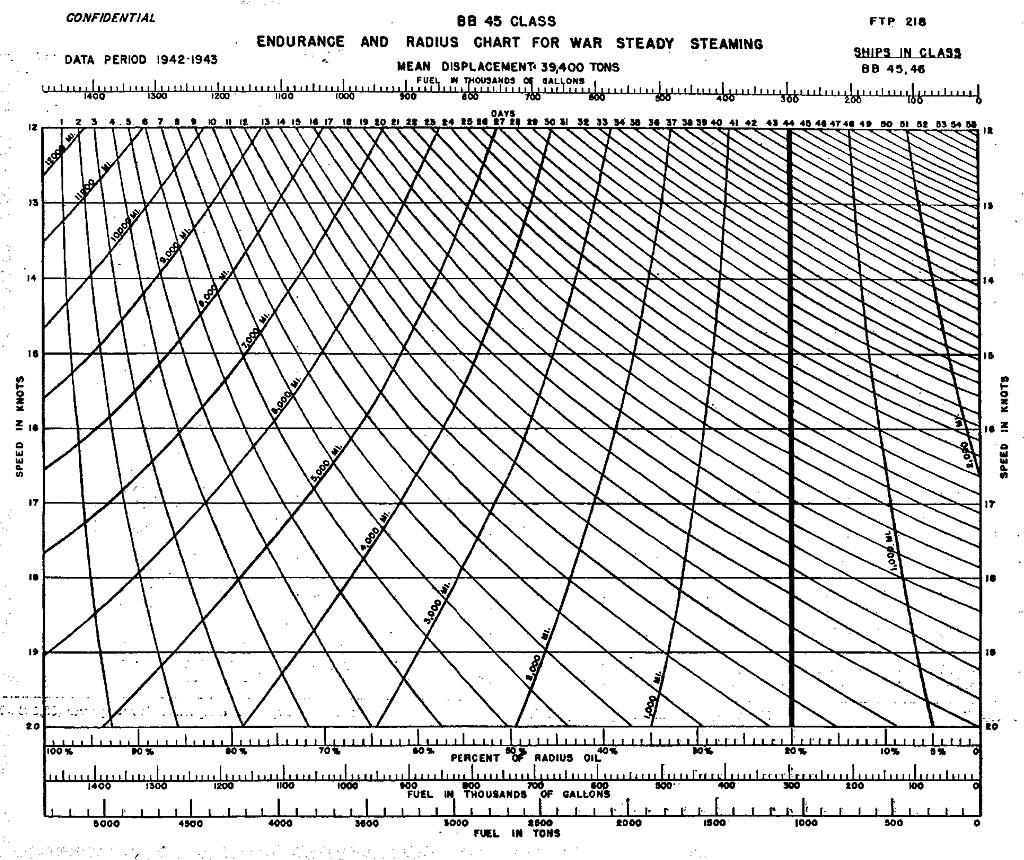

DATA PERIOD 1942-1943 BB 45
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 39,400 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 45, 46

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--55--

DATA PERIOD 1942-1943 BB 45 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 45, 46

PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 30,400 tons† Mean displacement 35,400 tons Mean displacement 39,400 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
100 1,062 961-1,170 607±22 1,392±9 58.0 11.8±0.1 17,060±380 11.7±0.1 16,290±370 90.8
                12.0 15,920 92.9
105 1,169 1,057-1,288 668±25 1,264±9 52.7 12.4±.2 16,290±380 12.3±.2 15,550±370 95.0
110 1,287 1,164-1,418 735±27 1,148±9 47.8 13.0±.2 15,470±360 12.8±.2 14,690±350 100.5
                13.0 14,450 102.3
115 1,418 1,283-1,562 810±30 1,042±8 43.4 13.6±.2 14,730±350 13.4±.2 13,960±350 105.8
120 1,561 1,412-1,720 892±33 947±8 39.5 14.2±.2 13,970±350 14.0±.2 13,260±350 111.5
125 1,719 1,555-1,894 982±36 860±8 35 8 14 8±.2 13,220±350 14.6±.2 12,560±350 117.7
                16.0 11,940 123.8
130 1,892 1,711-2,084 1,081±40 781±7 32.5 15.4±.3 12,260±350 15.1±.3 11,790±350 125.3
135 2,084 1,885-2,296 1,191±44 709±7 29.5 16.0±.3 11,570±320 15.7±.3 11,130±330 132.7
                16.0 10,710 13a 1
140 2,295 2,076-2,528 1,311±48 644±7 26.8 16.5±.3 10,840±310 16.2±3 10,430±310 141.7
145 2,527 2,286-2,784 1,444±53 585±6 24.4 17.1±.3 10,190±310 16.8±.3 9,830±310 150.4
                17.0 9,570 154.6
150 2,782 2,516-3,065 1,590±58 531±6 22.1 17.6±.3 9,540±310 17.3±.3 9,190±310 160.8
155 3,063 2,771-3,374 1,750±64 482±6 20.1 18.2±.4 8,950±310 17.8±.4 8,580±310 172.1
                18.0 8,410 175.8
160 3,373 3,051-3,716 1,927±71 438±6 18.3 18.8±.4 8,400±300 18.4±.4 8,060±290 183.3
165 3,714 3,359-4,091 2,122±78 398±5 16.6 19.4±.4 7,880±270 19.0±.4 7,560±260 195.5
170 4,090 3,700-4,506 2,337±86 361±5 15 0 20.0±.4 7,360±250 19.6±.4 7,080±250 208.7
                20.0 6,690 220.9
175 4,503 4,073-4,961 2,573±94 328±5 13.7 20.5±.4 6,870±240 20.1±.4 6,590±240 224 0
180 4,959 4,486-5,463 2,834±104 298±5 12.4 20.9±.3 6,350±200 $20.6±.3 6,140±200 240.7

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (33,500 s.h.p.).

--56--

DATA PERIOD 1942-1943
BB 45 CLASS
SHIPS IN CLASS:
BB 45, 46

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Draft
128.2 14.9 1,089±154 32.3±1.1
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
163 93 377.8
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications,
see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 3 12' 101/2" 14' 3"
2 outboard 3 13'6" 14'3"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,468,100 34,955 5,300
Diesel oil capacity (95%) 9,734 232 31
Total: radius oil* 1,477,834 35,187 5,331
Additional fuel oil required to fill all tanks to 95% (emergency) 16,897 402 61
Total: maximum capacity (95%)† 1,494,731 35,589 5,392

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 39,400 tons
Knots Engine miles Days Bbl./day
12 16,100 56.0 637
13 14,620 46.8 760
14 13,410 40.0 892
15 12,080 33.6 1,061
16 10,830 28.2 1,263
17 9,680 23.8 1,502
18 8,510 19.7 1,809
19 7,650 16.8 2,122
20 6,770 14.2 2,526
* See table V.

Table VI.--STEADY STEAMING MEAN FUEL RATE RATIOS*

Ship Average displacement Fuel rate ratio--Ship: Class
100 R.P.M. 120 R.P.M. 140 R.P.M. 160 R.P.M.
  Tons Percent Percent Percent Percent
U.S.S. Colorado BB 45 39,700 100.9 101.2 101.5 101.9
U.S.S. Maryland BB 46 39,000 99.1 98.8 98.4 98.1
* Table VI is used to adjust the class data in tables I and IA to individual ships.
The ratios were obtained by dividing the steady steaming mean fuel rates of the
indicated ships by the corresponding mean fuel rates given in column (2) of table I.

--57--

[B L A N K]

--58--

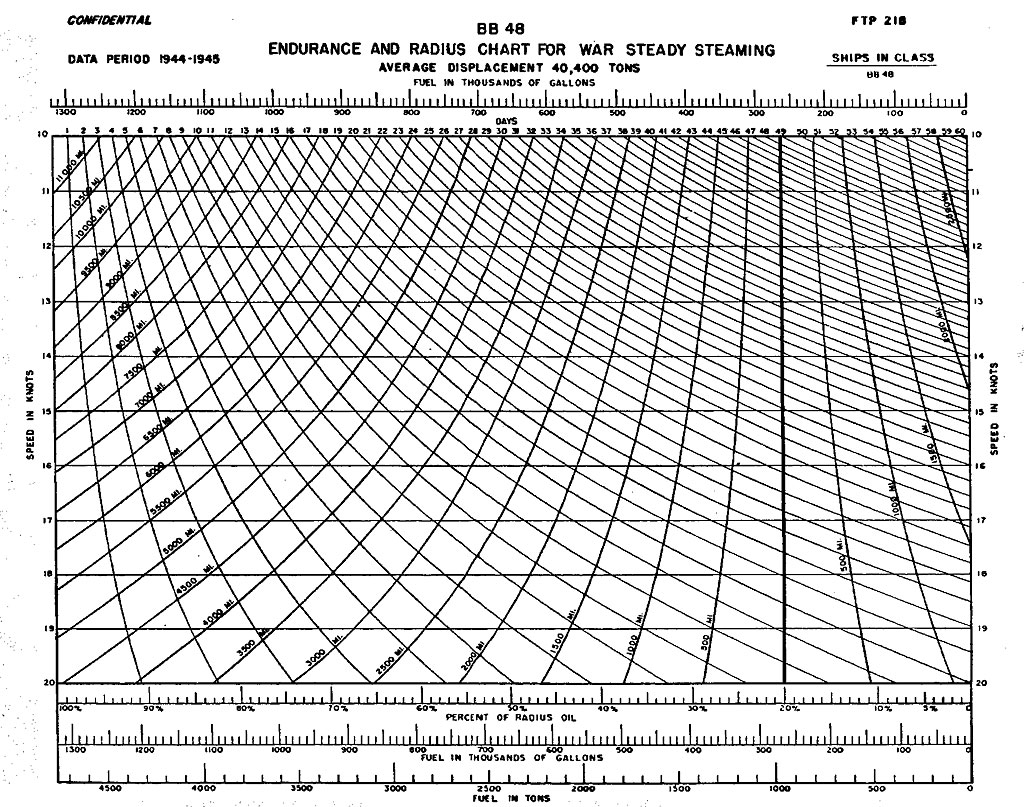

DATA PERIOD 1944-1945 BB 48
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 40,400 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 48

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--59--

DATA PERIOD 1944-1945 BB 48 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 48

PROPELLER SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 40,400 tons Mean displacement 35,400 tons Mean displacement 40,400 tons
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
90 986 845-1,140 563±31 1,339±14 55.8 10.7±0.1 15,130±410 10.6±0.1 14,190±400 93.0
                11.0 13,860 95.2
95 1,079 925-1,248 617±34 1,223±13 51.0 11.3±.2 14,340±410 11.2±.2 13,700±400 96.3
100 1,181 1,013-1,366 675±38 1,118±13 46.6 11.9±.2 13,790±400 11.7±.2 13,080±390 100.9
                12.0 12,820 103.0
105 1,292 1,108-1,494 738±41 1,022±12 42.6 12.5±.2 13,240±400 12.3±.2 12,570±390 105.0
110 1,414 1,212-1,636 808±45 934±12 38.9 13.1±.2 12,680±400 12.9±.2 12,050±390 109.6
                13.0 11,930 110.8
115 1,548 1,327-1,791 885±49 853±11 35.5 13.6±.2 12,020±400 13.4±.2 11,430±390 115.5
120 1,694 1,452-1,959 968±54 779±11 32.5 14.2±.3 11,260±400 13.9±.3 10,830±390 121.9
                14.0 10,740 122.9
125 1,854 1,590-2,144 1,059±59 712±10 29.7 14.8±.3 10,730±370 14.5±.3 10,320±370 127.9
130 2,030 1,741-2,348 1,160±65 650±10 27.1 15.3±.3 10,130±360 15.0±.3 9,750±360 135.3
135 2,221 1,904-2,569 1,269±71 594±9 24.8 15.9±.3 9,620±360 15.6±.3 9,270±360 142.4
                16.0 8,850 149.3
140 2,431 2,084-2,812 1,389±78 543±9 22.6 16.5±.3 9,120±360 16.1±.3 8,740±360 151.0
145 2,661 2,282-3,078 1,521±86 496±9 20.7 17.0±.4 8,580±360 16.6±.4 8,230±360 160.3
                17.0 7,940 166.3
150 2,912 2,497-3,368 1,664±93 453±8 18.9 17.6±.4 8,130±330 17.2±.4 7,790±330 169.3
155 3,187 2,733-3,686 1,821±102 414±8 17.3 18.1±.4 7,760±320 17.7±.4 7,330±320 180.1
                18.0 7,060 187.0
160 3,488 2,991-4,034 1,993±111 378±8 15.8 18.7±.4 7,330±310 18.2±.4 6,880±300 191.6
165 3,818 3,274-4,416 2,182±122 346±7 14.4 19.2±.4 6,890±290 18.8±.4 6,500±280 203.1
                19.0 6,340 208.4
168 4,030 3,455-4,661 2,303±128 328±7 13.7 19.5±.4 6,630±280 ‡19.1±.4 6,260±270 211.0

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (30,000 s.h.p.).

--60--

DATA PERIOD 1944-1945
BB 48 CLASS
SHIPS IN CLASS:
BB 48

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
102.1 12.0 932±264 33.7±2.2
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
367 210 149.9
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

NOTE: All under way data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications see discussion of table IV in Introduction.

In case of a propeller change see discussion of table IV in Introduction.

Number of propellers Number of blades Diameter Pitch
2 Inboard 3 12'101/2" 14'3"
2 Outboard 3 13'6" 14'3"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,301,900 30,998 4,700
Diesel oil capacity (95%) 18,212 434 58
Total: radius oil* 1,320,112 31,432 4,758
Additional fuel oil required to fill all tanks to 95% (emergency) 37,395 890 135
Total: maximum capacity (95%)† 1,357,507 32,322 4,893

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.

Speed Radius Endurance Fuel rate
Mean displacement 40,400 tons
Knots Engine miles Days Bbl./day
11 14,250 54.1 599
12 13,180 45.9 706
13 12,270 39.3 823
14 11,040 32.9 983
15 10,030 27.9 1,160
16 9,100 23.7 1,365
17 8,160 20.1 1,616
18 7,260 16.9 1,924
19 6,520 14.3 2,263
* See table V.

--61--

[B L A N K]

--62--

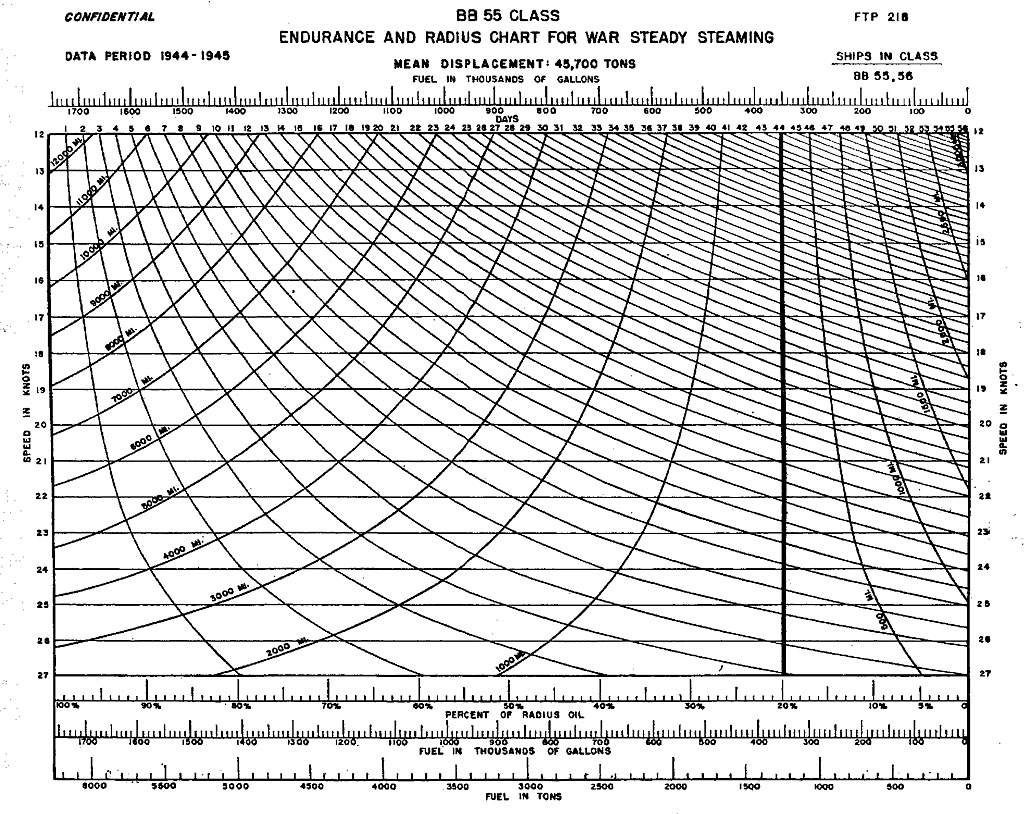

DATA PERIOD 1944-1945 BB 55
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 55, 56

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--63--

DATA PERIOD 1944-1945 BB 55 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 55, 56

PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 45,700 tons† Mean displacement 40,700 tons Mean displacement 45,700 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Daft Knots Engine miles Knots Engine miles Gal./eng. mi.
85 1,426 1,263-1,602 815±36 1,231±11 51.3 12.7±0.1 16,230±270 12.6±0.1 15,510±270 113.2
                13.0 15,160 115.9
90 1,568 1,389-1,761 896±40 1,120±10 46.7 13.5±.1 15,700±260 13.3 ±.1 14,900±250 117.9
                14.0 14,440 121.7
95 1,723 1,526-1,935 985±44 1,019±10 42.5 14.2±.1 15,020±250 14.1±.1 14,370±250 122.2
100 1,894 1,678-2,127 1,082±48 927±9 38.6 14.9±.1 14 330±240 14.8±.1 13,720±240 128.0
                15.0 13,530 129.8
105 2,082 1,844-2,338 1,190±53 843±9 35.1 15.6±.1 13,670±240 15.5±.1 13,070±240 134.3
                16.0 12,610 139.2
110 2,288 2,027-2,570 1,307±58 767±8 32.0 16.3±.1 12,990±240 16.2±.1 12,430±240 141.2
115 2,515 2,228-2,825 1,437±64 698±8 29.1 17.0±.1 12,320±240 16.9±.1 11,800±240 148.8
                17.0 11,710 150.0
120 2,765 2,449-3,105 1,580±70 635±8 26.5 17.7 ±.1 11,660±240 17.6 ±.1 11,180±240 157.1
                18.0 10,840 162.2
125 3,039 2,692-3,413 1,737±77 578±7 24.1 18.4 ±.1 11,040±240 18.3 ±.1 10,580±240 166.1
130 3,340 2,958-3,751 1,909±84 526±7 21.9 19.1±.1 10,430±240 18.9 ±.2 9,940±240 176.7
                19.0 9,860 175.2
135 3,671 3,252-4,123 2,098±93 478±7 19.9 19.8±.2 9.840±240 19.6±.2 9,370±240 187.3
                20.0 9,060 194.0
140 4,035 3,574-4,532 2,306±102 435±7 18.1 20.5±.2 9,270±240 20.3±.2 8,830±240 199.0
145 4,436 3,929-4,982 2,535±112 396±6 16.5 21.1±.2 8,670±210 20.9±.2 8,280±210 212.2
                21.0 8,190 214.6
150 4,875 4,318-5,475 2,786±123 360±6 15.0 21.8±.2 8,150±210 21.5±.2 7,740±210 226.7
                22.0 7,410 237.2
155 5,359 4,747-6,019 3,062±135 328±6 13.7 22.4±.2 7,620±210 22.2±.2 7,280±200 241.4
160 5,890 6,217-6,615 3,366±149 298±5 12.4 23.0±.2 7,130±210 22.8±.2 6,790±180 258.3
                23.0 6,600 266.1
165 6,474 5,734-7,271 3,699±163 271±5 11.3 23.5±.2 6,630±180 23.3±.2 6,310±180 277.9
170 7,116 6,303-7,992 4,066±180 247±5 10.3 24.0±.2 6,140±180 23.8±.2 5,880±170 299.0
                24.0 5,700 308.2
175 7,821 6,928-8,784 4,469±197 224±5 9.3 24.5±.2 5,710±180 24.3±.2 5,440±170 321.9
180 8,597 7,615-9,655 4,913±217 204±5 8.5 24.9±.2 5,280±170 24.7±.2 5,040±170 348.1
                25.0 4,760 369.4
185 9,449 8,370-10,612 5,399±239 186±4 7.8 25.3±.2 4,880±170 25.1±.2 4 670±160 376.5
190 10,386 9,200-11,665 5,935±262 169±4 7.0 25.8±.2 4,540±160 25.5±.2 4,310±160 407.3
195 11,416 10,112-12,821 6,523±288 154±4 6.4 26.2±.3 4,190±160 25.9±.3 3,990±160 440.8
                26.0 3,910 449.9
200 12,548 11,115-14,093 7,170±317 140±4 5.8 26.6±.3 3,860±160 26.3±.3 3,680±150 477.1
204 13,534 11,988-15,200 7,734±342 130±4 5.4 27.0±.3 3,640±150 ‡26.7±.3 3,470±150 506.9

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (121,000 s.h.p.).

--64--

DATA PERIOD 1944-1945
BB 55 CLASS
SHIPS IN CLASS:
BB 55, 56

Table D.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
119.3 17.5 1,798±479 23.2±1.8
* Based on radius oil,see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
491 281 149.0
* Based on radius oil; see table V.

Table IV--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications,
see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 5 15'4" 16'1.5"
2 outboard 4 16'11" 16'5"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,537,350 36,604 5,550
Diesel oil capacity (95%) 218,230 5,196 695
Total: radius oil* 1,755,580 41,800 6,245
Additional fuel oil required to fill all tanks to 95% (emergency) 362,593 8,633 1,309
Total: maximum capacity (95%)t 2,118,173 50,433 7,554

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 46,700 tons
Knots Engine miles Days Bbl./day
13 18,290 58.8 861
14 17,420 51.9 974
15 16,320 45.4 1,113
16 15,210 39.7 1,274
17 14,130 34.6 1,457
18 13,080 30.3 1,670
19 11,900 26.1 1,936
20 10,930 22.8 2,217
21 9,880 19.5 2,577
22 8,940 17.0 2,983
23 7,960 14.5 3,499
24 6,880 11.9 4,227
25 5,740 9.7 5,278
26 4,720 7.5 6,685
* See table V.

Table VI.--STEADY STEAMING MEAN FUEL RATE RATIOS*

Ship Average displacement Fuel rate ratio--ship: Class
100 R.P.M. 120 R.P.M. 140 R.P.M. 160 R.P.M. 180 R.P.M. 200 R.P.M.
  Tons Percent Percent Percent Percent Percent Percent
U.S.S. Washington BB56 45,700 100.0 100.0 100.0 100.0 100.0 100.0
U.S.S. North Carolina BB55 46,300 93.6 96.0 98.6 101.1 103.8 106.5
* Table VI is used to adjust the class data in tables I and IA to individual ships.
The ratios were obtained by dividing the steady steaming mean fuel rates of the indicated ships
by the corresponding mean fuel rates given in column (2) of table I.

--65--

[B L A N K]

--66--

DATA PERIOD 1944-1945 BB 57
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 45,800 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 57

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--67--

DATA PERIOD 1944-1945 BB 57 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 57

PROPELLER SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 45,800 tons† Mean displacement 40,800 tons Mean displacement 45,800 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
85 1,514 1,363-1,675 865±33 1,108±9 46.2 14.4±0.1 16,650±280 14.3±0.1 15,840±250 106.9
                15.0 15,120 111.0
90 1,686 1,518-1,865 963±37 995±8 41.5 15.3 ±.1 15,880±280 15.1 ±.1 15,020±230 111.7
95 1,877 1,690-2,076 1,073±41 893±8 37.2 16.2 ±.1 15,110±280 16.0 ±.1 14,290±230 117.3
100 2,090 1,882-2,312 1,194±46 802±8 33.4 17.1 ±.1 14 330±280 16.9 ±.1 13,550±230 123.7
                17.0 13,470 124 5
105 2,327 2,095-2,574 1,330±51 721±7 30.0 18.0 ±.2 13,540±280 17.8 ±.1 12,830±230 130.7
                15.0 12,630 132.8
110 2,590 2,332-2,865 1,480±57 648±7 27.0 15.9 ±.2 12,780±270 18.6 ±.1 12,050±230 139.2
                19.0 11,670 1440
115 2,884 2,597-3,190 1,648±63 582±7 24.2 19.6 ±.2 11,900±260 19.4 ±.1 11,290±230 1457
                20.0 10,600 158.2
120 3,211 2,891-3,552 1,835±70 522±6 21.8 20.3 ±.2 11,060±240 20.1 ±.2 10,490±230 159.8
125 3,575 3,219-3,955 2,043±78 469±6 19.5 21.0 ±.2 10,290±230 20.8 ±.2 9,760±220 171.9
                21.0 9,560 175.7
130 3,980 3,584-4,403 2,274±87 421±6 17.5 21.7 ±.2 9,550±220 21.5 ±.2 9,050±220 185 1
                22.0 8,580 195 5
135 4,432 3,991-4,903 2,533±97 378±5 15.8 22.4 ±.2 8,850±200 22.2 ±.2 8,390±190 199.6
140 4,934 4,443-5,458 2,819±108 340±5 14.2 23.0 ±.2 8,160±190 22.8 ±.2 7,750±190 216.4
                23.0 7,490 2242
145 5,493 4,946-6,076 3,139±120 305±5 12.7 23.5 ±.2 7,500±190 23.3 ±.2 7,110±180 235.8
150 6,116 5,507-6,765 3,495±134 274±5 11.4 24.0 ±.2 6,860±180 23.8 ±.2 6,520±180 257.0
                24.0 6,230 269.2
155 6,809 6,131-7,532 3,891±149 246±4 10.2 24.4 ±.2 6,270±180 24.2 ±.2 5,950±160 281.4
160 7,581 6,827-8,386 4,332±166 221±4 9.2 24.9 ±.2 5,750±170 24.6 ±.2 5,440±160 305 2
165 8,440 7,600-9,336 4,823±185 199±4 8.3 25.3 ±.2 5,240±170 25.0 ±.2 4,980±160 337.6
170 9,397 8,462-10,395 5,370±206 178±4 7.4 25.8±.3 4,800±170 25.5 ±.2 4,540±160 365 5
175 10,462 9,421-11,573 5,978±229 160±4 6.7 26.3±.3 4,310±170 26.0±.3 4 160±160 402.4
180 11,648 10,489-12,885 6,656±255 144±4 6.0 26.9±.4 3,950±170 26.5±.3 3,820±160 439.5
181 11,901 10,717-13,165 6,801±260 141±3 5.9 27.1±.4 3,900±170 ‡26.7±.3 3,760±130 445 7

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (130,000 s.h.p.).

--68--

DATA PERIOD 1944-1945
BB 57 CLASS
SHIPS IN CLASS:
BB 57

Table II--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
108.2 18.3 1,740±535 22.9±2.0
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
356 203 196.3
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications see discussion of table IV in Introduction.

In case of a propeller change see discussion of table IV in Introduction.

Number of propellers Number of blades Diameter Pitch
2 Inboard 4 17'6" 18'91/2"
2 Outboard 4 17'81/2" 17'10"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,626,544 38,727 5,872
Diesel oil capacity (95%) 50,554 1,204 161
Total: radius oil* 1,677,098 39,931 6,033
Additional fuel oil required to fill all tanks to 95%n (emergency) 203,595 4,848 735
Total: maximum capacity (95%)† 1,880,693 44,779 6,768

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.

Speed Radius Endurance Fuel rate
Mean displacement 45,800 tons
Knots Engine miles Days Bbl./day
15 16,960 47.2 951
16 16,020 41.7 1,073
17 15,110 37.0 1,209
13 14,160 32.7 1,368
19 13,090 28.7 1,564
20 11,890 24.8 1,808
21 10,720 21.2 2,109
22 9,620 18.3 2,459
23 8,400 15.3 2,947
24 6,990 12.1 3,693
25 5,580 9.3 4,823
26 4,670 7.5 5,978
* See table V.

--69--

[B L A N K]

--70--

DATA PERIOD 1943-1944 BB 58
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 44,700 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 58, 60

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--71--

DATA PERIOD 1943-1944 BB 58 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 58, 60

PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 44,700 tons† Mean displacement 39,700 tons Mean displacement 44,700 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
85 1,538 1,383-1,704 879±34 1,092±9 45.5 14.4±0.1 16,370±250 14.3±0.1 15,620±280 107.6
                15.0 15,020 111.9
90 1,699 1,528-1,882 971±38 989±8 41.2 15.3±.1 15,740±250 15.1±.1 14,930±280 112.5
95 1,877 1,688-2,079 1,073±42 895±8 37.3 16.1±.1 14,990±230 15.9±.1 14,230±280 118.1
                16.0 14,140 118.9
100 2,074 1,865-2,297 1,185±46 810±8 33.8 17.0±.1 14,330±230 16.7±.1 13,530±280 124.2
                17.0 13,270 126.8
105 2,292 2,061-2,539 1,310±51 733±7 30.5 17.8±.1 13,580±230 17.5±.2 12,830±280 131.0
                18.0 12,390 135.6
110 2,532 2,277-2,805 1,447±56 663±7 27.6 18.6±.1 12,830±230 18.3±.2 12,130±270 138.4
                19.0 11,560 145.4
115 2,797 2,515-3,098 1,598±62 601±7 25.0 19.4±.1 12,120±230 19.1±.2 11,480±230 146.4
120 3,090 2,778-3,423 1,766±69 544±6 22.7 20.2 ±.1 11,430±230 19.8±.2 10,770±230 156.1
                20.0 10,010 158.5
125 3,414 3,070-3,782 1,951±76 492±6 20.5 20.9±.1 10,700±230 20.6±.2 10,140±230 165.7
                21.0 9,760 172 2
130 3,772 3,392-4,178 2,155±84 445±6 18.5 21.7±.2 10,050±230 21.3±.2 9,480±220 177.1
135 4,167 3,747-4,616 2,381±92 403±6 16.8 22.4±.2 9,390±220 22.0±.2 8,870±220 189.4
140 4,604 4,140-5,100 2,631±102 365±5 15.2 23.0±.2 8,740±200 22.6±.2 8,250±190 203.7
                23.0 7,860 214.1
145 5,087 4,574-5,635 2,907±113 330±5 13.8 23.5±.2 7,920±190 23.2±.2 7,660±190 219.3
150 5,620 5,053-6,225 3,211±125 299±5 12.5 24.0±.2 7,320±190 23.7±.2 7,090±180 237.1
                24.0 6,770 248.8
155 6,209 5,583-6,877 3,548±138 271±5 11.3 245±.2 6,760±190 24.2 ±.2 6,560±180 256.6
160 6,860 6,168-7,598 3,920±152 245±4 10.2 25.0±.2 6,250±190 247±.2 6,050±170 277.7
                25.0 5,690 295.9
165 7,579 6,815-8,395 4,331±168 222±4 9.2 25.5±.2 5,760±190 25.1±.2 5,570±170 302 0
170 8,373 7,529-9,274 4,785±186 201±4 8.4 25.0±.3 5,330±190 25.6±.3 5,150±170 327.1
                26.0 4,830 348.9
175 9,251 8,318-10,247 5,286±205 182±4 7.6 26.6±.4 4,920±190 26.1±.3 4,750±170 354.4
179 10,018 9,008-11,096 5,725±222 168±4 7.0 27.1±.4 4,630±180 ‡26.5±.3 4,450±160 378.0
* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (130,000 s.h.p.).

--72--

DATA PERIOD 1943-1944
BB 58 CLASS
SHIPS IN CLASS:
BB 58, 60

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
105.5 17.6 1,436±276 27.9±1.4
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
302 173 231.8
* Based on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications,
see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 4 17'6" 18'9 7/8"
2 outboard 5 17'41/2" 17'11 7/8"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,620,173 38,576 5,849
Diesel oil capacity (95%) 59,660 1,420 190
Total: radius oil*. 1,679,833 39,996 6,039
Additional fuel oil required to fill all tanks to 95% (emergency) 217,722 5,184 786
Total: maximum capacity (95%)† 1,897,555 45,180 6,825

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander an a supplement to table I for use when increased radius and
decreased resistance to underwater damage am factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 44,700 tons
Knots Engine miles Days Bbl./day
15 16,970 47.1 960
16 15,970 41.7 1,087
17 14,990 36.8 1,232
18 14,000 32.4 1,396
19 13,060 28.6 1,579
20 11,990 25.1 1,812
21 11,020 21.9 2,068
22 10,020 19.0 2,381
23 8,880 16,2 2,815
24 7,650 13.3 3,413
25 6,430 10.6 4,228
26 5,460 a 8 5,186
* See table V.

Table VI.--STEADY STEAMING MEAN FUEL RATE RATIOS*

Ship Average displacement Fuel rate ratio--Ship: Class
85 R.P.M. 105 R.P.M. 125 R.P.M. 145 R.P.M. 165 R.P.M. 175 R.P.M.
  Tons Percent Percent Percent Percent Percent Percent
U.S.S. Indiana BB 58 44,700 98.8 99.0 99.2 99.4 99.6 99.7
U.S.S. Alabama BB 60 44,600 101.2 101.0 100.8 100.6 100.4 100.3
* Table VI is used to adjust the class data in tables I and IA to individual ships.
The ratios were obtained by dividing the steady steaming mean fuel rates of the indicated ships
by the corresponding mean fuel rates given in column (2) of table I.

--73--

[B L A N K]

--74--

DATA PERIOD 1944-1945 BB 59
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 46,000 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 59

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--75--

DATA PERIOD 1944-1945 BB 59 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 59

PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 46,000 tons† Mean displacement 41,000 tons Mean displacement 46,000 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
85 1,622 1,462-1,792 927±35 1,033±8 43.0 14.4±0.1 15,520±240 14.3±0.1 14,770±260 113.4
                15.0 14,100 118.7
90 1,805 1,627-1,995 1,031±39 928±8 38.7 15.3±.1 14,810±220 15.1±.1 14,010±260 119.5
95 2,010 1,812-2,221 1,149±44 833±8 34.7 16.1±.1 14,010±220 15.9±.1 13,240±260 126.4
                16.0 13,150 127.0
2,237 2,017-2,472 1,278±48 749±7 31.2 17.0±.1 13,290±220 16.7±.1 12,510±260
100               17.0 12,240 137.1
105 2,489 2,244-2,750 1,422±54 673±7 28.0 17.8±.1 12,500±220 17.5±.2 11,780±260 142.2
                18.0 11,320 148.0
110 2,771 2,498-3,062 1,583±60 604±7 25.2 18.6±.1 11,740±220 18.3±.2 11,050±260 151.4
                19.0 10,460 160.2
115 3,084 2,780-3,408 1,762±67 543±6 22.6 19.4±.1 11,000±220 19.1±.2 10,370±230 161.5
120 3,433 3,095-3,794 1,962±74 488±6 20.3 20.2±.1 10,280±220 19.8±.2 9,660±220 173.4
                20.0 9,600 178.4
125 3,321 3,445-4,222 2,183±83 438±6 18.3 20.9±.1 9,570±220 20.6±.2 9,020±220 185.5
                21.0 8,660 193.8
130 4,253 3,834-4,700 2,430±92 394±5 16.4 21.7±.2 8,920±220 21.3±.2 8,390±190 200.0
135 4,734 4,268-5,231 2,705±103 354±5 14.8 22.4±.2 8,270±190 22.0±.2 7,790±190 215.2
140 5,268 4,749-5,821 3,010±114 318±5 13.2 23.0±.2 7,640±190 22.6±.2 7,190±180 233.1
                23.0 6,820 246.2
145 5,864 5,286-6,480 3,351±127 286±5 11.9 23.5±.2 6,860±180 23.2±.2 6,640±180 252.8
150 6,527 5,884-7,213 3,730±141 257±4 10.7 24.0±.2 6,290±180 23.7±.2 6,090±160 275.4
                24.0 5,790 290.3
155 7,265 6,549-8,028 4,151±157 231±4 9.6 24.5±.2 5,780±170 24.2±.2 5,590±160 300.2
160 8,086 7,289-8,935 4,621±175 207±4 8.6 25.0±.2 5,300±170 24.7±.2 5,110±160 327.4
              25.0 4,780 360.8
165 9,000 8,113-9,945 5,143±195 186±4 7.8 25.5±.2 4,840±170 25.1±.2 4,670±160 358.6
170 10,018 9,031-11,070 5,725±217 167±4 7.0 26.0±.3 4,450±170 25.6±.3 4,280±160 391.3
                26.0 3,990 420.0
175 11,150 10,052-12,321 6,371±241 150±4 6.2 26.6±.4 4,070±170 26.1±.3 3,920±160 427.2
179 12,148 10,951-13,424 6,942±263 138±3 5.8 27.1±.4 3,820±140 ‡26.5±.3 3,660±130 458.4

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (130,000 s.h.p.).

--76--

DATA PERIOD 1944-1945
BB 59 CLASS
SHIPS IN CLASS:
BB 59

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
104.5 17.4 1,646±433 24.2±1.8
* Based on radius oil; see table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
300 171 232.6
* Based on radius oil; see table V.

Table IV--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In case of a propeller change see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard 4 17'6" 18'91/2"
2 outboard 5 17'41/2" 17'71/2"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 1,625,436 38,701 5,868
Diesel oil capacity (95%) 49,612 1,181 158
Total: radius oil* 1,675,048 39,882 6,026
Additional fuel oil required to fill all tanks to 95% (emergency) 204,703 4,874 739
Total: maximum capacity (95%)† 1,879,751 44,756 6,765

Table IA--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when in creased radius and decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 46,000 tons
Knots Engine miles Days Bbl./day
15 15,820 44.0 1,018
16 14,760 38.5 1,165
17 13,740 33.7 1,332
18 12,700 29.4 1,523
19 11,740 25.7 1,740
20 10,660 22.2 1,981
21 9,720 19.3 2,324
22 8,740 16.6 2,705
23 7,650 13.8 3,237
24 6,500 11.2 3,983
25 5,360 9.0 5,012
26 4,480 7.2 6,242
* See table V.

--77--

[B L A N K]

--78--

DATA PERIOD 1943-1944 BB 61
ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING
MEAN DISPLACEMENT: 56,500 TONS
Fuel in Thousands of Gallons
SHIPS IN CLASS:
BB 61-66

Chart: ENDURANCE AND RADIUS CHART FOR WAR STEADY STEAMING

--79--

DATA PERIOD 1943-1944 BB 61 CLASS
Table I.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON RADIUS OIL*
SHIPS IN CLASS
BB 61-66

PROP. SPEED FUEL RATE ENDURANCE SPEED RADIUS SPEED RADIUS FUEL RATE WORK COLUMN
MEAN NORMAL RANGE DAILY
Mean displacement 56,500 tons† Mean displacement 50,500 tons Mean displacement 56,500 tons†
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
R.P.M. Gal./hr. Gal./hr. Bbl./day Hours Days Knots Engine miles Knots Engine miles Gal./eng. mi.
85 2,200 2,000-2,412 1,257±44 1,021±8 42.5 14.8±0.1 15,630±320 14.7±0.1 15,010±310 149.7
          16.0 14,890 160.9
90 2,393 2,175-2,624 1,367±48 939±7 39.1 15.7±.1 15,240±320 15.6±.1 14,650±310 153.4
16.0 14,400 156.0
95 2,603 2,366-2,854 1,487±52 863±7 36.0 16.5±.2 14,720±320 16.4±.2 14,150±310 158.7
      17.0 13,640 164.6
100 2,831 2,574-3,104 1,618±56 793±7 33.0 17.3±.2 14,190±320 17.1±.2 13,560±310 165.6
105 3,080 2,800-3,377 1,760±61 729±7 30.4 18.1±.2 13,650±320 17.9±.2 13,050±310 172.1
                18.0 12,990 173.0
110 3,350 3,045-3,673 1,914±67 671±6 28.0 18.9±.2 13,120±320 18.7±.2 12,550±310 179.1
            19.0 12,350 182.0
115 3,644 3,313-3,996 2,082±73 616±6 25.7 19.8±.3 12,630±320 19.5±.3 12,010±310 186.9
      20.0 11,700 192.2
120 3,964 3,604-4,346 2,265±79 567±6 23.6 20.6 + .3 12,070±310 20.3±.3 11,510±300 195.3
  21.0 11,060 20a 3
125 4,312 3,920-4,728 2,464±86 521±6 21.7 21.4±.3 11,530±300 21.1±.3 10,990±290 204.4
130 4,690 4,264-5,142 2,680±94 479±5 20.0 22.2±.3 10,990±290 21.9±.3 10,490±290 214.2
    22.0 10,430 215.5
135 5,102 4,638-5,594 2,915±102 440±5 18.3 23.0±.3 10,460±290 22.7±.3 9,990±290 224.8
        23.0 9,810 229.1
140 5,550 5,045-6,085 3,171±111 405±5 16.9 23.9±.4 10,010±290 23.5±.4 9,520±290 236.2
24.0 9,220 243.9
145 6,038 5,489-6,620 3,450±120 372±5 15.5 24.7±.4 9,340±280 24.3±.4 9,040±280 248.5
150 6,569 5,972-7,203 3,754±131 342±5 14.2 25.4±.4 8,840±270 25.0±.4 8,650±270 262.8
155 7,146 6,496-7,835 4,083±142 314±5 13.1 26.2±.4 8,380±270 25.8±.4 8,100±260 277.0
      26.0 7,970 281.7
160 7,774 7,067-8,524 4,442±155 289±4 12.0 26.9±.4 7,910±230 26.5±.4 7,660±230 293.4
      27.0 7,360 306.0
165 8,458 7,689-9,274 4,833±169 266±4 11.1 27.6±.4 7,450±220 27.2±.4 7,240±220 311.0
170 9,202 8,365-10,090 5,258±183 244±4 10.2 28.1±.4 6,970±220 27.7±.4 6,760±210 332.2
        28.0 6,500 345.9
175 10,011 9,101-10,977 5,721±200 224±4 9.3 28.6±.4 6,640±210 28.2±.4 6,320±210 355.0
180 10,892 9,902-11,943 6,224±217 206±4 8.6 29.1±.3 6,200±190 28.7±.3 5,910±180 379.5
  29.0 5,690 395.3
185 11,850 10,772-12,993 6,771±236 190±4 7.9 29.5±.3 5,780±180 29.2±.3 5,550±180 405.8
190 12,894 11,722-14,138 7,368±257 174±4 7.2 29.9±.3 5,380±180 29.6±.3 5,150±180 435.6
195 14,029 12,753-15,382 8,017±280 160±3 6.7 30.2±.3 5,070±150 29.9±.3 4,780±140 469.2
196 14,267 12,970-15,643 8,153±284 157±3 6.5 30.3±.3 5,030±150 ‡30.0±.3 4,710±140 475.6

* See table V.
† Mean displacement during data period.
‡ Estimated speed at designed shaft horsepower (212,000 s.h.p.).

--80--

DATA PERIOD 1943-1944
BB 61 CLASS
SHIPS IN CLASS:
BB 61-66

Table II.--WAR LOGISTICS DATA: UNDERWAY AVERAGES

Average speed Fuel rate Endurance*
R.P.M. Knots Bbl./day Days
100.8 18.7 2,054±413 26.0±1.4
* Based on radius oil; Bee table V.

Table III.--WAR LOGISTICS DATA: NOT UNDERWAY

Fuel rate Endurance*
Gal./hr. Bbl./day Days
484 277 193.4
* Baaed on radius oil; see table V.

Table IV.--PROPELLER SPECIFICATIONS

[NOTE: All underway data are based on the propellers specified below.
In the case of ships whose propellers do not conform to these specifications,
see discussion of table IV in Introduction.]

Number of propellers Number of blades Diameter Pitch
2 inboard. 5 17'0" 18'41/2"
2 outboard 4 18'3" 19'01/2"

Table V.--FUEL CAPACITIES

Capacity Gallons Barrels Tons
"Full load" fuel oil capacity§ 2,186,084 52,050 7,892
Diesel oil capacity (95%) 60,288 1,435 192
Total: radius oil* 2,246,372 53,485 8,084
Additional fuel required to fill all tanks to 95% (emergency) 262,873 6,259 949
Total: maximum capacity (95%)† 2,509,245 59,744 9,033

Table IA.--WAR LOGISTICS DATA FOR STEADY STEAMING
BASED ON MAXIMUM CAPACITY (95%)*

[NOTE: Fueling beyond the radius oil capacity increases radius at the expense of resistance to underwater damage.
This table is made available to the commander as a supplement to table I for use when increased radius and
decreased resistance to underwater damage are factors in a decision.]

Speed Radius Endurance Fuel rate
Mean displacement 56,500 tons
Knots Engine miles Days Bbl./day
15 16,630 46.2 1,294
16 16,090 42.0 1,427
17 15,240 37.3 1,599
18 14,510 33.6 1,779
19 13,800 30.3 1,977
20 13,070 27.3 2,196
21 12,350 24.5 2,439
22 11,650 22.1 2,709
23 10,960 19.9 3,011
24 10,300 17.9 3,345
25 9,550 15.9 3,754
26 8,900 14.3 4,186
27 8,220 12.7 4,721
28 7,260 10.8 5,536
29 6,360 9.2 6,552
30 5,260 7.3 8,153
* See table V.

Table VI.--STEADY STEAMING MEAN FUEL RATE RATIOS*

Ship Average displacement Fuel rate ratio--Ship: Class
85 R.P.M. 105 R.P.M. 12S R.P.M. 145 R.P.M. 169 R.P.M. 185 R.P.M.
  Tons Percent Percent Percent Percent Percent .Percent
U.S.S. Iowa BB 61 57,100 100.8 99.2 97.6 96.0 94 5 92.9
U.S.S. New Jersey BB 62 55,900 99.2 100.8 102.4 104 0 105 5 107.1
* Table VI is used to adjust the class data in tables I and IA to individual ships.
The ratios were obtained by dividing the steady steaming mean fuel rates of the indicated ships
by the corresponding mean fuel rates given in column (2) of table I.

--81--

[B L A N K]

--82--

Table of Contents
Previous Chapter (Introduction) * Next Chapter (Cruisers)



Transcribed and formatted by Larry Jewell & Patrick Clancey, HyperWar Foundation
