RELATIVE MOTION-COMBAT INFORMATION CENTER

RELATIVE MOTIONNote: Plotting symbols and standards may be found in RADFIVE,

The Surface Plotting Manual.

THE CONCEPT OF RELATIVE MOTION5-2 USING THE MANEUVERING BOARD5-5 ILLUSTRATED EXAMPLES5-8 Funding course and speed of the maneuvering ship 5-8 Maneuvering to attack position 5-9 Simple torpedo problem 5-11 Station keeping 5-12 PRACTICE PROBLEMS5-14 COMBAT INFORMATION CENTERINTRODUCTION5-15 OBJECT OF COMBAT INFORMATION CENTER5-15 FUNCTIONS OF COMBAT INFORMATION CENTER5-15 TYPICAL COMBAT INFORMATION CENTER5-17

*--5-1--*

THE CONCEPT OF RELATIVE MOTIONAll of us at one time or another have solved problems in relative motion, probably without recognizing them as such. Crossing a busy street safely, intercepting the player carrying the ball in a football game, running to catch a ball, all of these activities involve a problem in relative motion, even though we do not realize it. In a more complex form, all combat tactics, their determination and execution, deal with relative motion; that which is seen on the radar's PPI scope is relative motion. Hence, it is necessary that all personnel attached to the Combat Information Center, from the operator to the Captain, have a thorough understanding of the varied applications of this important principle.

The basic method of solution of relative motion problems utilizes the maneuvering board, and it is therefore required that all personnel should be capable of using it and applying its solutions.

What is meant by relative motion? It is the resultant of two actual motions, but let us break this down further. The word

motionimplies direction, speed, and distance; relative motion, then, would imply relative direction, relative speed, and relative distance, which are defined as follows:

Relative directionis the apparent direction of one object's movement with reference to another.

Relative speedis the speed with which one object moves with respect to another.

Relative distanceis the distance one object moves with respect to another.These three definitions then, collectively make up relative motion.

Realizing that relative motion is caused by two actual movements, let us analyze the movement of two objects within the same vicinity. Since we are concerned principally with relative motion as applied to moving ships, imagine two ships in the positions shown in figure 5-2, moving in a general easterly course, during a period of 20 minutes.

The initial position of Ship 1 is at the point

A. Moving on a due easterly course it arrives at pointB20 minutes later. Picture Ship 2, starting from initial positiona, which is 2,000 yards astern of Ship 1, and arriving 20 minutes later at positionb, 2,000 yards broad on the starboard beam of Ship 1.

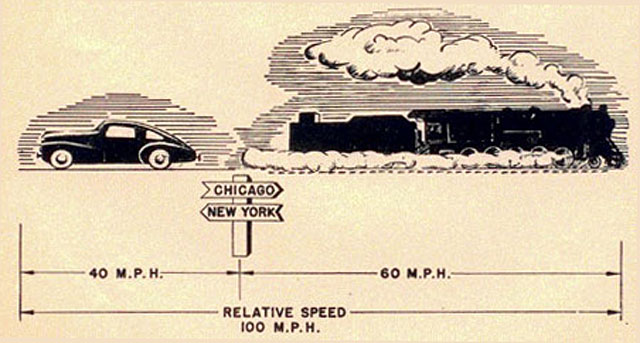

Figure 5-1.

*--5-2--*

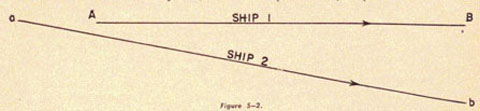

Figure 5-2.Analyzing the original definition of relative motion, it is obvious that these two motions establish a relative motion. If you establish a relative plot of one object with reference to the other, you should be able to ascertain that relative motion. Now, picture yourself on Ship 1, and try to picture what movement Ship 2 would make with reference to you in that 20 minutes. If you (on Ship 1) are moving due east, and Ship 2 is at a position 2,000 yards astern, its initial position would be 270 degrees T at 2,000 yards, at time 00. Ship 2's position after 20 minutes, with reference to you (Ship 1), would be 180 degrees T at 2,000 yards. To establish or form a relative plot, you merely plot successive positions of an object from a stationary point, which represents your position at all times, regardless of the fact that you are moving.

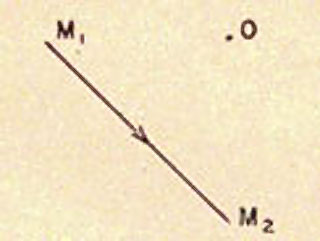

Figure 5-3.Point

O, figure 5-3, represents your position at all times, pointM, the relative position of Ship 2 at time 00, and point_{1}M, is the relative position of Ship 2 after 20 minutes. By drawing the line from_{2}Mto_{1}Myou establish an imaginary line that indicates the apparent movement of Ship 2 with reference to yourself; therefore, the direction of the line from_{2}Mto_{1}Mwould indicate the direction of relative movement. The length, or distance, of the line would indicate, according to definition, the distance of relative motion during a period of 20 minutes._{2}If the distance from

Mto_{1}OorMto_{2}Ois to represent 2,000 yards, you can measureM_{1}Musing the same scale, and find it to be about 2,800 yards._{2}Using the formula:

distance divided by time equals speed, you have:

speed = distance/time

speed = 2800/200

speed = 140 yards per minute

Multiply yards per minute by 0.03 and you have miles per hour, or knots.

speed = 140 × 0.03 = 4.2 miles per hour. Therefore, the speed of relative motion would be 4.2 knots.

Examining the direction of the line

M_{1}Myou find it to be 135 degrees T. Listing of the information found from the relative plot you have the following:_{2}

Direction of relative motion, 135 degrees T

Distance of relative motion, 2,800 yards

Speed of relative motion, 4.2 knots.You have, therefore, found the three parts of relative motion from the relative plot.

Leaving the relative plot, let us analyze a second method of determining relative motion, which is called the

vectordiagram. The vector diagram is a picture in which we combine the movements of two objects, with respect to a third object, to find their movement with respect to each other. The third object is usually the earth, so that we are really combining twogeographicalmovements to find relative motion. To show these movements, geographical or relative, as pictures, we use single lines, calledvectors. The slope or direction of the vector indicates the direction of the movement it portrays; the length of the vector indicates the speed of the movement. By properly combining two vectors, showing how two objects are moving with respect to the earth, and then drawing the resulting vector necessary to complete a triangle, the resultant side will be the relative movement of the two objects involved. Let us see why that resultant does actually establish the relative motion. Let us suppose you have two objects, the first, moving on a course of 090 degrees at a speed of 12 knots, and the second, in the same vicinity, moving on a course of 150 degrees at a speed of 15 knots, as shown in figure 5-4.

*--5-3--*

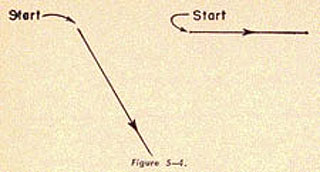

Figure 5-4.If you should form a relative plot of these two moving objects for a full hour, as shown in figure 5-5, you would get the line

XY.

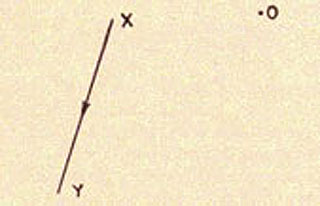

Figure 5-5From what you know of the relative plot, you realize that the direction of

XY, is the direction of the relative motion; the length ofXY, is the distance of relative motion; and the time interval in this case is one hour.But what is the distance per hour? It is speed. Therefore, the length

XY, is the speed of relative motion. Suppose you move the position of the second ship so that it moves from some other position with the reference to Ship 1, but remains on the same course and at the same speed, as shown in figure 5-6.

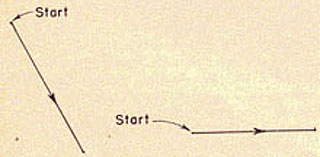

Figure 5-6.Figure 5-7 is made by forming the relative plot of figure 5-6 and we get the line

X_{1}Y._{1}

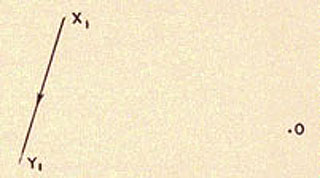

Figure 5-7.By the same deductions as used in figure 5-5, we find the direction of relative motion and the distance of relative motion in one hour, which is the speed of relative motion. By comparison, we find that

X_{1}Yis the same direction and represents the same speed as_{1}XY. So, let us start Ship 1 and Ship 2 on the same courses and speeds as before, but from a common point, as shown in figure 5-8.

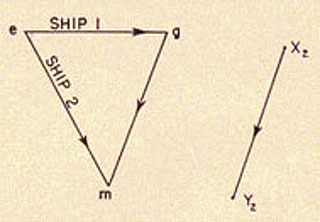

Figure 5-8.If you establish the relative plot, you find that

X_{2}Yis in the same direction as_{2}XYandX_{1}Yand the same length as_{1}XYandX_{1}Y. Likewise, if you connect the terminal positions of Ship 1 and Ship 2 (points_{1}gandm) you find that the line is also in the same direction and the same length asXYandX_{1}Y. Therefore, it appears unnecessary to form the relative plot, when course and the speeds of two moving objects are known. Instead, you can draw two lines which indicate direction and speed, that is, draw two vectors from a common point; then by connecting the ends of those vectors you will find the resulting vector, which represents the direction and speed of relative motion. This triangle, which is called the vector diagram, and labeled_{1}egm, as shown in figure 5-8, is the solution of two actual motions, namelyegandem, which produces the resultantgm. This resultant is the direction and

*--5-4--*

speed of relative motion. At this point, let us sum up what is represented by the various vectors of the vector diagram,

egm.

egrepresents the course and speed of the unit to which the relative motion is referred, or the guides course and speed. The course being indicated by the direction ofeg, and the speed being indicated by the length ofeg.

emrepresents the course and speed of the second moving object, or the maneuvering unit's course and speed, the course being indicated by the direction ofem, and the speed being indicated by the length ofem.

gmrepresents the relative motion with reference to the guide ship, that is, the direction fromgtomrepresents the direction of relative motion, and the length ofgmindicates the speed of relative motion.

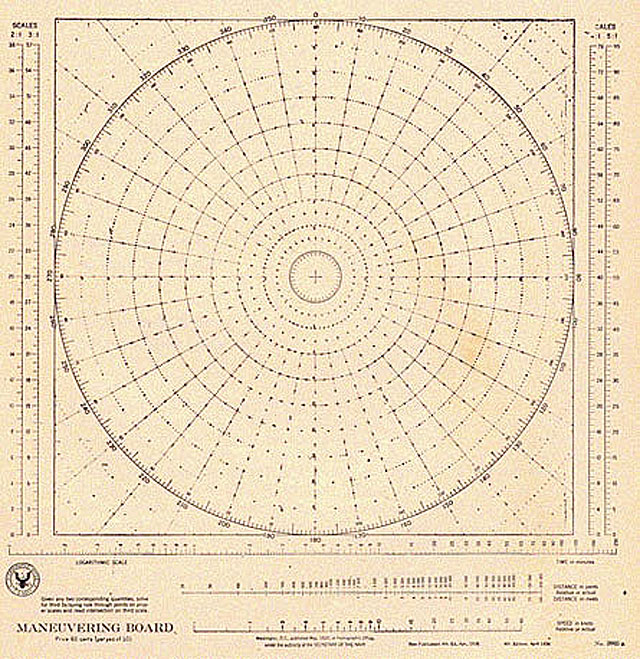

USING THE MANEUVERING BOARDFigure 5-9 is a standard Navy maneuvering board. Notice that it is a polar coordinate system,

Figure 5-9.

*--5-5--*

that is, divided into 360 units or degrees. This will enable you to establish or indicate any direction whatsoever, in degrees, on a true basis. The outer numbers indicate the true direction, whereas the inner numbers will indicate the opposite, or reciprocal direction.

The maneuvering board is made up of ten concentric circles, that is, ten circles having the same center. You can therefore indicate any speed or distance desired, by choosing the proper scale. If a 1/1 scale is chosen, you can indicate any speed from 1 to 10 knots. If you choose a 2/1 scale, you can indicate speeds up to 20 knots. etc.

Figure 5-10.In representing distances, use scales such as 1 unit is equal to 2,000 yards, or 1 unit is equal to 3,000 yards, etc.

The scales on the left and right of the board, that is 2:1, 3:1, 4:1, and 5:1, are simply aids to be used in computation in accordance with whatever scale is chosen.

The logarithmic scales, at the bottom of the chart, that indicate time, distance, and speed, are so placed as to enable you to solve problems of time, distance, and speed, merely by drawing a straight line. For example, if you know that an object has traveled 3 miles in 10 minutes, you can place a point on the distance scale at the position that indicates 3 miles, and on the time scale at the position that indicates 10 minutes. By drawing a line through those points and extending it until it intersects the speed scale, you will find that it crosses the speed scale at 20 knots. That is, the object is traveling at a speed of 20 knots. Obviously, the care with which you establish your points and draw your line has a direct bearing on its accuracy.

It must be realized, that if you use time and relative distance, or relative speed, the result will be relative speed or relative distance. Likewise, if you use actual distance, or actual speed with time, the result will represent actual speed or actual distance.

If you are requested to draw the vector diagram

egmon a maneuvering board, obviously, the simplest procedure is to place one of the angles of the triangle at the center of the chart. For the sake of consistency, let us say that we will always place pointeat the center of the chart. This pointehas no meaning by itself; it is merely the point at which two vectors are joined. It is absolutely incorrect to think of the guide as moving frometogduring the maneuver; he does not. The lineegshows the direction and speed of the guides movement over the earth; it in no way indicates his starting point or final position. Naturally, whatever scale is used to represent the speed of the guide, must be consistently used in the representation and interpretation ofeg,em, andgm. Going back to the relative plot, you realize that you have established the position ofMand_{1}Mwith reference to the guide's position, ignoring the movement of the guide, it would be possible to draw this relative plot on the same maneuvering board, even though the relative plot and the vector diagram are two different problems. Since they are different problems, it is possible to use a scale in the relative plot different from that which was used in the vector diagram. In order to keep in mind which scale you are using for_{2}egm(the vector diagram) and which for the relative plot, it will be helpful to label the scales. In the illustrations, notice that the distance scale is markedDand the speed scale is markedS.

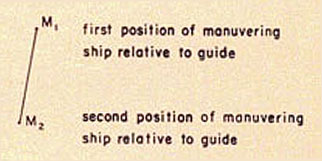

Examining figure 5-10, which is a relative plot and a vector diagram, notice that the line

gmis parallel gm represented the direction of relative motion. It to the lineM_{1}M. It has been shown that the line_{2}

*--5-6--*

has also been shown, that

M_{1}M, represents the direction of relative motion. If both lines are to represent the same direction, it is obvious that they must be parallel._{2}In geometry if you have two sides and the included angle of a triangle, you are able to establish the third side. That is, if you know the direction of two sides of a triangle and the length of those sides, it is an easy matter to find the third side. Therefore, knowing

egandem,gmcan be found by connecting the pointsgandm. Likewise, if you knowegand the direction and length ofgm, it is simple to findem.In cruising at sea, you should always know or be able to find one line of the vector diagram, since you always know your own course and speed. You could establish or start a vector diagram by drawing the line

egto represent your course and speed, choosing an appropriate scale in accordance with the speed. If you pick up a contact bearing 280 degrees at 24,000 yards, you could establish pointM, and report a contact at that position with reference to your ship._{1}

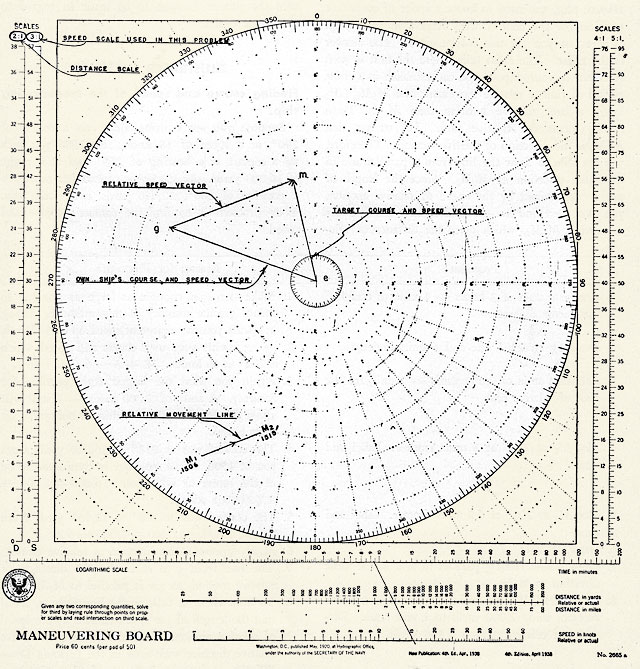

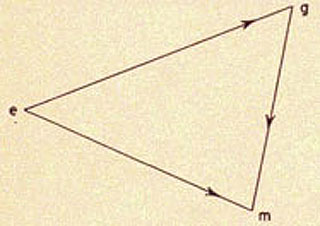

Figure 5-11.

*--5-7--*

Now that you have found the contact before getting too close, the next step is to establish exactly what the contact is doing, or in terms of the diagram, the length and direction of the line

em.How can that be determined? If the relative motion between your own ship and the contact is known, you can draw the line

gmand therefore establish the lineem. Then you can report what the contact is doing. How can you find the relative motion? Having established a relative plot, you can findM_{1}M, which tells all you need to know about relative motion. You recall, that to form the relative plot, you need to know a series of successive positions of the contact with respect to your ship. Where can you get this information? The answer is the radar. The radar tells where the unit is with reference to your ship, so you can establish in a short period of time a relative movement line_{2}M_{1}M(_{2}Mbeing a later relative position than_{2}M). Thus,_{1}M_{1}Mforms the relative plot. Let us say that_{2}M_{1}Mis the direction of relative motion. Therefore, you are able to draw the line from_{2}gparallel and in the same direction asM_{1}M. Since the length of_{2}gmis determined by the speed of relative motion, you must next find the speed of relative motion. By measuringM_{1}M. which gives the distance of relative motion, and applying that distance and elapsed time between_{2}M, and_{1}M, in the formula_{2}D=RT, you find the speed of relative motion. Using the same scale that was chosen whenegwas established, lay off the distance fromgtom, making it equal to the speed of relative motion. This established the pointm. By drawing the line frometomyou can tell the course of the contact by the direction ofem. The length ofem, according to the established scale, represents the speed of the contact. The information is now ready to be reported, and together with the operator's interpretation of the composition, will enable the proper decision to be made in regard to combatant tactics.

ILLUSTRATED EXAMPLES

Finding course and speed of the maneuvering ship.Suppose you are cruising along on a course of 290 degrees, at a speed of 18 knots. At 1506 you pick up a contact at a bearing of 213 degrees and at a range of 16,000 yards At 1515

^{2}the contact has moved to a position of 200 degrees, 12,400 yards away from you. Your problem is to find the contact's course and speed.

Procedure Reason for Procedure 1. Choose a scale of 3 knots = 1 unit, to establish the vector diagram. 1. Make the egmtriangle as large as possible to insure greater accuracy of measurement. Using 3:1 scale you can represent speed up to 30 knots.2. Draw egon 290 degree line and 6 units in length.2. egrepresents your own course and speed which is 290 degrees at 18 knots. 18/3=6 (3:1 scale).3. Choose a scale of 2,000 yards=1 unit, for the scale of relative plot. 3. Again you want the largest scale possible for accuracy. A scale of 2,000 yards=1 unit will allow you to plot points within 20,000 yards on your board. 4. Plot Mat 213 degrees at 8 units from_{1}e. Label and time.4. The contact was at 213 degrees at 16,000 yards from you at 1506. Your position is considered to be at the center at all times. 16,000/2,000=8 (2,000:1 scale). 5. Plot Mat 200 degrees at 6.2 units from_{2}e. Label and time.5. The contact was at 200 degrees at 12,400 yards from you at 1515 ^{2}. 12,400/2,000=6.2.6. Draw M_{1}M._{2}6. M_{1}Mrepresents the direction of relative motion._{2}7. Draw a line from gparallel to and in the same direction asM_{1}M._{2}7. The line from gtomis also the direction of relative motion, sogmis parallel toM_{1}M._{2}8. Measure M_{1}M, and find the distance of relative motion, using 2,000 yards to 1 unit scale. Distance of relative motion 4,800 yards._{2}8. To find where mfalls on the line fromg, recall that the length ofgmis determined by the speed of relative motion. To find relative speed, solve relative distance with time in the formula D=RT (D=distance, R=speed, T=time).

*--5-8--*

Procedure Reason for Procedure 9. Time interval of relative plot is 9½ minutes. 9. 1515 ^{2}- 1506=9½ minutes.10. Speed of relative motion is 15¼ knots. 10. Using 4,800 yards distance of relative motion and time 9½ minutes, according to instructions, the line crosses speed scale at 15¼ knots. 11. Lay off gm15¼ knots. (3:1 scale).11. gmrepresents the speed of relative motion by its length. 3:1 scale was established in Step 1 for vector diagram.12. Draw em.12. The two points fix the line em.13. Course of contact is 347 degrees. 13. Direction of emgives course of maneuvering unit.14. Measure emof 3:1 scale. Contact's speed is 12 knots.14. Length of emfurnishes speed of maneuvering unit.

The foregoing problem furnishes a means of determining the course and speed of a radar contact; We must realize, however, that this method has limitations and for this reason often may not be the best and simplest solution. Sometimes it is the only means available, unfortunately, and we should, therefore, master it thoroughly.

Let us consider some of the disadvantages of figuring course and speed of a radar contact by this method. For one thing, the solution is correct only when our ship remains on a steady course and speed throughout the period of time used to form the relative plot. Furthermore, if the relative speed is slow, it requires a greater period of time to establish a relative plot that is large enough to measure with any degree of accuracy. In forming a relative plot, a change of speed is not easily detected. This increases the possibility of error in the solution of the contact's speed.

If there is a DRT (Dead Reckoning Tracer) available, it will furnish information more quickly than a maneuvering board in this problem. It is a good idea, however, to check the DRT solution by the maneuvering board when possible, to see that the mechanics of the DRT are functioning correctly.

Maneuvering to attack position.Suppose you have picked up a contact and have determined that it is traveling on a course of 060 degrees at a speed of 12 knots. The contact bears 200 degrees, at a range of 18,000 yards from your ship. Your task is to figure out a course to maneuver your ship to an attacking position, 70 degrees off the port bow, at a range of 4,000 yards, using a speed of 24 knots, and the time that will be required to accomplish this maneuver.

Procedure Reason for Procedure 1. Choose the scale of 3:1 for vector diagram. 1. Since you must represent speeds of 24 knots and 12 knots you will use a 3:1 scale, because it is the largest scale possible in this case. 2. Draw egon a course of 060 degrees four units long. (3:1 scale).2. Since you are to make the maneuver, you will he the maneuvering ship, therefore, the contact will have to be the guide. Contact's course is 060 degrees, speed is 12 knots 12/3=4 (3:1 scale). 3. Choose the scale of 2,000:1 for relative plot. Plot Mat 020 degrees, nine units from_{1}e.3. If the contact bears 200 degrees from your ship, you obviously bear 020 degrees from him, He is now guide, so you use 020 degrees. Scale 2,000:1 is the largest scale capable of representing 18,000 yards. 18,000/2,000=9. 4. Using the 2,000:1 scale, plot Mat 350 degrees, two units from_{2}e.4. If the contact is on course 060 degrees and you desire to be 70 degrees on his port bow: 060 degrees-70 degrees=350 degrees. 4,000/2,000 = 2.

*--5-9--*

Procedure Reason for Procedure 5. Draw M_{1}M._{2}5. M_{1}Mgives the direction of relative motion and the distance of relative motion._{2}6. Draw a line from gparallel toM_{1}Mand in the same direction as_{2}M_{1}M._{2}6. The line from gtomwill represent the direction of relative motion. It is therefore, parallel to and in the same direction asM_{1}M._{2}7. Where the line from gintersects the 8th circle, labelm.7. You know that mmust fall somewhere on the line fromg. Since you are the maneuvering unit, and your speed is to be 24 knots, the lineemmust be 24 knots long, or 8 units long, using

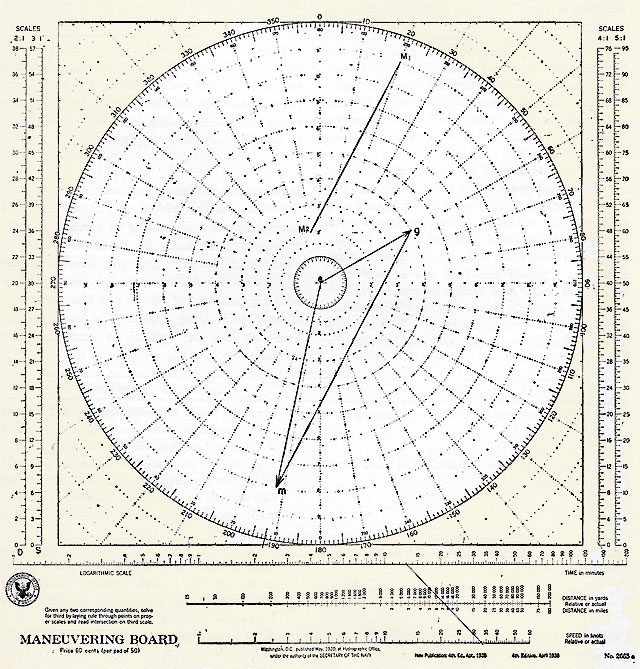

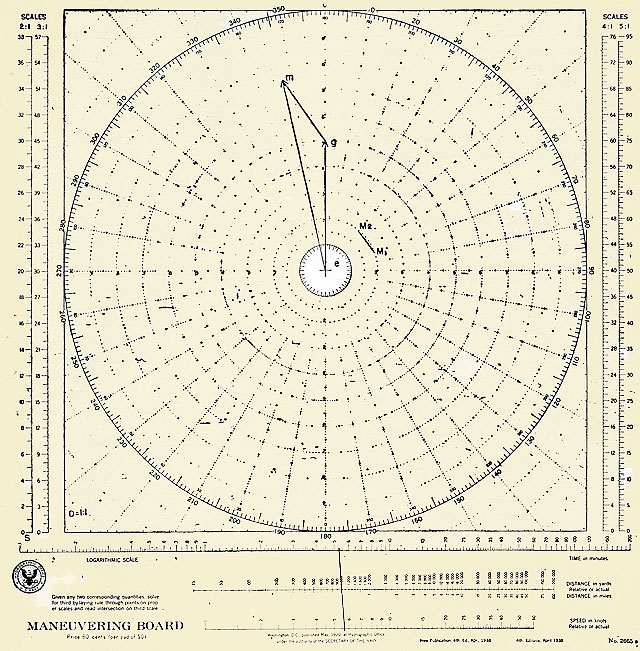

Figure 5-12.

*--5-10--*

Procedure Reason for Procedure a 3:1 scale. The point at which the 8th circle crosses the line from gis the only one that satisfies both conditions.8. Draw em, your course and speed. That is 192 degrees at 24 knots.8. emis the maneuvering unit's course and speed.9. Find the distance of relative motion by measuring M_{1}M, or 2,000:1 scale. Distance relative motion, 14,600 yards._{2}9. M_{1}Mrepresents the distance of relative motion and is 7.3 units long. 7.3 × 2,000=14,600._{2}10. Find the speed of relative motion by measuring gmon 3:1 scale. Speed of relative motion is 33.3 knots.10. gmrepresents the speed of relative motion and is 11.1 units long. 3 × 11.1=33.3.11. Time required to make maneuver is 13 minutes. 11. Continuing your solution at the bottom of the chart you find that the line determined by the points of 14,600 yards on the distance scale, and 33.3 knots on the speed scale, crosses the time line at 13 minutes if extended.

The preceding maneuvering problem and variations of that problem are the most frequently used in CIC operations. Ships moving in company often are ordered to make certain maneuvers within the force for various purposes, such as refueling, searching areas, changing station, or allowing aircraft carriers to launch planes. Placing attacking ships in the best strategic position to engage the enemy forces, also requires this type of a solution.

Simple torpedo problem.Assume you are on the necessary course and traveling at the proper speed to arrive at a position 5,000 yards and 60 degrees off the starboard bow of an enemy vessel, which has been determined to be on a course of 163 degrees at a speed of 15 knots.

Upon arriving at that position, your ship is to fire a 27-knot torpedo at the enemy ship. What course should the torpedo be set on?

Procedure Reason for Procedure 1. Draw egin the direction of 163 degrees and 5 units long, using 3:1 scale for speed.1. The torpedo will have the role of the maneuvering unit. The enemy ship is considered as the guide. His course is 163 degrees; his speed is 15 knots. 15/3=5 units. 2. Establish M, at point 223 degrees and 5 units from_{1}eusing 1000:1 scale.2. Your firing position is 60 degrees off the starboard bow of the enemy at a range of 5,000 yards. 163 degrees + 60 degrees=223 degrees; 5,000/1,000=5. 3. Establish Mat the center._{2}3. You want the torpedo to hit the enemy, at the center in relation to your ship. 4. Draw a line from gin the direction established byMto_{1}M._{2}4. M_{1}Mis the direction of relative motion and_{2}gmalso the direction of relative motion. Pointmmust also be on that line.5. Where the line from gintersects the 9th circle place pointm; drawem, the torpedo's course and speed.5. You know emmust be 9 units long to represent 27 knots, the speed of your torpedo. The point of intersection is the only point on the line fromgwhich satisfies that condition.6. Torpedo course is 072 degrees, speed 27 knots. 6. emrepresents the maneuvering unit's course and speed.

*--5-11--*

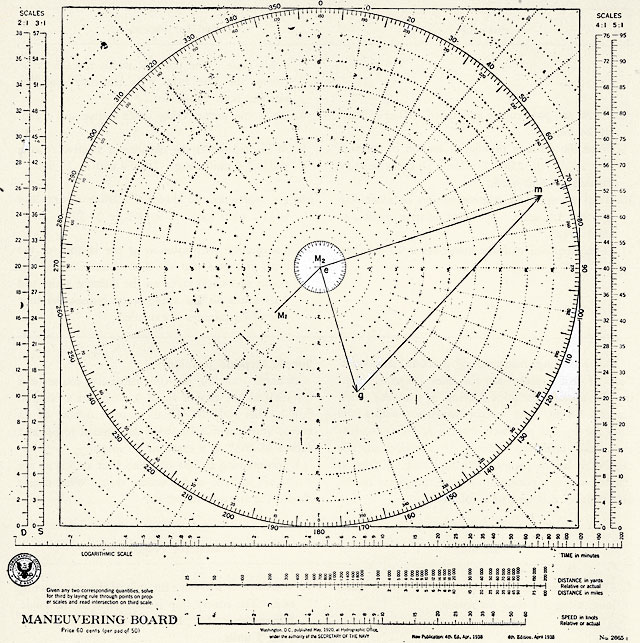

Figure 5-13.

Station keeping.A convoy is on a base course of 030 degrees at 10 knots. Your position is 40 degrees relative, at a range of 2,000 yards from the guide. At 1400, guide makes an emergency turn to 000 degrees course. You are to use 15 knots to return to station. What course do you take? At what time will you be back on station?

Procedure Reason for Procedure 1. Draw egon 000 degrees, 5 units in length, 2:1 scale.1. As long as guide is on course 030 degrees, you are on station, but when he turns to 000 degrees you are out of position and must return to proper station. Guide's speed is 10. 10/2=5 (2:1 scale). 2. Establish Mat 070 degrees, 2 units from_{1}e. (1,000:1 scale).2. Your position was 40 degrees beyond original course of 030 degrees at a range of 2,000 yards. 2,000/1,000=2.

*--5-12--*

<

Figure 5-14.

Procedure Reason for Procedure 3. Establish M, at 040 degrees, 2 units from_{2}e.3. When guide comes to course 000 degrees you wish to come to a position 40 degrees from the guide at a range of 2,000 yards. 2,000/1,000=2. 4. Draw M_{1}M, in the direction of relative motion._{2}4. M_{1}Mdetermines the direction of relative motion._{2}5. From gdraw a line parallel to and in the same direction asM_{1}M._{2}5. gtomis also the direction of relative motion and in must be on that line fromg.6. Where the line from gcrosses the circle, 7½ units frome, establish pointmand drawem.6. emmust be 7½ units long as your own (the maneuvering unit's) speed is to be 15 knots for the maneuver. 15/2=7½. (2:1 scale).

*--5-13--*

Procedure Reason for Procedure 7. Required course is 347 degrees speed 15 knots. 7. emis in direction of 347 degrees and 7½ units long.8. Measure the length of M_{1}Mon the 2,000:1 scale. Relative distance is 1,050 yards._{2}8. M_{1}Mis the distance of relative motion and is 1,050 yards in length. (2,000:1 scale)._{2}9. Measure gmon 2:1 scale; speed of relative motion is 5.7 knots.9. gmis the speed of relative motion, and is 5.7 knots in length. (2:1 scale).10. Solving on the scales at the bottom of the chart, we find the time required to return to station is 5¼ minutes. 10. Relative distance divided by relative speed results in time.

PRACTICE PROBLEMSThe following problems of average difficulty are for practice in use of the maneuvering board.

1. You are traveling on course 120 degrees at 16 knots. At 0405 you pick up a contact at 236 degrees, range 16,000 yards. At 0411 the contact bears 239 degrees at 19,000 yards. What is the course and speed of the contact?

ans. 187 degrees-12 knots

2. Your ship is on course 070 degrees at a speed of 18 knots. At 0316 there is a contact at 050 degrees, range 18,000 yards. After tracking the contact for 9 minutes, he then bears 058 degrees at 13,000 yards.

REQUIRED:

(a) What is the contact's course and speed? (b) Contact's course and speed at 0328? (c) What range will he be on when he crosses dead ahead of you? ans. (a) 142 degrees-12¼ knots ans. (b) 062 degrees-11,400 ans. (c) 9,500 3. A freighter is traveling on a course of 025 degrees at a speed of 10 knots, An enemy destroyer is on a course 115 degrees at a speed of 20 knots. Visibility is 6,000 yards. The destroyer bears 300 degrees at a range of 15,000 yards at 0115.

REQUIRED:

(a) If both ships remain on their present course and speed, would an alert lookout be able to sight the enemy? (b) If so during what interval of time? ans. (a) Yes ans. (b) Between 0130 and 0137 4. Your ship is traveling at 16 knots. On a course 325 degrees with an escort 2,000 yards dead ahead. At midnight the escort picks up a contact at 291 degrees, 15,200 yards from him and reports it. Five minutes later you find the contact bears 283 degrees, 14,800 yards.

REQUIRED:

(a) What is the contact's course and speed? (b) Assuming no change in courses and speeds, and on the basis of your initial contact, what time would you lose the contact from your radar screen? ans. (a) 201 degrees-10 knots ans. (b) 0021 5. You have determined that a contact is on course 138 degrees at a speed of 17 knots. You are now approaching a point 60 degrees off the port how at a range of 5,000 yards in order to fire a 36-knot torpedo at the contact.

REQUIRED:

(a) On what course should the torpedo be set? (b) How far will the torpedo run? ans. (a) 234 degrees ans. (b) 4,300 yards 6. You have found an enemy transport which is traveling on a course of 235 degrees at a speed of 14 knots. You wish to use a speed of 24 knots to maneuver into a position 70 degrees off the nearest bow at a range of 6,000 yards. At the time of the start of the maneuver the enemy bears 116 degrees, range 16,200 yards.

REQUIRED:

(a) What course will you use? (b) What is the length of time of the run? ans. (a) 139 degrees ans. (b) 11 minutes 7. A convoy is traveling on a course of 255 degrees at a speed of 12 knots. You wish to take it under fire from a position broad on the beam, from a range of 10,000 yards. At present it bears 150 degrees, 18,000 yards.

REQUIRED: ans. (b) 16.6 knots

(a) What is the slowest speed you can use in this maneuver? (b) What speed would you use to maneuver if you chose a course of 170 degrees? ans. (a) 10.2 knots ans. 8. You are stationed 060 degrees relative to the guide, at a range of 6,000 yards. Base course is 300 degrees, speed 11

*--5-14--*

knots. An emergency turn 90 degrees to starboard is executed at 0315.

REQUIRED:

(a) If you use a speed of 20 knots, what course shall you take to return to your station? (b) At what time will you arrive on station? ans. (a) 103 degrees ans. (h) 0328 9. You have a contact south of you on a course of 080 degrees at a speed of 14 knots. You wish to come to a point 5,000 yards from the enemy to fire a 27-knot torpedo so that it will have a 90 degree track angle when fired. What is the true bearing of that point?

ans. 017 degrees 10. You are stationed on a true bearing of 101 degrees, 3,000 yards from a guide on a course of 340 degrees, speed 10 knots. You are asked to patrol out on your bearing for one hour at 20 knots and then return to station.

REQUIRED:

(a) What will be your course out and in? (b) If you start your patrol at 1400 when will you arrive back on station? ans. (a) 075 degrees - 307 degrees ans. (b) 1520

## COMBAT INFORMATION CENTER

INTRODUCTIONSince you will he a member of the Combat Information Center team (abbreviated CIC), it is essential that you understand the objective and functions of this organization. Entire books have been written on CIC, but in this manual only a brief description of the objectives and functions of this "nerve center" will he given in order to help you to adjust yourself to the part you will play as a member of the CIC organization. This description is followed by typical layouts of different type ships such as, BB's, CV's, CL's, and DD's.

OBJECT OF COMBAT INFORMATION CENTERThe object of the Combat Information Center is to assist the command in planning a correct course of action, and to assist the command and armament control in the execution of that plan.

FUNCTIONS OF COMBAT INFORMATION CENTERThe Combat Information Center, is briefly. an agency for the collection, evaluation, and distribution of combat information, and for facilitating the use of that information. It is not something strange and complex, nor is it merely a radar plot or an antisubmarine plot under a new name. It provides, however, a marked clarification and simplification of work for the command.

The following paragraphs in this section show how complex a Captain's life formerly was, and how relatively simple it has now become. They give some idea of the vast number of items formerly referred only to the Captain, who had to weigh each detail of the data himself and decide whether to use it, discard it, or file it in the back of his mind for future use. They show that the Combat Information Center is now the agency whose primary function is to filter and evaluate nearly all of this material for him. The Captain receives the information he needs when he needs it; and he is free to concentrate on his decisions and carry the burden of command. He has, in addition, in the CIC, an organization to which he can delegate secondary decisions and control duties as the occasion may require.

For purposes of functional analysis, the Combat Information Center may be considered as divided into two sections,

evaluationandcontrol.To aid in the realization of the surprising mass of information available, the following lists are included. Obviously, much of the data will still go directly to the Captain, but details of sifting and correlating all of it need no longer distract him.

- Position information:

- Visual ranges and bearings.
- Optical ranges and bearings.
- Radar ranges and bearings.
- Sound ranges and bearings.
- Direction finder bearings.
- Radar detection receiver bearings.
- Fathometer depths.
- SMSD indications.
To make full use of this information in the CIC, it is displayed graphically on the DRT, summary, and air plots.

*--5-15--*

- Identify information:

- Visual identification.
- Radar identification (IFF).
- Signal identification.
- Underwater sound signal identification.
- Maneuver identification.
At first thought, this identification may seem rather out of place in CIC. But the plot can show more readily than any other way, for instance, whether a plane sighted and reported by a lookout has previously been detected and identified by radar. It can show me easily if the maneuvers of an otherwise unidentified ship or plane are hostile.

Reports from outside the ship:

- Own forces' position reports.
- Own movement reports.
- Enemy contact, position, and movement reports.
- Reconnaissance reports, positive or negative.
- Intelligence reports.
These reports are filtered and sifted in CIC and the Captain receives, not a series of disconnected facts, but an evaluated report fitted into the entire tactical or strategical picture in its proper perspective.

The background data (a partial listing, for illustrative purposes only):

- Own ships' characteristics.
- Friendly ship and plane characteristics.
- Enemy ship and plane characteristics.
- Own orders, plans, and objectives.
- Assumed enemy plans and objectives.
- Enemy habits and past performances.
- Navigational information.
- Geographical information.
- Weather information.
- Underwater sound condition data.
- Own and enemy frequency plans.
To indicate the increased effectiveness of a ship, where all this information is available in one place and is sifted with greater thoroughness than the Captain has normally been able to do it, a hypothetical example is given: A destroyer is escorting a seaplane tender, and aircraft patrols have reported an enemy destroyer of

Togoclass on a course such that she will intercept during the night. The CIC can determine that the enemy carries a few small guns, but has many torpedoes. Intelligence reports indicate effective enemy gun and torpedo ranges. Knowing this, the Captain can plan how best to keep the enemy

Figure 5-15. Information center at work.

*--5-16--*

outside his effective torpedo firing range. He can anticipate under what conditions his own guns are most effective and the enemy's least effective. He can decide by comparison of speeds whether pursuit is advantageous, and he can plan his use of clouds and weather fronts for evasion if that action is advisable.

CIC is the source to which the Captain turns for a specific tactical or operational fact, for a general summary, or for an opinion or suggestion. The CIC through the evaluator, should provide the Captain with the following data:

Filtered contact, position and identify information presented, according to the Captain's requirements at the time.

Tactical and strategical summaries, which include facts necessary for the Captain's information and decisions, but which omit all irrelevant material.

Pertinent reports and background data which contribute to his understanding of the problem at hand, and to the resultant decisions.

Evaluated comment, suggestions, and opinions, based upon the greater availability of information in the CIC.

The control function of the CIC, with its detecting, tracking, and communication equipment, can be of inestimable assistance in matters concerning both own armament and coordination with other units.

With respect to coordination with, or control of own armament, the CIC can:

Designate or suggest gun and torpedo targets.

Coach gun control on to targets.

Provide initial solution for gun computers.

Provide either point of aim and target data in torpedo fire, or actually select torpedo course.

Control, designate, or warn automatic weapons in fire against planes and torpedo boats.

Aid in delivering repeated anti-submarine attacks.

Control laying of smoke screen with respect to relative positions of own and enemy forces.

With respect to the coordination with, or control of other units, the CIC can:

Control the details of radio communications, particularly voice radio, with other units in tactical company, thus relieving the Captain of this burden. This includes use of such codes as enciphered

General Signalsand theTBSandFightercodes.When own ship is senior, provide assistance in directing tactical movements of other ships in company.

Provide fighter direction, designation of target for strafing and bombing of shore objectives, or homing for aircraft.

Control movements of small craft, such as torpedo boats, landing craft; and small minesweepers or minelayers.

Participate in coordinated radar, sound search and tracking.

TYPICAL COMBAT INFORMATION CENTERThe Combat Information Center will he somewhat alike on all combatant ships, but will differ as to size, number of pieces of radar equipment, and personnel allowance, depending on the ship type. Some typical CIC layouts for BB's, CV's, CL's and DD's are illustrated on the following pages.

*--5-17--*

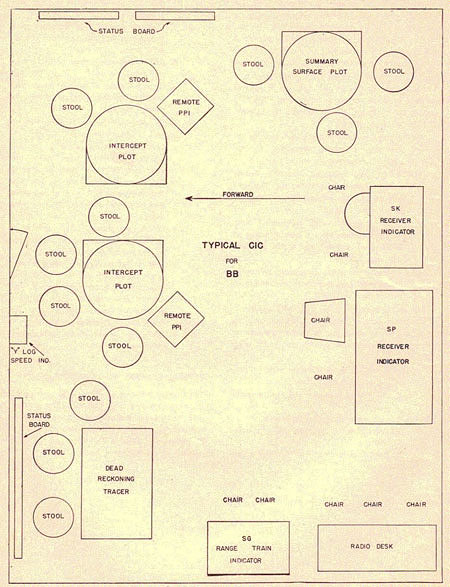

Figure 5-16.

*--5-18--*

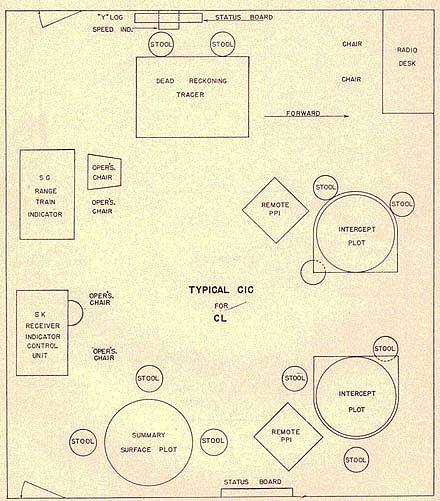

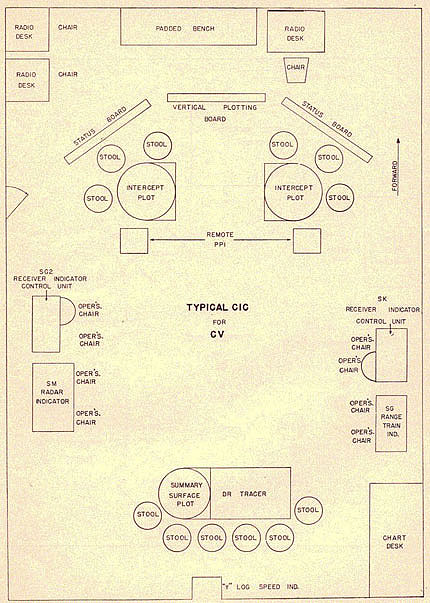

Figure 5-17.

*--5-19--*

Figure 5-18.

*--5-20--*

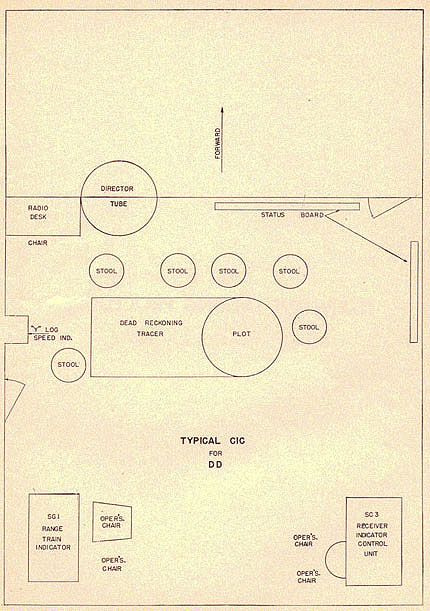

Figure 5-19.

*--5-21--*
