Imagine two point charges, each having magnitude Q. If they were brought together until they were touching, how would the equipotential lines change?

click on your browser's "stop" button to stop the animation.

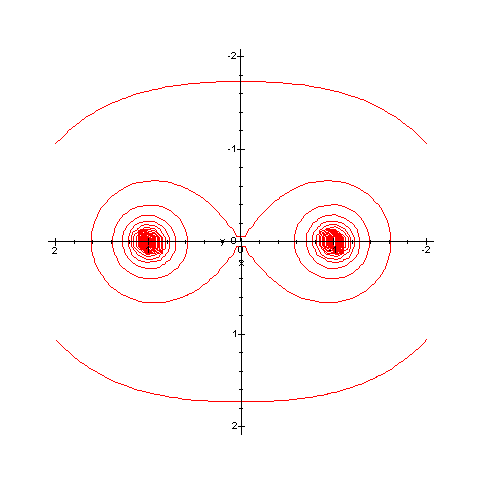

Observe the animation above. Notice that as the two point charges approach each other, they look more and more like a single charge. Eventually the equipotential lines are indistinguishable from those made by a single point charge of magnitude 2Q.

The same is true when you observe two point charges from a sufficiently large distance. If your distance from the charges is significantly greater than their separation distance, you will not be able to tell them apart from a single point charge.


What use is this?

This can be a powerful and simple way to check any equations you derive. It illustrates an important observation: Any physical solution for a system of charges should approach the solution for a single charge as the point of observation becomes very far away from the source charges. This is true of both electric potential and the electric field.
