1003540

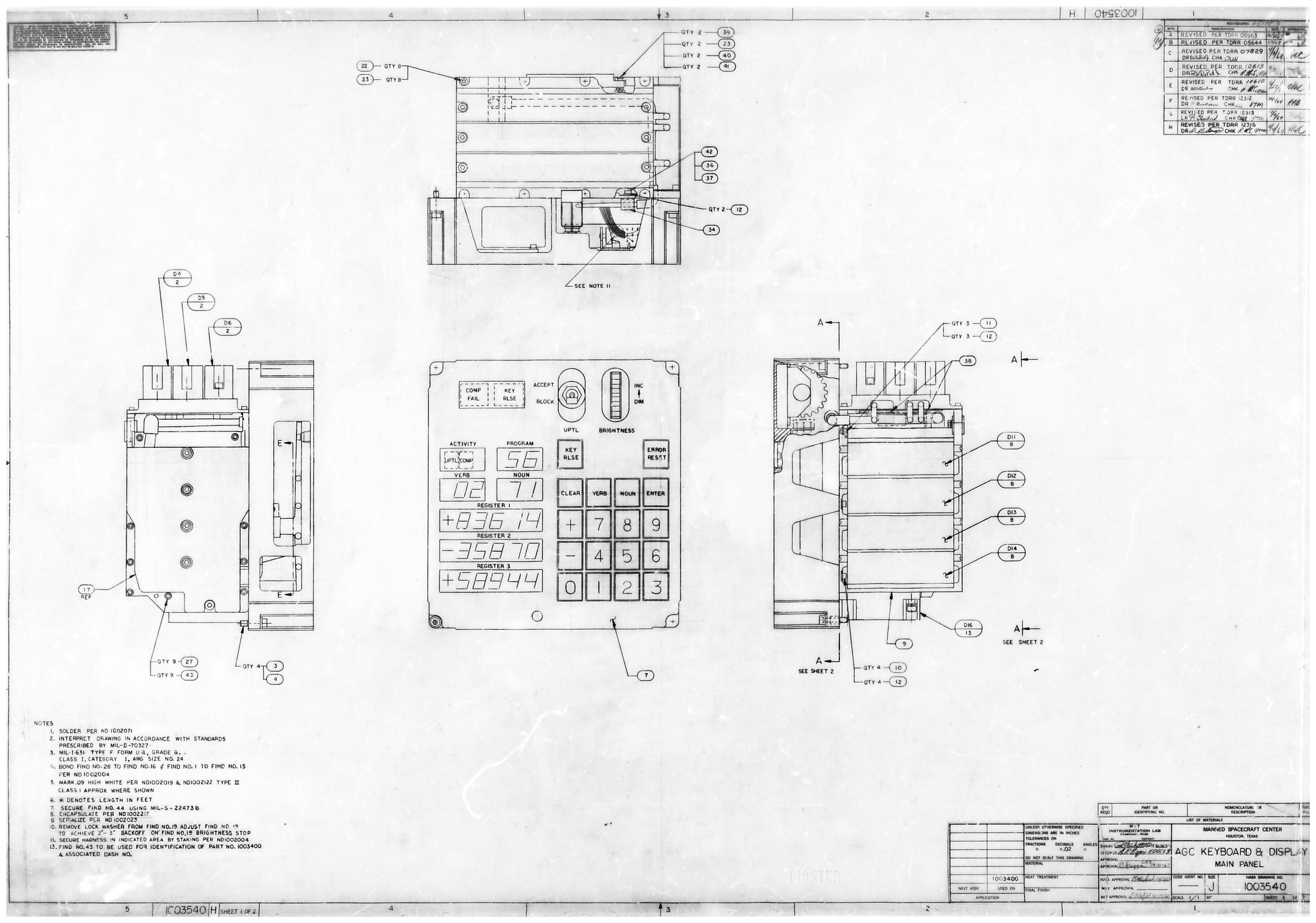

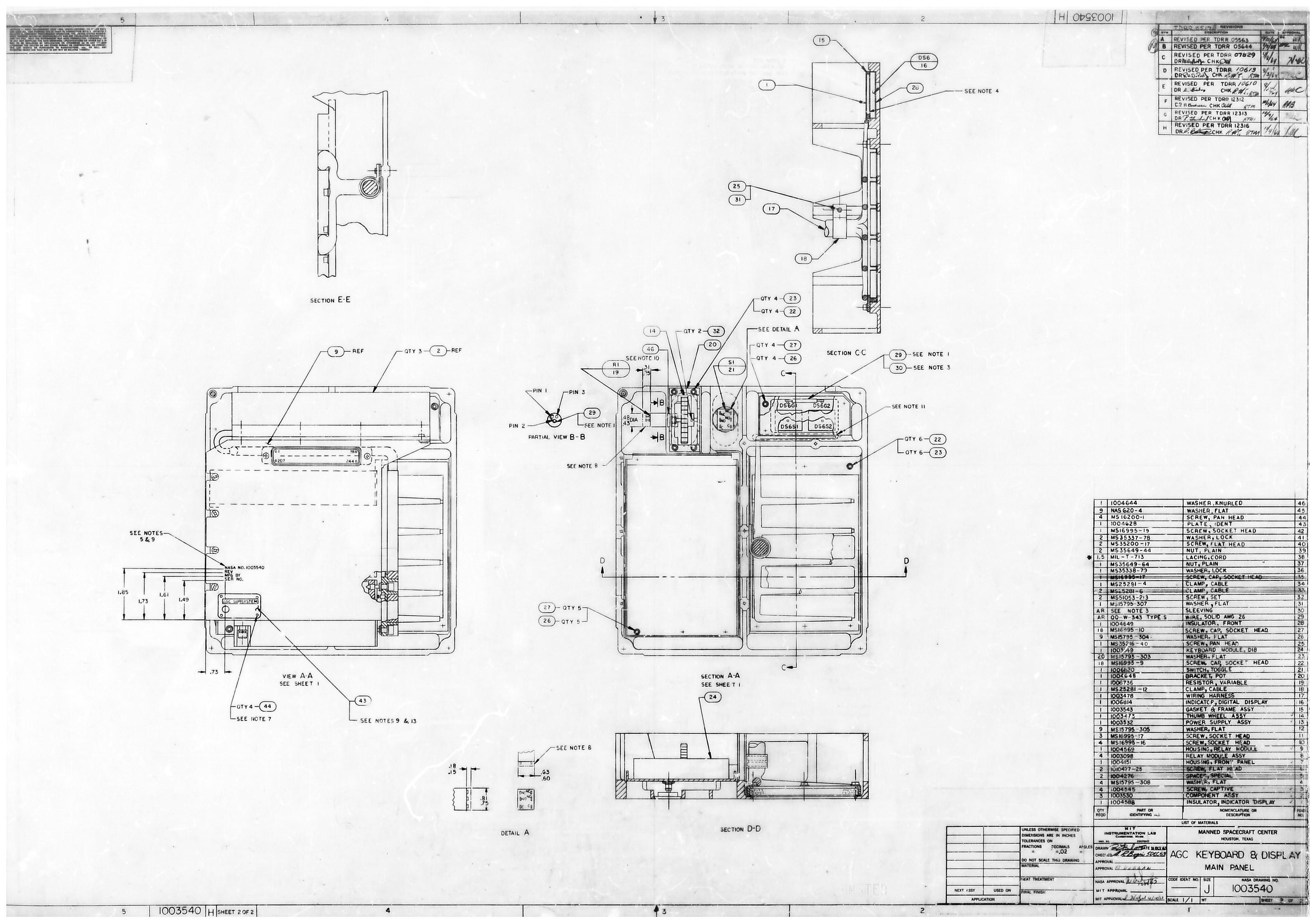

MD1, AGC KEYBOARD & DISPLAY, MAIN PANEL
The sub-assembly hierarchy of DSKY p/n 1003540 MD1 is listed
below. Minor sub-assemblies and individual components that
appear in the drawings but are not listed below may appear in our master engineering-drawing index.
- 1004588, INSULATOR, INDICATOR DISPLAY
- 1003530,
COMPONENT ASSEMBLY, expanded
in
more detail below.
- 1004151,
HOUSING, FRONT PANEL
- 1003098,
RELAY MODULE ASSEMBLY, expanded
in
more detail below.
- 1004569,
HOUSING, RELAY MODULE
- 1003532,
POWER SUPPLY ASSEMBLY, expanded
in
more detail below.
- 1003473,
THUMB WHEEL ASSEMBLY
- 1003543, GASKET & FRAME ASSEMBLY
- 1006814,
INDICATOR, DIGITAL DISPLAY
- 1003478,
WIRING HARNESS, expanded in
more detail below.
- 1004648, BRACKET, POT
- 1006820,
SWITCH, TOGGLE
- 1003549,
KEYBOARD MODULE, D18, expanded
in
more detail below.
- 1004649, INSULATOR, FRONT
- 1004628,
PLATE, IDENT
1003532,
POWER SUPPLY ASSEMBLY
- 1004577,
HOUSING
- 1003450,
CONNECTOR PLATE ASSEMBLY
- 1004594,
INSULATOR, BACK
- 1004595,
INSULATOR, FRONT
- 1006726, SATURABLE REACTOR
- 1010291,
TRANSFORMER, AUDIO
- 1006163,
SCHEMATIC, ELECTRICAL. Note: Revision 1006163G of
this drawing has been transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
1003098,
RELAY MODULE ASSEMBLY
- 1004113,
HOUSING, ASSEMBLY, RELAY MODULE
- 1004145,
PLATE, RELAY MODULE
- 1004163,
INSULATOR
- 1006815,
RELAY, ELECTROMAGNETIC
- 1006772, RELAY, MAGNETIC
- 1003521,
800 MATRIX ASSEMBLY
- 1004124,
DIODE BLOCK
- 1004533,
BACKING STRIP
- 1004654, GASKET
- 1006161,
SCHEMATIC. Note: Revision 1006161C of this
drawing has been transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
1003549,
KEYBOARD MODULE, D18
- 1004598,
PANEL, FRONT
- 1004596,
BLOCK, COMPONENT
- 1004602,
BUTTON, KEYBOARD
- 1006738,
SWITCH, PUSH
- 1004605, INSULATOR, PLATE
- 1006150,
SCHEMATIC. Note: Revision 1006150D of this
drawing has been transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
1003530,
COMPONENT ASSEMBLY
- 1003536,
HEADER ASSEMBLY
- 1004156,
BLOCK, COMPONENT
- 1003523,
500 MATRIX ASSEMBLY
- 1004535,
INSULATOR
- 1004536,
INSULATOR
- 1004541,
COVER
- 1003525,
WIRING DIAGRAM
- 1006162,
SCHEMATIC. Note: Revision 1006162B of this
drawing has been transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
1003478,
WIRING HARNESS
- 1003479,
CONNECTOR PLATE, WIRE WRAP ASSEMBLY (RELAY)
- 1003547,
CONNECTOR PLATE, WIRE WRAP ASSEMBLY (DECODING)
- 1004585, PLATE, DECODING MODULE
- 1003542,
GASKET & FRAME ASSEMBLY
- 1004568, FRAME, ELECTROLUMINESCENT
- 1004580, GASKET, E/L FRAME
- 1006813,
INDICATOR, DIGITAL DISPLAY
- 1006817,
INDICATOR, DIGITAL DISPLAY
- 1006818,
INDICATOR, DIGITAL DISPLAY
- 1004147,
INSULATOR, PROGRAM DISPLAY
- 1004148,
INSULATOR, VERB-NOUN DISPLAY
- 1004126,
INSULATOR, REGISTER 1 DISPLAY
- 1004128,
INSULATOR, REGISTER 2 DISPLAY
- 1004129,
INSULATOR, REGISTER 3 DISPLAY
- 1004590,
INSULATOR, FRONT PROGRAM DISPLAY
- 1006268-1,
CONNECTOR,
PLUG
- 1004630, BRACKET, CABLE, SUPPORT
- 1004082, PLATE, CABLE SUPPORT
