Introduction

Note: Throughout this page you'll see a number of videos illustrating the Initial Program Load (IPL) process, but you may notice that the appearance of the simulation varies somewhat from one to the next.  That's because the simulation software was advancing too.  As long as the video illustrated the basic points I wanted to make, I saw no reason to remake the videos.
Elsewhere on this website we've discussed various topics related to the Space Shuttle's flight software, such as:
All of that sounds very complex — and indeed is very complex —, and you might be forgiven for imagining that it's sufficient if you simply put enough effort into understanding it.  And indeed, it does allow you to create and run simple HAL/S or AP-101S programs that you may care to write yourself or that you find in books or Shuttle-era documents.  Alas! it is not sufficient Space Shuttle flight software, no matter how much effort you're willing to put into it.  For that, your nightmare of complexity is just starting ... but hopefully can be put to rest by our discussion here on this page.

I should say that our discussion extends only as far as the Shuttle's Primary Avionics Software Subsystem (PASS), and the Backup Flight Software (BFS) isn't touched upon except as needed for explaining execution of PASS.  That's because we have only small fragments of BFS.  What we do have is very large portions of certain versions of PASS software source code, though it's a subjective matter as to whether you could say we have 100% of the source code of any given version. In descending order of confidence, I'd say that we have "complete" versions of:

Our focus here will be OI-34.07, though as a longer-range goal, we'd like to eventually extend our coverage to the other versions as well.

What make it all as nightmarish as I claim?  Here's the synopsis:

So in order to get a working setup in which PASS can be run on a modern computer, we need not only emulators for the GPC, the MMU, and other peripheral devices in the spacecraft, but also need to know how to compile PASS source code (i.e., which ordering and which options), how to combine the object files into PHASES, and how to get those PHASES onto tape in a format that the GPC can correctly understand. And hope that any patches we're missing aren't too important.

Perhaps you'd be surprised to learn that this turns out not to be easy, and that's why its the subject of the entire remainder of this page.

Step 0: Setup

Before building any PASS source code, you need an appropriate setup for doing so.  First, you'll need to have installed the development tools, i.e., the HAL/S compiler, the assembler, and so on.  The first step is to locally clone the Virtual AGC software repository, if you have not done so already.  This will give you a local directory called "virtualagc".  Since I don't know where you will put this directory on your own computer system, I'll refer to it as virtualagc, and when you see this in the discussion below you'll just have to remember to use the path that's correct for your own computer system.

TBD

An important decision for you: Perhaps you just don't care about how to compile the flight software, or about building a "tape" from it, but just want to run it. If that's you, then you can simply skip all this dreadful, nerdy stuff and jump right down to the other dreadful, nerdy stuff.

Next, you'll need PASS source code.  As has been discussed in depressing detail elsewhere (TBD), this software is being treated as restricted out of fear of legal repression — or in the dreadful euphemism people are using at the time I'm writing this, "in an abundance of caution" —, so if you qualify to get this material, download it.  It's a compressed git repository.  Unpack it, and you'll have a directory called "PFS".  Since I don't know where on your computer this directory will be, I'll refer to it as PFS, and when you see this in the discussion below you'll just have to remember to use the path that's correct for your own computer system.

Building PASS source code produces a lot of files that are created by the compiler et al., so as a practical measure you need to do your work in a scratch directory used only for that purpose, which you won't feel bad about disposing of later. (It's your computer, of course, so you can do what you want.)  I'll refer to this directory as scratch, and when you see this in the discussion below you'll just have to remember to use the path that's correct for your own computer system.

Depending on which PASS version you're going to build, you need to make sure that the source code you need is accessible from scratch. Here's how we set it up:

Finally, copy the following directories into your scratch/OI301700 or scratch/OI340600 or scratch/OI340700 directory:

Step 1: Compiling and Assembling

cd scratch/OI340700  # Or someday, OI340600 or OI301700
prepareTEMPLIB --clear
prepareINCLIB --clear --include=INCL80
mkdir SDFLIB # Or just clear the directory if it already exists.
mkdir objects # Or just clear the directory if it already exists. compilePASS
This is a long process, but at the end you should see that the objects/ directory has been filled with object files.

Step 2: Linking

Step 3: (Optional) Verification

For OI-34.07 only, we have disassembly reports generated from dumps of GPC memory back in the Shuttle era by a program called MAFGEN. It is therefore possible to verify the build process up to this point by comparing the linked memory images created in the preceding step with memory images extracted from those disassembly reports. This verification process is, of course, entirely optional, and isn't needed if you're just interested in running PASS.

TBD

Step 4: (Optional) Stand-Alone Emulation

When we linked the PASS software earlier, we produced images of the contents of GPC memory for the various memory configurations (MC), or in more-conventional terms, for the various "operational sequences" (OPS) familiar to actual users of PASS.

TBD

In principle, it should be possible to load one of these memory images into an AP-101S emulator and run it.  In practice, that's much more difficult than it sounds, because in actual use one of these memory images will only be loaded after the IPL process (or other software) has initialized the GPC and other peripheral devices, and without that prior setup the memory image cannot be run even if 100% correct.  For example, counter/timers need to be running, interrupt vectors need to be in place and interrupts enabled, and so forth.  There are other issues as well, in that the GPC has memory-protection features, and PASS software can be run only if (roughly speaking) all memory containing code is "protected" and all data areas are "unprotected".  Any of these (and other) setups which have not already been performed will cause PASS software to halt.

TBD

Step 5: Taping

As I mentioned above, for the PASS software to be used in real life, the GPC has to load it into memory from the Mass Memory Unit (MMU).  That was originally a tape drive, though it later flights it was apparently a drop-in replacement using solid-state memory instead, but we'll just continue to call the storage mechanism a "tape".

Getting the built PASS software onto the tape is an adventure.

TBD

Depending on the particular contents of the tape and the current legal thinking on the matter, it may be better for distribution purposes to keep the tape in a compressed, encrypted form rather than in the raw form as described above.  My recommendation at the moment is to use the 7z format.  In Linux, the compression step would look like this:

7z a -t7z -mhe=on -p TAPE.7z TAPE.mmv

On Mac OS and Windows it might be carried out differently.  The -mhe=on switch means to compress header as well as data. The emulator itself recognizes that a compressed, encrypted format has been used by the filename extension (".7z") rather than the usual (".mmv"), and in the encrypted case prompts for a password (with no echoing to the screen) or optionally lets you input a password from a command-line option or an environment variable, depending on how paranoid you may be about security. In any case, the "tape" obtained from decrypting only ever exists in memory, and not ever in the filesystem.

Step 6: Emulation and IPL from Tape

Background

If everything above (other than the optional steps) has been done correctly, it should now be possible to run PASS from the tape!  You will, however, have to understand a little bit about the Initial Program Load (IPL) process, because it's not automatic.  And not fast, either.  Why anyone would find that acceptable in a flight-critical system in an object whizzing through space, or possibly pointed toward the ground, at a high rate of speed ... well, that's beyond my pay grade.  (Admittedly, everything is beyond my pay grade since I get paid nothing for this, but you know what I mean.)

The minimal set of emulated equipment you'll need for an IPL is fairly substantial:

Don't worry, if you've followed the setup instructions, all of these things are available.  Other combinations of currently-existing emulated equipment are possible as well, but won't be discussed here.  These various emulations interact via networking, as did the corresponding physical equipment in the Shuttle itself.  There, that network consisted of MIL-STD-1553 buses, which are emulated via what's known as UDP broadcasting.

Here's a basic IPL process we'll follow, though many variations are possible.  If you want to know more, the OI-32 PASS User's Guide has a more-extensive if still abbreviated discussion.

  1. The "bootstrap" program (FCMBOOT) is loaded and run, by the GPC's microcode.
  2. The GPC IPL program (GPCIPL) is loaded and run via FCMBOOT.
  3. OPS 000 is loaded and run via GPCIPL.

Having reached OPS 000 (the "system sofware" or SSW), the remainder of PASS is accessible via additional commands.

Other than FCMBOOT, which has no user interface, there are actually quite a few interesting things you can do in any of these stages (GPCIPL, OPS 0, ...) beyond just mindlessly proceeding to the next stage, but that stuff is all outside of the scope of what I'm talking about here, which is just IPL. Just for the purpose of demonstration, I will walk you through some of it, but if you want to explore the many capabilities that we're just skipping past, I'd recommend the aforementioned OI-32 PASS User's Guide as a place where you might get a toehold.  There are probably much better training materials on our Shuttle Library page, if you put your mind to finding them. I've not yet put much effort into doing so myself, so I don't have much more I can tell you of my own personal knowledge.

Although as I've mentioned so endlessly that it's probably boring, for legal reasons we are afraid at present provide a full copy of PASS on tape, so I've had an abridged tape prepared for PASS OI-34.07 that includes only the IPL code and the following major functions:

(Recall that GNC is for guidance & navigation, SM is for system management, and PL stands for "payload" but is a misnomer since it has nothing to do with the Shuttle's physical payload.)  Or in short, everything is provided on the abridged tape except OPS 1/6 (Ascent / Return-to-launch-site) and OPS 3 (Entry), so that you can't smash your simulation into anything!  Or to put it differently, so that you can't do anything really interesting either.  Still, it should give you enough to play with, and I figure it's legally safe, ITAR-wise.

We've provided a handy-dandy wrapper program (TBD) that runs the simulation for you from the abridged tape:

TBD

Note: If you happen to have a different tape, such as the full OI-34.07, or OI-34.06, OI-30.17, or indeed something of your own devising, perhaps called MYTAPE.mmv, you could run it as follows:

TBD ...
In principle, it's even possible to directly run one of the memory-configuration images (SSW, G16, G2, G3, G8, G9, S2, P9) corresponding to the OPS directly, without ever going through the MMU "tape" or IPL process.  This is trickier than it sounds, because the IPL process provides critical setups like memory protection, interrupt vectors, timer settings, and so forth, that aren't available otherwise. But we've tried to provide those to the extent that we can, so here are some commands you could try if you wanted:
TBD ...

IPL

Let's look at the IPL process first, as it's a prerequisite to everything else — after all, if you can't load a program, how are you going to run it anyway? —, and yet it's ultimately the least interesting thing. It's the equivalent of performing your morning ablutions: a necessary preliminary to your day's activities, but usually not something worthy of a "Dear Diary" entry.

Here's a video that shows going through an IPL process for GPC 1, from power-up all the way to an OPS-101 (Ascent) menu screen. This is not quite the easy, hand-off process we're familiar with on the computers we use in everyday life.  Rather, it's a hands-on experience involving keypad entries and flipping switches on the control panel, and it pretty much won't work unless you have a pretty good idea what you're doing. As I'm sure you realize, the control panel of the Orbiter is a rather large thing with hundreds of switches, dials, indicator lamps, and so on, and we don't pretend to emulate all of that stuff.  For one thing, most of it is irrelevant to you at any given time.  For another, there wouldn't be enough space on your computer's display screen. Instead, we compromise and show just enough of the control panel to deal with whatever "operational sequence" (OPS) of the flight software (or boot software) that you happen to be in at the time. During the course of the video, you'll actually pass through a couple of different boot-loader programs, followed by a number of PASS's so-called "operational sequences": FCMBOOT → GPCIPL → OPS-0 → OPS-9 → OPS-0 → OPS-1. You'll start out with the 3 control-panel chunks needed by the boostrap loader, and end up in OPS-1 with no less than 14 control-panel chunks being displayed.

It's sometimes hard to see what's going on with the control-panel manipulations if you don't know what you're doing — and even if you do! — so I've taken the liberty of accentuating the controls that are about to be manipulated by drawing a red circle around them; of course, you wouldn't expect to see those during an actual simulation.  There are also some subtitles giving very general descriptions of what's going on.

How do we know what to do with the keyboard and all of those switches?  The PASS User's Guide (OI-32) goes through it step-by-step, as well as providing some extra explanation of what's going on behind the scenes, so I won't waste my or your time by rehashing something you could read just as easily there as here.

A Brief Tour

Before proceeding, there are a few general things worth knowing.  PASS software is partitioned into up to 10 Memory Configurations (MC) or Operational Sequences (OPS), which as far as I can tell are essentially the same things, although a purist can probably tell me some difference between them which at that instant seems significant to whoever is doing the telling. These are are identified in a number of confusing ways by/for particular audiences:
  1. OPS 0, OPS 000, SSW, "System Software"
  2. OPS 1, G1, GN1, GNC1, "Ascent"; or OPS 6, G6, GNC6, "RTLS" (Return To Launch Site)
  3. OPS 2, OPS 2 (GNC), G2, GN2, GNC2, "Orbit"
  4. OPS 3, G3, GN3, GNC3, "Entry"
  5. OPS 2 (SM), S2, SM2, "On-Orbit", "Orbit/doors"
  6. (Omitted for many flights) OPS 4, S4, SM4, "Orbit P/L", "Orbit/doors"
  7. OPS 9 (PL), P9, P/L9, "MMU"
  8. (Not used, what a relief!)
  9. OPS 8, G8, GN8, GNC8, "On-Orbit Checkout"
  10. OPS 9 (GNC), G9, GN9, GNC9, "Preflight"
The details also differ from flight to flight, and our documentation is sadly incomplete, so you have to be a little flexible in terms of guessing what some of the terminology salad thrown at you refers to.  For example, the diagram to the right (click to enlarge) is from OI-30. Is it still correct for OI-34? You tell me!

Each OPS is generally associated with a number of menu screens, with which the crew interacts.  Those are referred to as Major Modes (MM), and each MM has a three-digit identifying number, most (all?) of which you can see in the diagram above.  For example, one major mode of OPS 9 is MM 901, "Configuration Monitor".  The titles printed one these menu screens may or may not match those in the diagram, but are usually obviously related.  On the other hand, there are examples such as MM 201 in OI-34.07 whose screen is titled "UNIV PNTR", which is wholly unlike the "ORBIT COAST" that the diagram above implies.

But here's the important part:  Once you're past the IPL process described earlier and are actually running PASS, you change from one MM to another by using the keyboard associated with the MEDS, both of which are illustrated in the videos above, with the command sequence
OPS O 0 N PRO
where O0N is the MM's 3-digit number as in the diagram.  For example, if you were in MM 901 (in OI-34.07, "TBD") and wanted to transition to MM 201 (in OI-34.07, "UNIV PNTR"), you'd use the command "OPS 201 PRO".

But if you try to jump around at random from MM to MM, you'll quickly get into trouble because not all transitions from MM to MM are allowed.  In the diagram to the right, for example, you see the allowed transitions in OI-32.  (Again: Are the identical transitions allowed in OI-34?  Don't ask me!)  And indeed, if you look at the table in relation to the example I gave earlier, of transitioning from MM 901 to MM 201, you'll see that in fact it is not legal: From MM 901, you can only transition to MM 000, so if you want to get from MM 901 to MM 201, you'd have to do something like
OPS 0 0 0 PRO
OPS 2 0 1 PRO
But that brings up another point, which is that this involves transitioning from OPS 9 to OPS 0 and then to OPS 2.  You may recall that I equated each OPS to a "memory configuration" (MC). That's because there's too much PASS software to fit into GPC memory at any given time, so when you transition from one OPS to another it requires downloading the MC for the desired OPS from the MMU (or from a cache in another GPC) and replacing the MC already loaded into the GPC.  So if you wanted to go from MM 901 to MM 201, you'd find that the GPC first downloaded the MC for OPS 0 (which happens also to be MC 0), and then a little while later download the MC for OPS 2 (namely MC 2).

Now fortunately, that's all transparent to you when it happens, at least in the sense that you don't have to take any additional action to make it happen.  Unfortunately, it happens to take a long time.  So you might enter a few innocent keystrokes like those shown above, and have to wait for a minute or so for those actions to complete.  Also unfortunately, there's not much of a visual clue for you to know any of it's happening, so you just have to be patient.

Before I leave the topic of legal MM-to-MM transitions, I'd also note that even when a transition is legal, it's not necessarily legal for you to make manually. The legal manual transitions are the one marked with "M" in the matrix above. But some are just automatic, such as the transitions from MM 101 to 102 to 103; once such a sequence gets started, you're just trapped and may have few or no means to escape them.

Beyond the menu screens for the major modes, there tend to be a number of "special function" or "specialized" screens that you can call up.  These also are characterized by 3-digit codes, though you can omit leading zeroes in the commands to pull up those screen.  To call up the specialized menu screen LMN, the keyboard command would be
SPEC L M N PRO
The available specialized screens tend to vary according to the current OPS, although some are available in most or all OPS:

But that's only scratching the surface: There are lots of specialized screens, and to learn more about them you'll have to consult the Shuttle-era documentation.  I'd suggest the PASS User's Guide OI-32.

Okay, now suppose you've found the MM screen you need, or maybe a specialized screen.  A number of items on the screen will often just be monitors that let you see what's happening right now in the Shuttle; for example, perhaps you'll see a temperature monitor.  But some screens will have configurable items or actions you need to have initiated.  What then?

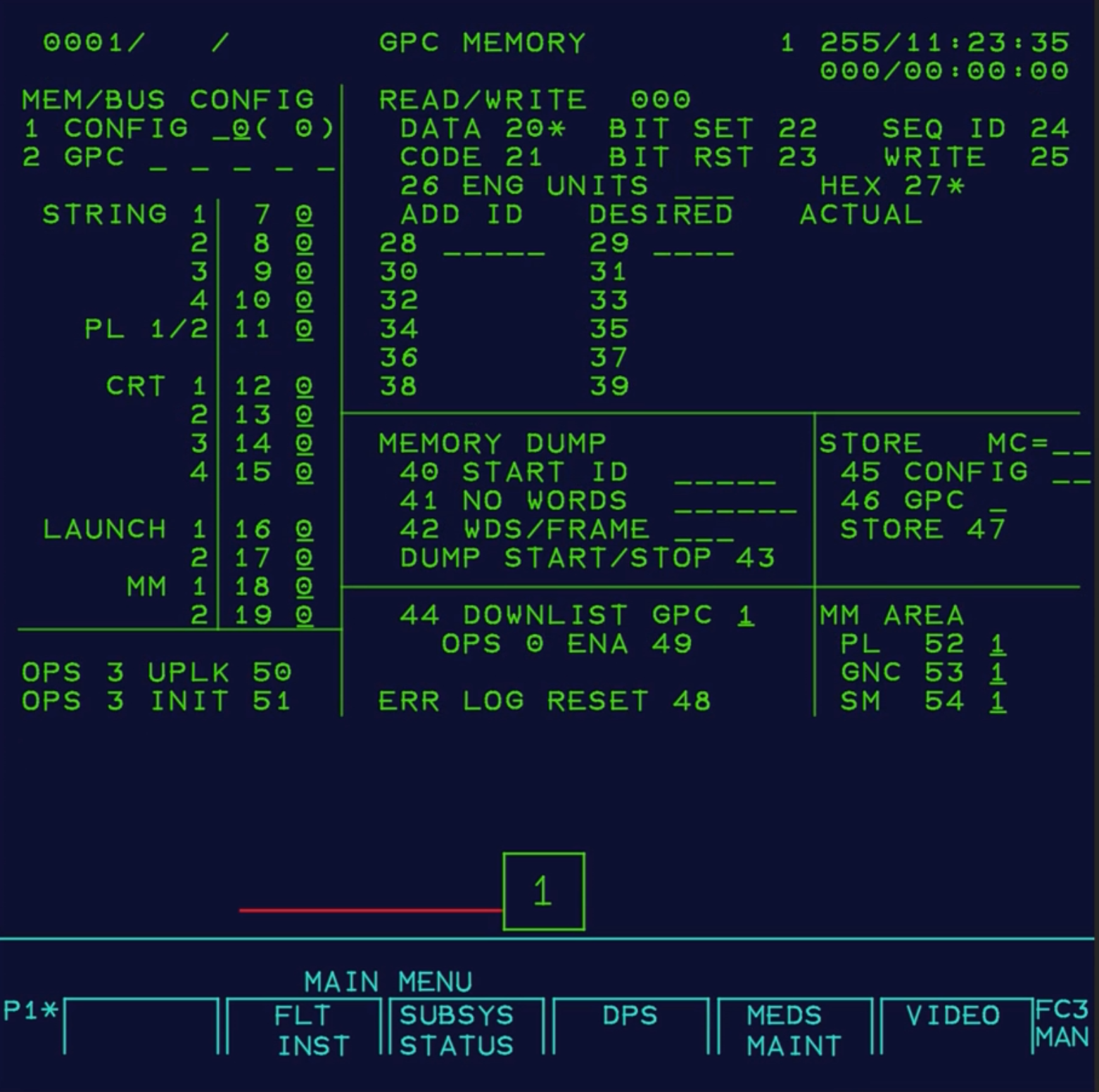

Items which are configurable will be printed next to a number that has no obvious purpose.  For example in the sample "GPC MEMORY" screen shown above, you'll see
The bold numbers (1, 2, 7, 8, ..., 54) are what I'm referring to.  These numbers select options you can configure.  Next to some of them, you'll see something underlined; if so, those are things which you can change, using a keyboard command like
ITEM N + V EXEC
where N is the option number and V is the new value.  For example, you see from "46 GPC _" that for the "STORE" function, GPC has no default value.  To change it to GPC 3, the command would be
ITEM 4 6 + 3 EXEC
Next to some items, like "DATA 20" for the READ/WRITE function, there is no underlined area. That means it's a toggle, with an asterisk ("*") next to it if enabled or selected, but no asterisk if disabled or not selected.  The command to toggle it is just
ITEM 2 0 EXEC
or more generally, "ITEM N EXEC".

So with that introduction, let's take a little visual tour via video. I won't go through every screen in OI-34.07 because I'm neither a sadist nor a masochist, though you'd hardly believe that from the turgid text you've seen so far, but hopefully you'll see enough to get the general idea.  I've cut out the transitions from OPS to OPS, since I don't think the long delays for loading the memory configurations are very instructive.  We pick up at the "GPC MEMORY" screen (MM 000) where we left off from the IPL discussion in the preceding section:

TBD

For Enthusiasts

As you recall, the Shuttle's Data Processing System (DPS) doesn't merely have 5 GPCs, it expects 4 of those GPCs to operate in a redundant configuration during critical flight phases — Ascent, Return To Launch Site (RTLS), Entry, or in other words, in OPS 1, 6, 3 —, during which they are executing identical software, processing hopefully-identical input data, and outputting hopefully-identical commands as well.  Although in fact, redundancy works in any OPS, and indeed works automatically: If you run the same OPS in any set of GPCs, they'll automatically try to join up into a so-called "redundant set" and operate in concert. That doesn't mean you'll necessarily see the same thing on each display screen.  The technique involved is that each of the GPCs continually evaluates synchronization data from the other computers, and then they vote on whether they think the each of the others are working properly.

Aside: Here's a heads-up on the computer resources you need to run the simulation in this form.  Roughly speaking, to run a simulation using N GPCs, with N being 5 or less, you'll want at least N+1 cores. That's not to say that you couldn't get by with less in a pinch, but on my computer (which is new as of August 2026, and chosen to be as fast as possible at that time, consistent with what I think is a reasonable budget), each GPC takes about 80% of a core. These things will only get faster in the future, of course — knock wood! —, but I'm just saying that your experience may be less satisfactory on an older machine. The memory resources for the simulation are meager, around 30MB, and shouldn't concern anyone.  But why is so much CPU needed to simulate such an old, slow computer system?  I really can't point to any one factor.  We've uncovered no obvious culprits so far.  The need to insure synchronization between the GPCs and between the GPCs and the MEDS form some pretty hard constraints on what we can try, since a couple of hundred microseconds discrepancy here or there is enough to destroy synchronization.

In truth, there's very little visual indication that any of these is going on, unless you call up specialized screens that detail some of it for you.  However, the control panel has a 5×5 array of indicator lamps, called the Computer Annunciation Matrix (CAM), in which you can see what all of the GPC votes are. So when it's working properly, all there is to see is a CAM array with none of its lamps lit.

In the video below, you see a simulation run I IPL 4 GPCs and 2 displays, taking it all the way to OPS 2, and explain it as I go with nifty subtitles.   In this particular run no GPCs experienced redundancy-sync problems, but believe me, if they had done so you'd see it on the CAM.

If you want to get even more hard-core, below you'll the big brother of the video above, in which all five GPC's are IPL'd, all the way to OPS 1 (Ascent).  This particular configuration is as real as we can get, because normally you'd expect GPCs 1-4 to run PASS while GPC 5 runs BFS, but we don't have BFS, so GPC 5 fakes it by stopping when it reaches OPS 0, just so it's not running the same software as the other four.  (Actually, this is a bit more demanding than the realistic configuration, because a computer running BFS doesn't participate in voting against the computers running PASS, or vice-versa, but in this configuration, all five of the computers are voting.) This video takes 15 minutes to run, versus 8 minutes for the video above, but spices it up a little more with some additional explanations.
