# GEMM tests on GeForce RTX 2070

WebGL2-compute GEMM shaders based on
Cedric Nugteren's tutorial
(see his test results on Tesla below).

GEMMs are tested on MSI GeForce RTX 2070 Aero + Intel i3-8100, Windows 10 64-bit,
OpenGL backend, N = 4096.

"Semi-quantitative" plot.
Unfortunately the shader 6 has long "warming up" (up to 50 iterations), e.g. for N = 2048

T(ms)= 33.7 33.8 33.2 32.3 34
20.4 5.4 5.2 5.2 5.2

Therefore it = 100 and "highest reproducible numbers" are used :)
For N = 1024 shader 6 is not optimized yet. As you can see below,
tuned OpenCL kernel get 3.94 TFLOPS.

D3D11 backend has higher overheads for big N than OpenGL one.

## CLBlast GEMMs

Test resultes from CLBlast
(N = 4096). There are compiled tuners for GEMM (for Linux and Windows) at
CLBlast releases.
*** Found best result 20.25 ms: 6786.0 GFLOPS**

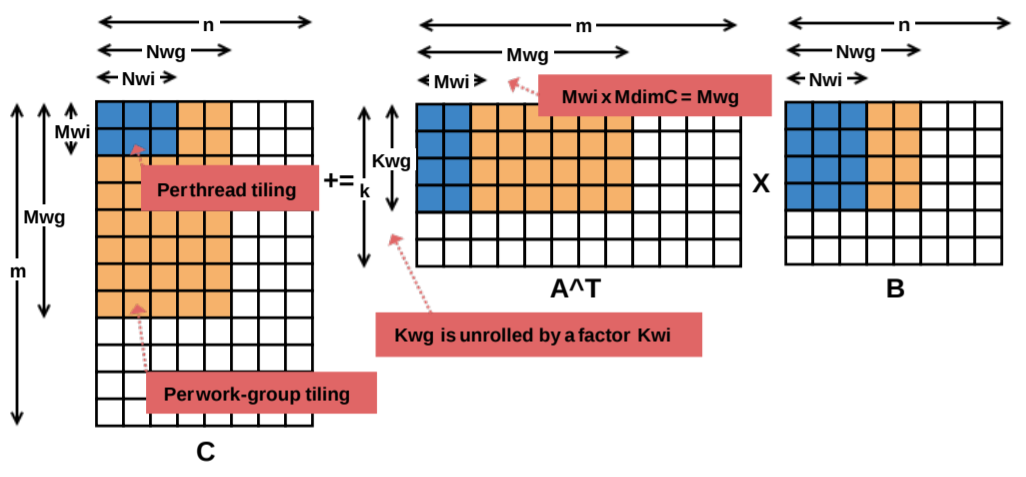

* Best parameters: GEMMK=0 KREG=1 KWG=16 KWI=2 MDIMA=32 MDIMC=8 MWG=128
NDIMB=32 NDIMC=16 NWG=128 PRECISION=32 SA=1 SB=1 STRM=1 STRN=0 VWM=4 VWN=1

For N = 1024 tuner has found the same parameters and 3942.5 GFLOPS
* Found best result 0.54 ms: 3942.5 GFLOPS
* Best parameters: GEMMK=0 KREG=1 KWG=16 KWI=2 MDIMA=32 MDIMC=8 MWG=128
NDIMB=32 NDIMC=16 NWG=128 PRECISION=32 SA=1 SB=1 STRM=1 STRN=0 VWM=4 VWN=1

SGEMM in WebGL2-compute
*updated* 19 July 2019
