4. Writing HTML for Links modules

Having presented the structure of the Links module, we now discuss specifics of the HTML construction. Most of the information in this section is addressed (in a slightly different format) on the Links template module as well.

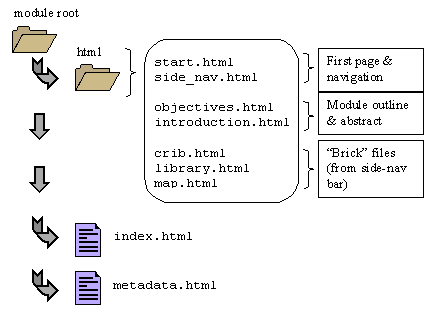

Each project Links standard module should have the named HTML files given in the diagram below


For a template to use to begin constructing HTML files for your module (exclusive of the modifiable/module independent files index.html, metadata.html, side_nav.html, crib.html, library.html, and map.html) use the file http://links.math.rpi.edu/otm/system_docs/htmldev/data/template.html. Depending on the level in the server's directory structure that your module is located in, you may have to change the referencing of the JavaScript source files to go up one more level (i.e. SRC="../../../shared/scripts.js" instead of SRC="../../shared/scripts.js"). You will know you've referred correctly because the page will load in the style sheet and will format correctly.

Periodically, project Links produces CD-ROM versions of the site. To insure all modules will work correctly when stored on this medium, it is imperative to use only relative hyperlinks inside the Project Links site structure. For example, to refer to a graphic file contained in the graphics/ directory, it should be referenced as
<IMG SRC="../graphics/file.gif">. Similarly, referring to the Project Links homepage should be done as follows:

DO use:
<A TARGET="_top" HREF="../../../index.html">
Do NOT use:
<A TARGET="_top" HREF="http://links.math.rpi.edu/">

This is very important.

For external links (to other sites, but not other modules) use the modifier CLASS="external" in your <A> tag. For glossary entries, you may use the CLASS="glossary" modifier. It will also be necessary to indicate in which frame the linked material is to be displayed. As a rule, the modifier TARGET="mid_content" will always be used. That being said, most <A> tags will have the following structure:
<A TARGET="mid_content" HREF="file.html">.

For content pages, header tags

<H1>: Heading 1

<H2>: Heading 2

<H3>: Heading 3

are valid. For standard text, the <DIV CLASS="normal"> tag is used. It is recommended that you use this <DIV> tag at the beginning of your standard text and not close it out (i.e. use </DIV>) until the very end of the module. The <DIV> tag may otherwise interfere with the font size of the copyright notice at the bottom of the page.

To create bold text, use the <STRONG></STRONG> tag set, not <B></B>. Italics and underlining may, however, be used in the regular fashion. Highlighting capability is a feature provided by the Links site. Use the <SPAN CLASS="highlight"></SPAN> tag set to exploit this option.

The mission of project Links is to show the application of mathematics in the fields of engineering and science. As such, it is often necessary to include complex equations in module HTML pages. For Links pages, special JavaScript functions are employed for this purpose. Their syntax is as follows:

<SCRIPT>
   math("
math_string", hLength, vLength);
</SCRIPT>

<SCRIPT>
   display("
math_string", vLength);
</SCRIPT>

In each case, vLength specifies the number of rows and hLength specifies the number of columns (in terms of text-characters) that the equation will consume on a page. These you will need to eyeball, as the plug-in/applet taking care of execution will adhere to your sizing even if the equation will not fit in the allocated space.

The math function will display equations in-line with text, while the display function will take an entire row (of size vLength) to display its equation.

The argument math_string contains the equation to be displayed. For information on how to encode these equations, please refer to RPI’s Academic and Computing Services document RPI.109 available in printed form at the VCC, and in .pdf form at
http://www.rpi.edu/campus/doc/its.memos/rpi109.pdf. Chapter 6 of this document discusses coding of mathematics and appendix A lists mathematical symbols and their tags.

Please note: not all symbols in LATEX work with our plug-in/applet. Be sure to test your page on a machine using WebEq to display equations, as that applet supports the fewest commands (it is able to comprehend neither spacing commands nor a small set of commands, such as "\not=" which must be instead coded as "\neq"). Also: a JavaScript issue: all commands must be prefaced with a double backslash instead of the single as described in the documentation.

Example:
<SCRIPT>
  display("|S|=\\sqrt{P^2+Q^2}", 3);
  math("pf=\\arctan\\left(\\frac{Q}{P}" +
       "\\right)", 16, 4);
</SCRIPT>
produces

In the interest of displaying information as appropriately as possible, Project Links system requirement specifications allow for a number of media types to be used. Refer to the following table for the most commonly used types which Links supports.

media
format
graphics .gif, .jpg/.jpeg, .png
audio .wav, .au
video / animation .gif, .avi, .mpg/.mpeg, .mov

We recommend users have Apple’s QuickTime plug-in, which supports far more media types and formats than listed. Refer to
http://www.apple.com/quicktime/pdf/QuickTime4_FS-a.pdf page 7, for a complete listing.

On occasion it may be necessary for the Links manager to update pages throughout the site. Accordingly, it is important that you always download a fresh copy of files in your module each time you plan to work on them (this is if you keep a working copy stored on a separate computer), and before uploading the revised pages: make sure that no changes were made in the interim.

Internet Explorer and Netscape Navigator both offer authenticated FTP support in their newer versions (5.0 & 4.5 respectively). Simply type
ftp://username@links.math.rpi.edu and authenticate yourself for a GUI drag-and-drop for file transfer.

If you prefer, you may use LeechFTP, a freeware program available at
http://linux.fh-heilbronn.de/~debis/leechftp/.
You may also be interested in the freeware HTML editor Arachnophilia available at http://www.arachnoid.com/.
The HTML-KIT, available at http://www.chami.com/html-kit/, is another HTML / Java / Javascript / CSS editor. It supports code-checking and auto-complete.

Important: Project Links does not support the use of unregistered shareware or bootleg software on its computers or by its employees.

Remember that all files must be usable on both Windows and Macintosh platforms in both Internet Explorer and Netscape Navigator web browsers. We imagine developers will tend to pick a specific platform and browser to develop in. It is imperative that all pages be checked in each browser on each platform: you would do well to do a full check of all edited pages on all platforms once each week to insure consistancy.

For examples of completed modules and what Project Links is looking to output, take a look at the Vibrating Strings and Drag Forces modules.

Larry Lansing: lansil@rpi.edu
Project Links Technical Manager
