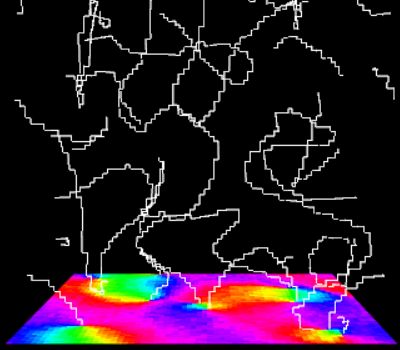

3D XY model simulations on 64x64x64 lattice with periodic boundaries. You can see vortex threads dynamics. Spins are shown on the bottom plane only.
Use your fingers or mouse to control the model (hold shift key or use mouse wheel to zoom it). Canvas is matched to your browser window.

Exitations in 3D XY model. Vortex threads and rings

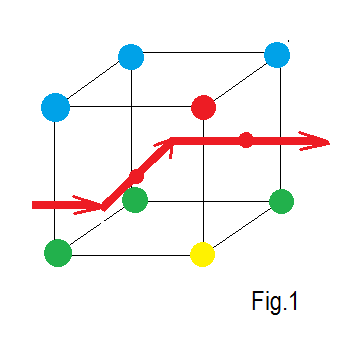

On a 3D lattice vortex is represented by an arrow. Its direction is determined by the right-hand screw rule when an elementary placket is traced (moving in the direction of phase growth). These arrows make vortex threads and rings. Opposite sides of a ring are attracted (similar to a vortex - antivortex pair), therefore for low T it collapses and annihilates.
Vortex thread Vortex threads
