Proposed Torpedo Battleship ... May 31, 1912
Preliminary design plan prepared by the Bureau of Construction
& Repair, probably in support of studies of this potential new
ship type that were taking place at the Naval War College at
about this time. The so-called Torpedo Battleship, conceived
as a large ship armed primarily with torpedoes, never found substantial
support. The Bureau of Construction & Repair recommended in 1911
that such a ship be included in the Fiscal Year 1913 program.
None were built or planned for construction, however.

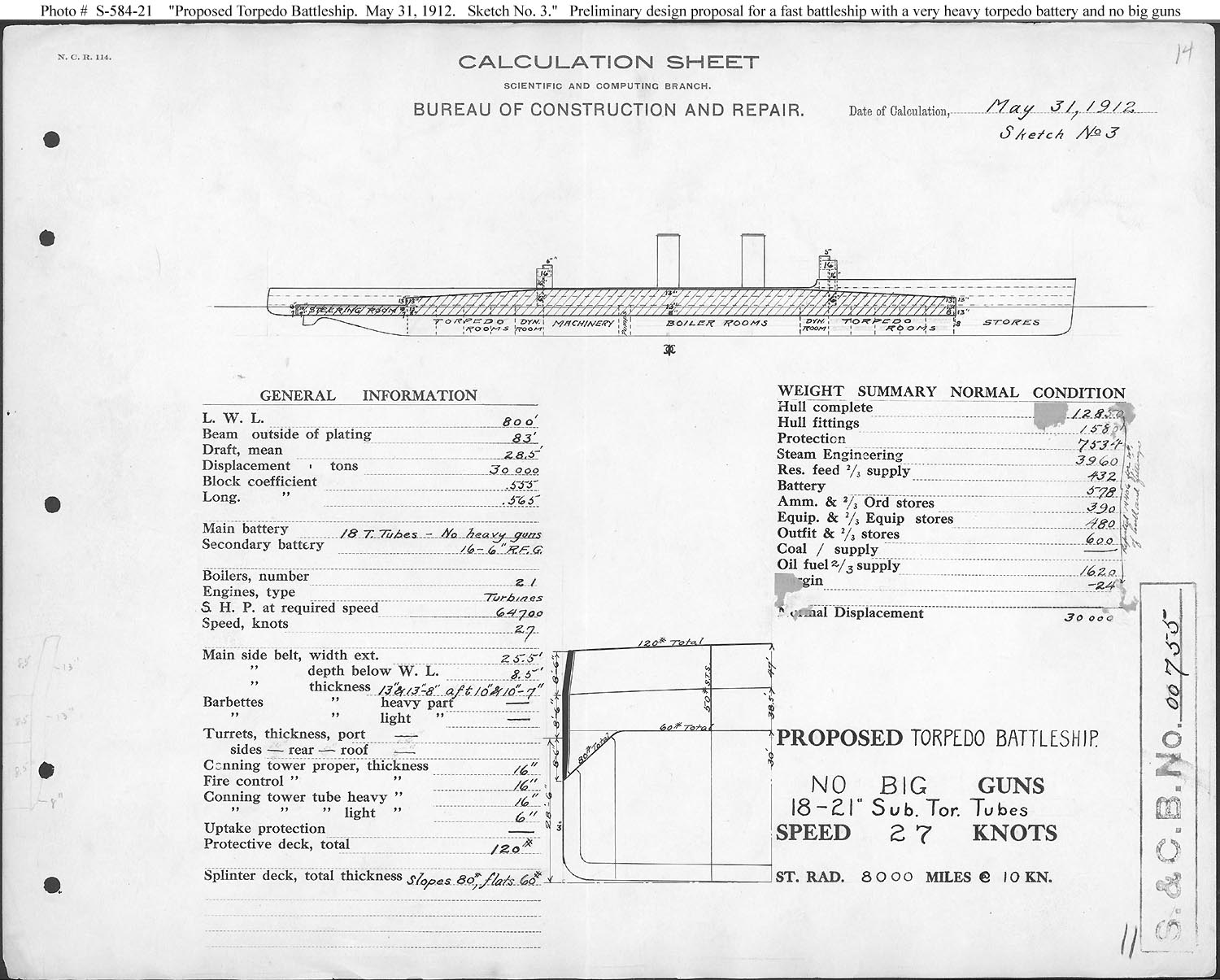

This plan, labeled Sketch No.3, provides no large
caliber guns, eighteen submerged 21-inch torpedo tubes, and machinery
for 27 knots maximum speed in a ship 800 feet long on the load
water line (L.W.L.), 83 feet in beam, with a normal displacement
of 30,000 tons.
