Photo #: S-584-156

Undated Comparative Characteristics Data for "Small Battleship" Preliminary Designs


Preliminary design data for a series of designs for a "Small Battleship". The Chief of the Bureau of Construction and Repair requested on 8 March 1919 that his staff develop a set of comparative studies for ships of this type, apparently reflecting his desire to anticipate a possible early need for retrenchment from increasingly large capital ship designs under development at the time. Additional designs in the "E" and "F" series were requested on 10 April, followed by "G" and "H" series variants with increased armor protection, on 17 April. The concept was not pursued.

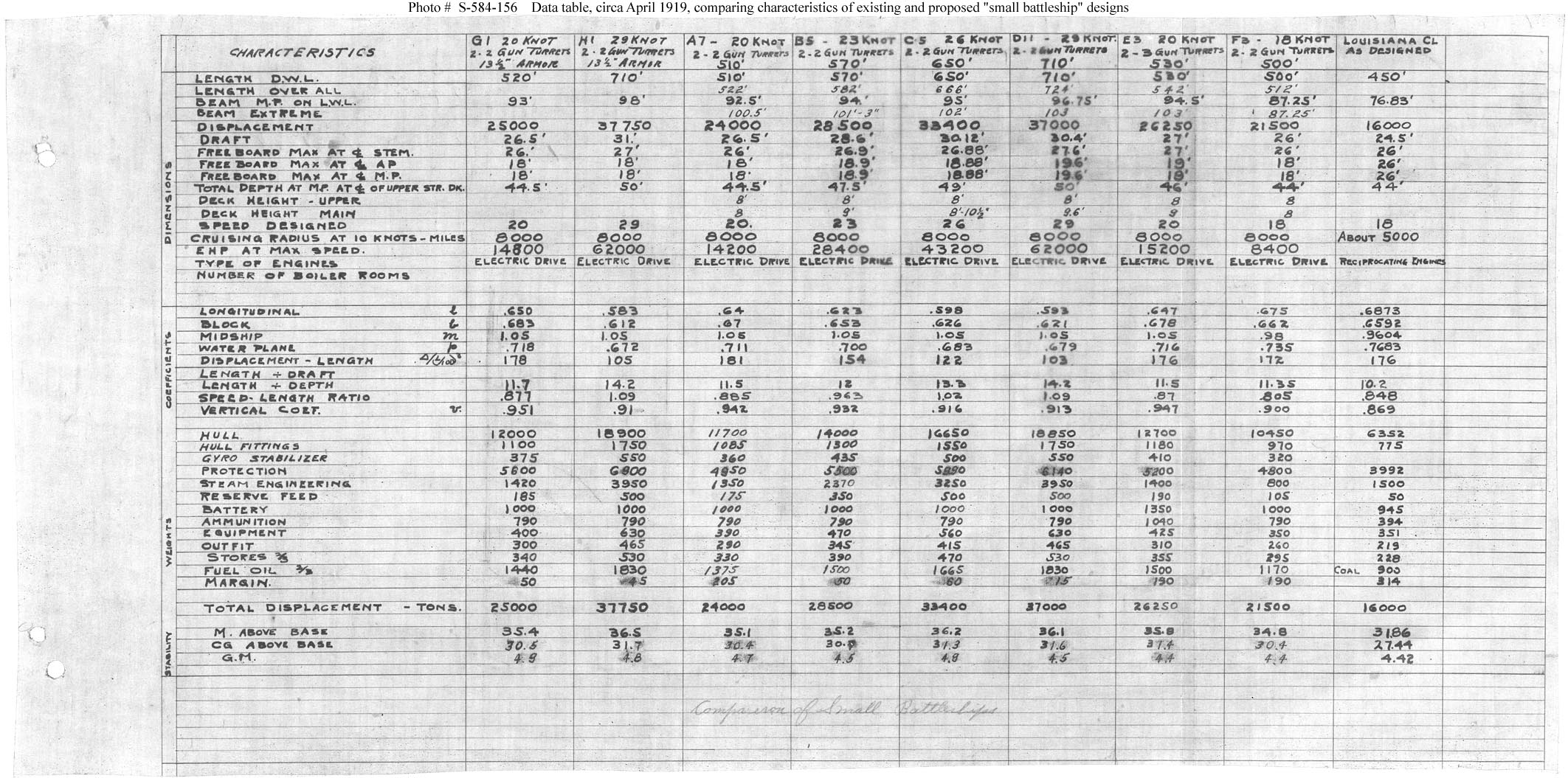

The data table provides technical characteristics for eight different "Small Battleship" design studies, compared to the data for battleship Louisiana (Battleship # 19), an earlier battleship built with two main battery gun turrets.
Note: The original document was a blueprint (white on dark blue).

The original plan is in the 1911-1925 "Spring Styles Book".

U.S. Naval Historical Center Photograph.

Online Image: 391KB; 2125 x 1055 pixels
