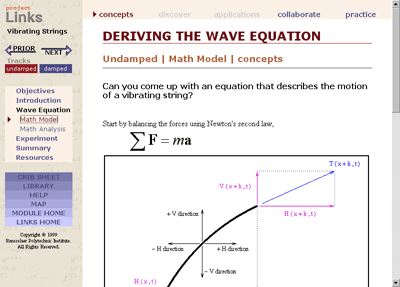

At right is a screen-shot of a project Links module in the revised (July 1999) navigational
format. Functionally it consists of 3 frames which are sized based on the navigational
components included in the upper-left corner frame. Navigation is dealt with entirely
within the
index.html
file.
The script include file
/devmodules/shared/navigation/navigation.js
provides
functions and variables for the HTML programmer to use to specify navigation parameters in
the
index.html
file. After all navigation data has been specified, the
function
buildNavigation()
is called. This function constructs the frames,
produces content in the two frames on the left, and loads the
start.html
page
into the content frame.
As with other standard Links code, the most efficient way to implement this
navigation scheme is to copy the code of an existing navigation setup and modify it
to fit your module. View the source of the Template index file at
http://links.math.rpi.edu/devmodules/template/index.html
Consider printing out a copy to have with you as you review the rest of this primer
section.
All navigation data is entered by using JavaScript functions or by setting variables.
In an effort to ensure consistancy among all
Links modules, all module
index.html
files will reference the same
navigation.js
script
include file. This file will manage all navigation formatting. Accordingly, should
changes be necessitated in the navigation, ALL modules will be changed by changing only
the one file. This also puts an absolute clamp on formatting: no longer will some modules
have titles centered and others left-justified, some link, some not, etc. ALL modules
will ALWAYS be 100% consistant once converted.
The following parameters must be set for all modules:
Parameter Name
|
How used
|
Example
|
moduleTitle
|
this string is used in the window title as well as in the navigation frame.
|
moduleTitle = "Vibrating Strings";
|
copyrightYear
|
used in the copyright notice at the bottom of the bottom navigation frame.
Specify the year(s) using a string.
|
copyrightYear = "1998-1999";
|
addHeading(titleString, linkURL);
|
specifies text to use in the side navigation bar's table of contents for a heading,
and the URL to link to when that text is pressed.
|
addHeading("Introduction", "intro.html");
|
addSubHeading(titleString, linkURL);
|
specifies text to use in the side navigation bar's table of contents for a
sub-heading, and the URL to link to when that text is pressed.
|
addSubHeading("An example", "example.html" );
|
addHeadingAsPopUp(titleString, linkURL);
|
specifies text to use in the side navigation bar's table of contents for a heading,
and the URL to link to when that text is pressed. URL will open in a new window.
|
addHeadingAsPopUp("Pop-Up Header", "popUpHeader.html");
|
addSubHeadingAsPopUp(titleString, linkURL);
|
specifies text to use in the side navigation bar's table of contents for a
sub-heading, and the URL to link to when that text is pressed. URL will open in a new window.
|
addSubHeadingAsPopUp("Pop-Up SubHeader", "popUpSubHeader.html" );
|
notes:
- JavaScript is case-sensitive. As such, variable names must be copied exactly.
null
may be used as the value for the linkURL
parameter for the addHeading()
function, making a title that does
not link. While this case is also valid for the addSubHeading()
function, it is not practical.
- The table of headings and subheadings in the navigation frame will be ordered
by the sequence in which their constructing functions are called. This is to say
that the first
addHeading()
function call specifies the first title
in the table.
- To make pages that pop up when clicked from the side-navigation bar also pop up when
used in the prior-next sequence (keeping it consistant) use one of the following javaScript
functions:
popUp(URL);
popUp(URL, width, height);
in the pageSequenceArray.
For example: to have the page dummy.txt
pop-up in the prior/next sequence, its
entry in pageSequenceArray[]
should be as follows:
"javascript:popUp('dummy.txt', 400, 300);"
Since the function is being enclosed by double-quotes, we must use single quotes to enclose the
URL
argument being passed to the function.
troubleshooting:

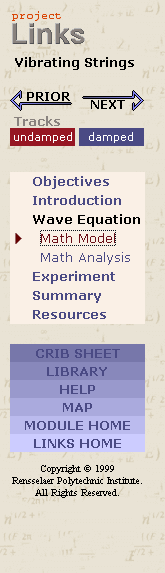

Take a look at the side bar at left. Notice the prior/next button set, the tracks,
and the arrow in the table of contents. Each of these three components is optional
and controlled by parameters through the index.html file. Use of any or all of
these is entirely at the discretion of HTML and content developers.
Using bullets
To include the bullets in the table of contents (indicating the page the user is
currently on), include the following line in your setup code:
bulletsUsed = true;
Using prior/next buttons
Doing this requires both setting the control variable
prevNextUsed = true;
and specifying the page sequence. The latter is done by creating an array of
strings, each of which is a URL. Review the example below. The array may be any
size you like. Note that the variable name of the array must be
pageSequenceArray
var pageSequenceArray = new Array("page1.html", "page2.html", ...);
Using tracks
The most complex of the three components; also the least frequently used.
To use tracks, first set the control variable as follows
tracksUsed = true;
Next, set the button graphic references. Use the function
setTrackStateButtons(textLabel, disabled_icon, enabled_icon,
selected_icon);
for each track in the module. For example, the code
setTrackStateButtons("undamped", "shared/navigation/graphics/undampedD.gif", "shared/navigation/graphics/undampedE.gif", "shared/navigation/graphics/undampedA.gif");
setTrackStateButtons("damped", "shared/navigation/graphics/dampedD.gif", "shared/navigation/graphics/dampedE.gif", "shared/navigation/graphics/dampedA.gif");
is used for undamped and damped tracks in the mechanical-oscillations flavored modules.
Similar to the calls to the addHeading()
and addSubHeading()
functions, the tracks are laid out (left to right) in the order in which the function
setTrackStateButtons()
is called.
Finally, track pages must be associated with their respective tracks. Please review the
following code.
trackArray = new Array();
trackArray[0] = new Array("mathAnalysis_apply1.html", "mathAnalysis_collab1.html", "mathAnalysis_concepts1.html",
null, "mathModel_concepts1.html", "mathModel_collab1.html", "mathModel_practice1.html");
trackArray[1] = new Array("mathAnalysis_apply2.html", null, "mathAnalysis_concepts2.html",
"mathAnalysis_practice2.html", "mathModel_concepts2.html", "mathModel_collab2.html", null);
Notice the 2-dimensional structure of the array:
pages in trackArray[0]
are associated with the first track, pages in
trackArray[1]
with the second track, etc. Also note that pages with the
same index number in trackArray[0]
and trackArray[1]
contain
the respective track version of the same content page.
Pages which exist in one track, but not another should have null
used as the
URL for tracks in which it does not exist.
Pages not using the track sequence need not be included in the trackArray[]
's.
The defaultLink()
function is no longer supported.
Include track pages in the addHeading()
and addSubHeading()
functions just as you would any other page, and the navigation construction will
configure it appropriately. You will notice that links for track pages call the function
top.goTrackLink( defaultURL );
. This will take the user to the
defaultURL
if no track is currently active, or (if a track is active)
will take you to the selected content page for that track.
Take a look at the Vibrating Strings module at
http://links.math.rpi.edu/devmodules/mechanicalosc/vibstring/NEWindex.html
It uses all three navigational components. Navigate through the track structure. Take a
look at the URL in the status bar that comes up on mouse-over of the titles in the table
of contents--you'll notice the call to
top.goTrackLink();
for
Math Model and
Math Analysis. Now look at the
index.html
file to see how it was all put together.
The mechanisms to construct navigation make certain assumptions about files your
module has and about their location.
In the html/
directory you must have:
page name
|
function
|
start.html
|
first content page loaded in
|
crib.html
|
module crib sheet
|
library.html
|
module multimedia library
|
map.html
|
module map
|
And, of course, the module's
index.html
file must be in its root directory.
Modules are also equipped with navigation along the top of the mid_content
labeled frame. Each bar is embedded into the HTML code of the page currently showing
in that frame. Its format is as follows:
Each word links to a seperate page which is a sub-section of each topic in the table of
contents. The word list concepts, discover,
applications, collaborate, practice
is hard wired as such.
The
character in front of concepts, and the red
coloring of that word in the sample top bar shown above indicates to the user that she
is on that page currently. Blue colored links indicate active links, while gray links
indicate inactive links (those not linked to another page).
To create the navigation bar on the top of each content page, use the JavaScript
function makeNavigationBar();
. This function takes either 0 or 5
arguments. If passed 0 arguments, as just shown in its definition, it creates a
top-navigation bar with all links grayed out. Passing 5 names of HTML files (links
to correspond to each identifier: i.e. the first argument (link) will be referred to
and the corresponding document opened when the user clicks on concepts,
the second link used for discover, and so on.) The function will
determine and account for indicating the current page to the user with coloring and
symbol. If you have documents for only some of the links, use
the argument null for those pages to which you have no link. Please
refer to the example below (page naming convention is discussed later in this
section).
Example:
To obtain the example navigation bar shown above, we would use the following
code:
<SCRIPT>
makeNavigationBar("toc1_concept.html", null,
"toc1_apply.html", "toc1_collab.html", "toc1_practice.html");
</SCRIPT>
|
Module organization is as follows:
|
concepts
|
discover
|
applications
|
collaborate
|
practice
|
toc* entry 1
|
|
|
|
|
|
toc entry 2
|
|
|
|
|
|
...
|
|
|
|
|
|
toc entry n
|
|
|
|
|
|
* toc : table of contents
Where each blank square in the diagram represents a
possible page. That is
to say:
for each entry in the table of contents in the left-hand navigation bar,
there are up to five possible links for that topic. The default link
(for example, if the user clicks on the topic in the side navigation bar) is usually
to the
concepts page, though this is at the discretion of the content
developers.
Not all module pages adhere to this formatting. For example, the
Introduction and
Objectives pages are likely to have
no links, in which case they will have a top navigation bar with all links grayed out.
For consistency, we do include the top-navigation bar in all module pages even when it goes
unused

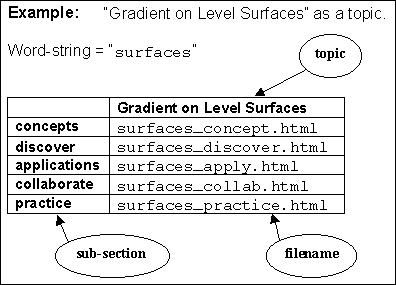

As this matrix organization fashion has the potential to introduce confusion and
disorganization in the naming of files, a protocol has been established. For each
topic, a word-string of approximately 8 letters is constructed. To this string, an
underscore and the topic sub-section identifier are concatenated. This is demonstrated
below.
VERY IMPORTANT
With the implementation of our new navigation scheme (July 1999), it is important to
have
a unique word-string
for each side-navigation bar table of contents entry.
The navigation mechanism that determines bullet (arrow) placement in beside the current topic depends
on your following this convention. You must also not use any underscore ("_") characters in your
word-string
or in the corresponding html file name, at the risk of the bullets misbehaving.
The metadata.html
file contains information about the contents of the
module as well as its development status. You may use the file at
http://links.math.rpi.edu/devmodules/template/metadata.html as a
template for constructing your module's
metadata.html
file. This
file is to be stored in the module's root directory.
Familiarize yourself with the
Links module version standard, available at
http://links.math.rpi.edu/webhtml/versionkey.html.
