Photo # NH 99600:  USS Robert L. Barnes at Guam, probably in 1932.

Online Library of Selected Images:
-- U.S. NAVY SHIPS --

USS Robert L. Barnes (ID # 3088, later AK-11, AO-14, and AG-27), 1918-1941.
Originally S.S. Robert L. Barnes (American Freighter, 1917)

Captain Alexander McDougall designed SS Robert L. Barnes as a prototype "rectangular ship" or "sea-going canal boat," with a simple, low hull and a "portable" superstructure that could be removed to pass under the bridges of the New York State canals. McDougall had previously invented the unusual "whaleback" freighter, of which he built over 40 examples, both steamers and barges, between 1888 and 1898. Robert L. Barnes was built in 1917 in less than four months by the McDougall-Duluth Co, Duluth, Minn., then little more than a blacksmith shop, and was fitted with a steam engine that had been built in 1888. She was built 42 feet short to pass through the Welland Canal on her trip to New York from Duluth. Originally fitted to carry 3,000 tons of coal, she was quickly converted to carry oil. She was inspected and taken over by the Navy in June 1918 and commissioned as a fuel ship at New York in October. The inspectors noted that she was probably not structurally strong enough for seagoing service with the Naval Overseas Transportation Service (N.O.T.S.).

Assigned to the Fifth Naval District, Robert L. Barnes departed New York in March 1919 and sailed for Hampton Roads. After calling at Guantanamo Bay and New York, she returned to Norfolk in April and commenced a period of extensive repairs at the Norfolk Navy Yard. In September 1919 she was assigned to duty with N.O.T.S., probably for the transit to her newly-assigned duty station at Guam. She sailed from Norfolk in late November via the Panama Canal and San Pedro to Pearl Harbor. The ship underwent more extensive repairs at Pearl Harbor and only arrived at Guam in April 1920. There she commenced duty as a floating oil storage facility in Apra Harbor. When the U. S. Navy's hull number system was implemented in July 1920 Robert L. Barnes was described as "station ship" at Guam and designated a cargo ship (AK-11), but in July 1921 she was described more correctly as an oil depot and her designation was changed to oiler (AO-14). She remained at Guam throughout the interwar period, departing only in 1920, 1921, 1922, 1923, 1930 and 1934 under tow for overhaul at the Cavite Naval Station in the Philippines. Her designation was changed to miscellaneous auxiliary (AG-27) in July 1938. In a rare moment of glory, Robert L. Barnes assisted in the salvage of the grounded U. S. Army transport U. S. Grant in May 1939.

When the Japanese attacked Guam the day after the Pearl Harbor attack, Robert L. Barnes was bombed and strafed at her moorings and left damaged and leaking. She fell into enemy hands two days later in an abandoned condition and was stricken from the Naval Vessel Register in July 1942. Recovered at the end of the war, she was sold to British mercantile interests and served as Fortune and M.T.S. No. 2 from 1945 to 1949. The former "sea-going canal boat" was finally scrapped in 1950.

This page features all the views we have concerning USS Robert L. Barnes (ID # 3088, later AK-11, AO-14, and AG-27).


If you want higher resolution reproductions than the digital images presented here, see: "How to Obtain Photographic Reproductions."

Click on the small photograph to prompt a larger view of the same image.

Photo #: NH 65155

S.S. Robert L. Barnes
(American Tanker, 1917)

In merchant service circa 1917, before acquisition by the Navy.
Alexander McDougall built her as the prototype "rectangular ship" or "sea-going canal boat," with a plain, low hull and a superstructure that could be removed to pass under canal bridges.
This steamer was placed in commission as USS Robert L. Barnes (ID-3088) on 19 October 1918.

U.S. Naval Historical Center Photograph.

Online Image: 27KB; 740 x 275 pixels

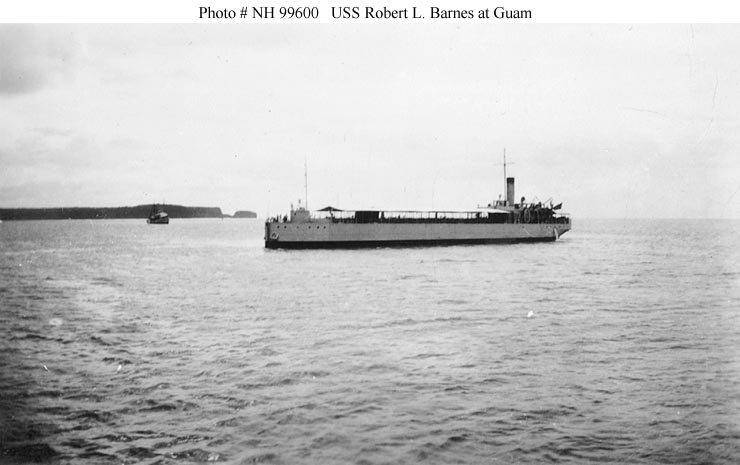

Photo #: NH 99600

USS Robert L. Barnes
(AO-14)

At Guam, probably in 1932.
Note the extensive use of awnings.

Collection of Roscoe C. Stevens.

U.S. Naval Historical Center Photograph.

Online Image: 47KB; 740 x 465 pixels

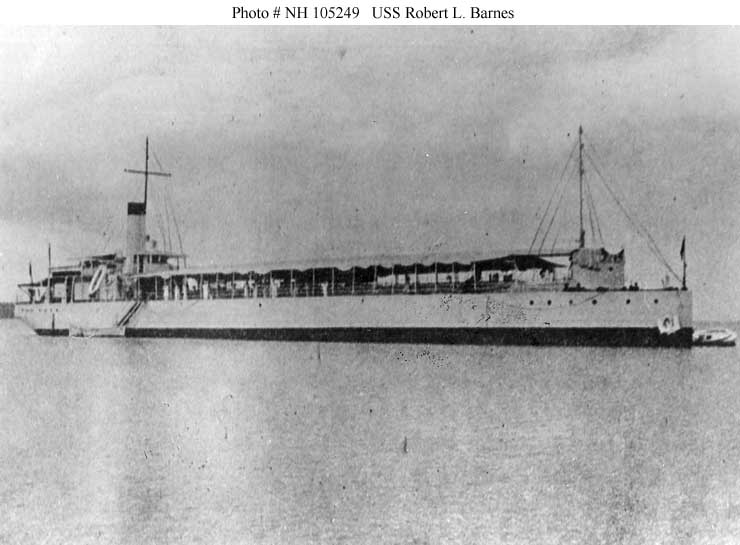

Photo #: NH 105249

USS Robert L. Barnes
(AO-14)

At Guam in the 1920s or 1930s with the usual awnings rigged over her deck.

Courtesy of Mr. & Mrs. Berle Spurlock, 2007.

U.S. Naval Historical Center Photograph.

Online Image: 65KB; 740 x 545 pixels


Photo #: NH 71566

USS Robert L. Barnes
(AO-14)

At Guam in the 1920s or 1930s.
Note the ship's barge, with sailing gear rigged, in foreground.

Courtesy of Donald M. McPherson, 1970.

U.S. Naval Historical Center Photograph.

Online Image: 98KB; 740 x 620 pixels




In addition to the images presented above, the National Archives appears to hold other views of USS Robert L. Barnes (AO-14). The following list features these images:

The images listed below are NOT in the Naval Historical Center's collections.
DO NOT try to obtain them using the procedures described in our page "How to Obtain Photographic Reproductions".



  • Photo #: 80-G-1017164
    Port side aerial view of USS Robert L. Barnes (AO-14) at Guam with tarpaulins rigged in June 1922.

  • Photo #: 80-G-1017163
    Starboard side aerial view of USS Robert L. Barnes (AO-14) at anchor in Apra Harbor, Guam, with tarpaulins rigged on 25 January 1926.

    Reproductions of these images should be available through the National Archives photographic reproduction system for pictures not held by the Naval Historical Center.

    The images listed in this box are NOT in the Naval Historical Center's collections. DO NOT try to obtain them using the procedures described in our page "How to Obtain Photographic Reproductions".
