ScheenShots of Potto-GDC

Latest Version is 0.4.3
On 16th January 2007, the latest version 0.4.4pr1 was released.  Release Notes, ChangeLog, Download.
It is most be emphasized that GDC can do much much more that any screenshots can describe.

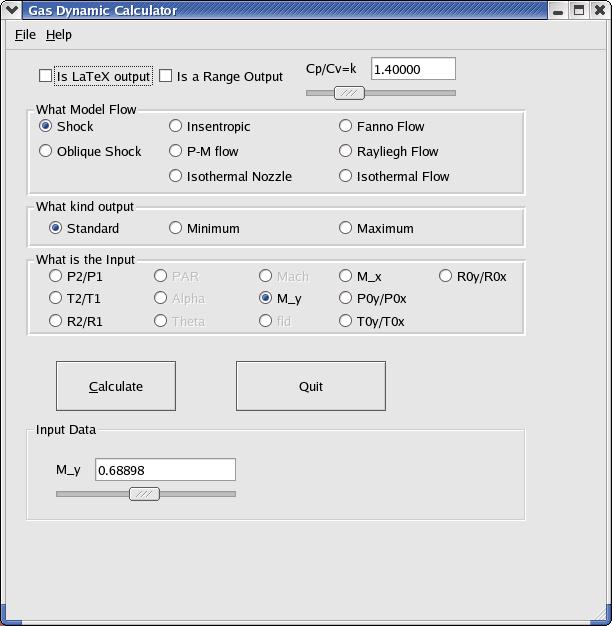

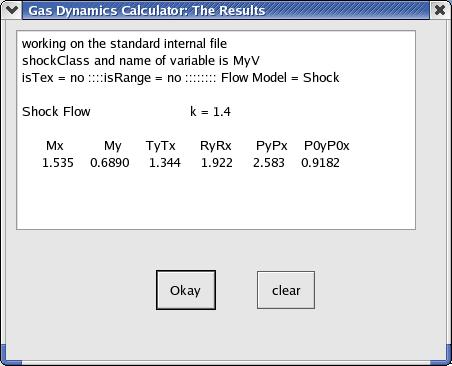

Screenshots of the basic graphical user interface GDC v0.4. The screenshots are presented in a pairs of the main window and the results window.

Main Window Results Window

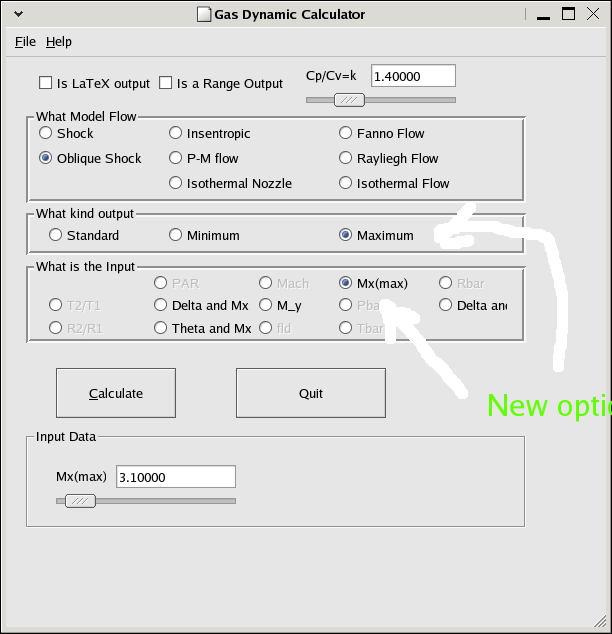

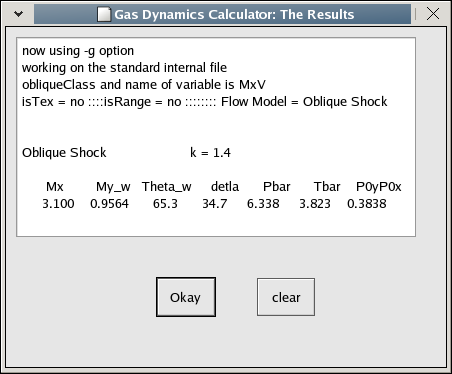

Screenshots for the new option for calculating the maximum oblique shock for given Mach number and deflection angle. These Screenshots were taken for version 0.4.1.
Oblique new options  Oblique maximum results

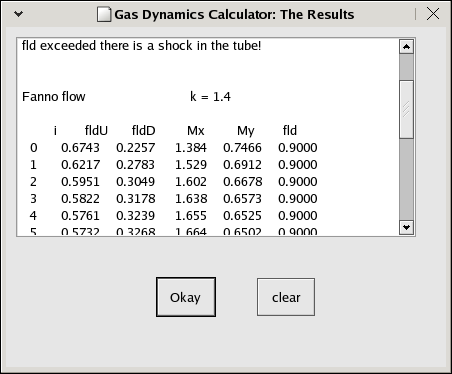

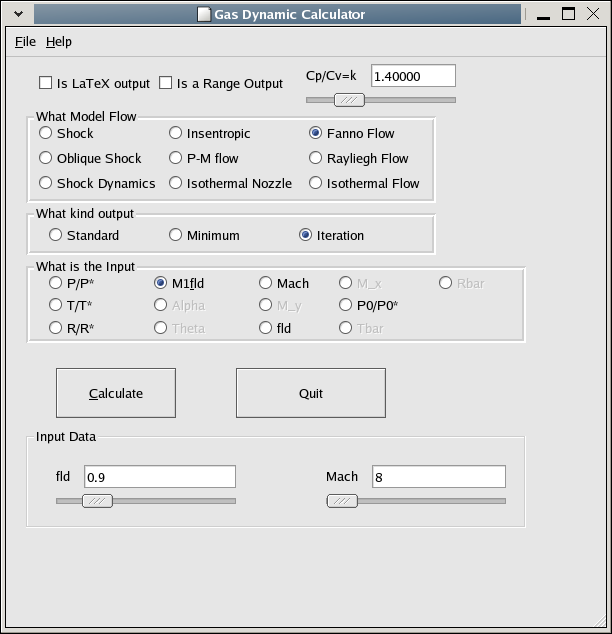

The location of the shock in Fanno flow. GDC also provides the iterations information to show how the calculations were carried out (Good for instructors and students). Version 0.4.2 series.

Shock in Fanno Flow Shock in Fanno Flow
		results

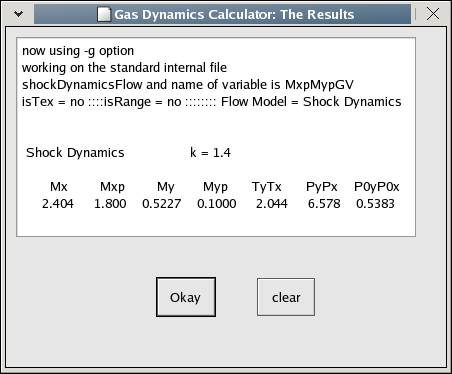

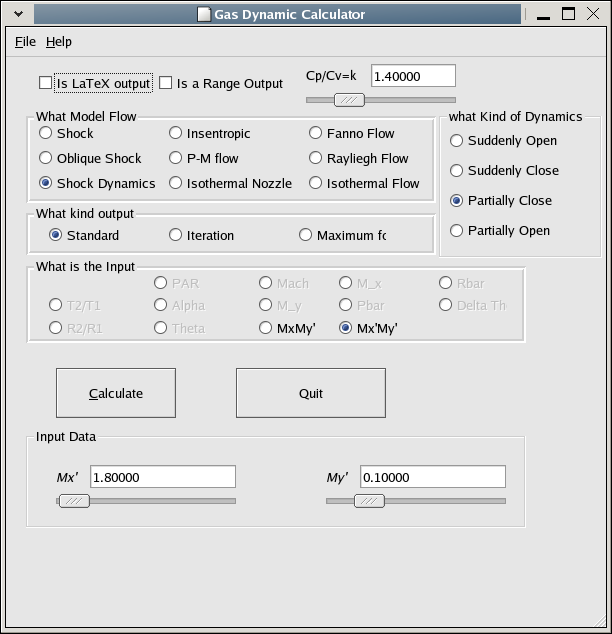

The new shock Dynamics Screenshots showing that partially open and close calculations. This is the only program does these kind of calculation. It also carries calculation of regular moving shock. Version 0.4.3.

Shock Dynamics new
		options  Shock Dynamics
		results
The shock Dynamics Screenshots calculating the stopping of the flow or suddenly opening of valve. Version 0.4.2 (old)
Shock Dynamics new options Shock Dynamics
		results
