DRAWING Link Color Code
Blue link Expected to be an up-to-date drawing for an assembly or component.
Red link An older, out-of-date drawing that may not contain the indicated dash number.
No link We have no copy at all of the drawing.

2014999-011 — INSTALLATION LIST, APOLLO GUIDANCE EQUIPMENT, BLK II

FINDQTYDRAWINGTITLENOTES
212003100-081 (ECP 474)COMPUTER ASSEMBLY Expanded in more detail: 2003100-081 (ECP 474).
312003055GASKET, SEAL, 360 PIN CONN Expanded in more detail: 2003055.
412021104-051COMPUTER PROGRAM ASSEMBLY, SUNDIAL C/M Expanded in more detail: 2021104-051.
822003985-051AGC DSKY ASSEMBLY Expanded in more detail: 2003985-051.
912004199-000INSTALLATION KIT, COMPUTER GROUP C/M Expanded in more detail: 2004199-000.
1512007203-011INERTIAL MEASUREMENT UNIT AND PIPA ELECTRONICS ASSEMBLY Expanded in more detail: 2007203-011.
1612018601-011INERTIAL MEASURING UNIT ASSEMBLY (BLOCK II) Expanded in more detail: 2018601-011.
1712007201-011PIPA ELECTRONICS ASSEMBLY Expanded in more detail: 2007201-011.
1812021255-011STORAGE UNIT, EYEPIECE Expanded in more detail: 2021255-011.
1981001488-45SCREW, SOC HD
2112007222-031COUPLING DATA UNIT ASSEMBLY Expanded in more detail: 2007222-031.
2211010991GASKET, RETAINED
2612007200-011POWER & SERVO ASSY, C/M PSA Expanded in more detail: 2007200-011.
2721008828-002GASKET, RETAINED
2811008828-003GASKET, RETAINED
2921008829-001GASKET, RETAINED
3021008829-002GASKET, RETAINED
3212014578-011G & N INDICATOR, CONTROL PANEL ASSEMBLY Expanded in more detail: 2014578-011.
3322014764-011HANDLE ASSY
3412014576-011OPTICS SHROUD ASSY
4822018821-011HOSE, ASSY FLEXIBLE, IMU TO SPACECRAFT Expanded in more detail: 2018821-011.
5012014567-011G & N INTERCONNECT HARNESS ASSEMBLY (C/M BLOCK II) Expanded in more detail: 2014567-011.
5112014641G & N INTERCONNECT HARNESS "A Expanded in more detail: 2014641.
5212014642G & N INTERCONNECT HARNESS "B Expanded in more detail: 2014642.
5312014643G & N INTERCONNECT HARNESS "C Expanded in more detail: 2014643.
5412014644G & N INTERCONNECT HARNESS "D Expanded in more detail: 2014644.
5512014645G & N INTERCONNECT HARNESS "E Expanded in more detail: 2014645.
5612014646G & N INTERCONNECT HARNESS "F Expanded in more detail: 2014646.
5712014647G & N INTERCONNECT HARNESS "G Expanded in more detail: 2014647.
5812014648G & N INTERCONNECT HARNESS "H Expanded in more detail: 2014648.
5922014731BRACKET CABLE CLAMP Expanded in more detail: 2014731.
6021008807-3 THRU -4CLAMP, LOOP – CUSHIONED, MULTIPLE TYPE
6131010349-4 THRU -6CLAMP, LOOP, HINGED
62151010400-1 THRU -7CLAMP, LOOP, HINGED
6331010400-105 THRU -109CLAMP, LOOP, HINGED
6411010705-3 or 1010705-4CLAMP
6571010705-7 THRU -15CLAMP
6621006783-27SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
673MS16996-9SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNF-3A
681MS16996-10SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNF-3A
692MS16995-25SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A
701MS21045-C3NUT, SELF-LOCKING, HEXAGON - REGULAR HEIGHT, 450°F, 125 KSI FTU
7312899950-031 (ECP 359)NAV BASE, OPT UNIT & BELLOWS INST KIT
7412899986-011MOUNTING ASSY, FIXED
7512899987-011MOUNTING ASSY, LINE
7612899988-011MOUNTING ASSY, PLANE
7721010727-3BOLT, INTERNAL WRENCHING
7821897006-053WASHER, FLAT
7941897006-063WASHER, FLAT
8041010727-1BOLT, INTERNAL WRENCHING
8131899967-001BALL, PRECISION
8231010728-3BOLT, EXTERNAL WRENCHING
8332899977-001WASHER, FLAT, LUBRICATED
8462899979WASHER – SPRING TENSION
8532899984-001COLLAR, CENTERING
8622899992BOLT, IMU MOUNT
872NAS674V18BOLT, HEX CAP
8812898950-011OPTICS TO SPACECRAFT SEAL ASSY (SCT)
8912898951-011OPTICS TO SPACECRAFT SEAL ASSY (SXT)
90241896990-011NUT, SELF LOCKING
91241897006-019WASHER, FLAT
9221899996-001 THRU -002SEAL – PLAIN ENCASED
9321010915-1 THRU -2PACKING, PREFORMED, RETAINED
9432899991WASHER, SHOULDERED & RECESSED
958MS24671-8SCREW, CAP, SOCKET-HEAD-FLAT COUNTERSUNK, 82°, CORROSION-RESISTING STEEL, UNC-3A
10012899982-011NAV BASE ASSY
10412011000-033OPTICAL UNIT Expanded in more detail: 2011000-033.
10612012699-000SXT MIRROR HOUSING AND EYEPIECE ASSY Expanded in more detail: 2012699-000.
10712012719-000HOUSING, EYEPIECE SCT (ADJUSTABLE FOCUSING) Expanded in more detail: 2012719-000.
10812012667-000SCT PRISM HOUSING AND INSULATION, ASSEMBLY OF Expanded in more detail: 2012667-000.
10912012700-000SEXTANT EYEPIECE ASSEMBLY Expanded in more detail: 2012700-000.




Expanded Subassemblies

2003055 — GASKET, SEAL, 360 PIN CONN

Reference assemblies: 2003100-081 (ECP 474) 2014999-011

FINDQTYDRAWINGTITLENOTES
112003055-001GASKET, SEAL, 360 PIN CONN
22TBDGASKET, RUBBER/BUTYL (IIR) (AMS3238A)

2003100-081 (ECP 474) — COMPUTER ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
312003054-011COVER, "A" ASSEMBLY, COMPUTER ASSEMBLY Expanded in more detail: 2003054-011.
412003071-011COVER B ASSEMBLY, AGC Expanded in more detail: 2003071-011.
512003059-011INTERCONNECTION HEADER ASSEMBLY, FIXED MEMORY B1-6 Expanded in more detail: 2003059-011.
612003058-011MID-SPACER ASSY, COMPUTER ASSEMBLY Expanded in more detail: 2003058-011.
712003036-011OSCILLATOR MODULE B7 ASSEMBLY Expanded in more detail: 2003036-011.
1012003026-011CURRENT SWITCH MODULE ASSEMBLY B11 Expanded in more detail: 2003026-011.
1112003011-011ERASABLE MEMORY, B12 ASSEMBLY Expanded in more detail: 2003011-011.
1312003027-011STRAND SELECT MODULE, B15 ASSEMBLY Expanded in more detail: 2003027-011.
3622003056-011POWER SUPPLY MODULE A30-31, ASSEMBLY Expanded in more detail: 2003056-011.
3722003070-011INTERFACE MODULE A25-26 ASSEMBLY Expanded in more detail: 2003070-011.
4012003055GASKET, SEAL, 360 PIN CONN Expanded in more detail: 2003055.
4212004113BRACKET CABLE, AGC
4312003099-011CONNECTOR ASSEMBLY Expanded in more detail: 2003099-011.
4412004110PLUG, MACHINE THREAD
4521006347GASKET PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
46661006783-25SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
4718MS16996-14SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNF-3A
4811000159-7PACKING, PREFORMED, "O" RING
5021001489-34SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
5134NAS620C-8WASHER, FLAT
5218NAS620C-10WASHER, FLAT
5382004130PAD, THREADED, AGC
5421004546-1WASHER, FLAT
5511000159-5PACKING, PREFORMED, "O" RING
5612018773VALVE, PRESSURE, ASSEMBLY Expanded in more detail: 2018773.
584NAS1598-D08NWASHER-SEALING
5912003120-011LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-011.
6012003120-021LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-021.
6112003120-031LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-031.
6212003120-041LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-041.
6312003120-051LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-051.
6412003120-251LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-251.
6512003120-071LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-071.
6642003120-081LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-081.
6712003120-241LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-241.
6812003120-111LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-111.
6912003120-121LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-121.
7012003120-131LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-131.
7112003120-141LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-141.
7212003120-151LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-151.
7312003120-161LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-161.
7412003120-171LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-171.
7512003120-181LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-181.
7612003120-191LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-191.
7712003120-211LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-211.
7812003120-221LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-221.
7912003120-231LOGIC MODULE ASSY (TABULATED) Expanded in more detail: 2003120-231.
8112003074-021TRAY A, WIRED ASSEMBLY Expanded in more detail: 2003074-021.
8212003075-021TRAY B, WIRED ASSEMBLY Expanded in more detail: 2003075-021.
8322003014-021ERASABLE DRIVER MODULE, B9-10 ASSEMBLY Expanded in more detail: by substitute 2003014-011.
8422003043-021SENSE AMPLIFIER MODULE B13-14 ASSEMBLY Expanded in more detail: 2003043-021.
8522003040-021ROPE DRIVER MODULE B16-17 ASSEMBLY Expanded in more detail: by substitute 2003040-011.

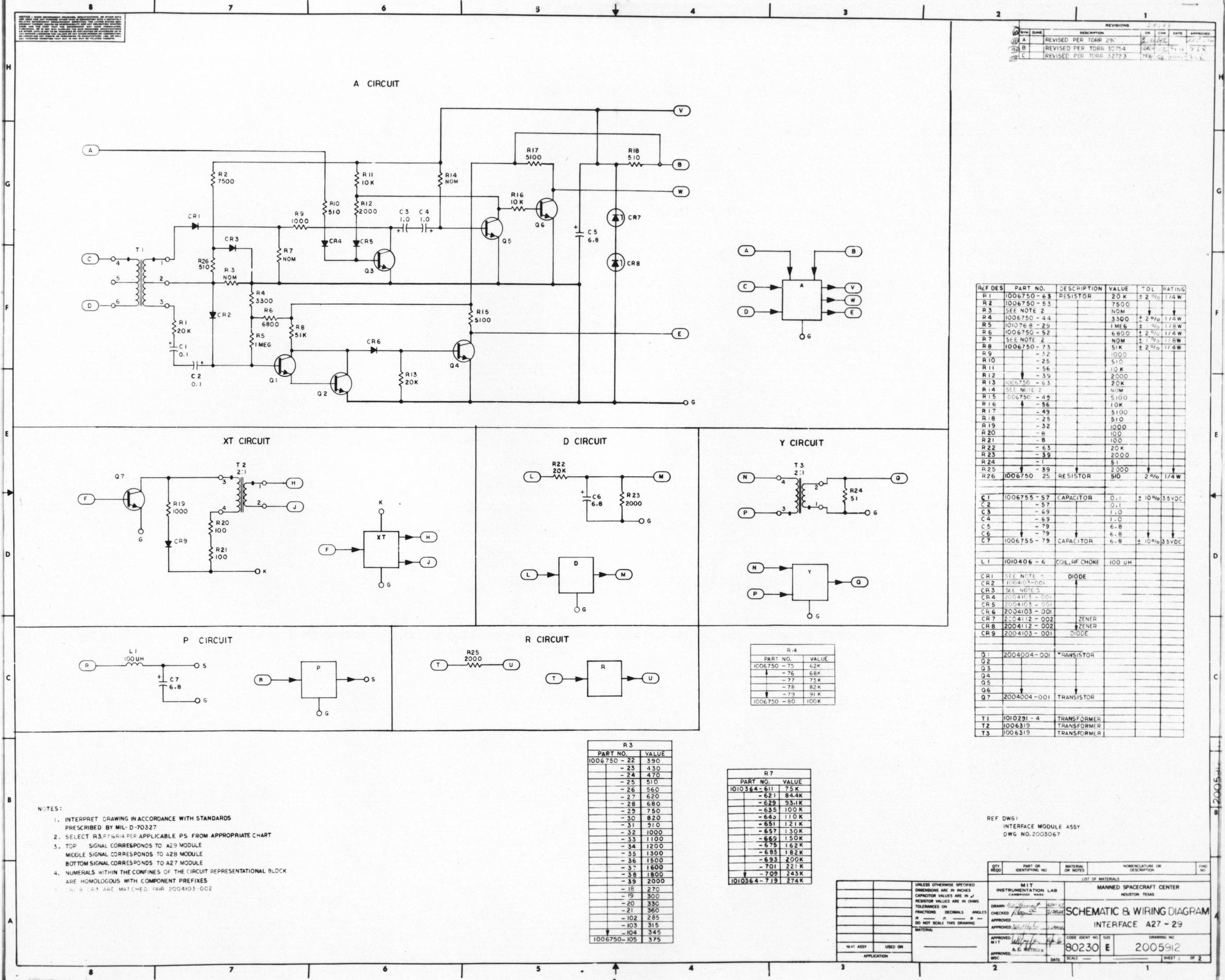

8632003067-021INTERFACE MODULE A27-29 ASSEMBLY Expanded in more detail: 2003067-021.
8712003169-011ALARM MODULE B8 ASSEMBLY Expanded in more detail: 2003169-011.
8811004260-19NAMEPLATES, APOLLO G & N (STANDARDS)
REFX2005035AGC WIRELIST

2003985-051 — AGC DSKY ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112004929-011COVER, FRONT, AGC DSKY Expanded in more detail: 2004929-011. 3D model of drawing 2004929-.
211006316INDICATOR, ALARM, SPECIFICATION CONTROL DRAWING
311006315INDICATOR, DIGITAL, ELECTROLUMINESCENT, SPECIFICATION CONTROL DRAWING
512003954-011MAIN HOUSING ASSEMBLY, AGC DSKY Expanded in more detail: 2003954-011.
612004900COVER, REAR, AGC DSKY 3D model of drawing 2004900A.
711006350GASKET, BONDED, RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
811006349GASKET, BONDED, RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1012003901-011POWER SUPPLY ASSEMBLY, MODULE D7, AGC DSKY Expanded in more detail: 2003901-011.
1112003909-011KEYBOARD ASSEMBLY, MODULE D8, AGC DSKY Expanded in more detail: 2003909-011.
1511004260-20NAMEPLATES, APOLLO G & N (STANDARDS)
1632MS16995-18SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A
174MS35216-1SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
1881001489-59SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
1962004932-001SCREW, JACKING, AGC DSKY
206MS16633-4014RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
21121004546-4WASHER, FLAT
2246NAS620C6WASHER, FLAT
2312004959BRACKET, MODULE
2412004958BRACKET, MODULE
2513NAS620C4WASHER, FLAT
2613MS16995-10SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A
34AR1006879SILICONE COMPOUND, THERMOCONDUCTIVE, SPECIFICATION CONTROL DRAWING
3612003903-031FRONT HOUSING ASSEMBLY, AGC DSKY Expanded in more detail: 2003903-031.
376MS16995-20SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A
3862003952-011INDICATOR DRIVER ASSY, MODULE D1-D6, AGC DSKY Expanded in more detail: 2003952-011.
REFX2003956AGC DSKY OUTLINE DRAWING
REFX2005957SIGNAL PIN ASSIGNMENT, 85 PIN CONNECTOR, AGC DSKY
REFX2005951INTERCONNECTING DIAGRAM, AGC DSKY
REFX2005950SIGNAL FLOW DIAGRAM, AGC DSKY

2004199-000 — INSTALLATION KIT, COMPUTER GROUP C/M

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
1282004148-003WASHER, FLAT
2142004147-003BOLT, CAP, SOCKET HEAD-HEXAGON, SHORT THREAD
3281001489-3SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
4142004149-001BRACKET, SCREW RETAINER

2007200-011 — POWER&SERVO ASSY, C/M PSA

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112007093-011HEADER ASSEMBLY, C/M PSA Expanded in more detail: 2007093-011.
211008834COVER & SEAL ASSY
342007123-011RELAY MODULE ASSEMBLY Expanded in more detail: 2007123-011.
412007102-011GYRO CALIBRATION ASSEMBLY Expanded in more detail: 2007102-011.
512007101-011DC DIFFERENTIAL AMPLIFIER AND PVR ASSY Expanded in more detail: 2007101-011.
612007103-011BINARY CURRENT SWITCH ASSEMBLY Expanded in more detail: 2007103-011.
712007106-011PULSE TORQUE POWER SUPPLY ASSEMBLY Expanded in more detail: 2007106-011.
832007114-011GIMBAL SERVO AMPLIFIER Expanded in more detail: 2007114-011.
932007111-011800 CPS 5% AMPLIFIER Expanded in more detail: 2007111-011.
1012007107-011-28V DC POWER SUPPLY Expanded in more detail: 2007107-011.
1212007109-0113200 CPS PHASE AND AMPLITUDE CONTROL Expanded in more detail: 2007109-011.
1312007132-011IMU LOAD COMPENSATION MODULE ASSY Expanded in more detail: 2007132-011.
1512007108-0113200 CPS 1% AMPLIFIER Expanded in more detail: 2007108-011.
1722007110-011800 CPS 1% AMPLIFIER (2007110) Expanded in more detail: 2007110-011.
1822007112-011800 CPS AAC FILTER Expanded in more detail: 2007112-011.
1912007120-011OPTICS LOAD COMPENSATION ASSEMBLY Expanded in more detail: 2007120-011.
2032007113-011G AND N SUBSYSTEM SUPPLY FILTER Expanded in more detail: 2007113-011.
2112007121-011TWO SPEED SWITCH ASSEMBLY Expanded in more detail: 2007121-011.
2212007117-011IMU AUXILIARY ASSEMBLY Expanded in more detail: 2007117-011.
2312007124-011ANTI-CREEP ELECTRONICS ASSEMBLY Expanded in more detail: 2007124-011.
2442007118-011MOTOR DRIVE AMPLIFIER ASSEMBLY Expanded in more detail: 2007118-011.
2512007122-011COSECANT GENERATOR ASSEMBLY Expanded in more detail: 2007122-011.
2612007126-011OPTICS AUTOMATIC OPERATE RELAY ASSEMBLY Expanded in more detail: 2007126-011.
2712007128-011SCT MODING ASSEMBLY Expanded in more detail: 2007128-011.
2812007161-011RETICLE LIGHT DIMMER ASSEMBLY Expanded in more detail: 2007161-011.
2912007213-011VALVE PRESSURE ASSEMBLY Expanded in more detail: 2007213-011.
3011000159-5PACKING, PREFORMED, "O" RING
31841010977-001SCREW, CAP, HEX SOC HD, CAPTIVE
32842008033-1WASHER, THRUST
33501008859-210SCREW, BUT. HD, SPLINE SOCKET
34502004148-003WASHER, FLAT
3511004260-156NAMEPLATES, APOLLO G & N (STANDARDS)
3821008828-002GASKET, RETAINED
3911008828-003GASKET, RETAINED
4021008829-001GASKET, RETAINED
4121008829-002GASKET, RETAINED
4621008808-015CAP, PROTECTIVE
4711008808-012CAP, PROTECTIVE
60AR1008930GREASE, MOLYBDENUM DISULFIDE
66AR1008985GREASE, FLOURINATED

2007201-011 — PIPA ELECTRONICS ASSEMBLY

Reference assemblies: 2007203-011 2014999-011

FINDQTYDRAWINGTITLENOTES
112007092-011HEADER ASSEMBLY, PIPA ELEC Expanded in more detail: 2007092-011.
212008376COVER, PIPA ELECTRONICS
311010976SEAL, COVER
432007105-011C/M PIPA CALIBRATION ASSEMBLY Expanded in more detail: 2007105-011.
532007101-011DC DIFFERENTIAL AMPLIFIER AND PVR ASSY Expanded in more detail: 2007101-011.
632007103-011BINARY CURRENT SWITCH ASSEMBLY Expanded in more detail: 2007103-011.
732007104-011ASSEMBLY, AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR Expanded in more detail: 2007104-011.
811004260-155NAMEPLATES, APOLLO G & N (STANDARDS)
1012007213-011VALVE PRESSURE ASSEMBLY Expanded in more detail: 2007213-011.
1111000159-5PACKING, PREFORMED, "O" RING
12182004148-003WASHER, FLAT
13241010977-001SCREW, CAPTIVE
14242008033-1WASHER, THRUST
16181008874-019SCREW, CAP SOCKET HEAD
1711008808-014CAP, PROTECTIVE
25AR1008985GREASE, FLOURINATED

2007203-011 — INERTIAL MEASUREMENT UNIT AND PIPA ELECTRONICS ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112018601-011INERTIAL MEASURING UNIT ASSEMBLY (BLOCK II) Expanded in more detail: 2018601-011.
212007201-011PIPA ELECTRONICS ASSEMBLY Expanded in more detail: 2007201-011.

2007222-031 — COUPLING DATA UNIT ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112007090-031TRAY X ASSEMBLY, CDU ELECTRONICS Expanded in more detail: 2007090-031.
312007091-031TRAY S ASSEMBLY, CDU ELECTRONICS Expanded in more detail: 2007091-031.
511010997GASKET, RETAINED
611010991GASKET, RETAINED
711010972GASKET, RETAINED
852007243-011QUADRANT SELECTOR ASSEMBLY, CDU ELECTRONICS Expanded in more detail: 2007243-011.
952007238-021 or 2007238-011MSA & QUADRATURE REJECTION ASSY, CDU ELECTRONICS Expanded in more detail: 2007238-021, and 2007238-011.
1132007236-011COARSE SYSTEM ASSY, CDU ELECTRONICS Expanded in more detail: 2007236-011.
1352007237-021 or 2007237-011ASSEMBLY, D/A CONVERTER, CDU ELECTRONICS Expanded in more detail: 2007237-021, and 2007237-011.
1412007142-011POWER SUPPLY ASSEMBLY, CDU ELECTRONICS Expanded in more detail: 2007142-011.
1512007263-011INTERROGATE ASSEMBLY, CDU ELECTRONICS Expanded in more detail: 2007263-011.
1712007254-011MODE ASSY, CDU ELECTRONICS Expanded in more detail: 2007254-011.
18241001489-26SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
19482004148-003WASHER, FLAT
2024NAS1291C06NUT, SELF-LOCKING, HEXAGON, LOW HEIGHT, LIGHT WEIGHT
21102004147-001BOLT, CAP, SOCKET HEAD-HEXAGON, SHORT THREAD
24202004148-001WASHER, FLAT
27102008386-001BRACKET, SCREW RETAINER
2812008381COVER (HF), INSEPARABLE ASSEMBLY, C/M CDU
29201001489-2SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
3011004260-158NAMEPLATES, APOLLO G & N (STANDARDS)
3241001489-18SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
338NAS620A-6LWASHER, FLAT
3441006783-103SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
3552007139-051 or 2007139-041LOGIC MODULE ASSY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007139-051, and 2007139-041.
3652007140-041 or 2007140-031LOGIC MODULE ASSY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007140-041, and 2007140-031.
3712007141-041 or 2007141-031LOGIC MODULE ASSY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007141-041, and 2007141-031.
52AR1008930GREASE, MOLYBDENUM SISULFIDE
55AR1008985GREASE, FLUORINATED
REFX2010151WIRE LIST

2011000-033 — OPTICAL UNIT

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
222011603ROD, THREADED
422011602NUT, SLOTTED FLAT, CSK HEAD
64NAS1190C04R4LSCREW, SELF-LOCKING PAN HD, FULL THD 250 DEGREES
721011745-4GASKET
812011711-000PANEL ASSEMBLY, SXT Expanded in more detail: 2011711-000.
1048NAS1352C04LL8SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
2021011625-28SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
21AR1011541ADHESIVE, EPOXY
2212012568RESOLVER TRIMMING MODULE ASSY
23AR2011955-1/6TSPACER
2412011732LENS TELESCOPE RELAY, ASSY OF
258NAS1352C04-6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
3012012608SHIM, FOCUSING
3311004260-300NAMEPLATES, APOLLO G & N (STANDARDS)
3412012736-000OPTICAL UNIT SUBASSEMBLY, STAGE II Expanded in more detail: 2012736-000.
3612012547-011COVER AND BAFFLE, ASS OF (SCT) Expanded in more detail: 2012547-011.
3712011784-011PANEL ASSEMBLY (SCT) Expanded in more detail: 2011784-011.
3812012675COVER, SEXTANT HEAD
4542012636SCREW, SHOULDER
4612012712-2PLATE, BEARING, EYEPIECE (SCT)
REFX2012741SCHEMATIC DIAGRAM, SEXTANT
REFX2012390SCHEMATIC DIAGRAM, SCANNING TELESCOPE

2012667-000 — SCT PRISM HOUSING AND INSULATION, ASSEMBLY OF

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112012666-000HOUSING SCT PRISM, ASSY OF Expanded in more detail: 2012666-000.
212012711INSULATION, THERMAL, SCT PRISM HOUSING
312012686INSULATION, THERMAL, SCT PRISM HOUSING
4AR1010838ADHESIVE – PRESSURE SENSITIVE SILICONE

2012699-000 — SXT MIRROR HOUSING AND EYEPIECE ASSY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112012695MIRROR HOUSING AND HEATER, ASSY OF (SXT) Expanded in more detail: 2012695.
212011781LENS, ASSY OF (SEXTANT EYEPIECE) Expanded in more detail: 2011781.
312011667RING, LOCKING
412011665RING, SPACER
512011795HOLDER AND LENS, ASSY OF
622011685WASHER, WAVE
712011680PLATE, COVER, MIRROR
83NAS1352C02LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
912012195PLATE, COVER, MIRROR
103NAS1352C02LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
1112012124PLUG
1222012162MIRROR
1312012688INSULATION, THERMAL, SXT MIRROR HSG
1412012687INSULATION, THERMAL, SXT MIRROR HSG
15AR1010838ADHESIVE PRESSURE SENSITIVE SILICONE
1612012689SPACER, AIR FOCUSING (SXT)

2012700-000 — SEXTANT EYEPIECE ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112011793-000HOUSING & LENS, ASSY OF (SXT EYEPIECE) Expanded in more detail: 2011793-000.
212011880PLATE, MOUNTING
312011882KEY
42NAS1352C01LL2SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
512011881RING, ADJUSTING
612011874RETAINER, ADJUSTMENT NUT
74NAS1352C02LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
812012609-000SXT EYEGUARD ASSEMBLY
912012407-000HOLDER & FILTER, ASSY OF (SXT EYEPIECE)
1022012749-000SCREW, CAPTIVE, KNURLED HEAD

2012719-000 — HOUSING, EYEPIECE SCT (ADJUSTABLE FOCUSING)

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112012718EYEPIECE HOUSING AND HEATER, ASSY OF
212012713LENS HOUSING, ASSEMBLY OF (SCT EYEPIECE) Expanded in more detail: 2012713.
312012706SCREW, GUIDE
412012714INSULATION, THERMAL
512012715INSULATION, THERMAL
622012659SCREW, CAPTIVE, KNURLED HEAD
7AR1010838ADHESIVE, PRESSURE SENSITIVE, SILICONE
8AR1010878LUBRICATING OIL HYDROCARBON

2014567-011 — G&N INTERCONNECT HARNESS ASSEMBLY (C/M BLOCK II)

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112014641G & N INTERCONNECT HARNESS "A Expanded in more detail: 2014641.
212014642G & N INTERCONNECT HARNESS "B Expanded in more detail: 2014642.
312014643G & N INTERCONNECT HARNESS "C Expanded in more detail: 2014643.
412014644G & N INTERCONNECT HARNESS "D Expanded in more detail: 2014644.
512014645G & N INTERCONNECT HARNESS "E Expanded in more detail: 2014645.
612014646G & N INTERCONNECT HARNESS "F Expanded in more detail: 2014646.
712014647G & N INTERCONNECT HARNESS "G Expanded in more detail: 2014647.
812014648G & N INTERCONNECT HARNESS "H Expanded in more detail: 2014648.
931010349-4CLAMP, MULTIPLE, LOOP, HINGED
10151010400-1CLAMP, MULTIPLE, LOOP, HINGED
1131010400-105CLAMP, MULTIPLE, LOOP, HINGED
1211010705-3 or 1010705-4CLAMP, MULTIPLE
1371010705-7CLAMP, MULTIPLE
1421008807-3CLAMP, MULTIPLE
1522014731BRACKET CABLE CLAMP Expanded in more detail: 2014731.
1621006783-27SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
173MS16996-9SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNF-3A
181MS21045-C3NUT, SELF-LOCKING, HEXAGON - REGULAR HEIGHT, 450°F, 125 KSI FTU
191MS16996-10SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNF-3A
202MS16995-25SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A

2014578-011 — G&N INDICATOR, CONTROL PANEL ASSEMBLY

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112014550-011SEXTANT HAND CONTROLLER ASSEMBLY Expanded in more detail: 2014550-011.
211010949-1CONDITION ANNUNCIATOR
311008824-1MASTER ALARM ANNUNCIATOR
711010902-4SWITCH, TOGGLE
811010902-5SWITCH, TOGGLE
911010902-6SWITCH, TOGGLE
1011010903-8SWITCH, TOGGLE
1111010903-9SWITCH, TOGGLE
1211010904-1SWITCH, PUSH BUTTON
1311010904-2SWITCH, PUSH BUTTON
1411010905-3SWITCH, TOGGLE
1511010905-5SWITCH, TOGGLE
1612014700-011SWITCH, ATTITUDE - IMPULSE, ASSEMBLY OF Expanded in more detail: 2014700-011.
1711010942TRANSFORMER
1811010268-5LAMP, INCANDESCENT
1912014658SUPPORT, SWITCH
2112014627SUPPORT, HAND CONTROLLER
2212014626PANEL, G & N INDICATOR CONTROL (INSEPARABLE) Expanded in more detail: 2014626.
23ARMIL-F-14256FLUX, SOLDERING, LIQUID, PASTE FLUX, SOLDER PASTE AND SOLDER-PASTE FLUX (FOR ELECTRONIC/ELECTRICAL USE), GENERAL SPECIFICATION FOR
24ARQQ-S-571 SN60WRAP2SOLDER, ELECTRONIC (96 TO 485 DEG. C)
2511023003CAP, PUSHBUTTON
26AR1012503-2COMPOUND, POLYURETHANE
27AR1012503-1COMPOUND, POLYURETHANE
28151000220-1CLAMP, CABLE
29AR1012504-1PRIMER, METAL
30AR1012504-2PRIMER, METAL
3111010475-1CAP, PUSHBUTTON
3211010625-2LIGHT, INDICATOR
3312014622WIRING HARNESS A, G & N INDICATOR, CONTROL PANEL Expanded in more detail: 2014622.
34151011918-1WASHER, CABLE CLAMP
3512014656-011RETICLE BRIGHTNESS CONTROL ASSY Expanded in more detail: 2014656-011.
3622014764-011HANDLE ASSEMBLY
38171010630-14SCREW, FLAT HEAD, 100 DEGREES, HEX SOCKET
3951001489-2SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
40261010623-3TERMINAL, TURRET
4141010676-1TERMINAL
4241010477-13SCREW, FLAT HD SELF LOCKING
4312014736-011PANEL & LAMP, MATCHED ASSEMBLY OF Expanded in more detail: 2014736-011.
4411004260-181NAMEPLATES, APOLLO G & N (STANDARDS)
4581010477-12SCREW, FLAT HD SELF LOCKING
4622014683RETAINER, LAMP, LAMINATED Expanded in more detail: 2014683.
4712014719COVER & LAMP, MATCHED ASSEMBLY OF Expanded in more detail: 2014719.
48361006783-9SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
4912014702RETAINER, PANEL
5012014703RETAINER, PANEL
5122014705RETAINER, PANEL
5212014723RETAINER, PANEL CENTER
5312014721RETAINER, PANEL
5412014727FRAME, ANNUNCIATOR
5512014722RETAINER, PANEL LEFT
5682014725SCREW, SHOULDER
5712014735PANEL & LAMP, MATCHED ASSEMBLY OF Expanded in more detail: 2014735.
5812014737-011PANEL & LAMP, MATCHED ASSEMBLY OF Expanded in more detail: 2014737-011.
5912014738PANEL & LAMP, MATCHED ASSEMBLY OF Expanded in more detail: 2014738.
6041006783-21SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
6111006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
624MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
6321010617-4NUT, HEX, SELF-LOCKING
6541010617-2NUT, HEX, SELF-LOCKING
66ARQQ-W-343, TYPE SWIRE, ELECTRICAL, COPPER (UNINSULATED)
67126014527WASHER, SPHERICAL
6812014718RETAINER, LAMP, LAMINATED Expanded in more detail: 2014718.
6972014706RETAINER, LAMP Expanded in more detail: 2014706.
70AR1010686CATALYST, SPECIFICATION CONTROL DRAWING
71AR1010657EPOXY RESIN, SPECIFICATION CONTROL DRAWING
7281010618-7SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
7341010630-4SCREW, FLAT HEAD, 100 DEGREES, HEX SOCKET
7421010999-6LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING
7512014655WHEEL, CONTROL
762NAS1081C04D3LSCREW, SET, SELF LOCK
77ARMIL-A-25055ADHESIVE, ACRYLIC MONAMER AND POLYMER BASE, FOR ACRYLIC PLASTICS
7822014763SPACER PANEL
7912021200BUSHING, SWITCH BLOCKOUT
8012021201PLATE, SWITCH BLOCKOUT
812NAS1352C02LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
82AR1010682EPOXY RESIN
83AR1010683CURING AGENT, AMINE, SPECIFICATION CONTROL DRAWING
844NAS1352C02-4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
858MS35649-24NUT, PLAIN, HEXAGON, MACHINE SCREW UNC-2B
8682014798LAMP, ELECTROLUMINESCENT, MODIFIED
8771001489-5SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
88AR1010702SOLUTION, ETCHING, TEFLON
10261001489-4SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
REFX2014507SCHEMATIC, G & N INDICATOR CONTROL PANEL

2014641 — G&N INTERCONNECT HARNESS "A

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1212014741-011CONNECTOR, PLUG, ELECTRICAL - CDU Expanded in more detail: 2014741-011.
1312014749-011CONNECTOR, PLUG, ELECTRICAL, AGC Expanded in more detail: 2014749-011.
1411010929-109CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1511010929-005CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1611010929-102CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1711010929-101CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1811010929-103CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1911010929-104CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
2011010929-108CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
2111010929-105CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
243111010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
253491010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
2612014670-4ADAPTER, CONNECTOR
2812014670-7ADAPTER, CONNECTOR
29141012534-36SLEEVE, INSULATION (HEAT SHRINKABLE)
3021012534-38SLEEVE, INSULATION (HEAT SHRINKABLE)
31931010402-2SLEEVE, SOLDER
321151010958-1PLUG, PROTECTIVE SEALING
34AR1010989TAPE, SHIELDING, EMI/RFI
36ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
37ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
38AR1012507-004TAPE, LACING AND TYING
39AR10102503COMPOUND, POTTING, POLYURETHANE
40AR1012504PRIMER, METAL PARTS
41AR1010661EPOXY RESIN
42AR1010679ADHESIVE ACTIVATOR
4782021203TERMINAL, LUG - SOLDER
488MS35333-69WASHER, LOCK, FLAT-INTERNAL TOOTH
4981006783-93SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
5151006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
524MS25036-52TERMINAL, LUG, CRIMP STYLE, COPPER, INSULATED, RING TONGUE, BELL MOUTHED, TYPE II, CLASS I (FOR 105 DEG. C TOTAL CONDUCTOR TEMPERATURE)
5422014670-11ADAPTER, CONNECTOR
5522014670-12ADAPTER, CONNECTOR
5612014670-13ADAPTER, CONNECTOR
5712014670-15ADAPTER, CONNECTOR
581MS25036-48TERMINAL, LUG, CRIMP STYLE, COPPER, INSULATED, RING TONGUE, BELL MOUTHED, TYPE II, CLASS I (FOR 105 DEG. C TOTAL CONDUCTOR TEMPERATURE)
594451010490-114SLEEVE, INSULATION (HEAT SHRINKABLE)
60ARQQ-S-571 SN60WRAP 2SOLDER, ELECTRONIC (96 TO 485 DEG. C)
61ARQQ-S-571 SN60WSSOLDER, ELECTRONIC (96 TO 485 DEG. C)
62ARMIL-F-14256 TYPE AFLUX, SOLDERING, LIQUID, PASTE FLUX, SOLDER PASTE AND SOLDER-PASTE FLUX (FOR ELECTRONIC/ELECTRICAL USE), GENERAL SPECIFICATION FOR
6341010402-1SLEEVE, SOLDER
REFX1010770-1CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014642 — G&N INTERCONNECT HARNESS "B

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1012014742-011CONNECTOR, PLUG, ELECTRICAL, 56P18 Expanded in more detail: 2014742-011.
1111010771-201CONNECTOR, PLUG, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1211010929-017CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
14601010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
15521010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
17171010958-1PLUG, PROTECTIVE SEALING
18241010402-2SLEEVE, SOLDER
19211012534-36INSULATION, SLEEVING, ELEC (HEAT SHRINKABLE)
20AR1006277SILICA, PULVERIZED, PYROGENIC, SPECIFICATION CONTROL DRAWING
21AR1008822COLORANT, EPOXY BASE
22AR1012504PRIMER, METAL PARTS
2312014670-4ADAPTER, CONNECTOR
2412014670-10ADAPTER, CONNECTOR
25AR1012507-4TAPE, LACING AND TYING
27ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
28ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
29AR1010679ADHESIVE, ACTIVTOR
30AR1010661EPOXY RESIN
31AR1012503COMPOUND, POTTING, POLYURETHANE
3311012534-38INSULATION, SLEEVING, ELEC (HEAT SHRINKABLE)
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014643 — G&N INTERCONNECT HARNESS "C

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1011010929-001CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1111010965-1CONNECTOR, PLUG, ELECTRICAL (P16)
1211010965-2CONNECTOR, PLUG, ELECTRICAL (P15)
15981010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
16841010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
1712014743-011CONNECTOR, PLUG, ELECTRICAL, 56P19 Expanded in more detail: 2014743-011.
18131010958-1PLUG, PROTECTIVE SEALING
19301010984PLUG, PROTECTIVE SEALING
20331010402-2SLEEVE, SOLDER
21151012534-36INSULATION, SLEEVING, ELEC (HEAT SHRINKABLE)
22AR1012503COMPOUND, POTTING, POLYURETHANE
23AR1010679ADHESIVE ACTIVATOR
24AR1010661EPOXY RESIN
25ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
26ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
29AR1012504PRIMER, METAL PARTS
30291010862BUSHING, SLEEVE
32AR1012507-4TAPE, LACING AND TYING
3361012534-37SLEEVE, INSULATION (HEAT SHRINKABLE)
3422014670-6ADAPTER, CONNECTOR
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
REFX1010781-1CONTACT, SOCKET SUPPLIED WITH CONNECTOR 1010965

2014644 — G&N INTERCONNECT HARNESS "D

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1111010930-009CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
1211010930-105CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
1311010930-002CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
1411010930-001CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
171721010955-001CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
181321010955-002CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
19521010958-001PLUG, PROTECTIVE SEALING
20781010402-2SLEEVE, SOLDER
2112014670-4ADAPTER, CONNECTOR
2212014670-12ADAPTER, CONNECTOR
2312014670-7ADAPTER, CONNECTOR
24AR1012507-004TAPE, LACING AND TYING
25ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
26ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
28AR1012503COMPOUND, POTTING, POLYURETHANE
29AR1010679ADHESIVE ACTIVATOR
30AR1010661EPOXY RESIN
31AR1006277SILICA, PULVERIZED, PYROGENIC, SPECIFICATION CONTROL DRAWING
32AR1008822COLORANT, EPOXY BASE
33AR1012504PRIMER, METAL PARTS
35AR1006776-19INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3712014744-011CONNECTOR, PLUG, ELECTRICAL, 56P17 Expanded in more detail: 2014744-011.
392MS17182-1TERMINAL, LUG, CRIMP STYLE, COPPER, INSULATED (SERVO COMPONENTS) TYPE II, CLASS 1, FOR 125 DEGREES C TOTAL CONDUCTOR TEMPERATURE
402MS35333-69WASHER, LOCK, FLAT-INTERNAL TOOTH
4121006783-93SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
4312014670-11ADAPTER, CONNECTOR
4422010725-011NUT PLATE ASSEMBLY
4512010725-021NUT PLATE ASSEMBLY
4612010725-031NUT PLATE ASSEMBLY
47AR1010682EPOXY RESIN
48AR1010683CURING AGENT, AMINE, SPECIFICATION CONTROL DRAWING
4941010402-1SLEEVE, SOLDER
REFX1010770-1CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014645 — G&N INTERCONNECT HARNESS "E

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1212014745-011CONNECTOR, PLUG, ELECTRICAL, 56P26 Expanded in more detail: 2014745-011.
1311010929-004CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
14X1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
15801010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
16321010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
18251010958-1PLUG, PROTECTIVE, SEALING
19191010402-2SLEEVE, SOLDER
20171012534-36INSULATION, SLEEVING (HEAT SHRINKABLE)
21AR1006277SILICA, PULVERIZED, PYROGENIC, SPECIFICATION CONTROL DRAWING
22AR1008822COLORANT, EPOXY BASE
23AR1012504PRIMER, METAL PARTS
24AR1012503COMPOUND, POTTING, POLYURETHANE
25AR1010679ADHESIVE, ACTIVATOR
26AR1010661EPOXY RESIN
2712014670-4ADAPTER, CONNECTOR
28AR1012507-4TAPE, LACING AND TYING
29ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
30ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE

2014646 — G&N INTERCONNECT HARNESS "F

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
712014746-011CONNECTOR, PLUG, ELECTRICAL, 56P28 Expanded in more detail: 2014746-011.
811010771-207CONNECTOR, PLUG, ELECTRICAL, SPECIFICATION CONTROL DRAWING
10471010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
11171010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
1212014670-5ADAPTER, CONNECTOR
13241010958-1PLUG, PROTECTIVE SEALING
14101010402-2SLEEVE, SOLDER
16ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
17ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
18AR1012507-004TAPE, LACING AND TYING
19AR1012503COMPOUND, POTTING, POLYURETHANE
20AR1012504PRIMER, METAL PARTS
21AR1010679ADHESIVE ACTIVATOR
22AR1006277SILICA, PULVERIZED, PYROGENIC, SPECIFICATION CONTROL DRAWING
23AR1008822COLORANT, EPOXY BASE
24AR1010661EPOXY RESIN
2561012534-36SLEEVING, ELECTRICAL (HEAT SHRINKABLE)
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014647 — G&N INTERCONNECT HARNESS "G

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1212014747CONNECTOR, PLUG, ELECTRICAL, 56P29
1311010929-002CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1411010929-008CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1511010929-101CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1611010929-001CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1931010930-017CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
201071010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
21751010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
2222014670-4ADAPTER, CONNECTOR
2312014670-5ADAPTER, CONNECTOR
24911010958-1PLUG, PROTECTIVE SEALING
25191010402-2SLEEVE, SOLDER
26AR1012507-4TAPE, LACING AND TYING
27ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
28ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
29AR1012503COMPOUND, POTTING, POLYURETHANE
30AR1012504PRIMER, METAL PARTS
31AR1006277SILICA, PULVERIZED, PYROGENIC, SPECIFICATION CONTROL DRAWING
32AR1008822COLORANT, EPOXY BASE
33AR1010661EPOXY RESIN
34AR1010679ADHESIVE, ACTIVATOR
3532014670-010ADAPTER, CONNECTOR
36191012534-36SLEEVING, INSULATION (HEAT SHRINKABLE)
371MS17182-1TERMINAL, LUG, CRIMP STYLE, COPPER, INSULATED (SERVO COMPONENTS) TYPE II, CLASS 1, FOR 125 DEGREES C TOTAL CONDUCTOR TEMPERATURE
39AR1010989TAPE, SHIELDING, EMI/RFI
4011006783-93SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
411MS35333-69WASHER, LOCK, FLAT-INTERNAL TOOTH
42AR1006776-19INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
4312014670-11ADAPTER, CONNECTOR
4561010862BUSHING, SLEEVE
4661010763-2SOLDER, SLEEVE
REFX1010770-1CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014648 — G&N INTERCONNECT HARNESS "H

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
1212014748-011CONNECTOR, PLUG, ELECTRICAL, 56P27 Expanded in more detail: 2014748-011.
1311010929-003CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1411010921-1CONNECTOR, PLUG, ELECTRICAL, (56P30)
1511010921-2CONNECTOR, PLUG, ELECTRICAL, (56P31)
1611010930-003CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
18361010932-2CONTACT, PIN
20561010955-1CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
2181010955-2CONTACT, ELECTRICAL-MINIATURE, MALE, CRIMP TYPE, SPECIFICATION CONTROL DRAWING
2222014670-13ADAPTER, CONNECTOR
2371010983-1PLUG, PROTECTIVE SEALING
24391010958-1PLUG, PROTECTIVE SEALING
29AR1010989TAPE, SHIELDING, EMI/RFI
30AR1006776-19INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
32ARMIL-T-23594TAPE, TEFLON, TYPE II, 1 INCH WIDE
33ARMIL-T-23594TAPE, TEFLON, TYPE II, 1/4 INCH WIDE
34AR1012503COMPOUND, POTTING, POLYURETHANE
35AR1012504PRIMER, METAL PARTS
38AR1010661EPOXY RESIN
39AR1010679ADHESIVE ACTIVATOR
40AR1012507-004TAPE, LACING AND TYING
5042021203TERMINAL, LUG - SOLDER
514MS35333-69WASHER, LOCK, FLAT-INTERNAL TOOTH
5241006783-93SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
53131010402-2SLEEVE, SOLDER
5911012534-36SLEEVING, INSULATION, ELEC (HEAT SHRINKABLE)
6012010725-011NUT PLATE ASSEMBLY
61AR1010682EPOXY RESIN
62AR1010683CURING AGENT, AMINE, SPECIFICATION CONTROL DRAWING
63ARQQ-S-571 SN60 WRAP2SOLDER, ELECTRONIC (96 TO 485 DEG. C)
64ARQQ-S-571 SN60WSSOLDER, ELECTRONIC (96 TO 485 DEG. C)
65ARMIL-F-14256 TYPE AFLUX, SOLDERING, LIQUID, PASTE FLUX, SOLDER PASTE AND SOLDER-PASTE FLUX (FOR ELECTRONIC/ELECTRICAL USE), GENERAL SPECIFICATION FOR
66591010490-114INSULATION SLEEVING (HEAT SHRINKABLE)
REFX1010770-2CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING

2014731 — BRACKET CABLE CLAMP

Reference assemblies: 2014567-011 2014999-011

FINDQTYDRAWINGTITLENOTES
112014731-001BRACKET CABLE CLAMP
211010957-010INSERT, SCREW THRD-LOCKING

2018601-011 — INERTIAL MEASURING UNIT ASSEMBLY (BLOCK II)

Reference assemblies: 2007203-011 2014999-011

FINDQTYDRAWINGTITLENOTES
112018738-011CASE CENTER, MACHINING ASSY Expanded in more detail: 2018738-011.
212018602-011OUTER AXIS ASSEMBLY Expanded in more detail: 2018602-011.
312018710COVER, CASE
412018612-011INTERGIMBAL SUB-ASSEMBLY, RESOLVER, OUTER AXIS Expanded in more detail: 2018612-011.
512018609-011INTER GIMBAL SUB-ASSEMBLY, TORQUE MOTOR END, OUTER AXIS Expanded in more detail: 2018609-011.
612018774MOUNT, CONNECTOR, TORQUE MOTOR, OUTER AXIS Expanded in more detail: 2018774.
712018769MOUNT, CONNECTOR, RSVR OUTER AXIS Expanded in more detail: 2018769.
822018818STRAP ASSY, OUTER AXIS Expanded in more detail: 2018818.
912018773VALVE, PRESSURE, ASSEMBLY Expanded in more detail: 2018773.
1021000135-001COUPLING, HALF, QUICK DISCONNECT
1112018775COVER ACCESS RSVR MODULE
1212018805INSULATION, CASE HEAT EXCHANGER (RIGHT HAND)
1312018806INSULATION, CASE HEAT EXCHANGER (LEFT HAND)
14AR1010838ADHESIVE
1511000159-15PACKING, PREFORMED, "O" RING
1611000159-5PACKING, PREFORMED, "O" RING
1721009005-006PACKING, PREFORMED “O” RING
1811000159-17PACKING, PREFORMED, "O" RING
1921000159-16PACKING, PREFORMED, "O" RING
20ARMIL-G-4343GREASE, PNEUMATIC SYSTEM The original drawing calls out MIL-L-4343, of which I can find no copy. However, the drawing also describes this as DOW CORNING NO. 55, which is MIL-G-4343 compliant, so I am calling out MIL-G-4343 here.
21121001489-18SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
22361001489-46SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
2361001488-1SCREW, HEX SOC HEAD
2421010891-1SCREW, BUTTON HD, SELF-LKG, SOC, SPLINE
2541010891-12SCREW, BUTTON HD, SELF-LKG, SOC, SPLINE
2641006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
2712018795PLATE, IDENTIFICATION, PHOTO MASTER
2811000022PLATE, INFORMATION
2961000220CLAMP, CABLE
3061000223WASHER, CABLE CLAMP
3141010861-6NUT, PLAIN CLINCH
32AR1001488SCREW, HEX, SOC HD SELF-LKG
34AR1000261WEIGHT, BALANCE MID. GIMBAL
35AR1000262WEIGHT, BALANCE MID. GIMBAL
36AR1000263WEIGHT, BALANCE OUT. AND MID. GIMBAL
37AR2018831WEIGHT, BALANCE S/M
38AR2018832WEIGHT, BALANCE S/M
40AR2018833WEIGHT, BALANCE, OUTER GIMBAL
43AR2018834WEIGHT, BALANCE S/M
4421011625-11SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
4732018844-011CALIBRATED PIP ASSY Expanded in more detail: 2018844-011.
4932021500 SEE TABLE IIIIRIG PREALIGNED ASSY, APOLLO II IRIG
52AR1006338-000SEALING COMPOUND, SILICONE RUBBER, SPECIFICATION CONTROL DRAWING
53ARMIL-I-15126 TYPE ACTINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE The original drawing calls out MIL-I-15125, to which I can find no reference anywhere. I think this may have been a misprint.
59AR1008930GREASE, MOLYBDENUM DISULFIDE
REFX2018615IMU WIRING DIAGRAM, BLOCK II
REFX2018601INERTIAL MEASURING UNIT ASSEMBLY (BLOCK II)

2018821-011 — HOSE, ASSY FLEXIBLE, IMU TO SPACECRAFT

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112018647-011HOSE, FLEXIBLE, WELDING ASSEMBLY, SPECIFICATION CONTROL DRAWING
211000159-6PACKING, PREFORMED, "O" RING
3ARMIL-G-4343GREASE, PNEUMATIC SYSTEM The original drawing calls out MIL-L-4343, of which I can find no copy. However, the drawing also describes this as DOW CORNING NO. 55, which is MIL-G-4343 compliant, so I am calling out MIL-G-4343 here.
411010797-2COUPLING, QUICK DISCONNECT
512018804TUBE INSULATION, IMU TO SPACECRAFT

2021104-051 — COMPUTER PROGRAM ASSEMBLY, SUNDIAL C/M

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112003053-121 or 2003972-041FIXED MEMORY MODULE ASSEMBLY Expanded in more detail: 2003053-121, and 2003972-041.
212003053-151 or 2003972-071FIXED MEMORY MODULE ASSEMBLY Expanded in more detail: 2003053-151, and 2003972-071.
312003972-211FIXED MEMORY MODULE ASSEMBLY Expanded in more detail: 2003972-211.

2021255-011 — STORAGE UNIT, EYEPIECE

Reference assembly: 2014999-011

FINDQTYDRAWINGTITLENOTES
112021220BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY) Expanded in more detail: 2021220.
212021221BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY) Expanded in more detail: 2021221.
312021219BRACKET, ELECTRICAL CONNECTOR (INSEP. ASSY.) Expanded in more detail: 2021219.
44MS51957-45SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTANT STEEL, UNC-2A
511000220-3CLAMP, CABLE
631000220-15CLAMP, CABLE
741011918-3WASHER, CABLE CLAMP
84MS51957-15SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTANT STEEL, UNC-2A
981001488-45SCREW, SOCKET HEAD
1011004260-199NAMEPLATES, APOLLO G & N (STANDARDS)
1112021228COVER, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY) Expanded in more detail: 2021228.
1212010789-011CASE AND COVER ASSEMBLY, EYEPIECE STORAGE Expanded in more detail: 2010789-011.
1310AN960C10LWASHER, FLAT
1422014760SCREW, CAPTIVE - SOCKET HD, CAP
1521010785-8PACKING, PREFORMED
1612NAS1352CO4-6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
1716MS21045CO4NUT, SELF-LOCKING, HEXAGON - REGULAR HEIGHT, 450°F, 125 KSI FTU




Expanded Sub-Subassemblies

2003011-011 — ERASABLE MEMORY, B12 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003009-011CORE STACK ASSEMBLY, ERASABLE MEMORY Expanded in more detail: 2003009-011.
212003012-011DIODE BLOCK ASSEMBLY, ERASABLE MEMORY Expanded in more detail: 2003012-011.
4AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
621004579-1SCREW, JACKING
721004546-3WASHER, FLAT
82MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
921004546-1WASHER, FLAT
1012004039TERMINAL, THREADED
11AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312004083COVER, ERASABLE MEMORY
REFX2005006SCHEMATIC, ERASABLE MEMORY MODULE (B12) See also: CAD transcription of drawing 2005006- (design files or image files).

2003014-011 — ERASABLE DRIVER MODULE, B9-10 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

Warning: For some reference assemblies, a different, unavailable configuration is required: 2003014-021

FINDQTYDRAWINGTITLENOTES
112003015-011HEADER, HOUSING, ASSY
2AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
82MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
912004029INSULATOR (B) PHOTOGRAPHIC MASTER, ERASABLE DRIVER MODULE
1012004028-011INSULATOR (A) PHOTOGRAPHIC MASTER, ERASABLE DRIVER MODULE Expanded in more detail: 2004028-011.
11261006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1211006750-28RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
13121006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1441006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1511006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16401006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1710SEE NOTE 12RESISTOR
18131006788-8RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
1981006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2021006755-32CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2141006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2251010406-7COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2311010406-11COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2411010406-17COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2511010406-19COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2681010406-8COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2732004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
28492004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
29502004103-001DIODE
3012004039TERMINAL, THREADED
31AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
32102004074INSULATOR, WASHER
3311006712-3RESISTOR, TEMPERATURE SENSITIVE, WAFER, SPECIFICATION CONTROL DRAWING
3411004738-001INSULATOR
REFX2005004SCHEMATIC, ERASABLE DRIVER MODULE, MODULE NO. B9 AND B10

2003026-011 — CURRENT SWITCH MODULE ASSEMBLY B11

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003033-011HEADER HOUSING ASSY, CURRENT SWITCH MODULE Expanded in more detail: 2003033-011.
212004032COVER
312004040-011INSULATOR A ASSY, PHOTOGRAPHIC MASTER, CURRENT SWITCH MODULE Expanded in more detail: 2004040-011.
412004041INSULATOR B
5282004103-001DIODE
6AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
7AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10281003084-011ASSEMBLY, K CORE Expanded in more detail: 1003084-011.
1112004039TERMINAL, THREADED
1221004579-1SCREW, JACKING
1421004546-1WASHER, FLAT
1521004546-3WASHER, FLAT
162MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
17562004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
1812003031-011MATRIX ASSEMBLY, CURRENT SWITCH MODULE Expanded in more detail: 2003031-011.
194NAS620C-2WASHER, FLAT
2041006783-10SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
REFX2005005SCHEMATIC, CURRENT SWITCH MODULE, MODULE NO. B11 See also: CAD transcription of drawing 2005005D (design files or image files).

2003027-011 — STRAND SELECT MODULE, B15 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003028-011HEADER HOUSING ASSEMBLY
2AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
621004579-1SCREW, JACKING
721004546-1WASHER, FLAT
821004546-3WASHER, FLAT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1012004043INSULATOR B PHOTOGRAPHIC MASTER, STRAND SELECT MODULE
1112004042-011INSULATOR A PHOTOGRAPHIC MASTER, STRAND SELECT MODULE
1212004039TERMINAL, THREADED
13121006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1461006750-28RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
15151006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16231006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
17491006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1861006788-59RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
196SEE NOTE 11RESISTOR
20482004103-001DIODE
21182004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
22232004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
2362004074INSULATOR, WASHER
REFX2005009SCHEMATIC, STRAND SELECT, MODULE NO. B15 See also: CAD transcription of drawing 2005009A (design files or image files).

2003036-011 — OSCILLATOR MODULE B7 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003037-011HEADER HOUSING ASSEMBLY
212003035-011OSCILLATOR SUB ASSEMBLY, MODULE NO. B7 Expanded in more detail: 2003035-011.
32MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
412004061COVER A, OSCILLATOR MODULE
512004062COVER B, OSCILLATOR MODULE
621004546-3WASHER, FLAT
781006783-9SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
812004039TERMINAL, THREADED
921006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
10AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
148SEE NOTE 13RESISTOR
158NAS620C-2WASHER, FLAT
162NAS620C-4LWASHER, FLAT
REFX2005003SCHEMATIC, CLOCK OSCILLATOR, MODULE NO. B7 See also: CAD transcription of drawing 2005003E (design files or image files).

2003040-011 — ROPE DRIVER MODULE B16-17 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

Warning: For some reference assemblies, a different, unavailable configuration is required: 2003040-021

FINDQTYDRAWINGTITLENOTES
112003039-011HEADER HOUSING ASSEMBLY
212004068INSULATOR (A)
312004076-011INSULATOR B ASSY PHOTOGRAPHIC MASTER, ROPE DRIVER MODULE Expanded in more detail: 2004076-011.
421004579-1SCREW, JACKING
521004546-1WASHER, FLAT
621004546-3WASHER, FLAT
72MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1212004039TERMINAL, THREADED
1312003042-011MATRIX ASSEMBLY, ROPE DRIVER MODULE Expanded in more detail: 2003042-011.
1412004032COVER
1541006783-10SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
1641006750-28RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1761006750-35RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1891006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
19221006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2011006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2181006750-22RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
228SEE NOTE 11RESISTOR
238SEE NOTE 11RESISTOR
24211006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2541006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2641006788-7RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2711006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2891006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
29161010406-8COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
3091010406-7COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
31662004103-001DIODE
3282004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
33392004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
344NAS620C-2WASHER, FLAT
REFX2005000SCHEMATIC, ROPE DRIVER MODULE, B16-B17

2003043-021 — SENSE AMPLIFIER MODULE B13-14 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003044-011HEADER HOUSING ASSY, SENSE AMPLIFIER MODULE Expanded in more detail: 2003044-011.
212004044COVER, SENSE AMPLIFIER MODULE
312003005-011MATRIX ASSEMBLY, SENSE AMPLIFIER MODULE Expanded in more detail: 2003005-011.
421004579-1SCREW, JACKING
521004546-1WASHER, FLAT
621004546-3WASHER, FLAT
72MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
841006783-10SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
912004039TERMINAL, THREADED
1012004090-011INSULATOR A ASSY PHOTOGRAPHIC MASTER, SENSE AMPLIFIER MODULE Expanded in more detail: 2004090-011.
1112004091INSULATOR B PHOTOGRAPHIC MASTER, SENSE AMPLIFIER MODULE
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
13AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
14AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
15AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
16321006750-42RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
17341006750-24RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1816SEE NOTE 12 & 22RESISTOR
34191006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
35131006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3691006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3711006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3831006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
391SEE NOTE 12RESISTOR
4011006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
411SEE NOTE 12RESISTOR
4221006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4311006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
441SEE NOTE 12RESISTOR
4541006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
46132004103DIODE
4722004112-002DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-002.
48122004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
4962004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
50161006293TRANSFORMER, PULSE, SPECIFICATION CONTROL DRAWING
51162004003-001INTEGRATED SENSE AMPLIFIER (FLIGHT QUALIFIED)
52AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
53192004074WASHER, INSULATOR
544NAS620C2WASHER, FLAT
55AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
REFX2005914SCHEMATIC, SENSE AMPLIFIER MODULE, MODULE NO. B13-14 See also: CAD transcription of drawing 2005914- (design files or image files).

2003053-121 — FIXED MEMORY MODULE ASSEMBLY

Reference assembly: 2021104-051

FINDQTYDRAWINGTITLENOTES
112003060-121SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003060-121.
212003061-121SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003061-121.
312003046-011CONNECTOR PLATE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003046-011.
412003045-011BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003045-011.
512003052-011COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003052-011.
612003048-011BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003048-011.
712004100HOUSING, FIXED MEMORY MODULE Expanded in more detail: 2004100.
822004071STANDOFF, FIXED MEMORY MODULE
911006339GASKET, PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1042004151SCREW, STANDOFF
1141000093-1SCREW, BUTTONHEAD
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
1421004546-3WASHER, FLAT
152MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1612003051-012MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-012.
1712003051-011MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-011.
1812003051-018MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-018.
1912003051-017MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-017.
2082003051-015MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-015.
2182003051-016MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-016.
2212003051-014MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-014.
2312003051-013MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-013.
2412004119FLAT CABLE, FIXED MEMORY MODULE
2512004120FLAT CABLE, FIXED MEMORY MODULE
2612004121FLAT CABLE, FIXED MEMORY MODULE
2712004123FLAT CABLE, FIXED MEMORY MODULE
2812004124FLAT CABLE, FIXED MEMORY MODULE
2912004122FLAT CABLE, FIXED MEMORY MODULE
3012004125FLAT CABLE, FIXED MEMORY MODULE
31AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3312004129FLAT CABLE INTERCONNECTION, FIXED MEMORY MODULE
3412004150-002SCREW, SHOULDERED
3512004150-001SCREW, SHOULDERED
36AR1006806-26INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
3742004150-003SCREW, SHOULDERED
3812004716FLAT CABLE
REFX2005012SCHEMATIC, FIXED MEMORY MODULE, B1-6 See also: CAD transcription of drawing 2005012B (design files or image files).

2003053-151 — FIXED MEMORY MODULE ASSEMBLY

Reference assembly: 2021104-051

FINDQTYDRAWINGTITLENOTES
112003060-151SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003060-151.
212003061-151SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003061-151.
312003046-011CONNECTOR PLATE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003046-011.
412003045-011BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003045-011.
512003052-011COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003052-011.
612003048-011BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003048-011.
712004100HOUSING, FIXED MEMORY MODULE Expanded in more detail: 2004100.
822004071STANDOFF, FIXED MEMORY MODULE
911006339GASKET, PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1042004151SCREW, STANDOFF
1141000093-1SCREW, BUTTONHEAD
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
1421004546-3WASHER, FLAT
152MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1612003051-012MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-012.
1712003051-011MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-011.
1812003051-018MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-018.
1912003051-017MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-017.
2082003051-015MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-015.
2182003051-016MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-016.
2212003051-014MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-014.
2312003051-013MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-013.
2412004119FLAT CABLE, FIXED MEMORY MODULE
2512004120FLAT CABLE, FIXED MEMORY MODULE
2612004121FLAT CABLE, FIXED MEMORY MODULE
2712004123FLAT CABLE, FIXED MEMORY MODULE
2812004124FLAT CABLE, FIXED MEMORY MODULE
2912004122FLAT CABLE, FIXED MEMORY MODULE
3012004125FLAT CABLE, FIXED MEMORY MODULE
31AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3312004129FLAT CABLE INTERCONNECTION, FIXED MEMORY MODULE
3412004150-002SCREW, SHOULDERED
3512004150-001SCREW, SHOULDERED
36AR1006806-26INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
3742004150-003SCREW, SHOULDERED
3812004716FLAT CABLE
REFX2005012SCHEMATIC, FIXED MEMORY MODULE, B1-6 See also: CAD transcription of drawing 2005012B (design files or image files).

2003054-011 — COVER, "A" ASSEMBLY, COMPUTER ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003054-001COVER, "A" ASSEMBLY, COMPUTER ASSEMBLY
2ARTBDGASK-O-SEAL The original drawing does not specify a part number for GASK-O-SEAL, which (in 2019) is a product with many variations from Parker Hannifin Corporation.

2003056-011 — POWER SUPPLY MODULE A30-31, ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003057-011HEADER HOUSING ASSY, POWER SUPPLY MODULE Expanded in more detail: 2003057-011.
212003029-011AGC POWER SUPPLY CONTROL CIRCUIT SUB-ASSY Expanded in more detail: 2003029-011.
312004080-011INSULATOR A PHOTOGRAPHIC MASTER, POWER SUPPLY Expanded in more detail: 2004080-011.
412004081-011INSULATOR B PHOTOGRAPHIC MASTER, POWER SUPPLY Expanded in more detail: 2004081-011.
512004078INSULATOR C PHOTOGRAPHIC MASTER, POWER SUPPLY
612004079INSULATOR D PHOTOGRAPHIC MASTER, POWER SUPPLY
71SEE NOTE 27RESISTOR
81SEE NOTE 27RESISTOR
911006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1021006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1111006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1221006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1311006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1411010389-51RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
1511010389-113RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
1611010389-23RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
1711010604-50RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
1821006330-001RESISTORS, FIXED, WIREWOUND, PRECISION, POWERTYPE, SPECIFICATION CONTROL DRAWING
1961006755-89CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2091006755-134CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2122004103-001DIODE
2212004112-001DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-001.
2321006329SEMICONDUCTOR DEVICE, RECTIFIER, POWER – FAST SWITCHING
2432004004-004TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-004.
2511006317TRANSISTOR, NPN, SILICON, POWER, SPECIFICATION CONTROL DRAWING
2622004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
2711006363-001TRANSISTOR
2812004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
2911006304-002RELAY, ARMATURE (13 AMP), SPECIFICATION CONTROL DRAWING
3031006327INDUCTOR
3111006328INDUCTOR, 80UH, SPECIFICATION CONTROL DRAWING
3241004579-1SCREW, JACKING
3341004546-1WASHER, FLAT
3451004546-3WASHER, FLAT
354MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
3611004722-2SCREW, CAPTIVE, ROPE COVER
37171006708TERMINAL, STUD, INSULATED, SPECIFICATION CONTROL DRAWING
3831006336-002HEATSINK, ELECTRICAL - ELECTRONIC COMPONENT, SPECIFICATION CONTROL DRAWING
3932008020-4BUSHING, INSULATOR
403MS20364-632NUT, SELF LOCKING, THIN, 250°F
4161008024-7WASHER INSULATOR
423NAS620C6LWASHER, FLAT
4321008024-5WASHER INSULATOR
4411008024-6WASHER INSULATOR
4512008020-3BUSHING, INSULATOR
4611008071-7WASHER, FLAT
471MS20364B-524NUT, SELF LOCKING, THIN, 250°F
4861008024-2WASHER INSULATOR
4931008024-1WASHER INSULATOR
5031008025-5INSULATOR, BUSHING
513MS20364B1032NUT, SELF LOCKING, THIN, 250°F
5222008013-5TERMINAL - LUG - SOLDER - FLAT
5331008071-2WASHER, FLAT
54ARQQ-W-343, TYPE S #16WIRE, ELECTRICAL, COPPER (UNINSULATED)
55ARQQ-W-343, TYPE S #18WIRE, ELECTRICAL, COPPER (UNINSULATED)
61AR1006776-18INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
62AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
63AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
6432004039TERMINAL, THREADED
65AR1006757-23WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
66AR1006757-13WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
6711006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6811006755-126CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6912004928SLEEVE, THERMAL
70AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
REFX2005010SCHEMATIC, AGC POWER SUPPLY, A30-A31 See also: CAD transcription of drawing 2005010F (design files or image files).

2003058-011 — MID-SPACER ASSY, COMPUTER ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003058-001MID-SPACER ASSY, COMPUTER ASSEMBLY
2ARTBDGASK-O-SEAL The original drawing does not specify a part number for GASK-O-SEAL, which (in 2019) is a product with many variations from Parker Hannifin Corporation.

2003059-011 — INTERCONNECTION HEADER ASSEMBLY, FIXED MEMORY B1-6

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003066-011INTERCONNECTION HEADER SUBASSEMBLY, FIXED MEMORY Expanded in more detail: 2003066-011.
212003065-011CONNECTOR B41 SUBASSEMBLY, FIXED MEMORY Expanded in more detail: 2003065-011.
312003064-011CONNECTOR B42 SUBASSEMBLY, FIXED MEMORY Expanded in more detail: 2003064-011.
412004107COVER, INTERCONNECTION HEADER, FIXED MEMORY
512004108COVER, CONNECTOR B41, FIXED MEMORY
612004109COVER, CONNECTOR B42, FIXED MEMORY
741004579-1SCREW, JACKING
881001489-6SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
98NAS620-4WASHER, FLAT
1041004546-1WASHER, FLAT
1141004546-3WASHER, FLAT
124MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1512004039TERMINAL, THREADED
16AR1006732WIRE, ELECTRICAL, INSULATED, SPECIFICATION CONTROL DRAWING
268NAS662C2RLE4SCREW, 100° FLAT HD, SELF-LOCKING
278NAS1219-06C-8SCREW, 100° CSK HD, HI TORQUE, RECESS
28AR1005015GREASE, FUEL AND OIL RESISTANT
REFX2005040WIRE WRAP DECK
REFX2005018INTERCONNECT DIAGRAM, FIXED MEMORY STORAGE BLOCK II

2003067-021 — INTERFACE MODULE A27-29 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003007-011HEADER HOUSING ASSY
2AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
621004579-1SCREW, JACKING
721004546-1WASHER, FLAT
821004546-3WASHER, FLAT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1012004039TERMINAL, THREADED
1162004092INSULATOR
1212004134INSULATOR D
1312004131INSULATOR A
1412004132INSULATOR B
1512004133INSULATOR C PHOTOGRAPHIC MASTER, INTERFACE MODULE A27-29
161SEE NOTE 13RESISTOR
171SEE NOTE 13RESISTOR
18111006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
19221006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2031006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2111010768-29RESISTOR, FIXED, CARBON FILM, SPECIFICATION CONTROL DRAWING
22121006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
23281006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2521006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-53RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
29201006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006755-57CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3321006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
34221006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3531010406-6COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
36152004103-001DIODE
3722004112-002DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-002.
38172004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
3911010291-4TRANSFORMER, AUDIO, SPECIFICATION CONTROL DRAWING
40221006319TRANSFORMER
4112004103-002DIODE, MATCHED PAIR
421SEE NOTE 13RESISTOR
REFX2005912SCHEMATIC & WIRING DIAGRAM, INTERFACE A27-29 See also: CAD transcription of drawing 2005912B (design files or image files).

2003070-011 — INTERFACE MODULE A25-26 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003006-011HEADER HOUSING ASSY
212004136-011INSULATOR A PHOTOGRAPHIC MASTER, INTERFACE MODULE A25-26 Expanded in more detail: 2004136-011.
312004137INSULATOR B PHOTOGRAPHIC MASTER, INTERFACE MODULE A25-26
421004579-1SCREW, JACKING
521004546-1WASHER, FLAT
621004546-3WASHER, FLAT
72MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
812004039TERMINAL, THREADED
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
13221006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
14111006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
15481006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16101006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
17131006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
18112004103-001DIODE
1931010406-6COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
20452004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
21111006319TRANSFORMER
REFX2005021SCHEMATIC & FLOW DIAGRAM, INTERFACE A25-26 See also: CAD transcription of drawing 2005021C (design files or image files).

2003071-011 — COVER B ASSEMBLY, AGC

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003071-001COVER B ASSEMBLY, AGC
2ARTBDGASK-O-SEAL The original drawing does not specify a part number for GASK-O-SEAL, which (in 2019) is a product with many variations from Parker Hannifin Corporation.

2003074-021 — TRAY A, WIRED ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003062-011TRAY A SUBASSEMBLY, AGC Expanded in more detail: 2003062-011.
222003080-011BUS STRIP ASSEMBLY Expanded in more detail: 2003080-011.
322003081-011BUS STRIP ASSEMBLY Expanded in more detail: 2003081-011.
6AR1006732WIRE, ELECTRICAL, INSULATED, SPECIFICATION CONTROL DRAWING
7ARQQ-W-343 TYPE SWIRE, ELECTRICAL, COPPER (UNINSULATED)
842004139PIN, HEADLESS, DOWEL
96MS16555-640PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
REFX2005033WIREWRAP CARD-DECK, TRAY A

2003075-021 — TRAY B, WIRED ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003063-011TRAY B SUBASSEMBLY, AGC Expanded in more detail: 2003063-011.
4AR1006732WIRE, ELECTRICAL, INSULATED, SPECIFICATION CONTROL DRAWING
742004139PIN, HEADLESS, DOWEL
82MS16555-628PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
94MS16555-641PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
REFX2005034WIREWRAP CARD-DECK, TRAY B

2003099-011 — CONNECTOR ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112004188COVER
212003095FRAME ASSEMBLY, CONNECTOR Expanded in more detail: 2003095.
341004579-1SCREW, JACKING
44MS16995-10SCREW, CAP, SOCKET HEAD-HEXAGON, CORROSION RESISTANT STEEL, UNC-3A
54MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
642004984-003WASHER, FLAT
742004984-001WASHER, FLAT
812004727GASKET, RUBBER, AGC

2003120-011 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-021CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-021.
312003083-011CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-011.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-021 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-041CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-041.
312003083-031CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-031.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-031 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-061CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-061.
312003083-051CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-051.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-041 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-081CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-081.
312003083-071CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-071.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-051 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-111CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-111.
312003083-091CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-091.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-071 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-151CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-151.
312003083-141CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-141.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-081 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-171CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-171.
312003083-161CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-161.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-111 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
312003083-271CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-271.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-121 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-311CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-311.
312003083-291CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-291.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-131 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-331CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-331.
312003083-321CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-321.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-141 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-351CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-351.
312003083-341CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-341.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-151 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-371CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-371.
312003083-361CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-361.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-161 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-391CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-391.
312003083-381CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-381.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-171 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-421CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-421.
312003083-411CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-411.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-181 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-441CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-441.
312003083-431CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-431.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-191 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-461CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-461.
312003083-451 or 2003083-551CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-451, and 2003083-551.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-211 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-481CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-481.
312003083-471CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-471.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-221 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-511CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-511.
312003083-491CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-491.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-231 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-531CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-531.
312003083-521CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-521.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-241 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-261CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-261.
312003083-541CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-541.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003120-251 — LOGIC MODULE ASSY (TABULATED)

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003000-021HEADER HOUSING ASSY, LOGIC MODULE Expanded in more detail: by substitute 2003000-011.
212003083-561CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-561.
312003083-121CIRCUIT BOARD ASSEMBLY (TABULATED) Expanded in more detail: 2003083-121.
42MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
8AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-20WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003169-011 — ALARM MODULE B8 ASSEMBLY

Reference assembly: 2003100-081 (ECP 474)

FINDQTYDRAWINGTITLENOTES
112003032-011HEADER HOUSING ASSY, ALARM MODULE Expanded in more detail: 2003032-011.
221004579-1SCREW, JACKING
321004546-1WASHER, FLAT
421004546-3WASHER, FLAT
52MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
612004039TERMINAL, THREADED
712004144INSULATOR A PHOTOGRAPHIC MASTER, ALARM MODULE
812003077-011INSULATOR B ASSEMBLY PHOTOGRAPHIC MASTER, ALARM MODULE Expanded in more detail: 2003077-011.
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1331006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1421006750-6RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1531006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1611006750-14RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1731006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1831006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1921006750-30RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2051006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2111006750-33RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2311006750-41RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2451006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
25171006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
26181006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
27141006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2891006750-58RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2911006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-83RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3161006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211010377-50RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3331010377-51RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3461010377-227RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3521006788-6RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
3611006755-31CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3711006755-36CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3841006755-57CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3911006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4011006777-20CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4111006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4221006777-25CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4382004103-001DIODE
4442004112-002DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-002.
45162004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
46152004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
4771010376-1TRANSISTOR, NPN, SILICON, DUALSECTION, SPECIFICATION CONTROL DRAWING
4811006755-128CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4911006750-46RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5081006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
515SEE NOTE 8RESISTOR
5252004074INSULATOR, WASHER
5311006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5411006750-50RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5511006755-21CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5611006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
REFX2005028SCHEMATIC, ALARM B8 See also: CAD transcription of drawing 2005028A (design files or image files).

2003901-011 — POWER SUPPLY ASSEMBLY, MODULE D7, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
112003921-011HEADER ASSY, POWER SUPPLY MODULE, AGC DSKY Expanded in more detail: 2003921-011.
212004905COVER, TOP
312004906COVER, BOTTOM
412004934INSULATOR, PHOTOMASTER, REAR, POWER SUPPLY MODULE, AGC DSKY Expanded in more detail: 2004934.
512004901-011INSULATOR, PHOTO MASTER, LOWER LEVEL, POWER SUPPLY MODULE, AGC DSKY Expanded in more detail: 2004901-011.
612004902INSULATOR, UPPER LEVEL
7AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1011006325SATURABLE REACTOR, SPECIFICATION CONTROL DRAWING
1121006363-002TRANSISTOR, SILICON TYPE, NPN
1221010376-1TRANSISTOR, NPN, SILICON, DUALSECTION, SPECIFICATION CONTROL DRAWING
1342004103-001SEMICONDUCTOR DEVICE, DIODE
1411006793-19CAPACITOR, FIXED, GLASS DIELECTRIC
1511006755-134CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
1611010406-7COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
1721010291-4TRANSFORMER, AUDIO, SPECIFICATION CONTROL DRAWING
1821006760-64RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
1911006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2011006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2121006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
222SEE NOTE 11RESISTOR, FIXED FILM
232SEE NOTE 11RESISTOR, FIXED FILM
2421004579-1SCREW, JACKING
258MS35216-12SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
264MS24693-PC2SCREW, MACHINE, FLAT COUNTERSUNK HEAD, 100°, CROSS RECESSED, UNC-2A AND UNF-2A
274NAS620C4WASHER, FLAT
284MS35338-78WASHER, LOCK-SPRING, HELICAL, REGULAR (MEDIUM) SERIES
2921004546-1WASHER, FLAT
3021004546-3WASHER, FLAT
312MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
32AR1006757-13WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
33AR1006879SILICONE COMPOUND, THERMOCONDUCTIVE, SPECIFICATION CONTROL DRAWING
342MS15795-808WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
354MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
REFX2005904SCHEMATIC, POWER SUPPLY, MODULE D7 See also: CAD transcription of drawing 2005904C (design files or image files).

2003903-031 — FRONT HOUSING ASSEMBLY, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
221006351GASKET, BONDED, RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
312003912-011ADAPTER PLATE ASSY, AGC DSKY Expanded in more detail: 2003912-011.
412003915-011CONNECTOR PLATE ASSY, FRONT HOUSING, AGC DSKY Expanded in more detail: 2003915-011.
24192004942HUT, HEX
25191000159-18PACKING, PREFORMED, "O" RING
26192004940-001WASHER, PLAIN, SWITCH, PUSH BUTTON, AGC DSKY
27191010635-003WASHER-LOCK (INTERNAL TOOTH)
282MS35200-25SCREW, MACHINE-FLAT COUNTERSUNK HEAD, 82°,CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
294MS35216-27SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
3013MS35200-19SCREW, MACHINE-FLAT COUNTERSUNK HEAD, 82°,CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
314NAS620-6LWASHER, FLAT
32AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
33AR1010416-20WIRE, ELECTRICAL, STRANDED, INSULATED, SPECIFICATION CONTROL DRAWING
34AR1012507-003TAPE, LACING AND TYING
35AR1010416-15WIRE, ELECTRICAL, STRANDED, INSULATED, SPECIFICATION CONTROL DRAWING
36AR1006879SILICONE COMPOUND, THERMOCONDUCTIVE, SPECIFICATION CONTROL DRAWING
3712004039TERMINAL, THREADED
3812003974-011PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-011.
3912003974-021PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-021.
4012003974-031PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-031.
4112003974-041PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-041.
4212003974-051PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-051.
4312003974-061PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-061.
4412003974-071PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-071.
4512003974-081PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-081.
4612003974-091PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-091.
4712003974-111PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-111.
4812003974-121PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-121.
4912003974-131PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-131.
5012003974-141PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-141.
5112003974-151PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-151.
5212003974-161PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-161.
5312003974-171PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-171.
5412003974-181PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-181.
5512003974-191PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-191.
5612003974-211PUSH BUTTON SWITCH ASSEMBLY, PLUG IN UNIT, AGC DSKY Expanded in more detail: 2003974-211.
57AR1010416-13WIRE, ELECTRICAL, STRANDED, INSULATED, SPECIFICATION CONTROL DRAWING
58AR1010416-14WIRE, ELECTRICAL, STRANDED, INSULATED, SPECIFICATION CONTROL DRAWING
5912004968-011HOUSING, FRONT, AGC DSKY Expanded in more detail: 2004968-011. 3D model of drawing 2004968E.
6012004971COMB,WIRE
61AR1010807-22WIRE, POLYETHYLENETEREPHTHALATE INSULATION, SOLID, COPPER ALLOY, SILVER PLATE, SPECIFICATION CONTROL DRAWING
REFX2005951INTERCONNECTING DIAGRAM, AGC DSKY

2003909-011 — KEYBOARD ASSEMBLY, MODULE D8, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
112003918-011HEADER ASSEMBLY, KEYBOARD MODULE, AGC DSKY Expanded in more detail: 2003918-011.
212004926-011BLOCK, COMPONENT
4AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
6432004103-001SEMICONDUCTOR DEVICE, DIODE
791006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
82MS35200-15SCREW, MACHINE-FLAT COUNTERSUNK HEAD, 82°,CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
922004932-002SCREW, JACKING, AGC DSKY
1041004546-4WASHER, FLAT
112MS16633-4014RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
REFX2005903SCHEMATIC, KEYBOARD, MODULE D8 See also: CAD transcription of drawing 2005903A (design files or image files).

2003952-011 — INDICATOR DRIVER ASSY, MODULE D1-D6, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
112003907-011HEADER ASSY INDICATOR DRIVER MODULE, AGC DSKY Expanded in more detail: 2003907-011.
212003910-011RELAY CIRCUIT ASSEMBLY, INDICATOR DRIVER MODULE, AGC DSKY Expanded in more detail: 2003910-011.
312003908-011DECODING CIRCUIT ASSEMBLY, INDICATOR DRIVER MODULE, AGC DSKY Expanded in more detail: 2003908-011.
412004911COVER, REAR
512004956COVER, REAR
621004579-1SCREW, JACKING
721004546-3WASHER, FLAT
821004546-1WASHER, FLAT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1015MS24693-C2SCREW, MACHINE, FLAT COUNTERSUNK HEAD, 100°, CROSS RECESSED, UNC-2A AND UNF-2A
1112004990-011INSULATOR, PHOTOMASTER, REAR
1212004991INSULATOR, PHOTOMASTER, UPPER LEVEL
1312004992-011INSULATOR, PHOTOMASTER, LOWER LEVEL
1412004993INSULATOR, PHOTOMASTER, SPECIAL LEVEL
1521006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
17AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1851006755-106CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
19222004103-001SEMICONDUCTOR DEVICE, DIODE
20151006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2131006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2262004004-001TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-001.
2372004004-002TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-002.
24AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
25AR1006879SILICONE COMPOUND, THERMOCONDUCTIVE, SPECIFICATION CONTROL DRAWING
2612004917INSULATOR, PHOTO MASTER, SPECIAL LEVEL, RELAY CIRCUIT, INDICATOR DRIVER
2751006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
REFX2005952SCHEMATIC, INDICATOR DRIVER MODULE D1 - D6 See also: CAD transcription of drawing 2005952- (design files or image files).

2003954-011 — MAIN HOUSING ASSEMBLY, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
112003967-011WIREWRAP IDM PLATE ASSY, MAIN HOUSING, AGC DSKY Expanded in more detail: 2003967-011.
212003916-011CONNECTOR PLATE ASSY, MAIN HOUSING, AGC DSKY Expanded in more detail: 2003916-011.
31MS20364D624ANUT, SELF LOCKING, THIN, 250°F
41MS15795-314WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
511000159-14PACKING, PREFORMED, "O" RING
612004903VALVE, PNEUMATIC TANK (LEAK TESTED), AGC DSKY
74MS51959-28SCREW, MACHINE, FLAT COUNTERSUNK HEAD, 82°, CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
821004579-2SCREW, JACKING
921004546-1WASHER, FLAT
1021004546-3WASHER, FLAT
112MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1212003980-011WIRING HARNESS, BRANCHED, AGC DSKY Expanded in more detail: 2003980-011.
1312004931RETAINER, VALVE CAP
14AR1006732-1WIRE, ELECTRICAL, INSULATED, SPECIFICATION CONTROL DRAWING
15AR1010807-22WIRE, POLYETHYLENETEREPHTHALATE INSULATION, SOLID, COPPER ALLOY, SILVER PLATE, SPECIFICATION CONTROL DRAWING
161MS35216-39SCREW, MACHINE, PAN HEAD, CROSS-RECESSED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
171NAS1598D08NWASHER, SEALING
1911004546-6WASHER, FLAT
2012004927COMB, WIRE
212MS51959-13SCREW, MACHINE, FLAT COUNTERSUNK HEAD, 82°, CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
2211010635-004WASHER-LOCK (INTERNAL TOOTH)
2311000159-10PACKING, PREFORMED, "O" RING
REFX2005951INTERCONNECTING DIAGRAM, AGC DSKY

2003972-041 — FIXED MEMORY MODULE ASSEMBLY

Reference assembly: 2021104-051

FINDQTYDRAWINGTITLENOTES
112003060-121SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003060-121.
212003061-121SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003061-121.
312003973-011CONNECTOR PLATE ASSY
412003045-021BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003045-021.
512003052-021COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003052-021.
612003048-021BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003048-021.
712004100HOUSING, FIXED MEMORY MODULE Expanded in more detail: 2004100.
822004071STANDOFF, FIXED MEMORY MODULE
911006339GASKET, PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1042004151SCREW, STANDOFF
1141000093-1SCREW, BUTTONHEAD
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
1421004546-3WASHER, FLAT
152MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1612003051-012MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-012.
1712003051-011MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-011.
1812003051-018MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-018.
1912003051-017MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-017.
2082003051-015MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-015.
2182003051-016MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-016.
2212003051-014MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-014.
2312003051-013MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-013.
2412004685FLAT CABLE, FIXED MEMORY MODULE
2512004120FLAT CABLE, FIXED MEMORY MODULE
2612004121FLAT CABLE, FIXED MEMORY MODULE
2712004123FLAT CABLE, FIXED MEMORY MODULE
2812004124FLAT CABLE, FIXED MEMORY MODULE
2912004122FLAT CABLE, FIXED MEMORY MODULE
3012004125FLAT CABLE, FIXED MEMORY MODULE
31AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3312004129FLAT CABLE INTERCONNECTION, FIXED MEMORY MODULE
3412004150-002SCREW, SHOULDERED
3512004150-001SCREW, SHOULDERED
36AR1006806-26INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
3742004150-003SCREW, SHOULDERED
3812004684FLAT CABLE, FIXED MEMORY MODULE
3912003986-021COMPONENT BLOCK DIODE ASSY
40AR1006341ADHESIVE SEALANT, SILICONE RUBBER
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2003972-071 — FIXED MEMORY MODULE ASSEMBLY

Reference assembly: 2021104-051

FINDQTYDRAWINGTITLENOTES
112003060-151SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003060-151.
212003061-151SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003061-151.
312003973-011CONNECTOR PLATE ASSY
412003045-021BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003045-021.
512003052-021COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003052-021.
612003048-021BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003048-021.
712004100HOUSING, FIXED MEMORY MODULE Expanded in more detail: 2004100.
822004071STANDOFF, FIXED MEMORY MODULE
911006339GASKET, PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1042004151SCREW, STANDOFF
1141000093-1SCREW, BUTTONHEAD
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
1421004546-3WASHER, FLAT
152MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1612003051-012MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-012.
1712003051-011MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-011.
1812003051-018MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-018.
1912003051-017MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-017.
2082003051-015MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-015.
2182003051-016MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-016.
2212003051-014MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-014.
2312003051-013MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-013.
2412004685FLAT CABLE, FIXED MEMORY MODULE
2512004120FLAT CABLE, FIXED MEMORY MODULE
2612004121FLAT CABLE, FIXED MEMORY MODULE
2712004123FLAT CABLE, FIXED MEMORY MODULE
2812004124FLAT CABLE, FIXED MEMORY MODULE
2912004122FLAT CABLE, FIXED MEMORY MODULE
3012004125FLAT CABLE, FIXED MEMORY MODULE
31AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3312004129FLAT CABLE INTERCONNECTION, FIXED MEMORY MODULE
3412004150-002SCREW, SHOULDERED
3512004150-001SCREW, SHOULDERED
36AR1006806-26INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
3742004150-003SCREW, SHOULDERED
3812004684FLAT CABLE, FIXED MEMORY MODULE
3912003986-021COMPONENT BLOCK DIODE ASSY
40AR1006341ADHESIVE SEALANT, SILICONE RUBBER
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2003972-211 — FIXED MEMORY MODULE ASSEMBLY

Reference assembly: 2021104-051

FINDQTYDRAWINGTITLENOTES
112003060-261SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003060-261.
212003061-261SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003061-261.
312003973-011CONNECTOR PLATE ASSY
412003045-021BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003045-021.
512003052-021COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE Expanded in more detail: 2003052-021.
612003048-021BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003048-021.
712004100HOUSING, FIXED MEMORY MODULE Expanded in more detail: 2004100.
822004071STANDOFF, FIXED MEMORY MODULE
911006339GASKET, PLATE, BONDED RUBBER, RETAINED, SPECIFICATION CONTROL DRAWING
1042004151SCREW, STANDOFF
1141000093-1SCREW, BUTTONHEAD
1221004579-1SCREW, JACKING
1321004546-1WASHER, FLAT
1421004546-3WASHER, FLAT
152MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1612003051-012MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-012.
1712003051-011MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-011.
1812003051-018MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-018.
1912003051-017MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-017.
2082003051-015MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-015.
2182003051-016MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-016.
2212003051-014MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-014.
2312003051-013MATRIX ASSY, FIXED MEMORY MODULE Expanded in more detail: 2003051-013.
2412004685FLAT CABLE, FIXED MEMORY MODULE
2512004120FLAT CABLE, FIXED MEMORY MODULE
2612004121FLAT CABLE, FIXED MEMORY MODULE
2712004123FLAT CABLE, FIXED MEMORY MODULE
2812004124FLAT CABLE, FIXED MEMORY MODULE
2912004122FLAT CABLE, FIXED MEMORY MODULE
3012004125FLAT CABLE, FIXED MEMORY MODULE
31AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3312004129FLAT CABLE INTERCONNECTION, FIXED MEMORY MODULE
3412004150-002SCREW, SHOULDERED
3512004150-001SCREW, SHOULDERED
36AR1006806-26INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
3742004150-003SCREW, SHOULDERED
3812004684FLAT CABLE, FIXED MEMORY MODULE
3912003986-021COMPONENT BLOCK DIODE ASSY
40AR1006341ADHESIVE SEALANT, SILICONE RUBBER
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2004929-011 — COVER, FRONT, AGC DSKY

Reference assembly: 2003985-051

FINDQTYDRAWINGTITLENOTES
112004929-001COVER, FRONT, AGC DSKY 3D model of drawing 2004929-.
22MS16555-625PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)

2007090-031 — TRAY X ASSEMBLY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007084-011TRAY X CDU SUB-ASSEMBLY Expanded in more detail: 2007084-011.
212008371COVER BOTTOM, TRAY X, CDU
312007213-011VALVE PRESSURE ASSEMBLY Expanded in more detail: 2007213-011.
431008817THERMAL SENSOR RIBBON
562008373SPACER, CDU
711000159-5PACKING, PREFORMED, "O" RING
912007333LEAD SET AA, ELECTRICAL - CDU ELECTRONICS TRAY X, C/M Expanded in more detail: 2007333.
15AR1006376-003WIRE, ELECTRICAL, INSULATED, SOLID
REFX2010108WIRE WRAP CARD DECK

2007091-031 — TRAY S ASSEMBLY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007085-011TRAY S CDU SUB-ASSEMBLY Expanded in more detail: 2007085-011.
212008370COVER, TOP, TRAY "S", CDU
412007332LEAD SET
662008373SPACER, CDU
931008817THERMAL SENSOR RIBBON
11AR1006376-003WIRE, ELECTRICAL, INSULATED, SOLID
REFX2010107WIRE WRAP CARD DECK

2007092-011 — HEADER ASSEMBLY, PIPA ELEC

Reference assembly: 2007201-011

FINDQTYDRAWINGTITLENOTES
112007094-011HEADER SUBASSEMBLY, PIPA ELECTRONICS Expanded in more detail: 2007094-011.
212014682LEAD SET AA, ELECTRICAL - PIPA ELECTRONICS C/M
312008362BRACKET, CONNECTORS, INSEPARABLE ASSEMBLY, PIPA ELECTRONICS Expanded in more detail: 2008362.
411008833-001RESISTOR, TEMP SENSITIVE, WAFER
5ARMIL-I-15126 TYPE MFT 2.5INSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
611010930-011CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
711010930-101CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
821008874-014SCREW, CAP, SOCKET HEAD
961008874-012SCREW, CAP, SOCKET HEAD
1012008361BRACKET CONNECTOR
1121008874-013SCREW, CAP, SOCKET HEAD
12331010958-001PLUG, PROTECTIVE
16AR1012555-002LACING TAPE

2007093-011 — HEADER ASSEMBLY, C/M PSA

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112007095-011HEADER SUBASSEMBLY, C/M PSA Expanded in more detail: 2007095-011.
212007115-011CONNECTOR MOUNTING PLATE, ASSEMBLY RIGHT, C/M PSA Expanded in more detail: 2007115-011.
312007116-011CONNECTOR MOUNTING PLATE, ASSY LEFT, C/M PSA Expanded in more detail: 2007116-011.
412014681LEAD SET BB, ELECTRICAL - PSA C/M
512014758LEAD SET CC, ELECTRICAL - PSA C/M Expanded in more detail: 2014758.
611008833-001RESISTOR, TEMP SENSITIVE, WAFER
7ARMIL-I-15126 TYPE MFT 2.5INSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
812008396-001CONNECTOR, RECEPTACLE
912008397-001CONNECTOR, RECEPTACLE
1012008397-002CONNECTOR, RECEPTACLE
1112007096-011BUFFER RESISTOR ASSY
122NAS1352-04-4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
1320NAS1352-08-6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
15201010958-1PLUG, PROTECTIVE
1631010498-238RESISTOR, FIXED
176NAS1352-02-06SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
1861010617-2NUT
196MS15795-802WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
25AR1008871-002SHIM – LAMINATED
26AR1008936-001LACING TAPE
REFX2014679INTERCONNECT LIST FOR PSA HEADER

2007101-011 — DC DIFFERENTIAL AMPLIFIER AND PVR ASSY

Reference assemblies: 2007200-011 2007201-011

FINDQTYDRAWINGTITLENOTES
112008092HEATSINK, DC AMPLIFIER AND PVR
212008004INSULATOR, TOP, PHOTOGRAPHIC MASTER, DC AMPLIFIER AND PVR
312008005INSULATOR, BOTTOM, PHOTOGRAPHIC MASTER, DC AMPLIFIER AND PVR
4101006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5101006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
612008093TERMINAL, THREADED
711008025-1INSULATOR, BUSHING
821010618-2SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
921008070-3WASHER, FLAT
10AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
12AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
13AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1511006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1621006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1711006750-66RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1811006750-68RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1941006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2011006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2111006760-30RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
2211006760-46RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
2311006760-48RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
2411010836-22RESISTOR
251SEE NOTE 16RESISTOR
2621010364-681RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2711010373-12RESISTOR
2811010374-126RESISTOR
2921010377-23RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3011010377-25RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3111010377-36RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3221010377-39RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
331SEE NOTE 16RESISTOR
341SEE NOTE 16RESISTOR
3511010399-49RESISTOR
3621006777-6CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3711010264-24CAPACITOR
3811008152DIODE, ZENER
3921010830-26DIODE, ZENER
4021010830-27DIODE, ZENER
4111010372-3DIODE, ZENER
4221010372-15DIODE, ZENER
4311010372-19DIODE, ZENER
4411010357-1TRANSISTOR
4531010376-3TRANSISTOR, NPN, SILICON, DUALSECTION, SPECIFICATION CONTROL DRAWING
4611008540-10GASKET, CONNECTOR MINIATURE
47AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010029SCHEMATIC, DC DIFFERENTIAL AMPLIFIER AND PVR

2007102-011 — GYRO CALIBRATION ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008109HEATSINK, GYRO CALIBRATION
212008107INSULATOR, TOP, PHOTOGRAPHIC MASTER, GYRO CALIBRATION
312008108INSULATOR, BOTTOM, PHOTOGRAPHIC MASTER, GYRO CALIBRATION
4471006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5471006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
611008025-1INSULATOR, BUSHING
761008025-2INSULATOR, BUSHING
8ARMIL-I-15126 TYPE MFT 2.5 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1411008540-11GASKET
1531008540-12GASKET
1612008093TERMINAL, THREADED
1771006750-27RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1871006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1911010923-40RELAY
2011010923-37RELAY
2111010262-10RELAY
2211010262-12RELAY
2311010377-229RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2411010357-1TRANSISTOR
2561010398-3TRANSISTOR
2681010385DIODE
2771006755-49CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2811010289-50CAPACITOR
2991006762-2TRANSFORMER, PULSE, SPECIFICATION CONTROL DRAWING
3011010353-7RELAY
31AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
32AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010020SCHEMATIC, GYRO CALIBRATION

2007103-011 — BINARY CURRENT SWITCH ASSEMBLY

Reference assemblies: 2007200-011 2007201-011

FINDQTYDRAWINGTITLENOTES
112008018HEATSINK, BINARY CURRENT SWITCH
212008000INSULATOR, TOP, PHOTOGRAPHIC MASTER, BINARY CURRENT SWITCH
312008001INSULATOR, BOTTOM, PHOTOGRAPHIC MASTER, BINARY CURRENT SWITCH
4201006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5201006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631008025-1INSULATOR, BUSHING
712008020-1BUSHING, INSULATOR
821008071-2WASHER, FLAT
921008024-1WASHER INSULATOR
10AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006338-000SEALING COMPOUND, SILICONE RUBBER, SPECIFICATION CONTROL DRAWING
12AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
13AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
14AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1611008540-12GASKET
1711008540-8GASKET
1812008093TERMINAL, THREADED
1921010618-3SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
2011010389-88RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2121010389-78RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2211010373-12RESISTOR, VARIABLE
2321006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2421006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2621006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821006750-78RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2911006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3021006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3321006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3521006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3671010385DIODE
3911010497DIODE
4121010394DIODE
4221006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4321006777-7CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4421010369-90RESISTOR
4511006777-15CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4621006755-73CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4721006755-57CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4821010388-39INDUCTOR
4911010342TRANSISTOR
5011010843-5TRANSISTOR
5111010652-2TRANSISTOR
5211010715-2TRANSISTOR
5311010376-3TRANSISTOR, NPN, SILICON, DUALSECTION, SPECIFICATION CONTROL DRAWING
5411010357-1TRANSISTOR
551MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
5621006750-41RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
57AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010017SCHEMATIC, BINARY CURRENT SWITCH

2007104-011 — ASSEMBLY, AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR

Reference assembly: 2007201-011

FINDQTYDRAWINGTITLENOTES
112008006FRAME, AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR
212008016WIRING BOARD (TOP), AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR
312008015WIRING BOARD (BOTTOM), AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR
4231006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5231006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-11SPACER, NYLON
761008161-3SCREW, CAP SLOTTED HD SPECIAL
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1341006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1411006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1511006750-17RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1611006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1711006750-31RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1831006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1911006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2021006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2111006750-40RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2221006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2311006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006750-45RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2531006750-46RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2621006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2721006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2921006750-50RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3021006750-55RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3161006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3231006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3321006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3461006750-66RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3561006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3611006750-70RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3711006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3821010369-90RESISTOR
3921010369-92RESISTOR
4021010369-96RESISTOR
4121010369-97RESISTOR
4211010369-152RESISTOR
4321010377-51RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
4411010377-107RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
4511010377-108RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
4621010377-109RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
4721006755-51CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4821006755-55CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4911006755-57CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5061006755-65CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5131006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5221006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5321006777-1CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5421006777-3CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5511006777-7CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5621006777-13CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5711006777-16CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5811006777-21CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5941006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6021006777-27CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6111006777-34CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6211006777-12CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6311010372-34DIODE
6451010384DIODE
6541010385DIODE
6611010357-1TRANSISTOR
6751010652-3TRANSISTOR
6811010675TRANSISTOR
6931010684-1TRANSISTOR
7011010335TRANSFORMER
7112008093TERMINAL, THREADED
7211008540-7GASKET
7311008540-15GASKET
74AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010018SCHEMATIC, AC DIFFERENTIAL AMPLIFIER AND INTERROGATOR

2007105-011 — C/M PIPA CALIBRATION ASSEMBLY

Reference assembly: 2007201-011

FINDQTYDRAWINGTITLENOTES
112008099HEATSINK, PIPA CALIBRATION, C/M
212008003INSULATOR, TOP, PHOTOGRAPHIC MASTER, PIPA CALIBRATION
4131006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5131006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
641010618-3SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
712008093TERMINAL, THREADED
8AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
9AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
13AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1411008540-13GASKET
1521010250-2RESISTOR
162SEE NOTE 15RESISTOR
1711010923-12RESISTOR
1811010283-18RESISTOR
191SEE NOTE 15RESISTOR
201SEE NOTE 15RESISTOR
211SEE NOTE 15RESISTOR
2321010373-8RESISTOR
2421010262-8RESISTOR
252SEE NOTE 15CAPACITOR
2621010289-37CAPACITOR
REFX2010016SCHEMATIC, PIPA CALIBRATION

2007106-011 — PULSE TORQUE POWER SUPPLY ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008375HEATSINK, PULSE TORQUE POWER SUPPLY In the original drawing, 2007106M (as well as in revisions H through L), configurations -011 and -021 are mistakenly swapped. That has been corrected here. The mistake is clear when a comparison is made to drawing 2007106G, the last revision prior to the introduction of configuration -021.
212008374INSULATOR, TOP, PHOTOGRAPHIC MASTER, PULSE TORQUE POWER SUPPLY
321008025-4INSULATOR, BUSHING
4351006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5351006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
611008540-6GASKET
711008540-14GASKET
811008540-15GASKET
9ARMIL-I-15126 TYPE MFT 2.5 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
1011010315-2TRANSFORMER
1111008071-5WASHER, FLAT
1211008024-4WASHER INSULATOR
1311008024-3WASHER INSULATOR
1412008020-2BUSHING, INSULATOR
151MS20341-416BNUT, PLAIN, HEXAGON, ELECTRICAL
1621010618-12SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
1711008025-1INSULATOR, BUSHING
1851008025-2INSULATOR, BUSHING
1911008025-3INSULATOR, BUSHING
20AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
21AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
22AR1006757-9WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
23AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
24AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
25AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
2612008093-000TERMINAL, THREADED
2711006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2911006750-65RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-51RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-74RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3321006750-18RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3441006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3521010377-110RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3621010377-314RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
3721006750-31RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3821006802-1RESISTOR
3911006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4011006750-45RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4111010604-37RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
4211010369-100RESISTOR
4311010369-94RESISTOR
4451006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4511010389-73RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
4611006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4731006750-50RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4851006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4911010369-99RESISTOR
5011006750-17RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5111006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5221006777-16CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5321010316-1CAPACITOR
5421006777-31CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5521006755-134CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5611010264-29CAPACITOR
5711006777-18CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
5821010769-001CAPACITOR
5931006755-122CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6011006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6111010438-103CAPACITOR
6241006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6331006755-118CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6411006755-133CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6511006755-53CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6611010372-15DIODE
67121010385DIODE
6811010830-5DIODE
6911010830-9DIODE
7011010831-1DIODE
7111010830-12DIODE
72171010497DIODE
7331010830-28DIODE
7411010829-26DIODE
7511010342TRANSISTOR
7681010652-1TRANSISTOR
7721010398-3TRANSISTOR
7821010806-001TRANSISTOR
7911010713-1TRANSISTOR
8011010273-1TRANSISTOR
8121010747-1TRANSISTOR
8211010760TRANSFORMER
REFX2010015SCHEMATIC, PULSE TORQUE POWER SUPPLY

2007107-011 — -28V DC POWER SUPPLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008159HEATSINK, POWER SUPPLY, -28VDC
412008093-000TERMINAL, THREADED
5121006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6121006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
711008540-12GASKET
881008024-1WASHER INSULATOR
941008071-2WASHER, FLAT
1042008020-1BUSHING, INSULATOR
114MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
1222008013-8TERMINAL - LUG - SOLDER - FLAT
1331008025-1INSULATOR, BUSHING
14AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
16AR1006757-23WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
17AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
19AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
2011006750-37RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2131006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2211006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2311006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2421006750-70RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2531010364-443RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2621010363-613RESISTOR
2721006750-19RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821010369-148RESISTOR
2911006750-66RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3021010410-6CAPACITOR
3121010410-20CAPACITOR
321SEE NOTE 21CAPACITOR
331SEE NOTE 21CAPACITOR
3421006777-30CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3511006789-002CAPACITOR
3631010393-045CAPACITOR
3711010372-22DIODE, ZENER
3841010385DIODE
3921010777-2DIODE
4111010652-4TRANSISTOR
4221010343-2TRANSISTOR
4311010843-2TRANSISTOR
4411006319TRANSFORMER
4511010315-2TRANSFORMER
4611010889TRANSFORMER
471MS35234-22SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NF-2A AND UNF-2A
481MS35650-44NUT, PLAIN, HEXAGON, MACHINE SCREW, UNF-2B
4911008070-5WASHER, FLAT
5011010966-1TRANSISTOR
51AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010003SCHEMATIC, POWER SUPPLY -28VDC

2007108-011 — 3200 CPS 1% AMPLIFIER

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008031HEATSINK, 3200 CPS 1% AMPLIFIER
4101006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5101006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
7AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
12ARMIL-I-15126 TYPE MFT 2.5 1/2 IN WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
1311008540-10GASKET
1412008093-000TERMINAL, THREADED
1521010618-14SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
1621008025-2INSULATOR, BUSHING
1722008020-1BUSHING, INSULATOR
1841008024-1WASHER INSULATOR
1921008071-2WASHER, FLAT
202MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
2111010829-2DIODE
2211010372-15DIODE
2311010364-251RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
241SEE NOTE 24RESISTOR
2511010364-543RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2621006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
291SEE NOTE 24RESISTOR
301SEE NOTE 24RESISTOR
3121010364-385RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3221006750-18RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3321006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411010264-5CAPACITOR
3521010264-29CAPACITOR
3611010431-000TRANSISTOR
3711008813-3TRANSISTOR MATCHED PAIR
3811010269-2TRANSISTOR MATCHED PAIR
3911010324TRANSFORMER
4011010887TRANSFORMER
41AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010006SCHEMATIC, 3200 CPS 1% AMPLIFIER

2007109-011 — 3200 CPS PHASE AND AMPLITUDE CONTROL

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008379HEATSINK, AAC, FILTER & MULTIVIBRATOR, 3200 CPS
212008378INSULATOR, TOP, PHOTOGRAPHIC MASTER, AAC FILTER AND MULTIVIBRATOR - 3200 CPS
312008377INSULATOR, BOTTOM
4171006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5171006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
661008025-1INSULATOR, BUSHING
712008093-000TERMINAL, THREADED
8AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
9AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
10AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11ARMIL-I-15126 TYPE MFT 2.5 1/2 IN WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
1211008540-9GASKET
1311008540-8GASKET
14AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
15AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
1611010363-373RESISTOR
171SEE NOTE 18RESISTOR
181SEE NOTE 18RESISTOR
1921010267-205RESISTOR
2011010364-465RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2121010364-693RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2221010369-95RESISTOR
2311010369-140RESISTOR
2411010369-88RESISTOR
2511006760-25RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
2611010389-58RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2711006750-42RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2911006750-40RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3051006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3121006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3621006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3721006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3811006750-19RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3921006750-37RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4021006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4111006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4211006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4321006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4411006755-130CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4511010264-17CAPACITOR
4611006755-61CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
471SEE NOTE 18CAPACITOR
481SEE NOTE 18CAPACITOR
4911010264-29CAPACITOR
501SEE NOTE 18CAPACITOR
511SEE NOTE 18CAPACITOR
5221006793-7CAPACITOR, FIXED, GLASS DIELECTRIC
5311010375-19CAPACITOR
5411010309-8INDUCTOR
5511010309-3INDUCTOR
56111010385DIODE
5711010346-1DIODE
5811010829-11DIODE
5911010372-20DIODE
6061010397-1TRANSISTOR
6111010431-000TRANSISTOR
6211010924TRANSFORMER
6321006319TRANSFORMER
REFX2010081SCHEMATIC, AAC, FILTER & MULTIVIBRATOR, 3200 CPS

2007110-011 — 800 CPS 1% AMPLIFIER (2007110)

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008144HEATSINK, 800 CPS 1% AMPLIFIER
212008143INSULATOR, BOTTOM, PHOTOGRAPHIC MASTER, 800 CPS 1% AMPLIFIER
312008142INSULATOR, TOP, PHOTOGRAPHIC MASTER, 800 CPS 1% AMPLIFIER
4141006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5141006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
611008540-6GASKET, CONNECTOR MINIATURE
711008540-8GASKET, CONNECTOR MINIATURE
821008021-2BUSHING, INSULATOR
92MS20341-416BNUT, PLAIN, HEXAGON, ELECTRICAL
1021008071-5WASHER, FLAT
1121008024-3WASHER INSULATOR
1221008024-4WASHER INSULATOR
1321010618-13SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
1412008093-000TERMINAL, THREADED
16AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
17ARMIL-I-15126 TYPE MFT 2.5 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
18AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1921008025-2INSULATOR, BUSHING
21AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
22AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
231SEE NOTE 26RESISTOR
2411010364-573RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2511006750-57RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2721010364-327RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2841006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
291SEE NOTE 26RESISTOR
301SEE NOTE 26RESISTOR
3121006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411010364-309RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3521010264-37CAPACITOR
3611010264-13CAPACITOR
3711010829-2DIODE
3811010372-15DIODE
3911008813-3TRANSISTOR
4011008922-2TRANSISTOR
4111010431-000TRANSISTOR
4211010886TRANSFORMER, POWER (800 CPS), SPECIFICATION CONTROL DRAWING
4311010324TRANSFORMER
4421008071-6WASHER, FLAT
45AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010008SCHEMATIC, 800 CPS 1% AMPLIFIER

2007111-011 — 800 CPS 5% AMPLIFIER

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008084HEATSINK, 800 CPS 5% AMPLIFIER
212008025INSULATOR, TOP, PHOTOGRAPHIC MASTER, 800CPS 5% AMPLIFIER
421010618-13SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
5161006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6161006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
72MS20341-4168NUT, PLAIN, HEXAGON, ELECTRICAL
821008071-5WASHER, FLAT
921008024-3WASHER INSULATOR
1021008024-4WASHER INSULATOR
1121008021-2BUSHING, INSULATOR
1221008025-2INSULATOR, BUSHING
13AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
14AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
16AR1006757-23WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
17AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1911008540-4GASKET
2011008540-12GASKET
2112008093-000TERMINAL, THREADED
2211010389-65RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2311010389-53RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
241SEE NOTE 24RESISTOR
2511010389-43RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
261SEE NOTE 24RESISTOR
271SEE NOTE 24RESISTOR
281SEE NOTE 24RESISTOR
2911010389-56RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
301SEE NOTE 24RESISTOR
311SEE NOTE 24RESISTOR
3211006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3321006750-20RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511010264-35CAPACITOR
3611010264-13CAPACITOR
3721010264-37CAPACITOR
3821010385DIODE
3911010398-4TRANSISTOR
4011008922-2TRANSISTOR (MATCHED PAIR)
4111010407TRANSFORMER
4211010886TRANSFORMER, POWER (800 CPS), SPECIFICATION CONTROL DRAWING
4321008071-9WASHER, FLAT
44AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010007SCHEMATIC, 800 CPS 5% AMPLIFIER

2007112-011 — 800 CPS AAC FILTER

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008191FRAME, AAC FILTER & MULTIVIBRATOR, 800 CPS
212008183WIRING BOARD, TOP
312008185WIRING BOARD, BOTTOM, AAC FILTER & MVB, 800 CPS
4151006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5151006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-019SPACER, NYLON
761008161-3SCREW, CAP, SLOTTED HEAD, SPECIAL
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1321006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1421006750-37RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1511006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1611006750-40RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1721006750-42RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1811006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1921006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2011006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2111006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2251006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2321006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2421006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2511006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006760-35RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
2711010363-373RESISTOR
281SEE NOTE 9RESISTOR
2921010604-38RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
3011010364-465RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
311SEE NOTE 9RESISTOR
3221010364-693RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3311010369-88RESISTOR
3421010369-95RESISTOR
3511010369-140RESISTOR
3611006760-25RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
3711006755-61CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3811006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3911006755-81CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4011006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
412SEE NOTE 9CAPACITOR
4221010264-7CAPACITOR
431SEE NOTE 9CAPACITOR
4411010264-35CAPACITOR
4511010375-18CAPACITOR
4611010375-19CAPACITOR
4711010346-1DIODE
48111010385DIODE
4911010829-11DIODE
5061010397-1TRANSISTOR
5111010431-000TRANSISTOR
5221006319TRANSFORMER
5311010277-004REACTOR FILTER
5411010427REACTOR
5512008093-000TERMINAL, THREADED
5611008540-15GASKET
57ARMIL-I-15126 TAPE MFT 2.5 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
58AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010009SCHEMATIC, AAC, FILTER & MULTIVIBRATOR, 800 CPS

2007113-011 — G AND N SUBSYSTEM SUPPLY FILTER

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008288HEATSINK, G & N SUBSYSTEM SUPPLY FILTER
211008860-1CAPACITOR
321010636-1DIODE
411010364-443RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
512008093-001TERMINAL, THREADED
6361006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
7361006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
831008142BUS BAR, DOUBLE LUG
911008143BUS BAR, DOUBLE LUG
10AR1006776-18INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
14AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1641008540-7GASKET, CONNECTOR, MINIATURE
1711008540-8GASKET, CONNECTOR, MINIATURE
1822008020-2BUSHING, INSULATOR
1961008024-4WASHER INSULATOR
2021008071-5WASHER, FLAT
2122008013-6TERMINAL - LUG - SOLDER - FLAT
222MS20341-416BNUT, PLAIN, HEXAGON, ELECTRICAL
23ARQQ-W-343 TYPE SWIRE, ELECTRICAL, COPPER (UNINSULATED)
24AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010078SCHEMATIC, G & N SUBSYSTEM SUPPLY FILTER

2007114-011 — GIMBAL SERVO AMPLIFIER

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008315HEATSINK, GIMBAL SERVO AMPLIFIER
212008285INSULATOR, TOP, PHOTOGRAPHIC MASTER, GIMBAL SERVO AMPLIFIER
312008286INSULATOR, BOTTOM, PHOTOGRAPHIC MASTER, GIMBAL SERVO AMPLIFIER
4231006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5231006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
8AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
9AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1122008020-1BUSHING, INSULATOR
1222008020-2BUSHING, INSULATOR
1341008024-1WASHER INSULATOR
1421008024-3WASHER INSULATOR
1521008024-4WASHER INSULATOR
1621008071-2WASHER, FLAT
1721008071-5WASHER, FLAT
182MS20341-416BNUT, PLAIN, HEXAGON, ELECTRICAL
192MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
2012008093-000TERMINAL, THREADED
2111008540-12GASKET
2211008540-11GASKET
231SEE NOTE 13RESISTOR
2411006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2511006750-40RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-51RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-53RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2911006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3021006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-68RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3421006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511006750-77RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3611006760-35RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
3711006802-1RESISTOR
3811006802-3RESISTOR
3911006802-4RESISTOR
4021010278-39RESISTOR
4141010364-501RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4311010369-98RESISTOR
4411010369-112RESISTOR
4511010389-47RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
4611010389-94RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
4711010399-31RESISTOR
481SEE NOTE 13CAPACITOR
4911010264-7CAPACITOR
5021010264-9CAPACITOR
5111010264-13CAPACITOR
5211010264-17CAPACITOR
5311010279-106CAPACITOR
5411010279-108CAPACITOR
5531010279-119CAPACITOR
5621010279-252CAPACITOR
5711010277-8REACTOR
5811010277-9REACTOR
5921010372-13DIODE
6011010385DIODE
6181010392-1DIODE
6211008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
6311010252-1TRANSISTOR
6411010843-4TRANSISTOR
6511010270TRANSISTOR
6611010271TRANSISTOR
6711008922-1TRANSISTOR
6811010437TRANSISTOR
6911008812-1TRANSISTOR
7011010324TRANSFORMER
7111010710TRANSFORMER
7211010353-7RELAY
7311008025-2INSULATOR, BUSHING
7411008025-5INSULATOR, BUSHING
7511006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7611006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7811006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7911008815-1SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
REFX2010004SCHEMATIC, GIMBAL SERVO AMPLIFIER

2007117-011 — IMU AUXILIARY ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008194FRAME, IMU AUXILIARY
212008272WIRING BOARD TOP
312008274WIRING BOARD BOTTOM
431006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
521006750-128RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
621006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
731006750-75RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
811006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
931006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1021006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1111006750-53RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1231006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1311006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1411006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1521006760-39RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
161SEE NOTE 21RESISTOR
1731006755-180CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
1841006755-89CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
1921006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
20141010385DIODE
2111010372-11DIODE
2211008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2311008815-17SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2411010353-7RELAY
2521010397-1TRANSISTOR
2631008814-1TRANSISTOR
2711010357-1TRANSISTOR
28AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
29261006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
30261006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
3121008540-13GASKET, CONNECTOR
3231015135-015SPACER, NYLON
3361008161-1SCREW, CAP, SLOTTED HEAD
3412008093-000TERMINAL, THREADED
35AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
36AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
37AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
38AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3911006750-132RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
REFX2010082SCHEMATIC, IMU AUXILIARY

2007118-011 — MOTOR DRIVE AMPLIFIER ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008175FRAME, MOTOR DRIVE AMPLIFIER
2311006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
3311006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
412008262WIRING BOARD, TOP, MOTOR DRIVE AMPLIFIER
512008264WIRING BOARD, BOTTOM, MOTOR DRIVE AMPLIFIER
611008540-15GASKET, CONNECTOR
721008540-8GASKET, CONNECTOR
831015135-019SPACER, NYLON
961008161-3SCREW, CAP, SLOTTED HEAD
1022008020-1BUSHING, INSULATOR
1141008024-1WASHER INSULATOR
1241008071-2WASHER, FLAT
132MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
1412008093-000TERMINAL, THREADED
1512008265SHIELD, MOTOR DRIVE AMPLIFIER Expanded in more detail: 2008265.
16AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
18AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
19AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
21ARMIL-I-15126 TYPE MFT 2.5 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
22AR1010807-17WIRE, POLYETHYLENETEREPHTHALATE INSULATION, SOLID, COPPER ALLOY, SILVER PLATE, SPECIFICATION CONTROL DRAWING
2311010752TRANSFORMER
2421010753TRANSFORMER
2511010759TRANSFORMER
2611006750-10RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-19RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2931006750-30RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3031006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3231006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-42RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3611006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3741006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3811006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3911006750-53RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4021006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4111006750-55RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4211006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4331006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4421006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4511006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4611006750-78RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4721006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4811006750-83RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4911006788-22RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
5011010364-157RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5111010364-675RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5211010364-527RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5311010364-619RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5411010364-635RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5511010364-667RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5611010364-669RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5711010364-345RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5831010364-677RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5911010364-711RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6041010364-693RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6111010364-707RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6211010364-709RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6311010364-727RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6411010364-765RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6511006750-70RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
6611010369-138RESISTOR
6711010604-16RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
6811006755-2CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6921006755-10CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7021006755-13CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7111006755-15CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7241006755-21CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7351006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7431006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
7511010264-1CAPACITOR
7621010264-13CAPACITOR
7711010264-18CAPACITOR
7811010264-21CAPACITOR
7911010264-37CAPACITOR
8011010279-110CAPACITOR
8111010279-216CAPACITOR
8211010279-219CAPACITOR
8321010359-5CAPACITOR
8411010829-10DIODE
8521010372-11DIODE
8641010392-1DIODE
8711008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
8811008815-11SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
8911010269-2TRANSISTOR (MATCHED PAIR)
9011010342TRANSISTOR
9121010357-1TRANSISTOR
9261010397-1TRANSISTOR
9341010367CHOPPER
9411010277-6INDUCTOR
9511006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
9611010374-5RESISTOR
9711010372-1DIODE
9811006755-55CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
99AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010021SCHEMATIC, MOTOR DRIVE AMPLIFIER

2007120-011 — OPTICS LOAD COMPENSATION ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008235FRAME, OPTICS LOAD COMPENSATION
212008253WIRING BOARD, TOP
312008260WIRING BOARD, BOTTOM, OPTICS LOAD COMPENSATION
471006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
571006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
611008540-3GASKET – CONNECTOR, MINIATURE
711008540-4GASKET – CONNECTOR, MINIATURE
812008093-000TERMINAL, THREADED
921015135-021SPACER, NYLON
1021010485-42SCREW - NYLON FILLISTER HEAD, COARSE THREAD, SPECIFICATION CONTROL DRAWING
1121008161-2SCREW, CAP SLOTTED HEAD, SPECIAL
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
13AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
14AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1521010264-38CAPACITOR
1611010264-40CAPACITOR
1711010264-41CAPACITOR
REFX2010001SCHEMATIC, OPTICS LOAD COMPENSATION

2007121-011 — TWO SPEED SWITCH ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008174FRAME, TWO SPEED SWITCH
212008177WIRING BOARD (TOP), TWO SPEED SWITCH
312008179WIRING BOARD (BOTTOM), TWO SPEED SWITCH
4301006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5301006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-015SPACER, NYLON
761008161-2SCREW, CAP SLOTTED HD, SPECIAL
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312008093-000TERMINAL, THREADED
1431008540-10GASKET
1511010264-20CAPACITOR
1611010264-28CAPACITOR
1711010264-19CAPACITOR
1811010264-22CAPACITOR
1911010837-3DIODE
20161010392-1DIODE
2141010372-21DIODE
2221010353-7RELAY
2361010363-501RESISTOR
2441010759TRANSFORMER
25AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010023SCHEMATIC, TWO SPEED SWITCH

2007122-011 — COSECANT GENERATOR ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008277FRAME, COSECANT GENERATOR
212008290WIRING BOARD, TOP
312008292WIRING BOARD, BOTTOM, COSECANT GENERATOR MODULE
4181006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5181006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-019SPACER, NYLON
761008161-2SCREW, CAP SLOTTED HD, SPECIAL
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312008093-000TERMINAL, THREADED
1411008540-13GASKET
1511008540-5GASKET
1621010264-22CAPACITOR
1711010264-14CAPACITOR
1811010375-44CAPACITOR
1911010359-15CAPACITOR
2011010375-50CAPACITOR
2111006755-20CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2231006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2311010375-47CAPACITOR
2511010359-11CAPACITOR
2611006755-65CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2711010375-56CAPACITOR
2811006755-77CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2911006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3111006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211006750-75RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311010364-495RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3431006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3521006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3611010364-219RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3711006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3811006750-69RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3911010364-757RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4011006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4111006750-19RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4211006750-34RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4311006750-70RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4411006750-64RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4511010364-749RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4611010364-173RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4711006750-18RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4811006750-12RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4931010397-1TRANSISTOR
5011010269-1TRANSISTOR
5111010910TRANSFORMER
5212008020-1BUSHING, INSULATOR
5321008024-1WASHER INSULATOR
5421008071-2WASHER, FLAT
551MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
56AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
5711010264-17CAPACITOR
REFX2010068SCHEMATIC, COSECANT GENERATOR

2007123-011 — RELAY MODULE ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008196FRAME, RELAY ASSY
212008204WIRING BOARD TOP
312008198WIRING BOARD, BOTTOM, RELAY ASSY
4511006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5511006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-015SPACER, NYLON
761010485-42SCREW - NYLON FILLISTER HEAD, COARSE THREAD, SPECIFICATION CONTROL DRAWING
10AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1321008540-5GASKET, CONNECTOR, MINIATURE
1431008540-10GASKET, CONNECTOR, MINIATURE
1511008540-11GASKET, CONNECTOR, MINIATURE
1612008093-001TERMINAL, THREADED
1761010837-3DIODE
1861010353-7RELAY
19121010392-1DIODE
20AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010025SCHEMATIC, RELAY ASSY

2007124-011 — ANTI-CREEP ELECTRONICS ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008191FRAME, AAC FILTER & MULTIVIBRATOR, 800 CPS
212008368WIRING BOARD, TOP, ANTI CREEP
312008366WIRING BOARD, BOTTOM, ANTI CREEP
4141006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5141006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-18SPACER, NYLON
761008161-3SCREW, CAP SLOTTED HD SPECIAL
812008093-000TERMINAL, THREADED
921008540-7GASKET, CONNECTOR MINIATURE
10AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
12AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
13AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1521006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1621006750-46RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1721006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1861006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2021006750-64RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2141006750-68RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2221006750-75RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2321006750-74RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2441006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2521006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2621006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2721010969-126RESISTOR
2841010369-89RESISTOR
2941010369-93RESISTOR
3021010389-56RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
3221006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3321006755-75CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3421010279-13CAPACITOR
3541010279-124CAPACITOR
36121010385DIODE
3721010830-7DIODE
3861010342TRANSISTOR
3921010357-1TRANSISTOR
4021010652-1TRANSISTOR
4111008256PIN, POLARIZING
42AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010014SCHEMATIC, ANTI-CREEP

2007126-011 — OPTICS AUTOMATIC OPERATE RELAY ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008195FRAME, OPTICS, AUTOMATIC OPERATE RELAY
212008268WIRING BOARD TOP
312008270WIRING BOARD, BOTTOM, OPTICS AUTOMATIC OPERATE RELAY
4351006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5351006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
612008093-000TERMINAL, THREADED
711008540-8GASKET
831008540-9GASKET
921015135-015SPACER, NYLON
1021008161-2SCREW, CAP SLOTTED HEAD
1121008161-3SCREW, CAP SLOTTED HEAD
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
14AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
15AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1741006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1841006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1941010837-3DIODE
2041006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2141010345-1TRANSISTOR
2241010353-7RELAY
23AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010026SCHEMATIC, OPTICS AUTOMATIC OPERATE RELAY

2007128-011 — SCT MODING ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008193FRAME, SCT MODING
212008188WIRING BOARD, TOP
312008190WIRING BOARD, BOTTOM, SCT MODING
4241006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5241006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
631015135-015SPACER, NYLON
761008161-2SCREW, CAP SLOTTED HD, SPECIAL
8AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
9AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312008093-000TERMINAL, THREADED
1411008540-11GASKET
1511008540-13GASKET
1611010605TRANSFORMER
1731010353-7RELAY
1831010837-3DIODE
1921010392-1DIODE
REFX2010027SCHEMATIC, SCT MODING

2007132-011 — IMU LOAD COMPENSATION MODULE ASSY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008205FRAME, IMU LOAD COMPENSATION MODULE
212008296WIRING BOARD TOP
312008294WIRING BOARD BOTTOM
4101006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5101006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
641015135-24SPACER, NYLON
741010485-42SCREW - NYLON FILLISTER HEAD, COARSE THREAD, SPECIFICATION CONTROL DRAWING
841008161-1SCREW – CAP SLOTTED HEAD
9AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1211008540-10GASKET, CONNECTOR, MINIATURE
1312008093-000TERMINAL, THREADED
1411010264-34CAPACITOR
1511010264-35CAPACITOR
1641010264-122CAPACITOR
REFX2010076SCHEMATIC, IMU LOAD COMPENSATION MODULE

2007139-041 — LOGIC MODULE ASSY, ERROR ANGLE COUNTER, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007067-011HEADER HOUSING ASSY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007067-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
13AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
2012007076-031QUADRANT 3 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007076-031.
2112007079-031QUADRANT 4 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007079-031.
2212007070-041QUADRANT 1 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007070-041.
2312007073-041QUADRANT 2 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007073-041.
REFX2010093LOGIC FLOW DIAGRAM, ERROR ANGLE COUNTER AND LOGIC MODULE

2007139-051 — LOGIC MODULE ASSY, ERROR ANGLE COUNTER, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007067-011HEADER HOUSING ASSY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007067-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
13AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
2412007070-051QUADRANT 1 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007070-051.
2512007073-051QUADRANT 2 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007073-051.
2612007076-041QUADRANT 3 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007076-041.
2712007079-041QUADRANT 4 ASSEMBLY, ERROR ANGLE COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007079-041.
REFX2010093LOGIC FLOW DIAGRAM, ERROR ANGLE COUNTER AND LOGIC MODULE

2007140-031 — LOGIC MODULE ASSY, READ COUNTER, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007069-011HEADER HOUSING ASSY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007069-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
13AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1812007072-031QUADRANT 1 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007072-031.
1912007075-031QUADRANT 2 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007075-031.
2012007078-031QUADRANT 3 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007078-031.
2112007081-031QUADRANT 4 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007081-031.
REFX2010094LOGIC FLOW DIAGRAM, READ COUNTER MODULE See also: CAD transcription of drawing 2010094- (design files or image files).

2007140-041 — LOGIC MODULE ASSY, READ COUNTER, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007069-011HEADER HOUSING ASSY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007069-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
92MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
13AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
2212007072-041QUADRANT 1 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007072-041.
2312007075-041QUADRANT 2 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007075-041.
2412007078-041QUADRANT 3 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007078-041.
2512007081-041QUADRANT 4 ASSEMBLY, READ COUNTER, CDU LOGIC MODULE Expanded in more detail: 2007081-041.
REFX2010094LOGIC FLOW DIAGRAM, READ COUNTER MODULE See also: CAD transcription of drawing 2010094- (design files or image files).

2007141-031 — LOGIC MODULE ASSY, DIGITAL MODE, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007068-011HEADER HOUSING ASSY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007068-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
9AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
132MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1812007071-031QUADRANT 1 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007071-031.
1912007074-031QUADRANT 2 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007074-031.
2012007077-031QUADRANT 3 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007077-031.
2112007080-031QUADRANT 4 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007080-031.
REFX2010095LOGIC FLOW DIAGRAM, DIGITAL MODE MODULE

2007141-041 — LOGIC MODULE ASSY, DIGITAL MODE, CDU LOGIC MODULE

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007068-011HEADER HOUSING ASSY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007068-011.
6AR1006757-26WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
822004034SEPARATOR, QUADRANT
9AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1021004579-1SCREW, JACKING
1121004546-1WASHER, FLAT
1221004546-3WASHER, FLAT
132MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
2212007071-041QUADRANT 1 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007071-041.
2312007074-041QUADRANT 2 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007074-041.
2412007077-041QUADRANT 3 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007077-041.
2512007080-041QUADRANT 4 ASSEMBLY, DIGITAL MODE, CDU LOGIC MODULE Expanded in more detail: 2007080-041.
REFX2010095LOGIC FLOW DIAGRAM, DIGITAL MODE MODULE

2007142-011 — POWER SUPPLY ASSEMBLY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112008297HEADER HOUSING, CDU POWER SUPPLY
212008279INSULATOR (TOP) PHOTOGRAPHIC MASTER, CDU POWER SUPPLY
312008278INSULATOR (BOT) PHOTOGRAPHIC MASTER, CDU POWER SUPPLY
5661006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6661006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
7ARMIL-I-15126 MFT 2.5 LG 1/2 IN. WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
831008025-1INSULATOR, BUSHING
911008025-2INSULATOR, BUSHING
10AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312008284WIRING BOARD (TOP)
14AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
16AR1006757-21WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1741004579-1SCREW, JACKING
184MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1941004546-1WASHER, FLAT
2041004546-3WASHER, FLAT
21141008071-2WASHER, FLAT
22141008024-1WASHER INSULATOR
2372008020-1BUSHING, INSULATOR
247MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
2542008013-8TERMINAL - LUG - SOLDER - FLAT
2612008093-002TERMINAL, THREADED
2711006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2921006750-19RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211006750-37RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3641006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3721006750-70RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3811006750-28RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3921010363-613RESISTOR
401SEE NOTE 14RESISTOR
411SEE NOTE 14RESISTOR
4211010364-367RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4331010364-443RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4421010369-148RESISTOR
4531006755-21CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4611006755-26CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4711006755-31CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4821006777-30CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4911006789-002CAPACITOR
5011010393-045CAPACITOR
512SEE NOTE 14CAPACITOR
5221010410-6CAPACITOR
5321010410-10CAPACITOR
5421010410-20CAPACITOR
5511010259-002DIODE
5611010372-22DIODE
5721010777-2DIODE
5841010385DIODE
5921010777-1DIODE
6011010843-4TRANSFORMER
6121010343-2TRANSFORMER
6211008813-1TRANSFORMER
6321010652-4TRANSFORMER
6411010843-2TRANSFORMER
6511010966-1TRANSFORMER
6611010315-2TRANSFORMER
6711010927TRANSFORMER
6811006319TRANSFORMER
6911010926INDUCTOR
7021010618-17SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
7111010604-22RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
7211008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
73AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
74AR1010848-4WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010062SCHEMATIC, POWER SUPPLY, CDU ELECTRONICS See also: CAD transcription of drawing 2010062F (design files or image files).

2007161-011 — RETICLE LIGHT DIMMER ASSEMBLY

Reference assembly: 2007200-011

FINDQTYDRAWINGTITLENOTES
112008318HEATSINK, RETICLE LIGHT DIMMER
281006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
381006782-2CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
4AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006776-19INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
6AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
7AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
812008093-000TERMINAL, THREADED
911008540-8GASKET, CONNECTOR MINAT
1041008024-1WASHER INSULATOR
1111008024-3WASHER INSULATOR
1211008024-4WASHER INSULATOR
1322008020-1BUSHING, INSULATOR
1412008020-2BUSHING, INSULATOR
1521008071-2WASHER, FLAT
1641010477-12SCREW, FLAT HEAD, 100°
1711008071-5WASHER, FLAT
1822008013-8TERMINAL - LUG - SOLDER - FLAT
191MS20341-416BNUT, PLAIN, HEXAGON, ELECTRICAL
202MS20341-10BNUT, PLAIN, HEXAGON, ELECTRICAL
2121010777-1RECTIFIER
2211010273-1TRANSISTOR
2311010914-1TRANSFORMER
REFX2010074SCHEMATIC, RETICLE LIGHT DIMMER

2007213-011 — VALVE PRESSURE ASSEMBLY

Reference assemblies: 2007090-031 2007200-011 2007201-011

FINDQTYDRAWINGTITLENOTES
112008383BODY
212008384PLUG
312008385GUIDE, SPRING
41MS24585-C38SPRINGS, HELICAL, COMPRESSION: FOR LOADS BELOW 20 POUNDS
51MS134354BALL - CORROSION RESISTANT STEEL, PRECISION GRADE
61MS16625-4025RING, RETAINING, INTERNAL, BASIC (TAPERED SECTION TYPE)
711000159-4PACKING, PREFORMED, "O" RING

2007236-011 — COARSE SYSTEM ASSY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007209-011HEADER HOUSING ASSY, COARSE SYSTEM, CDU ELECTRONICS Expanded in more detail: 2007209-011.
221004579-1SCREW, JACKING
321004546-1WASHER, FLAT
421004546-3WASHER, FLAT
52MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
712008322WIRING BOARD B, COARSE SYSTEM ELECTRONICS, CDU
912008326WIRING BOARD D, COARSE SYSTEM ELECTRONICS, CDU
10201008025-1INSULATOR, BUSHING
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1421006750-2RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1561006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16121006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1711006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
18121006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1931006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
20171006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2131006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
22121006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2321006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006750-51RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2511006750-66RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-74RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-75RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2931006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111010604-39RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
3241010733-8RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3351010733-10RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3411010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3511010733-17RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3611010733-101RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3711010733-102RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3811010733-103RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
3911010733-104RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4021010733-117RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4121006755-14CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4221006755-31CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4331006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4421006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
45121006755-73CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4611006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4731008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
4811010372-13DIODE
49141010385DIODE
5041010966-1TRANSISTOR
5121010342TRANSISTOR
52241010343-3TRANSISTOR
5321010652-1TRANSISTOR
5421010274TRANSFORMER
5531010725TRANSFORMER
5612007144-011OPERATIONAL AMPLIFIER, ELECTRONIC CDU Expanded in more detail: 2007144-011.
5711010604-47RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
5811008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
5911006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
60AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
6112008093-003TERMINAL, THREADED
62121008161-4SCREW, CAP, SLOTTED HEAD
63242008319INSULATOR WASHER
64AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
6512010671WIRING BOARD A
6612010673WIRING BOARD C
6712010675WIRING BOARD E
6812010677WIRING BOARD F
REFX2010030SCHEMATIC, COARSE SYSTEM ELECTRONICS, CDU

2007237-011 — ASSEMBLY, D/A CONVERTER, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007212-011HEADER HOUSING ASSY, D/A CONVERTER Expanded in more detail: 2007212-011.
212010715WIRING BOARD A, D/A CONVERTER MODULE
312008349WIRING BOARD B
412008351WIRING BOARD C
512008353WIRING BOARD D, D/A CONVERTER
612008355WIRING BOARD E, D/A CONVERTER
731008025-5INSULATOR, BUSHING
8261008025-1INSULATOR, BUSHING
9AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1321004579-1SCREW, JACKING
1421004546-1WASHER, FLAT
1521004546-3WASHER, FLAT
162MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1712008093-003TERMINAL, THREADED
18232008319INSULATOR WASHER
1981008161-4SCREW, CAP SLOTTED HEAD
2021006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2141006750-5RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2211010604-45RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
2341006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006760-34RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
25121006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
29101006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-20RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3331006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
35101006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3691006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3721006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
381SEE NOTE 16RESISTOR
3911006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4011006750-77RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
41101010733-13RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4251006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4311006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4411010604-38RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
4511006750-35RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4611010369-92RESISTOR
4721010369-139RESISTOR
4881010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4911010357-1TRANSISTOR
5021010652-1TRANSISTOR
5121010966-1TRANSISTOR
5211010397-1TRANSISTOR
5391008814-1TRANSISTOR
5411008812-1TRANSISTOR
5521010342TRANSISTOR
56231010343-3TRANSISTOR
5731006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5811006755-130CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5921006777-31CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6011010279-119CAPACITOR
6121006755-181CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6211006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6321006755-36CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6411006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6521006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6611010279-117CAPACITOR
6741006762-2TRANSFORMER, PULSE, SPECIFICATION CONTROL DRAWING
6811010274TRANSFORMER
6911010365TRANSFORMER
7011010723TRANSFORMER
7111010726TRANSFORMER
7281010385DIODE
7311010372-6DIODE
7411008815-5SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
7511008811INDUCTOR
7611008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
77AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
7812010717WIRING BOARD F
7911006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
80AR1006776-021INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
REFX2010028SCHEMATIC, D/A CONVERTER

2007237-021 — ASSEMBLY, D/A CONVERTER, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007212-011HEADER HOUSING ASSY, D/A CONVERTER Expanded in more detail: 2007212-011.
212010715WIRING BOARD A, D/A CONVERTER MODULE
312008349WIRING BOARD B
412008351WIRING BOARD C
612008355WIRING BOARD E, D/A CONVERTER
731008025-5INSULATOR, BUSHING
8261008025-1INSULATOR, BUSHING
9AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
11AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1321004579-1SCREW, JACKING
1421004546-1WASHER, FLAT
1521004546-3WASHER, FLAT
162MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1712008093-003TERMINAL, THREADED
18232008319INSULATOR WASHER
1981008161-4SCREW, CAP SLOTTED HEAD
2021006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2141006750-5RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2211010604-45RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
2341006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006760-34RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
25121006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2611006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2711006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2811006750-48RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
29101006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-20RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3221006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3331006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
35101006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3691006750-67RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3721006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
381SEE NOTE 16RESISTOR
3911006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4011006750-77RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
41101010733-13RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4251006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4311006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4411010604-38RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
4511006750-35RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4611010369-92RESISTOR
4721010369-139RESISTOR
4881010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
4911010357-1TRANSISTOR
5021010652-1TRANSISTOR
5121010966-1TRANSISTOR
5211010397-1TRANSISTOR
5391008814-1TRANSISTOR
5411008812-1TRANSISTOR
5521010342TRANSISTOR
56231010343-3TRANSISTOR
5731006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5811006755-130CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5921006777-31CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
6011010279-119CAPACITOR
6121006755-181CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6211006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6321006755-36CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6411006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6521006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
6611010279-117CAPACITOR
6741006762-2TRANSFORMER, PULSE, SPECIFICATION CONTROL DRAWING
6911010365TRANSFORMER
7011010723TRANSFORMER
7111010726TRANSFORMER
7281010385DIODE
7311010372-6DIODE
7411008815-5SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
7511008811INDUCTOR
7611008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
77AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
7911006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
80AR1006776-021INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
8111010324TRANSFORMER
8212021264WIRING BOARD D
8312010798WIRING BOARD F
REFX2010794SCHEMATIC

2007238-011 — MSA&QUADRATURE REJECTION ASSY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007206-011HEADER HOUSING ASSY, MSA & QUADRATURE REJECTION, CDU ELECTRONICS Expanded in more detail: 2007206-011.
4231008025-1INSULATOR, BUSHING
6AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
821004579-1SCREW, JACKING
921004546-1WASHER, FLAT
1021004546-3WASHER, FLAT
112MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1211010724-001TRANSFORMER
1321010274TRANSFORMER
1422007144OPERATIONAL AMPLIFIER, ELECTRONIC CDU Expanded in more detail: 2007144.
15161010343-3TRANSISTOR
1651010342TRANSISTOR
1751010397-1TRANSISTOR
1821010652-1TRANSISTOR
1941010966-1TRANSISTOR
2021010367-001TRANSISTOR
21121010385DIODE
22101008161-4SCREW, CAP SLOTTED
2311010372-13DIODE ZENER
2411008815-12SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2511008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2611008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2761006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
28151006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2911006755-63CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3011008900-013CAPACITOR
3151006755-73CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3211010317-4CAPACITOR
331SEE NOTE 14CAPACITOR
3421006755-81CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3531006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3611006777-16CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3711006777-39CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3821006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3921006755-36CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4011006777-28CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4121006755-10CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4211006777-26CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4311006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4431006755-14CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4581006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4681006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4781006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4891006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4911010377-304RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5011010377-305RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5121010733-6RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5231010733-7RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5311010733-9RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5411010377-303RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5511010377-302RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5611010733-18RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5711010733-5RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5811010733-4RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5911010733-3RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6011010733-2RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6111010733-1RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6221010377-313RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6321010377-311RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6421010377-310RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6521010377-308RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6621010377-347RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6721010369-90RESISTOR
6821010377-312RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6961010733-11RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7031006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7121010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7291006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7311010733-119RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7471006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7531006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7611006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7711010604-45RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
7811010604-39RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
7971006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8011006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8121006750-2RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8211006750-59RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8311006750-65RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8431010369-105RESISTOR
8531006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8611010369-92RESISTOR
8711006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8841006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING

2007238-021 — MSA&QUADRATURE REJECTION ASSY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007206-011HEADER HOUSING ASSY, MSA & QUADRATURE REJECTION, CDU ELECTRONICS Expanded in more detail: 2007206-011.
4231008025-1INSULATOR, BUSHING
6AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
821004579-1SCREW, JACKING
921004546-1WASHER, FLAT
1021004546-3WASHER, FLAT
112MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
1211010724-001TRANSFORMER
1422007144OPERATIONAL AMPLIFIER, ELECTRONIC CDU Expanded in more detail: 2007144.
15161010343-3TRANSISTOR
1651010342TRANSISTOR
1751010397-1TRANSISTOR
1821010652-1TRANSISTOR
1941010966-1TRANSISTOR
2021010367-001TRANSISTOR
21121010385DIODE
22101008161-4SCREW, CAP SLOTTED
2311010372-13DIODE ZENER
2411008815-12SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2511008815-7SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2611008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
2761006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
28151006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2911006755-63CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3011008900-013CAPACITOR
3151006755-73CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3211010317-4CAPACITOR
331SEE NOTE 14CAPACITOR
3421006755-81CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3531006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3611006777-16CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3711006777-39CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3821006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3921006755-36CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4011006777-28CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4121006755-10CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4211006777-26CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4311006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4431006755-14CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4581006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4681006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4781006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4891006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4911010377-304RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5011010377-305RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5121010733-6RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5231010733-7RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5311010733-9RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5411010377-303RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5511010377-302RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
5611010733-18RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5711010733-5RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5811010733-4RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
5911010733-3RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6011010733-2RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6111010733-1RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
6221010377-313RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6321010377-311RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6421010377-310RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6521010377-308RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6621010377-347RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6721010369-90RESISTOR
6821010377-312RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
6961010733-11RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7031006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7121010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7291006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7311010733-119RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
7471006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7531006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7611006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
7711010604-45RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
7811010604-39RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
7971006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8011006750-76RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8121006750-2RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8211006750-59RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8311006750-65RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8431010369-105RESISTOR
8531006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8611010369-92RESISTOR
8711006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
8841006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING

2007243-011 — QUADRANT SELECTOR ASSEMBLY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007207-011HEADER HOUSING ASSY, QUADRANT SELECTOR, CDU ELECTRONICS Expanded in more detail: 2007207-011.
221004579-1SCREW, JACKING
321004546-1WASHER, FLAT
421004546-3WASHER, FLAT
52MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
612008306WIRING BOARD A, QUADRANT SELECTOR MODULE
712008308WIRING BOARD (B)
812008310WIRING BOARD C, QUADRANT SELECTOR MODULE
912008312WIRING BOARD (D)
10181008025-1INSULATOR, BUSHING
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1421006750-3RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
15181006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
16181006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
17181006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
18181006750-60RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1921010377-346RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2021010377-306RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
21161010377-307RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2221010377-308RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2341010377-309RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2421010377-310RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2521010377-311RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2621010377-313RESISTORS, FIXED, WW, PRECISION, SPECIFICATION CONTROL DRAWING
2721010733-12RESISTOR, FIXED, FILM, SPECIFICATION CONTROL DRAWING
2861006755-14CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
29181006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
30181010385DIODE
31361010343-3TRANSISTOR
3262007144OPERATIONAL AMPLIFIER, ELECTRONIC CDU Expanded in more detail: 2007144.
33AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3412008093-001TERMINAL, THREADED
35101008161-4SCREW, CAP SLOTTED HEAD
36362008319INSULATOR, WASHER
37AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
REFX2010059SCHEMATIC, QUADRANT SELECTOR

2007254-011 — MODE ASSY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007211-011HEADER HOUSING ASSY, MODE MODULE Expanded in more detail: 2007211-011.
221004579-1SCREW, JACKING
321004546-1WASHER, FLAT
421004546-3WASHER, FLAT
52MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
8361008025-1INSULATOR, BUSHING
10AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
11AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1312008093-003TERMINAL, THREADED
14241006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
15161006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1681006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
17161006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1821006750-46RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
19101008161-4SCREW CAP SLOTTED HEAD
20132008319INSULATOR, WASHER
2141010353-7RELAY
2211006750-20RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2371006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2421006750-11RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2541006750-73RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
26221006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2721006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821006750-64RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2921006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
30111006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3121010369-95RESISTOR
3221010369-101RESISTOR
3381006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3451006777-26CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
3561006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
3621006755-85CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
37191010385DIODE
3831010362-002DIODE
3911008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
4031008815-19SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
4141010372-16DIODE
4221010372-18DIODE
43161008814-2TRANSISTOR
44121010343-3TRANSISTOR
4531010342TRANSISTOR
46101010397-1TRANSISTOR
4711010604-16RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
4811006777-34CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4911010279-112CAPACITOR
5011006750-35RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5111006750-31RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5221006750-47RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
5311006750-51RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
54AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
5512010703WIRING BOARD A, MODE MODULE
5612010709WIRING BOARD B, MODE MODULE
5712010705WIRING BOARD C
5812010707WIRING BOARD D, MODE MODULE
5912010711WIRING BOARD E
6012010713WIRING BOARD F
REFX2010084SCHEMATIC, MODE MODULE

2007263-011 — INTERROGATE ASSEMBLY, CDU ELECTRONICS

Reference assembly: 2007222-031

FINDQTYDRAWINGTITLENOTES
112007210-011HEADER HOUSING ASSY, INTERROGATE MODULE Expanded in more detail: 2007210-011.
412008093-003TERMINAL, THREADED
521004579-1SCREW, JACKING
621004546-1WASHER, FLAT
721004546-3WASHER, FLAT
82MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
9121008161-4SCREW, CAP, SLOTTED
10AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
12AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
1441010275TRANSFORMER
15241008025-1INSULATOR, BUSHING
1651008025-5INSULATOR, BUSHING
1721006750-5RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1851006750-65RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
19151006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2051006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2131006750-44RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2231006750-63RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
23161006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2411006750-52RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2561006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2631006750-77RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2731006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2831006750-24RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2931006750-72RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3031006750-49RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-58RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211010604-39RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
3381006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3481006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3521010369-105RESISTOR
3621010369-92RESISTOR
3731010369-152RESISTOR
3831010369-1RESISTOR
3911010604-34RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
4021006777-31CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4121006777-39CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4261006777-24CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4331006777-23CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4431006777-10CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
4511006755-10CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4681006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4721006755-33CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4821006755-21CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
4921006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
50171010385DIODE
5121010372-12DIODE
5221008815-9SEMICONDUCTOR DEVICE, DIODE (VOLTAGE REGULATOR, SILICON, AXIAL LEAD, GLASS BODY), SPECIFICATION CONTROL DRAWING
5351010343-3TRANSISTOR
5421010342TRANSISTOR
5531010652-1TRANSISTOR
56201010966-1TRANSISTOR
57121006762-2TRANSFORMER, PULSE, SPECIFICATION CONTROL DRAWING
5841006755-133CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
5921006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
6021010604-16RESISTOR, FIXED, WIREWOUND, 1 WATT, SPECIFICATION CONTROL DRAWING
61AR1010848-2WIRE, ELECTRICAL - NICKEL, VINYLIDENE FLOURIDE INSULATED, SPECIFICATION CONTROL DRAWING
6211008025-6INSULATOR, BUSHING
6312010679WIRING BOARD A, INTERROGATE MODULE
6412010681WIRING BOARD B, INTERROGATE MODULE
6512010683WIRING BOARD C
6612010685WIRING BOARD D, INTERROGATE MODULE
6712010687WIRING BOARD E, INTERROGATE MODULE
6812010689WIRING BOARD F
REFX2010080SCHEMATIC, INTERROGATE MODULE (CDU)

2010789-011 — CASE AND COVER ASSEMBLY, EYEPIECE STORAGE

Reference assembly: 2021255-011

FINDQTYDRAWINGTITLENOTES
112010788CASE - EYEPIECE STORAGE (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010788.
231021265HINGE, BUTT (INSEP ASSY)
323MS24622-17SCREW, TAPPING-THREAD FORMING, TYPE B, PAN HEAD, CROSSED-RECESSED, CORROSION-RESISTING STEEL
49NAS1190CO4-P6L(7875739-198) SCREW
532021259STOP, COVER
631008872-001BUMPER, RUBBER
712010787COVER - EYEPIECE STORAGE (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010787.
8AR1010661RESIN, ADHESIVE
9AR1010679ACTIVATOR, ADHESIVE
1022021224NUT, PLAIN HEX
1122021222STUD ASSEMBLY, TURNLOCK FASTENER Expanded in more detail: 2021222.
1222021217RECEPTACLE, TURNLOCK FASTENER
1312021216-001BRACKET, RECEPTACLE TURNLOCK FASTENER
1442021232SHIM, LAMINATED
154MS35200-13SCREW, MACHINE-FLAT COUNTERSUNK HEAD, 82°,CROSS-RECESSED, CORROSION-RESISTANT STEEL, UNC-2A
164MS21045-CO4NUT, SELF-LOCKING, HEXAGON - REGULAR HEIGHT, 450°F, 125 KSI FTU
1722021233-001PLATE, INSTRUCTION
1822021233-002PLATE, INSTRUCTION
1922021236SPRING, TENSION
2012021216-002BRACKET, RECEPTACLE TURNLOCK FASTENER
2112021257ANCHOR, SPRING
2212021258-011SPRING AND ANCHOR ASSEMBLY Expanded in more detail: 2021258-011.
2312021258-021SPRING AND ANCHOR ASSEMBLY Expanded in more detail: 2021258-021.
2412021258-031SPRING AND ANCHOR ASSEMBLY Expanded in more detail: 2021258-031.
2512021267SUPPORT, EYEPIECE
26ARMMM-A-181 TYPE IADHESIVES, PHENOL, RESORCINOL, OR MELAMINE BASE

2011711-000 — PANEL ASSEMBLY, SXT

Reference assembly: 2011000-033

FINDQTYDRAWINGTITLENOTES
112011586SEXTANT PANEL & INSERT, ASSY OF Expanded in more detail: 2011586.
211011768-16PACKING – PREFORMED
312011589WINDOW, GLASS
412011588RING, RETAINING

2011781 — LENS, ASSY OF (SEXTANT EYEPIECE)

Reference assembly: 2012699-000

FINDQTYDRAWINGTITLENOTES
112011856LENS, POSITIVE
212011857LENS, NEGATIVE

2011784-011 — PANEL ASSEMBLY (SCT)

Reference assembly: 2011000-033

FINDQTYDRAWINGTITLENOTES
112011717-000TELESCOPE PANEL & INSERT, ASSY OF Expanded in more detail: 2011717-000.
211000220-3CLAMP, CABLE
312011809GASKET, WINDOW
412011816WINDOW, GLASS
511011768-32PACKING, PREFORMED
612011808RING, RETAINING
722011820SHAFT, MANUAL ADJUSTMENT
821011768-14PACKING, PREFORMED
922011821SPRINT, HELICAL, COMPRESSION
1021011768-8PACKING, PREFORMED
1121011770-3RING, RETAINING
1222011831GASKET, WINDOW
1322011829WINDOW, GLASS
1421011768-28PACKING, PREFORMED
1522011699BEZEL
1622011830GASKET, WEDGE, BOTTOM
1722011828WEDGE, ILLUMINATING
1822011826PLATE, MASK
1912011913LAMP & HARNESS, ASSY OF Expanded in more detail: 2011913.
2022011886SPACER, CONNECTOR MTG. PLATE
21AR2011885SHIM
232NAS1352C06LL8SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
244NAS1352C01LL2SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
254NAS1352C01LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
268NAS1352C02LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
271MS15795-302WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
281NAS1352C02LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
29AR1012051GREASE SILICONE
3012011717-011TELESCOPE PANEL & INSERT, ASSY OF Expanded in more detail: 2011717-011.

2011793-000 — HOUSING&LENS, ASSY OF (SXT EYEPIECE)

Reference assembly: 2012700-000

FINDQTYDRAWINGTITLENOTES
112011876HOUSING, SEXTANT EYEPIECE
212011782LENS, ASSY OF
312011641SPACER, LENS
412011860LENS, POSITIVE (SEXTANT EYEPIECE)
512011642SPACER, LENS
612011783LENS, ASSY OF
712011694RETAINER, RING, LOCKING

2012547-011 — COVER AND BAFFLE, ASS OF (SCT)

Reference assembly: 2011000-033

FINDQTYDRAWINGTITLENOTES
112012545COVER, TELESCOPE HEAD
212012508BAFFLE, DOVE PRISM, SCT
33NAS1190C04P4LSCREW, SELF-LKG PAN HEAD FULL THD 250 DEGREES F
412012137COUNTERWEIGHT
53NAS1189C04P4LSCREW, SELF-LOCKING 100 DEGREE FLAT HEAD
6AR1011541ADHESIVE, EPOXY

2012666-000 — HOUSING SCT PRISM, ASSY OF

Reference assembly: 2012667-000

FINDQTYDRAWINGTITLENOTES
112012665HOUSING SCT PRISM
212011269PRISM, SMALL, SCT EYEPIECE
322011883SPRING, ELLIPTICAL, SCT PRISM
412011271PLATE, COVER PRISM HOUSING
58NAS1352C02LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
612011270PRISM, LARGE, SCT EYEPIECE
712011272PLATE, COVER PRISM HOUSING
822012635PLUNGER
922012634-000SPRING, FLAT
1041010618-1SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
1122012745SPRING, FLAT
12AR2012750SHIM, MACHINED, SCT
132NAS1189C02P3LSCREW 100 DEGREE FLAT HD., SELF LOCKING
1422012747INSERT, THREADED

2012695 — MIRROR HOUSING AND HEATER, ASSY OF (SXT)

Reference assembly: 2012699-000

FINDQTYDRAWINGTITLENOTES
112012685HOUSING, MIRROR (SEXTANT EYEPIECE)
222012635PLUNGER
322012634SPRING, FLAT
441010618-1SCREW, BUTTON HEAD, SELF LOCKING, SOCKET HEX
51MS16535-338RIVET - TUBULAR, OVAL HEAD
611012550-003HEATER PAD, EYEPIECE HOUSING
711012548THERMOSTAT, FIXED TEMP
812012678PLATE, THERMOSTAT RETAINING
921006273-6SCREW, CAP, BUTTON HD., HEX SOC
1011012551-001CABLE, TEFLON, MULTICONDUCTOR, 600V (24” LG)
1112012694BRACKET, CABLE COIL
1221011625-11SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
1311010929-117CONNECTOR, PLUG, ELECTRICAL - BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY)
1471010770-1CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
1511010952-002SPLICE, CONDUCTOR (BUTT, UNINSULATED)
1611010490-80INSULATION – SLEEVING, ELECT, HEAT SHRINK
1722012745SPRING, FLAT

2012713 — LENS HOUSING, ASSEMBLY OF (SCT EYEPIECE)

Reference assembly: 2012719-000

FINDQTYDRAWINGTITLENOTES
112012708HOUSING LENS (SCT EYEPIECE)
212011967LENS, ASSY OF
312011661SPACER, LENS
412011708LENS, ASSY OF
512011660SPACER, LENS
612011707LENS, ASSY OF
712012707RING, RETAINING
812011965SCT EYEGUARD ASSY

2012736-000 — OPTICAL UNIT SUBASSEMBLY, STAGE II

Reference assembly: 2011000-033

FINDQTYDRAWINGTITLENOTES
112011889-021OPTICAL UNIT, SUB ASSY STAGE I Expanded in more detail: 2011889-021.
212011722OUTER TELESCOPE TUBE ASSY Expanded in more detail: 2011722.
312011724INNER TELESCOPE TUBE, ASSEMBLY OF Expanded in more detail: 2011724.
412011731HOUSING AND LAMP, ASSEMBLY OF Expanded in more detail: 2011731.
512011723DRIVE GEAR CLUSTER, ASSEMBLY OF Expanded in more detail: 2011723.
612011215-011TELESCOPE TRUNNION, AXIS ASSEMBLY Expanded in more detail: 2011215-011.
712011702-000TRUNNION DRIVE GEARBOX, SCT, ASSEMBLY OF Expanded in more detail: 2011702-000.
812011703-000SHAFT DRIVE GEARBOX, SCT, ASSEMBLY OF Expanded in more detail: 2011703-000.
912011906HOUSING, STATOR & LAMP, ASSEMBLY OF Expanded in more detail: 2011906.
1012012387GEAR AND SPRING, ASSY OF (SXT SHAFT DRIVE) Expanded in more detail: 2012387.
1112011714LIMIT STOP ASSY
1212011705-000SHAFT DRIVE GEARBOX, SXT, ASSEMBLY OF Expanded in more detail: 2011705-000.
1311012519FLEXPRINT & CONNECTOR, ASSY OF (SXT)
1411012520-1FLEXPRINT & CONNECTOR, ASSY OF (SXT)
1522011686RETAINER, PIN
1612012743FLEXPRINT RETAINING ASSY
1762011323POST, SHOULDERED, THREADED
1812011322PLATE, MOUNTING, CONNECTOR
1912011321PLATE, MOUNTING, CONNECTOR
2012011616RING, MOUNTING, COVER
2112012739PLATE, FLEXPRINT GUIDE
2212011342RING, LIMIT STOP
2332011341PLATE, RETAINING, STOP RING
2412011622PLATE, MOUNTING, CONNECTOR
2512012374PLATE, MOUNTING, CONNECTOR
2612012486SPACER, CONNECTOR, MOUNTING PLATE
2712012487PLATE, MOUNTING, CONNECTOR
2812011351BRACKET, MOUNTING, SPRING HOLDER
2922011353SPACER, SPRING HOLDER
3012011344SCREW, SHOULDER
3122011561BUSHING, ECCENTRIC
3222011562BUSHING, LOCATING
3312011825GEAR, SPUR (42T-96P)
3411011606-2BEARING, BALL
3511011606-1BEARING, BALL
361MS9021-154PACKING, PREFORMED, (O) RING
3711012525-005NUT, SELF LOCKING, HEX, THIN
3812011877SPACER
3922011684PIN, THREADED
401NAS1352C08LL10SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
412AN960-C8WASHER, FLAT
4312NAS1189C04P6LSCREW, SELF LOCKING, 100 DEGREE FLAT HEAD
4441011625-11SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
4512NAS1352C02LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
4614NAS1352C04LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
4714NAS1352C04LL6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
488NAS1352C04LL8SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
494NAS1352C06LL4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
5011011625-28SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
517NAS1352C08LL8SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
522NAS1352C08LL12SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
5321011625-30SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
5412012740CONNECTOR ASSY, DUMMY
5512012164GROMMET
5612012735-000SEXTANT INDEX HEAD ASSEMBLY Expanded in more detail: 2012735-000.
5711012065RESOLVER ASSY, 1 SPEED, 2 SPEED, 64 SPEED
5812011896SXT BASE HARNESS ASSEMBLY Expanded in more detail: 2011896.
5912011713SCT BASE HARNESS, ASSEMBLY Expanded in more detail: 2011713.
6011012520-2FLEXPRINT & CONNECTOR, ASSY OF
6111011599-9PACKING, PREFORMED, RETAINED
62AR2011885SHIM
6312012491PLATE, END, RESOLVER
6411000220-8 or 1000220-6CLAMP, CABLE
6511000220-6 or 1000220-5CLAMP, CABLE
6611011918-2WASHER, CABLE CLAMP
671MS15795-305WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
682MS16624-15RING, RETAINING, EXTERNAL, BASIC (TAPERED SECTION TYPE)
694NAS1189C02T4LSCREW, FLAT HD, SELF LOCKING
702NAS1351C3LL10SCREW, CAP, SOC HEAD, SELF LOCKING, SEE NOTE 3S
712NAS1352C06LL6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
7281011625-39SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
732MS35249-11SCREW, MACHINE, FLAT COUNTERSUNK HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
7411011599-10PACKING, PREFORMED, RETAINED
7512012723COUNTERWEIGHT
7612012350WASHER
7712011577SPRING, TORSION
7812011581BUSHING, LIMIT STOP
7911011608-5BEARING, BALL, ANNULAR
8012011580DOG, LIMIT STOP, INNER
8132011579DOG, LIMIT STOP
8212011578DOG, LIMIT STOP, OUTER
83AR2012351-1 or 2012351-2 or 2012351-3WASHER, FLAT
841MS16624-1018RING, RETAINING, EXTERNAL, BASIC (TAPERED SECTION TYPE)
8512011595COVER, GEARBOX
8691011625-20SCREW, CAP, HEX SOC HD, SELF-LOCKING (SPECIFICATION CONTROL DRAWING)
872NAS1351C3LL20SCREW, CAP, SOC HD, SELF LOCKING, SEE NOTE 3S

2014550-011 — SEXTANT HAND CONTROLLER ASSEMBLY

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014548PLATE, BASE
221010740LINEAR ROTARY TRANSFORMER
38NAS1352C02-4SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
461015542CLAMP, SYNCHRO
512014551-011HOUSING ASSEMBLY, MATCHED MACHINED Expanded in more detail: 2014551-011.
622014539CAP, BEARING PRELOAD
73MS35233-3SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
812014543ARM, CAM FOLLOWER
931010780-1BEARING, NEEDLE CAM FOLLOWER
104MS16556-2PIN, STRAIGHT, HEADLESS (DOWEL) (.001 OVER NOMINAL SIZE)
1121010931SPRING, HELICAL, EXTENSION
1222014555PIN PIVOT
1312014544ARM, CAM FOLLOWER
142MS51045-3SETSCREW-HEXAGON SOCKET, HALF-DOG POINT, CORROSION-RESISTING STEEL, PASSIVATED, UNC-3A
1512014534SHAFT, YOKE
164NAS1352C02LL3SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
171MS16624-12RING, RETAINING, EXTERNAL, BASIC (TAPERED SECTION TYPE)
1823MS35233-4SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
1921010418-002BUSHING, FLANGED
2012014558PIN, PIVOT, HEADED
2112014541-011SHAFT, HANDLE (INSEP ASSY) Expanded in more detail: 2014541-011.
2222014546CAM
2341010418-001BUSHING, FLANGED
242MS51029-49SETSCREW-HEXAGON, SOCKET, FLAT POINT, CORROSION-RESISTING STEEL, PASSIVATED, UNC-3A, PLAIN AND SELF-LOCKING
2512014715-011DESICCATOR ASSEMBLY Expanded in more detail: 2014715-011.
2612014536HANDLE
2711010858-22PACKING, PREFORMED “O” RING
2811021769RING RETAINER
2912014547DIAPHRAGM
3012014535SHAFT, PIVOT
3112014549COVER
3212014537GASKET
3311010858-18PACKING, PREFORMED “O” RING
3412014538HOUSING, FEEDTHRU
35AR1012503POLYURETHANE POTTING COMPOUND
3711010855TERMINAL, FEEDTHRU, INSULATED
38ARQQ-S-571 SN10WSSOLDER, ELECTRONIC (96 TO 485 DEG. C)
39ARQQ-S-571 SN10WARPSOLDER, ELECTRONIC (96 TO 485 DEG. C)
40ARMIL-F-14256FLUX, SOLDERING, LIQUID, PASTE FLUX, SOLDER PASTE AND SOLDER-PASTE FLUX (FOR ELECTRONIC/ELECTRICAL USE), GENERAL SPECIFICATION FOR
41ARMIL-M-7866MOLYBDENUM DISULFIDE, TECHNICAL, LUBRICATION GRADE
42ARMIL-S-22473SEALING, LEAKING, AND RETAINING COMPOUNDS (SINGLE COMPONENT)
43ARMIL-A-25457ADHESIVE, SILICONE RUBBER (ES-2531)
44AR1010718PRIMER, SILICONE ADHESIVE
471NAS1352C04-8SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
48ARMIL-S-22473SEALING, LEAKING, AND RETAINING COMPOUNDS (SINGLE COMPONENT)
4941008836-001WASHER, SHIM, LAMINATED
51AR1008936-003TAPE, LACING
52AR1010748EPOXY RESIN
53AR1010750CURING AGENT, POLYIMIDE
REFX2014520SCHEMATIC DIAGRAM, SEXT HAND CONT
REFX2014506WIRING DIAGRAM, SEXTANT HAND CONT

2014622 — WIRING HARNESS A, G&N INDICATOR, CONTROL PANEL

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
5ARQQ-S-571 SN60 WRAP2SOLDER, ELECTRONIC (96 TO 485 DEG. C)
6ARMIL-F-14256FLUX, SOLDERING, LIQUID, PASTE FLUX, SOLDER PASTE AND SOLDER-PASTE FLUX (FOR ELECTRONIC/ELECTRICAL USE), GENERAL SPECIFICATION FOR
7641010770-001CONTACT, CRIMP TYPE, NO. 22 SIZE, PIN & SOCKET, SPECIFICATION CONTROL DRAWING
811010930-104CONNECTOR, RECEPTACLE, ELECTRICAL - SQUARE FLANGE, BAYONET LOCKING COUPLING, SPECIFICATION CONTROL DRAWING (DSKY MATE)
9AR1012503COMPOUND, POLYURETHANE
1011010638-006TERMINAL
1611023012-001ADAPTER, POTTING MOLD.
17211010958-001PLUG, SEALING
1812014707BRACKET, CONNECTOR
1941010617-4NUT, HEX, SELF LOCKING
204NAS1352C04-6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
214MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
221591012534-59INSULATION SLEEVING, HEAT SHRINKABLE
23441012534-57INSULATION SLEEVING, HEAT SHRINKABLE
24121012534-56INSULATION SLEEVING, HEAT SHRINKABLE
25ARQQ-S-571 SN10WSSOLDER, ELECTRONIC (96 TO 485 DEG. C)
26ARQQ-S-571 SN10WRAPSOLDER, ELECTRONIC (96 TO 485 DEG. C)
27AR1012555-001TAPE, LACING AND TYING

2014626 — PANEL, G&N INDICATOR CONTROL (INSEPARABLE)

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014626-001PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
212014626-002PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
312014626-003PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
412014626-004PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
512014626-005PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
612014626-006PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
712014626-007PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
822014626-008PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
922014626-009PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1022014626-010PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1122014626-011PANEL, G & N INDICATOR CONTROL (INSEPARABLE) Expanded in more detail: 2014626-011.
12112014626-012PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1312014626-013PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1412014626-014PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1512014626-015PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
16622014626-016PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1742014626-017PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1822014626-018PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
1922014626-019PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
2041000136-1INSERT, THREADED
21341000115-2INSERT, THREADED SELF LOCKING, SPECIFICATION CONTROL DRAWING
22481000115-4INSERT, THREADED SELF LOCKING, SPECIFICATION CONTROL DRAWING
2341000115-3INSERT, THREADED SELF LOCKING, SPECIFICATION CONTROL DRAWING
2412014626-020PANEL, G & N INDICATOR CONTROL (INSEPARABLE)
2562014626-021PANEL, G & N INDICATOR CONTROL (INSEPARABLE) Expanded in more detail: by substitute 2014626-011.

2014656-011 — RETICLE BRIGHTNESS CONTROL ASSY

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014638BRACKET, MOUNTING, INSEP ASSY Expanded in more detail: 2014638.
211010901-1SWITCH, SENSITIVE, SPECIFICATION CONTROL DRAWING
311010916-1RESISTOR, VARIABLE
412014709CAM, SWITCH - ACTUATING
52NAS1081C02D2LSCREW-SET, SELF LOCK
611010457-5ADAPTER, SWITCH ACTUATOR
741010628-2SCREW, FLAT HEAD SELF LOCKING, SOCKET, HEX
82MS35233-7SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
9ARMIL-S-22473SEALING, LEAKING, AND RETAINING COMPOUNDS (SINGLE COMPONENT)
102MS15795-802WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE

2014683 — RETAINER, LAMP, LAMINATED

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014683-1RETAINER, LAMP, LAMINATED
212014683-2RETAINER, LAMP, LAMINATED
3ARMIL-A-25055ADHESIVE, ACRYLIC MONAMER AND POLYMER BASE, FOR ACRYLIC PLASTICS

2014700-011 — SWITCH, ATTITUDE - IMPULSE, ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014563PLATE, MOUNTING
241006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
312014599KNOB, SHAFT, ACTUATOR
412014690ACTUATOR
542014699SPRING, ACTUATOR
62MS16555-605PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
711010785-12PACKING, PREFORMED
861010901-1SWITCH, SENSITIVE, SPECIFICATION CONTROL DRAWING
916MS35233-8SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
104MS35233-6SCREW, MACHINE, PAN HEAD, SLOTTED, CORROSION RESISTING STEEL, PASSIVATED, NC-2A AND UNC-2A
1142014696STOP BLOCK
122NAS1352C02-6SCREW, CAP, SOCKET HEAD, UNDRILLED AND DRILLED, PLAIN AND SELF-LOCKING, ALLOYSTEEL, CORROSION-RESISTANT STEEL AND HEAT-RESISTANT STEEL, UNRC-3A AND UNRC-2A
131MS51923-168PIN, SPRING-TABULAR, COILED, MEDIUM DUTY
1411015045SHAFT, FULCRUM
1512014692CAM, ACTUATOR
1612MS15795-802WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
17AR1010686CATALYST, SPECIFICATION CONTROL DRAWING
1822014694STOP BLOCK
1921010418-001BUSHING, FLANGED
208MS35649-24NUT, PLAIN, HEXAGON, MACHINE SCREW UNC-2B
2142014698SPRING, ACTUATOR
221MS171434PIN - SPRING, CORROSION RESISTANT STEEL
2312014695HOUSING
24ARMIL-S-22473 GRADE ASEALING, LEAKING, AND RETAINING COMPOUNDS (SINGLE COMPONENT)
25AR1010657EPOXY RESIN, SPECIFICATION CONTROL DRAWING
26ARMIL-M-7866MOLYBDENUM DISULFIDE, TECHNICAL, LUBRICATION GRADE
2711021736SLEEVE, ADJUSTING
2812014697HOUSING, CAM
2912014701INSERT, CAM
3011017424-16PIN, DOWEL
3112014693SLEEVING, ACTUATOR
3212014691RETAINER, SLEEVING
331MS51029-1SETSCREW-HEXAGON, SOCKET, FLAT POINT, CORROSION-RESISTING STEEL, PASSIVATED, UNC-3A, PLAIN AND SELF-LOCKING

2014706 — RETAINER, LAMP

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014706-1RETAINER, LAMP
222014706-2RETAINER, LAMP
3ARMIL-A-25055ADHESIVE, ACRYLIC MONAMER AND POLYMER BASE, FOR ACRYLIC PLASTICS

2014718 — RETAINER, LAMP, LAMINATED

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014718-1RETAINER, LAMP, LAMINATED
222014718-2RETAINER, LAMP, LAMINATED
3ARMIL-A-25055ADHESIVE, ACRYLIC MONAMER AND POLYMER BASE, FOR ACRYLIC PLASTICS

2014719 — COVER&LAMP, MATCHED ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014684PANEL, LAMP RETAINER LAMINATED Expanded in more detail: 2014684.
211010999-003LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING

2014735 — PANEL&LAMP, MATCHED ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014730PANEL, LAMP RETAINER, OPTICS AREA, LAMINATED Expanded in more detail: 2014730.
211010999-7LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING

2014736-011 — PANEL&LAMP, MATCHED ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014726PANEL, LAMP RETAINER, MAJOR MODE AREA, LAMINATED Expanded in more detail: 2014726.
211010999-10LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING

2014737-011 — PANEL&LAMP, MATCHED ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014728PANEL, LAMP RETAINER, LAMINATED - VERB/NOUN AREA Expanded in more detail: 2014728.
211010999-1LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING

2014738 — PANEL&LAMP, MATCHED ASSEMBLY OF

Reference assembly: 2014578-011

FINDQTYDRAWINGTITLENOTES
112014729PANEL, LAMP RETAINER, LAMINATED - ANNUN. UPTL AREA Expanded in more detail: 2014729.
211010999-5LAMP, ELECTRO-LUMINESCENT, SPECIFICATION CONTROL DRAWING

2014741-011 — CONNECTOR, PLUG, ELECTRICAL - CDU

Reference assembly: 2014641

FINDQTYDRAWINGTITLENOTES
122014754SHELL, ELEC CONN (INSEP ASSY)
212010658BASE, ELECTRICAL CONNECTOR, CDU (INSEPARABLE ASSY) Expanded in more detail: 2010658.
33001010956-1INSULATOR, BUSHING WRAPOST
4141006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
521008827-1SCREW, CAP, SOC HD, CAPTIVE
641004579-1SCREW, JACKING
74MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
841004546-1WASHER, FLAT
961004546-3WASHER, FLAT

2014742-011 — CONNECTOR, PLUG, ELECTRICAL, 56P18

Reference assembly: 2014642

FINDQTYDRAWINGTITLENOTES
122014751SHELL, ELECTRICAL CONNECTOR
212010652BASE, ELECTRICAL CONNECTOR - PSA (56P18) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010652.
31121010956-1INSULATOR, MALE
461006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
541004579-3SCREW, JACKING
64MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
741004546-1WASHER, FLAT
841004546-3WASHER, FLAT

2014743-011 — CONNECTOR, PLUG, ELECTRICAL, 56P19

Reference assembly: 2014643

FINDQTYDRAWINGTITLENOTES
122014752SHELL, ELECTRICAL CONNECTOR
212010656BASE, ELECTRICAL CONNECTOR - PSA (56P19) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010656.
31821010956-1INSULATOR, MALE
4121006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
521008827-1SCREW, CAPTIVE
641004579-3SCREW, JACKING
74MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
841004546-1WASHER, FLAT
961004546-3WASHER, FLAT

2014744-011 — CONNECTOR, PLUG, ELECTRICAL, 56P17

Reference assembly: 2014644

FINDQTYDRAWINGTITLENOTES
122014753SHELL, ELECTRICAL CONNECTOR
212010650BASE, ELECTRICAL CONNECTOR - PSA (56P17) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010650.
33041010956-1INSULATOR, BUSHING, WRAPOST
4121006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
541004579-3SCREW, JACKING
641004546-1WASHER, FLAT
761004546-3WASHER, FLAT
84MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
921008827-1SCREW, CAP, SOC HD, CAPTIVE

2014745-011 — CONNECTOR, PLUG, ELECTRICAL, 56P26

Reference assembly: 2014645

FINDQTYDRAWINGTITLENOTES
122014751SHELL, ELECTRICAL CONNECTOR
212010651BASE, ELECTRICAL CONNECTOR - PSA (56P26) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010651.
31121010956-1INSULATOR, MALE
461006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
541004579-3SCREW, JACKING
64MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
741004546-1WASHER, FLAT
841004546-3WASHER, FLAT

2014746-011 — CONNECTOR, PLUG, ELECTRICAL, 56P28

Reference assembly: 2014646

FINDQTYDRAWINGTITLENOTES
122014750SHELL, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY) 56P27-56P28 Expanded in more detail: 2014750.
212010654BASE, ELECTRICAL CONNECTOR - PSA (56P28) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010654.
3641010956-1INSULATOR, BUSHING WRAPOST
461006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
541004579-3SCREW, JACKING
641004546-1WASHER, FLAT
741004546-3WASHER, FLAT
84MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)

2014748-011 — CONNECTOR, PLUG, ELECTRICAL, 56P27

Reference assembly: 2014648

FINDQTYDRAWINGTITLENOTES
122014750SHELL, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY) 56P27-56P28 Expanded in more detail: 2014750.
212010653BASE, ELECTRICAL CONNECTOR - PSA (56P27) (INSEPARABLE ASSEMBLY) Expanded in more detail: 2010653.
3641010956-1INSULATOR, BUSHING WRAPOST
461006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING
541004579-3SCREW, JACKING
641004546-1WASHER, FLAT
741004546-3WASHER, FLAT
84MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)

2014749-011 — CONNECTOR, PLUG, ELECTRICAL, AGC

Reference assembly: 2014641

FINDQTYDRAWINGTITLENOTES
112010657BASE, ELECTRICAL CONNECTOR, AGC (INSEPARABLE ASSY) Expanded in more detail: 2010657.
222014755SHELL, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY) AGC Expanded in more detail: 2014755.
33601010956-1INSULATOR, MALE
421008827-1SCREW, CAPTIVE
541004579-1SCREW, JACKING
64MS16633-4015RING, RETAINING, EXTERNAL, "E" (REDUCED SECTION TYPE)
741004546-001WASHER, FLAT
861004546-003WASHER, FLAT
9181006783-18SCREW, BUTTON HEAD, HEX SOCKET, SPECIFICATION CONTROL DRAWING

2018602-011 — OUTER AXIS ASSEMBLY

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018603-011MIDDLE AXIS ASSEMBLY Expanded in more detail: 2018603-011.
212018761HOUSING ASSEMBLY, OUTER GIMBAL Expanded in more detail: 2018761.
322018644BLOWER, SPECIFICATION CONTROL DRAWING
421010799CAPACITOR
522018795PLATE, IDENTIFICATION, PHOTO MASTER
642018794BRACKET CONNECTOR, OUTER GIMBAL
721000170-12FUCE, PIGTAIL, SUBMINIATURE
861001489-2SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
9221001488-1SCREW, HEX, SOC HD, SELF-LKG
10121001489-18SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
114MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
1261000220 SEE NOTE 6CLAMP, CABLE
1361000223WASHER, CABLE CLAMP
1412018798WIRING HARNESS C, OUTER AXIS Expanded in more detail: 2018798.
1512018797WIRING HARNESS B, OUTER AXIS Expanded in more detail: 2018797.
1621010490-078SLEEVING, ELECTRICAL, HEAT SHRINK
1882018812WASHER BRACKET, CONN MG & OG
21ARMIL-I-15126 TYPE ACTINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
23AR1008930GREASE MOLYBDENUM DISULFIDE

2018609-011 — INTER GIMBAL SUB-ASSEMBLY, TORQUE MOTOR END, OUTER AXIS

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018755HOUSING BEARING, TORQUE MOTOR, OUTER AXIS
212018754SHAFT, STUB, TORQUE MOTOR, OUTER AXIS
312018629MOTOR, TORQUE, DC, FRAMELESS, SPECIFICATION CONTROL DRAWING
412018625SLIP RING ASSEMBLY, ELECTRICAL - 50 CONTACT (SPECIFICATION CONTROL DRAWING)
512018766PLATE, BEARING RETAINER (TORQUE MOTOR OUTER AXIS)
662018756CLIP RETAINER TORQUE MOTOR OA
71MS16624-4075RING, RETAINING, EXTERNAL, BASIC (TAPERED SECTION TYPE)
822018731CLIP, WIRE RETAINER
912018621BALL BEARING DUPLEX
1021000100-1TERMINAL INSULATED
1111010783-2CONNECTOR, ELEC, RECEPTACLE
1221010917-106CONNECTOR, ELEC, RECEPTACLE
1361001489-22SCREW, HEX SOC HD, SPECIFICATION CONTROL DRAWING
1461010488-18SCREW, HEX SOC HD SELF LOCKING
1561010488-2SCREW, HEX SOC HD SELF LOCKING
1641010867-18SCREW, FLAT HD SELF LOCKING SOC SPLINE
1721010867-12SCREW, FLAT HD SELF LOCKING SOC SPLINE
1821010867-2SCREW, FLAT HD SELF LOCKING SOC SPLINE
1931000020-10SHIELD & GRD ASSY
2031000020-4SHIELD & GRD ASSY
2111010490-114INSULATION, SLEEVING ELEC HEAT SHRINK
22501006776-18INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
2311010416-1WIRE, ELECTRICAL, STRANDED, INSULATED, SPECIFICATION CONTROL DRAWING
2611000223WASHER, CABLE CLAMP
28611010862BUSHING, SLEEVE
29ARQQ-S-571-SN10SOLDER, ELECTRONIC (96 TO 485 DEG. C)
30ARQQ-S-571 SN60SOLDER, ELECTRONIC (96 TO 485 DEG. C)
31AR1010870GREASE, LUBRICATING
32ARMIL-T-713 TYPE P CLASS 2TWINE, FIBROUS: IMPREGNATED, LACING AND TYING
331MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
3411001488-4SCREW HEX SOC HD SELF LOCKING
35ARMIL-I-15126 TYPE MFT 1/4 WIDTHINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
36ARMIL-I-15126 TYPE ACT 1/2 WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE

2018612-011 — INTERGIMBAL SUB-ASSEMBLY, RESOLVER, OUTER AXIS

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018606-011RESOLVER ASSEMBLY, OUTER AXIS Expanded in more detail: 2018606-011.
212018625SLIP RING ASSEMBLY, ELECTRICAL - 50 CONTACT (SPECIFICATION CONTROL DRAWING)
312007204-011PRECISION RESOLVER ALIGNMENT ASSY Expanded in more detail: 2007204-011.
421010917-106CONNECTOR, ELEC, RECP, 26 PINS
521010917-901CONNECTOR, ELEC, RECP, 7 PINS
611010783-1CONNECTOR, ELEC, RECP, 61 PINS
7611010781-1CONTACT ELEC
8611010862BUSHING, SLEEVE
911010353-10RELAY, ELECTRO MAG, SENSITIVE
1012018792GUIDE, WIRE, ASSEMBLY, BEARING HOUSING, RSVR OUTER AXIS Expanded in more detail: 2018792.
1121001488-2SCREW, HEX SOC HD, SELF-LKG
1231010891-23SCREW, BUTTON HD SELF-LKG SOC SPLINE
1331001488-8SCREW, HEX SOC HD, SELF-LKG
1411001488-1SCREW, HEX SOC HD, SELF-LKG
1521010867-2SCREW, SELF-LKG, FLAT HD, SOC SPLINE
163MS15795-705WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
17361006776-18INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
18131006776-14INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
1921010490-052INSULATION SLEEVING ELEC HEAT SHRINK
2021010490-112INSULATION SLEEVING ELEC HEAT SHRINK
3011000020-11SHIELD & GROUND ASSY
3111010717-1TERMINA, LUG
32ARMIL-T-713 TYPE P CLASS 2TWINE, FIBROUS: IMPREGNATED, LACING AND TYING
3311010717-3TERMINAL, LUG
3421000220 SEE NOTE 15CLAMP, CABLE
3511000223WASHER, CABLE CLAMP
3822021504-44RESISTOR, FIXED, WIRE WOUND, SPECIFICATION CONTROL DRAWING
39AR1006834COMPOUND, SILICONE RUBBER, SPECIFICATION CONTROL DRAWING
40AR1006835STANNOUS OCTOATE, SPECIFICATION CONTROL DRAWING
411MS15795-803WASHER, FLAT-METAL, ROUND, GENERAL PURPOSE
43ARMIL-I-15126 TYPE MFT 1/4 WIDTHINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE
44ARMIL-I-15126 TYPE ACT 1/2 WIDEINSULATION TAPE, ELECTRICAL, PRESSURE SENSITIVE ADHESIVE AND PRESSURE SENSITIVE THERMOSETTING ADHESIVE

2018738-011 — CASE CENTER, MACHINING ASSY

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018711-011CASE CENTER, BRAZING ASSEMBLY Expanded in more detail: 2018711-011.
242018737PAD, CASE MOUNTING
311000088-2PIN, LOCATING, STRAIT, HDLS
44MS16555-625PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
58MS16555-627PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
612MS21209-CO615INSERT, SCREW THREAD, COARSE AND FINE, SCREW LOCKING, HELICAL COIL, CRES
88MS21209-CO415INSERT, SCREW THREAD, COARSE AND FINE, SCREW LOCKING, HELICAL COIL, CRES
942018816-011CAP ASSY, PROTECTIVE
10361010957-001INSERT, SCREW THREAD

2018769 — MOUNT, CONNECTOR, RSVR OUTER AXIS

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018769-1MOUNT, CONNECTOR, RSVR OUTER AXIS
22MS21209-CO415INSERT, SCREW THREAD, COARSE AND FINE, SCREW LOCKING, HELICAL COIL, CRES
311010957-002INSERT, SCREW THREAD

2018773 — VALVE, PRESSURE, ASSEMBLY

Reference assemblies: 2003100-081 (ECP 474) 2018601-011

FINDQTYDRAWINGTITLENOTES
112018772BODY
212018771PLUG
312018770GUIDE, SPRING
41MS24585-C38SPRINGS, HELICAL, COMPRESSION: FOR LOADS BELOW 20 POUNDS
51MS134354BALL - CORROSION RESISTANT STEEL, PRECISION GRADE
61MS16625-4025RING, RETAINING, INTERNAL, BASIC (TAPERED SECTION TYPE)
711000159-4PACKING, PREFORMED, "O" RING

2018774 — MOUNT, CONNECTOR, TORQUE MOTOR, OUTER AXIS

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112018774-1MOUNT, CONNECTOR, TORQUE MOTOR, OUTER AXIS
251010957-002INSERT, SCREW THREAD
32MS21209-CO415INSERT, SCREW THREAD, COARSE AND FINE, SCREW LOCKING, HELICAL COIL, CRES

2018818 — STRAP ASSY, OUTER AXIS

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
122018800STRAP, WIRE, OUTER AXIS
222018817PAD, WIRE STRAP

2018844-011 — CALIBRATED PIP ASSY

Reference assembly: 2018601-011

FINDQTYDRAWINGTITLENOTES
112001730-2 or 2001730-3 or 2018639-2 OR 2018639-3PIP AND SUSPENSION CAPACITOR MODULE, SPECIFICATION CONTROL DRAWING

2021219 — BRACKET, ELECTRICAL CONNECTOR (INSEP. ASSY.)

Reference assembly: 2021255-011

FINDQTYDRAWINGTITLENOTES
112021219-001BRACKET, ELECTRICAL CONNECTOR (INSEP. ASSY.)
22MS21087-L3NUT, SELF-LOCKING, PLATE, SIDE BY SIDE REDUCED RIVET SPACING, LOW HEIGHT, CRES, 125 KSI FTU, 450 DEG. AND 800 DEG. F
34MS20426AD3-4RIVET, SOLID, COUNTERSUNK 100°, PRECISION HEAD, ALUMINUM AND TITANIUM COLUMBIUM ALLOY

2021220 — BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)

Reference assembly: 2021255-011

FINDQTYDRAWINGTITLENOTES
112021220-001BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)
212021220-002BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)
312021220-003BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)
412021220-004BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)
521016097-008NUT, STAKE, FLOATING, SELF-LOCKING
612021220-005BRACKET, SUPPORT - LEFT-HAND (INSEPARABLE ASSEMBLY)

2021221 — BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)

Reference assembly: 2021255-011

FINDQTYDRAWINGTITLENOTES
112021221-001BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)
212021221-002BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)
312021221-003BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)
412021221-004BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)
521016097-008NUT, STAKE, FLOATING, SELF LOCKING
612021221-005BRACKET, SUPPORT - RIGHT-HAND (INSEPARABLE ASSEMBLY)

2021228 — COVER, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY)

Reference assembly: 2021255-011

FINDQTYDRAWINGTITLENOTES
112021228-001COVER, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY)
222021228-002COVER, ELECTRICAL CONNECTOR (INSEPARABLE ASSEMBLY)
4ARMMM-A-181 TYPE I GRADE AADHESIVES, PHENOL, RESORCINOL, OR MELAMINE BASE
5AR1012543-003COATING KIT, LIGHT-DIFFUSING, SOURCE CONTROL DRAWING
6ARMIL-P-8585PRIMER COATING, ZINC CHROMATE, LOW-MOISTURE-SENSITIVITY
74MS20426AD4-5RIVET, SOLID, COUNTERSUNK 100°, PRECISION HEAD, ALUMINUM AND TITANIUM COLUMBIUM ALLOY
832021260CHANNEL, PLASTIC
922021261CHANNEL, PLASTIC
10AR1010679ACTIVATOR, ADHESIVE
11AR1010661RESIN, ADHESIVE




Expanded Deep Subassemblies

1003084-011 — ASSEMBLY, K CORE

Reference assembly: 2003026-011

FINDQTYDRAWINGTITLENOTES
2AR1004107MOLDING, K CORE
3AR1004633SPACER, INSULATING
4AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
511004108-011ASSEMBLY, WOUND K CORE Expanded in more detail: 1004108-011.

1004108-011 — ASSEMBLY, WOUND K CORE

Reference assembly: 1003084-011

FINDQTYDRAWINGTITLENOTES
311006320-2CORE, MAGNETIC, SPECIFICATION CONTROL DRAWING
4AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING

1004301-001 — DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED)

Reference assemblies: 2003083-011 2003083-021 2003083-031 2003083-041 2003083-051 2003083-061 2003083-071 2003083-081 2003083-091 2003083-111 2003083-121 2003083-141 2003083-151 2003083-161 2003083-171 2003083-261 2003083-271 2003083-291 2003083-311 2003083-321 2003083-331 2003083-341 2003083-351 2003083-361 2003083-371 2003083-381 2003083-391 2003083-411 2003083-421 2003083-431 2003083-441 2003083-451 2003083-461 2003083-471 2003083-481 2003083-491 2003083-511 2003083-521 2003083-531 2003083-541 2003083-551 2003083-561 2007070-041 2007071-031 2007072-031 2007073-041 2007074-031 2007075-031 2007076-031 2007077-031 2007078-031 2007079-031 2007080-031 2007081-031

FINDQTYDRAWINGTITLENOTES
111006321DUAL NOR GATE (FLAT PACK) SPECIFICATION CONTROL DRAWING
2AR1006271-8INK, MARKING

1010985-001 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-011

FINDQTYDRAWINGTITLENOTES
REFX2005059 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A1, SCALER MODULE

1010985-002 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-021

FINDQTYDRAWINGTITLENOTES
REFX2005059 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A1, SCALER MODULE

1010985-003 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-031

FINDQTYDRAWINGTITLENOTES
REFX2005060 SHEETS 1 & 2LOGIC FLOW DIAGRAM, MODULE NO. A2, TIMER See also: CAD transcription of drawing 2005060D (design files or image files).

1010985-004 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-041

FINDQTYDRAWINGTITLENOTES
REFX2005060 SHEET 3LOGIC FLOW DIAGRAM, MODULE NO. A2, TIMER See also: CAD transcription of drawing 2005060D (design files or image files).

1010985-005 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-051

FINDQTYDRAWINGTITLENOTES
REFX2005051 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A3, S Q REGISTER AND DECODING

1010985-006 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-061

FINDQTYDRAWINGTITLENOTES
REFX2005051 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A3, S Q REGISTER AND DECODING

1010985-007 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-071

FINDQTYDRAWINGTITLENOTES
REFX2005062 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A4, STAGE BRANCH DECODING MODULE

1010985-008 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-081

FINDQTYDRAWINGTITLENOTES
REFX2005062 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A4, STAGE BRANCH DECODING MODULE

1010985-009 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-091

FINDQTYDRAWINGTITLENOTES
REFX2005061 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A5, CROSS POINT GENERATOR NO. I

1010985-010 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-111

FINDQTYDRAWINGTITLENOTES
REFX2005061 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A5, CROSS POINT GENERATOR NO. I

1010985-011 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-121

FINDQTYDRAWINGTITLENOTES
REFX2005063 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A6, CROSS POINT GENERATOR II

1010985-013 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-141

FINDQTYDRAWINGTITLENOTES
REFX2005052 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A7, SERVICE GATES

1010985-014 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-151

FINDQTYDRAWINGTITLENOTES
REFX2005052 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A7, SERVICE GATES

1010985-015 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-161

FINDQTYDRAWINGTITLENOTES
REFX2005055 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A8, 4 BIT MODULE

1010985-016 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-171

FINDQTYDRAWINGTITLENOTES
REFX2005055 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A8, 4 BIT MODULE

1010985-024 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-261

FINDQTYDRAWINGTITLENOTES
REFX2005053 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A12, PARITY AND S REGISTER

1010985-025 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-271

FINDQTYDRAWINGTITLENOTES
REFX2005069 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A13, ALARMS

1010985-027 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-291

FINDQTYDRAWINGTITLENOTES
REFX2005064 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A14, MEMORY TIMING & ADDRESSING

1010985-028 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-311

FINDQTYDRAWINGTITLENOTES
REFX2005064 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A14, MEMORY TIMING & ADDRESSING

1010985-029 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-321

FINDQTYDRAWINGTITLENOTES
REFX2005065 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A15, RUPT SERVICE

1010985-030 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-331

FINDQTYDRAWINGTITLENOTES
REFX2005065 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A15, RUPT SERVICE

1010985-031 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-341

FINDQTYDRAWINGTITLENOTES
REFX2005066 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A16, INOUT I

1010985-032 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-351

FINDQTYDRAWINGTITLENOTES
REFX2005066 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A16, INOUT I

1010985-033 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-361

FINDQTYDRAWINGTITLENOTES
REFX2005067 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A17, INOUT II

1010985-034 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-371

FINDQTYDRAWINGTITLENOTES
REFX2005067 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A17, INOUT II

1010985-035 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-381

FINDQTYDRAWINGTITLENOTES
REFX2005068 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A18, INOUT III

1010985-036 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-391

FINDQTYDRAWINGTITLENOTES
REFX2005068 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A18, INOUT III

1010985-037 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-411

FINDQTYDRAWINGTITLENOTES
REFX2005070 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A19, INOUT IV

1010985-038 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-421

FINDQTYDRAWINGTITLENOTES
REFX2005070 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A19, INOUT IV

1010985-039 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-431

FINDQTYDRAWINGTITLENOTES
REFX2005054 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A20, COUNTER CELL I

1010985-040 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-441

FINDQTYDRAWINGTITLENOTES
REFX2005054 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A20, COUNTER CELL I

1010985-041 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-451

FINDQTYDRAWINGTITLENOTES
REFX2005050 SHEETS 1&2LOGIC FLOW DIAGRAM, MODULE NO. A21, COUNTER CELL II

1010985-042 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-461

FINDQTYDRAWINGTITLENOTES
REFX2005050 SHEET 3LOGIC FLOW DIAGRAM, MODULE NO. A21, COUNTER CELL II

1010985-043 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-471

FINDQTYDRAWINGTITLENOTES
REFX2005071 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A22, INOUT V

1010985-044 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-481

FINDQTYDRAWINGTITLENOTES
REFX2005071 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A22, INOUT V

1010985-045 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-491

FINDQTYDRAWINGTITLENOTES
REFX2005072 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A23, INOUT VI

1010985-046 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-511

FINDQTYDRAWINGTITLENOTES
REFX2005072 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A23, INOUT VI

1010985-047 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-521

FINDQTYDRAWINGTITLENOTES
REFX2005073 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A24, INOUT VII

1010985-048 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-531

FINDQTYDRAWINGTITLENOTES
REFX2005073 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A24, INOUT VII

1010985-049 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-541

FINDQTYDRAWINGTITLENOTES
REFX2005053 SHEET 1LOGIC FLOW DIAGRAM, MODULE NO. A12, PARITY AND S REGISTER

1010985-050 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-551

FINDQTYDRAWINGTITLENOTES
REFX2005050 SHEETS 1&2LOGIC FLOW DIAGRAM, MODULE NO. A21, COUNTER CELL II

1010985-051 — PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING

Reference assembly: 2003083-561

FINDQTYDRAWINGTITLENOTES
REFX2005063 SHEET 2LOGIC FLOW DIAGRAM, MODULE NO. A6, CROSS POINT GENERATOR II

2003000-011 — HEADER HOUSING ASSY, LOGIC MODULE

Reference assemblies: 2003120-011 2003120-021 2003120-031 2003120-041 2003120-051 2003120-071 2003120-081 2003120-111 2003120-121 2003120-131 2003120-141 2003120-151 2003120-161 2003120-171 2003120-181 2003120-191 2003120-211 2003120-221 2003120-231 2003120-241 2003120-251

Warning: For some reference assemblies, a different, unavailable configuration is required: 2003000-021

FINDQTYDRAWINGTITLENOTES
112004025HEADER, LOGIC MODULE
22761006782-1CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
32761006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
412004039TERMINAL, THREADED

2003005-011 — MATRIX ASSEMBLY, SENSE AMPLIFIER MODULE

Reference assembly: 2003043-021

FINDQTYDRAWINGTITLENOTES
112004008-011INSULATOR, MATRIX, SENSE AMPLIFIER MODULE Expanded in more detail: 2004008-011.
2AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006335-002GLASS TAPE
REFX2005016WIRING DIAGRAM, SENSE AMPLIFIER MATRIX

2003008-011 — FEED THRU PLATE ASSEMBLY, ERASABLE MEMORY

Reference assembly: 2003009-011

FINDQTYDRAWINGTITLENOTES
112003008-001FEED THRU PLATE ASSEMBLY, ERASABLE MEMORY
2962004012TERMINAL, ERASABLE MEMORY

2003009-011 — CORE STACK ASSEMBLY, ERASABLE MEMORY

Reference assembly: 2003011-011

FINDQTYDRAWINGTITLENOTES
112003010-011HEADER HOUSING ASSY, ERASABLE MEMORY Expanded in more detail: 2003010-011.
212003008-011FEED THRU PLATE ASSEMBLY, ERASABLE MEMORY Expanded in more detail: 2003008-011.
312004014SIDE PLATE A, ERASABLE MEMORY
412004015SIDE PLATE B, ERASABLE MEMORY
5AR1006711-20WIRE, MAGNET, ELECTRICAL, POLYURETHANE & POLYURETHANE NYLON INSULATED MAGNET WIRE, SPECIFICATION CONTROL DRAWING
621000093-2SCREW BUTTON HEAD
7327681006786MAGNETIC CORE, FERRITE, SPECIFICATION CONTROL DRAWING
REFX2005006SCHEMATIC, ERASABLE MEMORY MODULE (B12) See also: CAD transcription of drawing 2005006- (design files or image files).

2003010-011 — HEADER HOUSING ASSY, ERASABLE MEMORY

Reference assembly: 2003009-011

FINDQTYDRAWINGTITLENOTES
112004026HEADER HOUSING, ERASABLE MEMORY
21331006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
31081006782-4CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
4251006782-5CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003012-011 — DIODE BLOCK ASSEMBLY, ERASABLE MEMORY

Reference assembly: 2003011-011

FINDQTYDRAWINGTITLENOTES
112004016DIODE BLOCK, ERASABLE MEMORY
21922004103DIODE, SILICON RECTIFIER
3AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
6AR1006849-12INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
REFX2005006SCHEMATIC, ERASABLE MEMORY MODULE (B12) See also: CAD transcription of drawing 2005006- (design files or image files).

2003021-001 — GROUND BUS

Reference assemblies: 2003021-001 2007070-041 2007070-051 2007071-031 2007071-041 2007072-031 2007072-041 2007073-041 2007073-051 2007074-031 2007074-041 2007075-031 2007075-041 2007076-031 2007076-041 2007077-031 2007077-041 2007078-031 2007078-041 2007079-031 2007079-041 2007080-031 2007080-041 2007081-031 2007081-041

FINDQTYDRAWINGTITLENOTES
112003021-001GROUND BUS

2003029-011 — AGC POWER SUPPLY CONTROL CIRCUIT SUB-ASSY

Reference assembly: 2003056-011

FINDQTYDRAWINGTITLENOTES
112004058WIRING BOARD, TOP, CONTROL CIRCUIT
212004059WIRING BOARD, BOTTOM, CONTROL CIRCUIT
342004054SPACER, INSULATED, AGC POWER SUPPLY
411006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
511006750-11RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
631006750-15RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
711006750-16RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
811006760-22RESISTORS, FIXED METAL FILM, 1/2 WATT, SPECIFICATION CONTROL DRAWING
971006750-24RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1011006750-28RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1131006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1211006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1331006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1421006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1511006750-54RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1611006750-64RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1711006750-65RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1811006750-141RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
1911006750-145RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2011006788-10RESISTOR, FIXED, WIREWOUND, SPECIFICATION CONTROL DRAWING
2121006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2211006755-14CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2311006755-57CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
2411006777-31CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
2511006777-28CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
2611006793-30CAPACITOR, FIXED, GLASS DIELECTRIC
2742004103-001DIODE
2812004112-002DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-002.
2911010376-3TRANSISTOR, NPN, SILICON, DUALSECTION, SPECIFICATION CONTROL DRAWING
3052004004-003TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-003.
3122004004-004TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-004.
32AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
33AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
34AR1006757-9WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
35AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
36AR1006776-21INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
37AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
3842004154TERMINAL, LUG
3911006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
REFX2005010SCHEMATIC, AGC POWER SUPPLY, A30-A31 See also: CAD transcription of drawing 2005010F (design files or image files).

2003031-011 — MATRIX ASSEMBLY, CURRENT SWITCH MODULE

Reference assembly: 2003026-011

FINDQTYDRAWINGTITLENOTES
112004077INSULATOR, MATRIX, CURRENT SWITCH MODULE Expanded in more detail: 2004077.
2AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006335GLASS TAPE
5AR1006318ADHESIVE, PRESSURE-SENSITIVE, FILM-RELEASE PAPER MOUNTED, SPECIFICATION CONTROL DRAWING
REFX2005013WIRING DIAGRAM, CURRENT SWITCH MATRIX

2003032-011 — HEADER HOUSING ASSY, ALARM MODULE

Reference assembly: 2003169-011

FINDQTYDRAWINGTITLENOTES
112004146HEADER HOUSING, ALARM MODULE
21381006782-1CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
31381006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003033-011 — HEADER HOUSING ASSY, CURRENT SWITCH MODULE

Reference assembly: 2003026-011

FINDQTYDRAWINGTITLENOTES
112004020HEADER HOUSING, CURRENT SWITCH MODULE Expanded in more detail: 2004020.
21381006782-1CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
31381006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003035-011 — OSCILLATOR SUB ASSEMBLY, MODULE NO. B7

Reference assembly: 2003036-011

FINDQTYDRAWINGTITLENOTES
112004060COMPONENT HOLDER, AGC OSCILLATOR MODULE NO. B7 Expanded in more detail: 2004060.
2ARSEE NOTE 4 & 23TAPE, ADHESIVE, AL BACKED
3AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006757-24WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
6AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
7AR1006776-25INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
81SEE NOTE 13CAPACITOR
911006793-89CAPACITOR, FIXED, GLASS DIELECTRIC
1041006793-87CAPACITOR, FIXED, GLASS DIELECTRIC
1211006755-69CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
1311006755-79CAPACITOR FIXED, ELECTROLYTIC, SOLID TANTALUM, SPECIFICATION CONTROL DRAWING
1421006777-32CAPACITOR, FIXED, CERAMIC DIELECTRIC, SPECIFICATION CONTROL DRAWING
1512004112-001DIODE, ZENER (FLIGHT QUALIFIED) Expanded in more detail: 2004112-001.
1611006700-1SEMICONDUCTOR DEVICE, VOLTAGE VARIABLE CAPACITOR, SPECIFICATION CONTROL DRAWING
1732004103-001DIODE
1811006324COIL, VARIABLE, SPECIFICATION CONTROL DRAWING
1911010406-12COIL, RF, CHOKE, SPECIFICATION CONTROL DRAWING
2011006847CRYSTAL UNIT, QUARTZ
2111006715-1RESISTOR, TEMPERATURE VARIABLE, NEGATIVE COEF, SPECIFICATION CONTROL DRAWING
2211006712-3RESISTOR, TEMPERATURE SENSITIVE, WAFER, SPECIFICATION CONTROL DRAWING
2311006291RESISTOR, THERMAL – POS TEMP COEF, SOURCE CONTROL DRAWING
2442004004-005TRANSISTOR, SILICON (FLIGHT QUALIFIED) Expanded in more detail: 2004004-005.
2542004092INSULATOR
2611006714RESISTOR, FIXED, WIREWOUND, POSITIVE TEMP COEF, SPECIFICATION CONTROL DRAWING
2711006750-25RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2821006750-84RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
2941006750-39RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3011006750-80RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3111006750-8RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3211006750-56RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3311006750-62RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3411006750-55RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3511006750-36RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3611006750-1RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3711006750-34RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
381SEE NOTE 13RESISTOR
3911006750-43RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4111006750-27RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
REFX2005003SCHEMATIC, CLOCK OSCILLATOR, MODULE NO. B7 See also: CAD transcription of drawing 2005003E (design files or image files).

2003042-011 — MATRIX ASSEMBLY, ROPE DRIVER MODULE

Reference assembly: 2003040-011

FINDQTYDRAWINGTITLENOTES
112004087-011INSULATOR, MATRIX, ROPE DRIVER MODULE Expanded in more detail: 2004087-011.
2AR1006757-1WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
3AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
4AR1006335-002GLASS TAPE
REFX2005014WIRING DIAGRAM, ROPE DRIVER MODULE

2003044-011 — HEADER HOUSING ASSY, SENSE AMPLIFIER MODULE

Reference assembly: 2003043-021

FINDQTYDRAWINGTITLENOTES
112004094HEADER HOUSING, SENSE AMPLIFIER MODULE
21381006782-1CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
31381006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003045-011 — BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151

FINDQTYDRAWINGTITLENOTES
112004072BLOCK, COMPONENT, DIODE, FIXED MEMORY MODULE
21922004103-002DIODE, MATCHED PAIR
3AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
REFX2005012SCHEMATIC, FIXED MEMORY MODULE, B1-6 See also: CAD transcription of drawing 2005012B (design files or image files).

2003045-021 — BLOCK COMPONENT DIODE ASSEMBLY, FIXED MEMORY MODULE

Reference assemblies: 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
112004072BLOCK, COMPONENT, DIODE, FIXED MEMORY MODULE
3AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
41922004183-002DIODE (FLIGHT QUALIFIED) Expanded in more detail: 2004183-002.
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2003046-011 — CONNECTOR PLATE ASSEMBLY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151

FINDQTYDRAWINGTITLENOTES
112004075CONNECTOR PLATE, FIXED MEMORY MODULE
22MS16555-618PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)
312004039TERMINAL, THREADED
4961006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
5481006782-1CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
6481006782-15CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003048-011 — BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151

FINDQTYDRAWINGTITLENOTES
112004073BLOCK, RESISTOR-DIODE, FIXED MEMORY MODULE
2162004103-002DIODE, MATCHED PAIR
3321006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
REFX2005012SCHEMATIC, FIXED MEMORY MODULE, B1-6 See also: CAD transcription of drawing 2005012B (design files or image files).

2003048-021 — BLOCK, RESISTOR-DIODE ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
112004073BLOCK, RESISTOR-DIODE, FIXED MEMORY MODULE
3321006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
4AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
5AR1006757-8WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
6162004183-002DIODE (FLIGHT QUALIFIED) Expanded in more detail: 2004183-002.
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2003049-011 — CORE HOLDER ASSY, SIDE A, FIXED MEMORY MODULE

Reference assemblies: 2003060-121 2003060-151 2003060-261

FINDQTYDRAWINGTITLENOTES
112004067CORE HOLDER, FIXED MEMORY MODULE
42162004069-001TERMINAL, TURRET, FIXED MEMORY MODULE
52172004069-002TERMINAL, TURRET, FIXED MEMORY MODULE
72561006320-001CORE, MAGNETIC, SPECIFICATION CONTROL DRAWING
8AR1006275-1WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING

2003050-011 — CORE HOLDER ASSY, SIDE B, FIXED MEMORY MODULE

Reference assemblies: 2003061-121 2003061-151 2003061-261

FINDQTYDRAWINGTITLENOTES
112004067CORE HOLDER, FIXED MEMORY MODULE
42162004069-001TERMINAL, TURRET, FIXED MEMORY MODULE
52172004069-002TERMINAL, TURRET, FIXED MEMORY MODULE
72561006320-001CORE, MAGNETIC, SPECIFICATION CONTROL DRAWING
8AR1006275-1WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING

2003051-011 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-19INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-012 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-20INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-013 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-19INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-014 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-20INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-015 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-21INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-016 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-22INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-017 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-23INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003051-018 — MATRIX ASSY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
1AR1006806-22INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
2AR1006757-12WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003052-011 — COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003053-151

FINDQTYDRAWINGTITLENOTES
112004064COMPONENT BLOCK, RESISTOR, FIXED MEMORY MODULE
21921006750-32RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
3AR1006757-2WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
REFX2005012SCHEMATIC, FIXED MEMORY MODULE, B1-6 See also: CAD transcription of drawing 2005012B (design files or image files).

2003052-021 — COMPONENT BLOCK, RESISTOR ASSEMBLY, FIXED MEMORY MODULE

Reference assemblies: 2003972-041 2003972-071 2003972-211

FINDQTYDRAWINGTITLENOTES
112004064COMPONENT BLOCK, RESISTOR, FIXED MEMORY MODULE
3AR1006757-2WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING
41921006750-30RESISTOR, FIXED FILM, INSULATED 1/4 WATT, SPECIFICATION CONTROL DRAWING
REFX2005935SCHEMATIC, FIXED MEMORY MODULE, MODULE NO. B1-6

2003057-011 — HEADER HOUSING ASSY, POWER SUPPLY MODULE

Reference assembly: 2003056-011

FINDQTYDRAWINGTITLENOTES
112004105HEADER HOUSING, POWER SUPPLY
2771006782-7CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
3771006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003060-121 — SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003972-041

FINDQTYDRAWINGTITLENOTES
112003049-011CORE HOLDER ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003049-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER

2003060-151 — SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE

Reference assemblies: 2003053-151 2003972-071

FINDQTYDRAWINGTITLENOTES
112003049-011CORE HOLDER ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003049-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER

2003060-261 — SENSE WIRING ASSY, SIDE A, FIXED MEMORY MODULE

Reference assembly: 2003972-211

FINDQTYDRAWINGTITLENOTES
112003049-011CORE HOLDER ASSY, SIDE A, FIXED MEMORY MODULE Expanded in more detail: 2003049-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER

2003061-121 — SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE

Reference assemblies: 2003053-121 2003972-041

FINDQTYDRAWINGTITLENOTES
112003050-011CORE HOLDER ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003050-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER
5AR1006806-8INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING

2003061-151 — SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE

Reference assemblies: 2003053-151 2003972-071

FINDQTYDRAWINGTITLENOTES
112003050-011CORE HOLDER ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003050-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER
5AR1006806-8INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING

2003061-261 — SENSE WIRING ASSY, SIDE B, FIXED MEMORY MODULE

Reference assembly: 2003972-211

FINDQTYDRAWINGTITLENOTES
112003050-011CORE HOLDER ASSY, SIDE B, FIXED MEMORY MODULE Expanded in more detail: 2003050-011.
2AR1006275-2WIRE, ELECTRICAL, MAGNET, FILM INSULATION (T2), SPECIFICTION CONTROL DRAWING
3AR1012507-001TAPE, LACING AND TYING
4132004896SPACER
5AR1006806-8INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING

2003062-011 — TRAY A SUBASSEMBLY, AGC

Reference assembly: 2003074-021

FINDQTYDRAWINGTITLENOTES
112004116TRAY A, INSEPARABLE ASSY, AGC Expanded in more detail: 2004116.
275991006781-3CONTACT, WRAPOST, FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
32401006781-5CONTACT, WRAPOST, FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
478391006774INSULATOR, WRAPOST-FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
52402004127BUSHING, AGC
6AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
73731008819-001SLEEVE, GROUNDING – SUB-MINIATURE, FEMALE, SPECIFICATION CONTROL DRAWING
83731008818-002CONTACT, ELECTRICAL-WRAPOST, SUB-MINIATURE, FEMALE, GROUNDING, SPECIFICATION CONTROL DRAWING

2003063-011 — TRAY B SUBASSEMBLY, AGC

Reference assembly: 2003075-021

FINDQTYDRAWINGTITLENOTES
112004117TRAY B, INSEPARABLE ASSY, AGC Expanded in more detail: 2004117.
22401006782-9CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
32401006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
415051006781-3CONTACT, WRAPOST, FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
515051006774INSULATOR, WRAPOST-FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
62402004127BUSHING, AGC
7AR1006776-20INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
81081008819-001SLEEVE, GROUNDING – SUB-MINIATURE, FEMALE, SPECIFICATION CONTROL DRAWING
91081008818-002CONTACT, ELECTRICAL-WRAPOST, SUB-MINIATURE, FEMALE, GROUNDING, SPECIFICATION CONTROL DRAWING

2003064-011 — CONNECTOR B42 SUBASSEMBLY, FIXED MEMORY

Reference assembly: 2003059-011

FINDQTYDRAWINGTITLENOTES
112004102-011CONNECTOR B42, FIXED MEMORY Expanded in more detail: 2004102-011.
2751006782-8CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
3751006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003065-011 — CONNECTOR B41 SUBASSEMBLY, FIXED MEMORY

Reference assembly: 2003059-011

FINDQTYDRAWINGTITLENOTES
112004101-011CONNECTOR B41, FIXED MEMORY Expanded in more detail: 2004101-011.
2751006782-8CONTACT, WRAPOST, MALE, MINIATURE, SPECIFICATION CONTROL DRAWING
3751006775INSULATOR, WRAPOST-MALE, MINIATURE, SPECIFICATION CONTROL DRAWING

2003066-011 — INTERCONNECTION HEADER SUBASSEMBLY, FIXED MEMORY

Reference assembly: 2003059-011

FINDQTYDRAWINGTITLENOTES
112004135INTERCONNECTION HEADER, FIXED MEMORY Expanded in more detail: 2004135.
25761006781-2CONTACT, WRAPOST, FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
35761006774INSULATOR, WRAPOST-FEMALE, MINIATURE, SPECIFICATION CONTROL DRAWING
44MS16555-617PIN, STRAIGHT, HEADLESS (DOWEL) (.0002 OVER NOMINAL SIZE)

2003077-011 — INSULATOR B ASSEMBLY PHOTOGRAPHIC MASTER, ALARM MODULE

Reference assembly: 2003169-011

FINDQTYDRAWINGTITLENOTES
112003077-001INSULATOR B ASSEMBLY PHOTOGRAPHIC MASTER, ALARM MODULE
2AR1006318ADHESIVE, PRESSURE-SENSITIVE, FILM-RELEASE PAPER MOUNTED, SPECIFICATION CONTROL DRAWING

2003080-011 — BUS STRIP ASSEMBLY

Reference assembly: 2003074-021

FINDQTYDRAWINGTITLENOTES
112004143-001INSULATOR
222004140-002BUS STRIP

2003081-011 — BUS STRIP ASSEMBLY

Reference assembly: 2003074-021

FINDQTYDRAWINGTITLENOTES
112004143-002INSULATOR
222004140-001BUS STRIP

2003083-011 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-011

FINDQTYDRAWINGTITLENOTES
111010985-001PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-001.
2581004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-021 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-011

FINDQTYDRAWINGTITLENOTES
111010985-002PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-002.
2581004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-031 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-021

FINDQTYDRAWINGTITLENOTES
111010985-003PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-003.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-041 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-021

FINDQTYDRAWINGTITLENOTES
111010985-004PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-004.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-051 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-031

FINDQTYDRAWINGTITLENOTES
111010985-005PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-005.
2571004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-061 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-031

FINDQTYDRAWINGTITLENOTES
111010985-006PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-006.
2591004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-071 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-041

FINDQTYDRAWINGTITLENOTES
111010985-007PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-007.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-081 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-041

FINDQTYDRAWINGTITLENOTES
111010985-008PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-008.
2591004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-091 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-051

FINDQTYDRAWINGTITLENOTES
111010985-009PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-009.
2551004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-111 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-051

FINDQTYDRAWINGTITLENOTES
111010985-010PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-010.
2561004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-121 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-251

FINDQTYDRAWINGTITLENOTES
111010985-011PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-011.
2581004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-141 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-071

FINDQTYDRAWINGTITLENOTES
111010985-013PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-013.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-151 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-071

FINDQTYDRAWINGTITLENOTES
111010985-014PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-014.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-161 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-081

FINDQTYDRAWINGTITLENOTES
111010985-015PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-015.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-171 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-081

FINDQTYDRAWINGTITLENOTES
111010985-016PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-016.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-261 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-241

FINDQTYDRAWINGTITLENOTES
111010985-024PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-024.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-271 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-111

FINDQTYDRAWINGTITLENOTES
111010985-025PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-025.
2541004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-291 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-121

FINDQTYDRAWINGTITLENOTES
111010985-027PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-027.
2591004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-311 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-121

FINDQTYDRAWINGTITLENOTES
111010985-028PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-028.
2591004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-321 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-131

FINDQTYDRAWINGTITLENOTES
111010985-029PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-029.
2571004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-331 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-131

FINDQTYDRAWINGTITLENOTES
111010985-030PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-030.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-341 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-141

FINDQTYDRAWINGTITLENOTES
111010985-031PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-031.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-351 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-141

FINDQTYDRAWINGTITLENOTES
111010985-032PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-032.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-361 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-151

FINDQTYDRAWINGTITLENOTES
111010985-033PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-033.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-371 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-151

FINDQTYDRAWINGTITLENOTES
111010985-034PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-034.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-381 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-161

FINDQTYDRAWINGTITLENOTES
111010985-035PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-035.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-391 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-161

FINDQTYDRAWINGTITLENOTES
111010985-036PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-036.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-411 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-171

FINDQTYDRAWINGTITLENOTES
111010985-037PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-037.
2601004301-001DUAL NOR GATE (FLAT PACK) (FLIGHT QUALIFIED) Expanded in more detail: 1004301-001.
4AR1006776-22INSULATION, SLEEVING, ELECTRICAL, SPECIFICATION CONTROL DRAWING
5AR1006806-17INSULATION TAPE, ELECTRICAL, THERMOSETTING ADHESIVE, SPECIFICATION CONTROL DRAWING
6AR2003989TAPE, ADHESIVE, AGC LOGIC MODULE
7AR1006757-27WIRE, ELECTRICAL, NICKEL, ROUND, SQUARE, AND RECTANGULAR, SPECIFICATION CONTROL DRAWING

2003083-421 — CIRCUIT BOARD ASSEMBLY (TABULATED)

Reference assembly: 2003120-171

FINDQTYDRAWINGTITLENOTES
111010985-038PRINTED CIRCUIT BOARD, SPECIFICATION CONTROL DRAWING Expanded in more detail: 1010985-038.
2591004301-001DU
