Photo #: NH 105044

Ship and Motor-Boat Bells

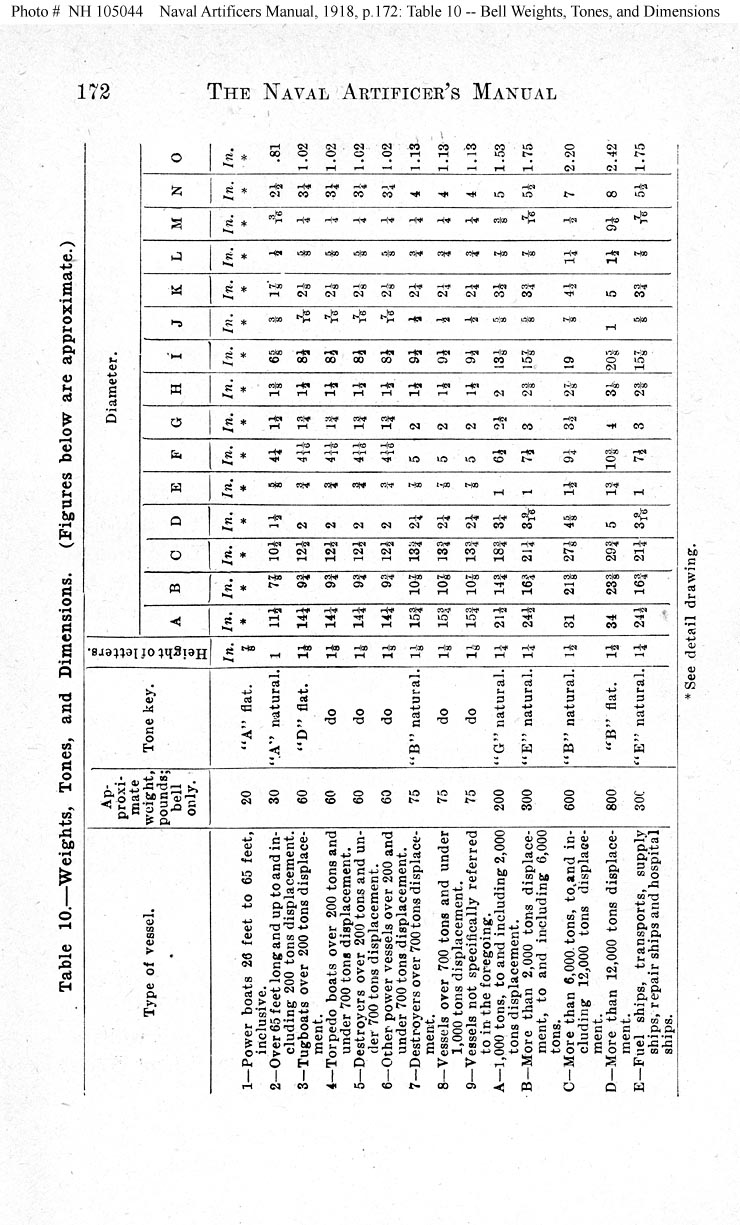

Table 10 (page 172) of "The Naval Artificer's Manual", compiled and arranged by Assistant Naval Constructor (T) McCall Pate, USN, 1918. This page provides a table of Weights, Tones, and Dimensions for U.S. Navy Ship and Motor Boat Bells.
See Photo # NH 105043 for the first page of text concerning these bells, Photo # NH 105045 for the second page of text, with a drawing of a Ship Bell, and Photo # NH 105046 for a drawing of a Motor Boat Bell.

U.S. Naval Historical Center Photograph.

Online Image: 204KB; 740 x 1225 pixels

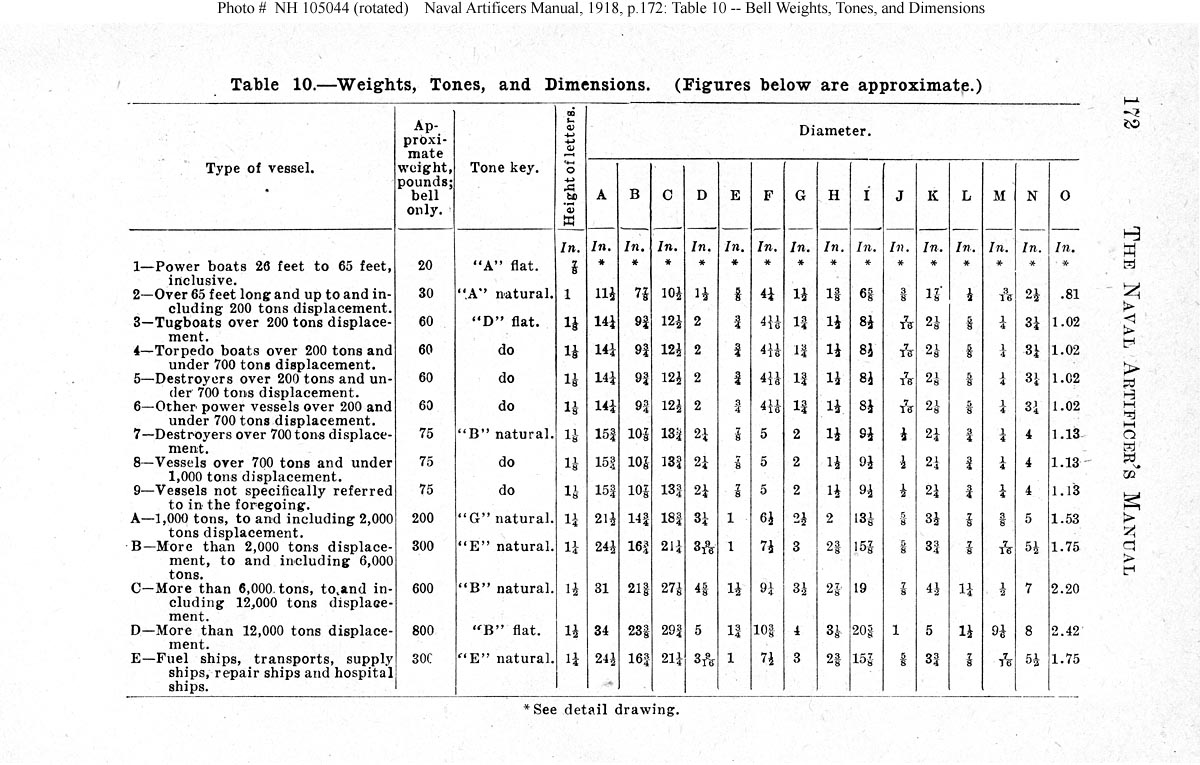

For a view of this page rotated
