Photo #: NH 105045

Ship and Motor-Boat Bells

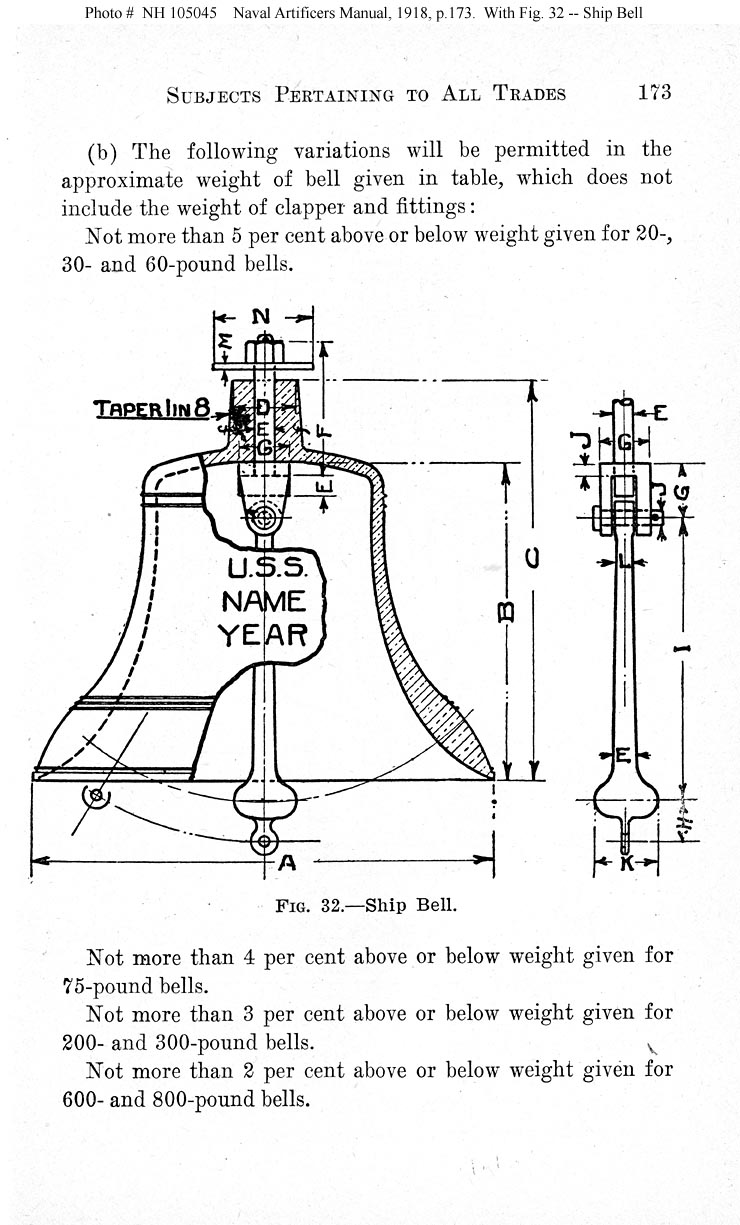

Page 173 of "The Naval Artificer's Manual", compiled and arranged by Assistant Naval Constructor (T) McCall Pate, USN, 1918. This page provides the second page of text concerning the specifications for, and manufacture of, U.S. Navy Ship and Motor Boat Bells, plus Figure 32, a drawing of a Ship Bell with a key to the dimensions of bells of different sizes.
See Photo # NH 105043 for the first page of text concerning these bells, Photo # NH 105044 for a table of Weights, Tones, and Dimensions for these bells, and Photo # NH 105046 for a drawing of a Motor Boat Bell.

U.S. Naval Historical Center Photograph.

Online Image: 148KB; 740 x 1225 pixels



Click on the small photograph to prompt a larger view of the same image.
